Homemade Tensioner


Ash-Kennard

Recommended Posts

Have you tried it yet. From what I can see in the picture I think the chains going to wear into the tape and surely the whole thing will just fall apart, unless theres something I cant see.

I have yes, It stay in place well. not 100% of the time. need to work on that! and the only thing else thats holding it in place is a few zipties

LMAO Matt, is that jsut bash plate rubber?! Well done, nice and functional!

Yes, it is indeed! Got bored. There is a half link in the chain that helps.

Link to comment
Share on other sites

Am i the one of the very few people who have made a my own tensioner and that still has it working? mine is working still and beautifully at that! have to say that it is the bets thing i have ever made for my bike!

Adam

Link to comment
Share on other sites

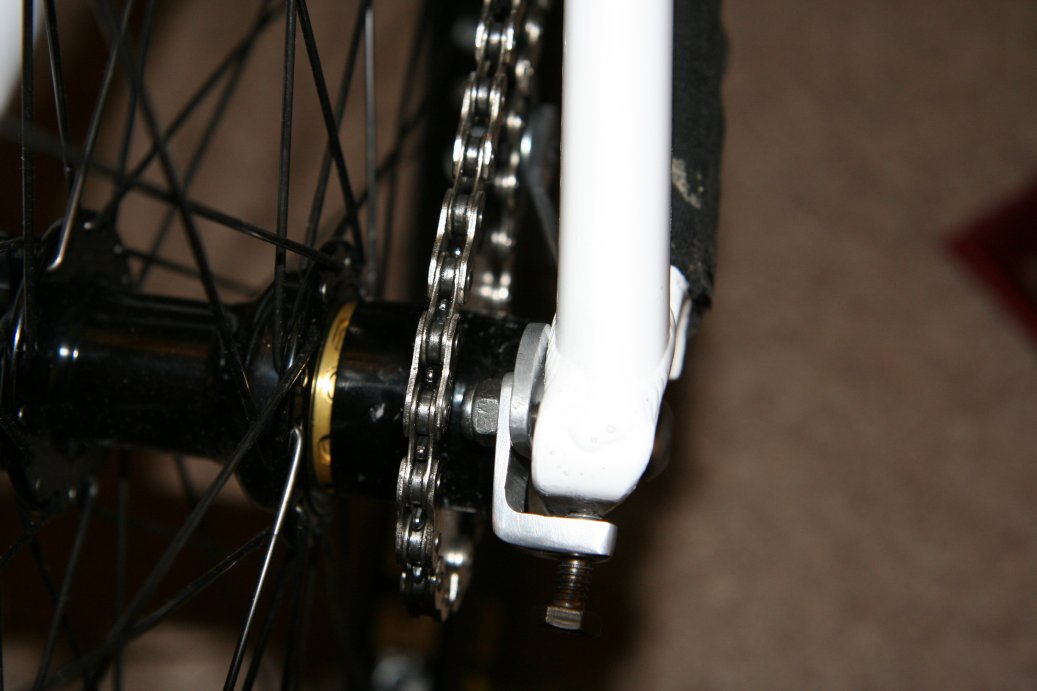

just made a tensioner out of a spanner since my last post! it pulls the tension in rather than pushing it out which i preffer.

i am yet to see how it performs but it seems all ok on the spare frame which i have set it up on!

Link to comment
Share on other sites

Am i the one of the very few people who have made a my own tensioner and that still has it working? mine is working still and beautifully at that! have to say that it is the bets thing i have ever made for my bike!

Adam

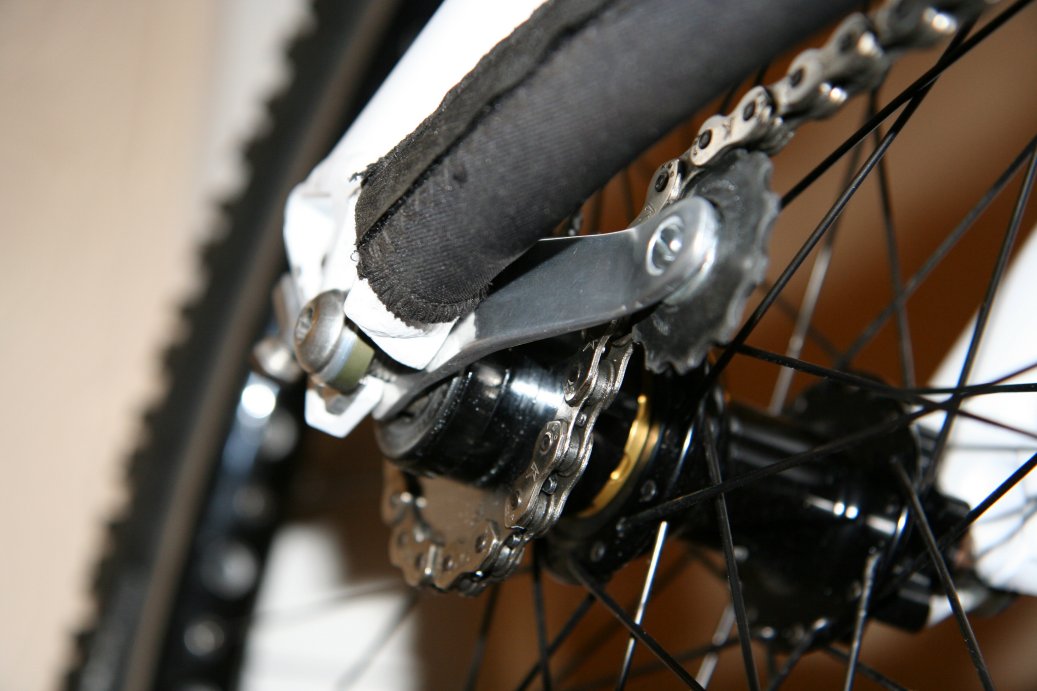

The 3 i've made work a treat. This is the latest configuration. I keep making them because I find simpler ways of doing it. This is a keeper. Now complete with blanking replaceable dropout plate.



Link to comment
Share on other sites

how is the arm on that free to move ? isnt it clamped by the axle ?

im guessing the only way you could of done it would be to fit it over the axle ? in that case i would be worried of it catching the freehub body and giving me some pain...

Link to comment
Share on other sites

how is the arm on that free to move ? isnt it clamped by the axle ?

im guessing the only way you could of done it would be to fit it over the axle ? in that case i would be worried of it catching the freehub body and giving me some pain...

It isn't but im guessing that it just works like a fixed tensioner apart from that when the tensioner trys to move like they always do the spring will hold it in place. Keeping the tension.

I may try making one the same but with a pivot half way.

Edited by andy h
Link to comment
Share on other sites

It isn't but im guessing that it just works like a fixed tensioner apart from that when the tensioner trys to move like they always do the spring will hold it in place. Keeping the tension.

I may try making one the same but with a pivot half way.

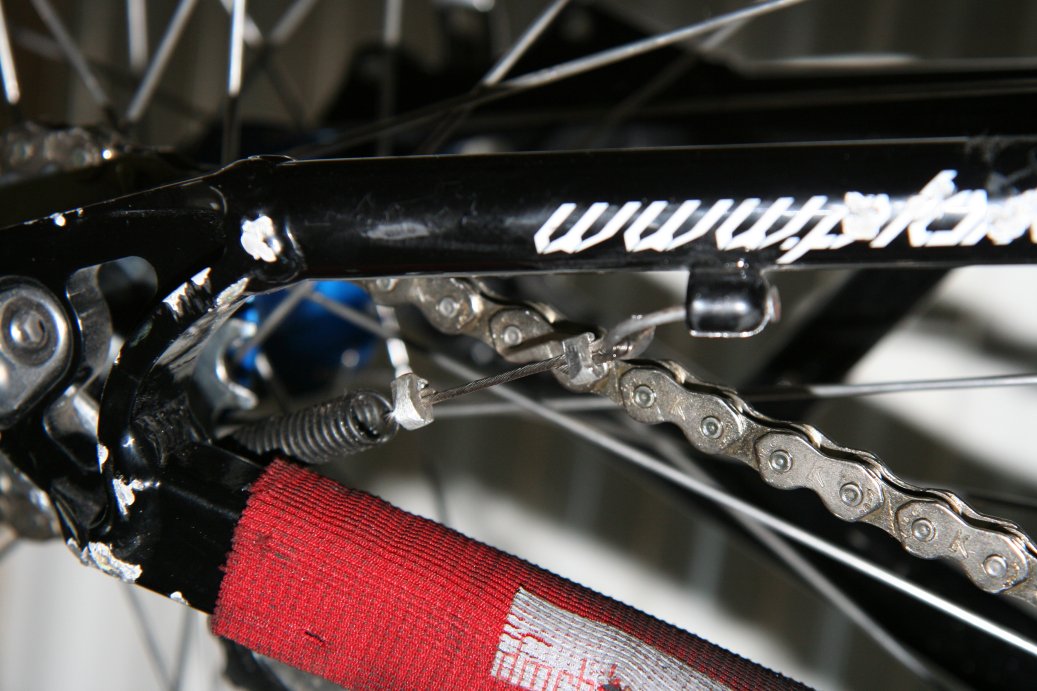

The spring is from a dead sora mech

The arm fits over the axle and is free to move. There is no way it will ever get snagged. Check it out next time I see you out Rowan and decide for yourself.

A pivot half way isnt necessary. The spring is essential to hold the tension in this version. If I go to a frame with no cable guide then i'll make a clamp to suit the seat stay. You can set the tension by the length of the cable holding the spring but it doesnt need much to hold it.

Link to comment
Share on other sites
