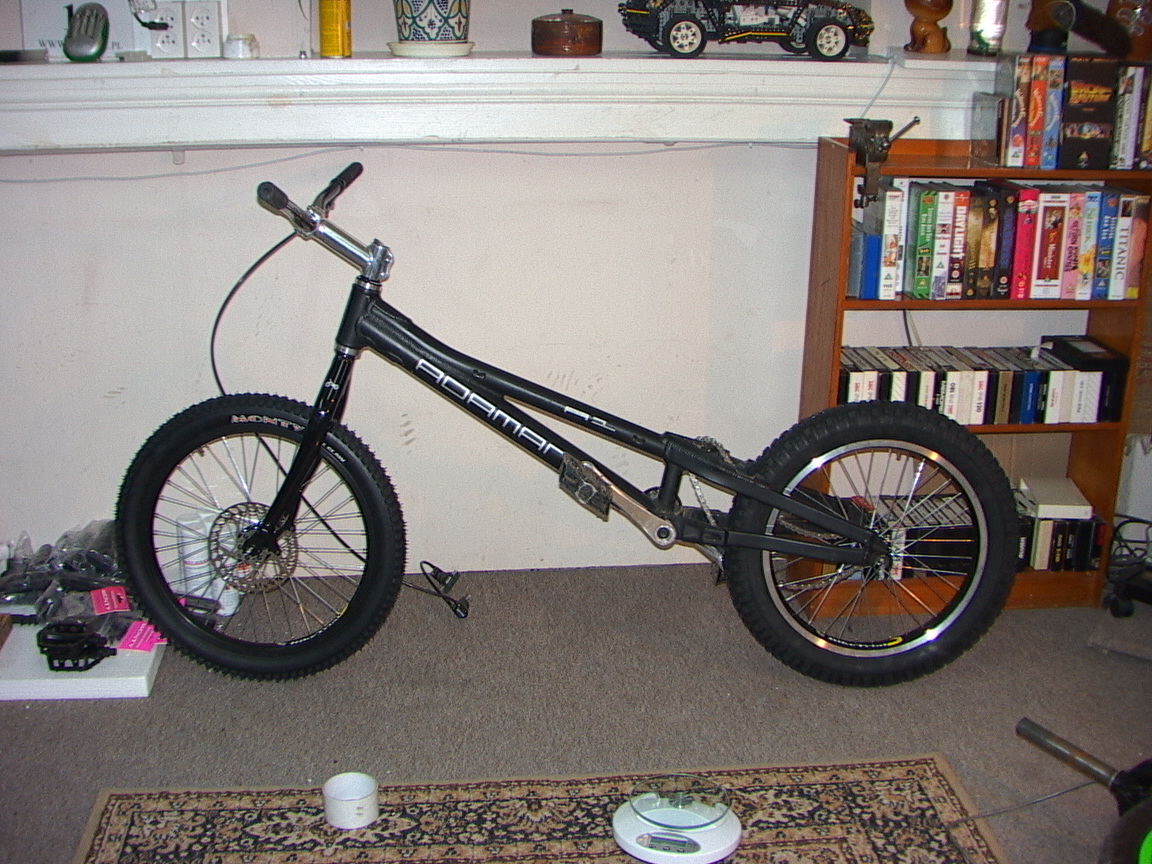

Greetings Posted March 14, 2007 Report Share Posted March 14, 2007 (edited) Ok, so here's the story. I'm changing frames to something a bit more user-friendly soon, but also want to build up a mod for under 120 quid. Since I'm not into short mods any more, I'd have to buy a Deng frame (instead of a Monty which I can get cheap) = lots of $$$ which I don't want to spend. I've got tonnes of Monty stuff at home, and soon a spare frame, being the A1So instead of buying a mod frame which will cost me money, I have thought of using the A1 frame to build up a mod. Now this does complicate matters a bit, but only a bit.Final geometry of the bike will be:Wheelbase: 1062mmBB rise: +50mmChainstays: 372mmGear ratio: 18:12 hopefully without any need of chain tensioningThe geometry is almost identical to a Python, but longer. So the bike will have a mod feel to it, with a cockpit only slightly longer than in other mod frames. The stem be changed to an Echo Team or 130x20 Try-All and the bars to 740mm 221Ti's making the riding position a bit more friendly.Looking at this idea, one would ask a few questions: how will the brake work, will the chain line be ok, will the tyre clearance be alright, and what rear hub will be used.-The chain line is my biggest problem as it will probably mean getting a narrower bb and this will stretch my budget by at least 30 quid - from now on I don't want to spend a penny.-The tyre clearance is fine, even with the 2.6" Eagle Claw I will be using.-I will also be using a 110mm spaced disc hub which is on it's way to me. This is also how I will resolve the brake problem - the bike will be dual disc, accomodating a 160mm Mono Trial on a 15mm thick PA6 disc adaptor mounted on the inside of the frame (this will also compensate for the missing 15 out of 25mm of the hub). All together, much easier than making some kind of adaptors for an HS33 brake.Here are some pics of the bike provisionally put together. I have ridden it a bit just doing some spins without the chain and brakes and it feels great.And the block of aluminum that will soon be a brake mount. The wheel put on the frame is random, new one will be built up within a week. Edited April 17, 2007 by Inur Quote Link to comment Share on other sites More sharing options...
Luke Rainbird Posted March 14, 2007 Report Share Posted March 14, 2007 I was going to do this with 24" wheels, to see how a longer, compy style 24" might feelKeep us up to date, because I for one am interested, and I'm sure many others are too! Quote Link to comment Share on other sites More sharing options...
Mr Plod Posted March 14, 2007 Report Share Posted March 14, 2007 Haha! This sounds like an awesome project!!! Deffo keep us upto date with it. And if you don't like having the A1 as a mod i'd deffo buy it off you Quote Link to comment Share on other sites More sharing options...
Davetrials Posted March 14, 2007 Report Share Posted March 14, 2007 oooooooo a decent project, better than that claud butler bike lol sum guy was building. Quote Link to comment Share on other sites More sharing options...
Danny Swindlehurst Posted March 14, 2007 Report Share Posted March 14, 2007 haha wat a beast project ! !bet it will be arkward to lift up the front end especialy with that stem and the length of the bike ! !should turn out pritty beast though danny Quote Link to comment Share on other sites More sharing options...
JoNnY__Mc Posted March 14, 2007 Report Share Posted March 14, 2007 cool project sounds like you have considered all the problems and found resolutions wonder how it will ride does looks mega so far... for some reason it does seem to suit the role of a mod frame pretty well... someone make a mod out of a 1100 marc vinco or gu!!!! Quote Link to comment Share on other sites More sharing options...
Ash-Kennard Posted March 14, 2007 Report Share Posted March 14, 2007 good idea, could ride quite well Quote Link to comment Share on other sites More sharing options...
Walleee Posted March 14, 2007 Report Share Posted March 14, 2007 fook me!!!!!Are you going to make that disc adapter by hand or get it CNC'd? Quote Link to comment Share on other sites More sharing options...
poopipe Posted March 14, 2007 Report Share Posted March 14, 2007 fook me!!!!!Are you going to make that disc adapter by hand or get it CNC'd?he'll use his teeth like the last one he built I should imagine Quote Link to comment Share on other sites More sharing options...
Alex.loves.boys Posted March 14, 2007 Report Share Posted March 14, 2007 haha wat a beast project ! !bet it will be arkward to lift up the front end especialy with that stem and the length of the bike ! !should turn out pritty beast though dannyRead it mate.hes gettin a higher stem and bars.Inur, you beast:Pbe sure to get video footage when u get this monster up and running/ Quote Link to comment Share on other sites More sharing options...
PaRtZ Posted March 14, 2007 Report Share Posted March 14, 2007 hahahaha nice one inur sounds ace, hope it works man Quote Link to comment Share on other sites More sharing options...
Greetings Posted March 14, 2007 Author Report Share Posted March 14, 2007 (edited) That's it for the time being, need my new wheel to be able to do the rest.1st time I've done something in aluminum, it's sooo easy to work on!EDIT:Ok, definitely the end for today. Basically what I have done up till now was to space the mount correctly so the holes are in the right place for a 160mm rotor.The adaptor has the right shape for the frame, neither the welds nor tubing get in the way. What I have left for tomorrow is to think of a way to fix it to the frame. I will definitely be drilling one hole in the dropout and working out some kind of brace system to mount it to the top tube on the chainstays. My dad who's an engineer wants to bet me as much as the frame is worth that it won't snap if I just secure the adaptor to the dropout with 2 screws and the hub funbolt. Not sure I want to go for such a deal, even I do get the money back I won't be able to buy one of these beasts any more. More in a few days. Edited March 14, 2007 by Inur Quote Link to comment Share on other sites More sharing options...
20inchsuperstar Posted March 14, 2007 Report Share Posted March 14, 2007 inur you sexy man beast, that looks awesome!!!if that works, it will be sooo cool.good luck man,matt Quote Link to comment Share on other sites More sharing options...
gary_netlier Posted March 14, 2007 Report Share Posted March 14, 2007 hahahaha nice one inur sounds ace, hope it works manLooking forward to see it complete. That's beast...... The rear disc adapter is awesome. Quote Link to comment Share on other sites More sharing options...
chrishayton Posted March 14, 2007 Report Share Posted March 14, 2007 (edited) , even I do get the money back I won't be able to buy one of these beasts any more. .However you could just buy a long adament or a python lol. great idea i always wondered what it would be like, i then thought how awful it would be putting little wheels on a stock. Edited March 15, 2007 by chrishayton Quote Link to comment Share on other sites More sharing options...
Thurston Posted March 15, 2007 Report Share Posted March 15, 2007 However you could just buy a long adament or a python lol. great idea i always wondered what it would be like, i then thought how awful it would be putting little wheels on a stock.He doesnt want to waste money on a new frame which is why hes had this ideaLooks mint to say the least, really want to see the final outcome Quote Link to comment Share on other sites More sharing options...
deanie-b Posted March 15, 2007 Report Share Posted March 15, 2007 This looks sick Inur.I've tried something like this before, I gave up about an hour after starting .Hope you can stick with it!I'm personally very interested as to how it will ride! Quote Link to comment Share on other sites More sharing options...
Greetings Posted March 15, 2007 Author Report Share Posted March 15, 2007 (edited) The project has reached a brief standstill, my hub still hasn't been sent to me although I was expecting it today I am however collecting my new stock frame tomorrow morning so this will allow me to work on the Adamant and have a bike to ride at the same time. About time, f**ked 2 threads in the Maggie mounts today . Also been thinking about how to mount the adaptor and I'm going to have a bet with my dad and do it his way. Will be much neater!What still needs to be done:-Have a thin bashring made-Get hold of a 18T freewheel, 12T screw on sprocket and a Team stem-Have my 221Ti bars extended to 740mm-Mount the adaptor to the frame-Check when the hub has arrived if everything fits as planned-Get the wheel built-RIDE!!!!Really excited about all this, also very motivated with the support from you guys.Should have everything running by the end of next week if I get hold of a freewheel! Edited March 15, 2007 by Inur Quote Link to comment Share on other sites More sharing options...
Walleee Posted March 15, 2007 Report Share Posted March 15, 2007 Please show us how you extended those bars, im wanting to see if you boys are right about them with a bit more width Quote Link to comment Share on other sites More sharing options...
Greetings Posted March 18, 2007 Author Report Share Posted March 18, 2007 Please show us how you extended those bars, im wanting to see if you boys are right about them with a bit more width Quote Link to comment Share on other sites More sharing options...
Greetings Posted March 26, 2007 Author Report Share Posted March 26, 2007 Posting for Jake:219M stdZOO old style bars221Ti 740And a close-up:The ones shown on the pic are for 219M bars which have a thicker sidewall. Bottom one is for 720mm and top one for 740mm Quote Link to comment Share on other sites More sharing options...
Davetrials Posted March 26, 2007 Report Share Posted March 26, 2007 how do they stay in there? Quote Link to comment Share on other sites More sharing options...
Walleee Posted March 26, 2007 Report Share Posted March 26, 2007 same way your butt plug stays in Thanks inur I really appreciate that. Quote Link to comment Share on other sites More sharing options...
Watson© Posted March 26, 2007 Report Share Posted March 26, 2007 Is that what Ali C done to his Monty bars?? Beast of an Idea Quote Link to comment Share on other sites More sharing options...
Ash-Kennard Posted March 26, 2007 Report Share Posted March 26, 2007 Is that what Ali C done to his Monty bars?? Beast of an Idea similar, but he just wedged lumps of dowel into his Quote Link to comment Share on other sites More sharing options...
