ben_travis Posted December 26, 2006 Report Share Posted December 26, 2006 Right, i just had my axle threaded on my deng hub. i want bigger stronger stiffer bolts for the axle, but due to the thread pitch this doesnt seem possible. SO......my question is.....does anyone have any ideas, could someone make me a new axle? could i re-tap the axle threads to something bigger. similar to a CHRIS KING FUN BOLT?any ideas please?taben Quote Link to comment Share on other sites More sharing options...
Guest Posted December 26, 2006 Report Share Posted December 26, 2006 (edited) The standard echo bolt's are M10, Fun bolt's are M12, so you would be loosing a fair bit of material in the axel, which could effect the strength.....What is the outside diameter of your existing axel? 10mm?If that's the case fun bolt's won't work with it, as they require at least 12mm , and even then you'd only have 0.5mm of axel on the thread = disaster, custom axel might be the way to go....This is assuming mike singleton is correct here http://www.trials-forum.co.uk/forum/index....king+fun+bolts# Edited December 26, 2006 by jake1516 Quote Link to comment Share on other sites More sharing options...
ben_travis Posted December 26, 2006 Author Report Share Posted December 26, 2006 The standard echo bolt's are M10, Fun bolt's are M12, so you would be loosing a fair bit of material in the axel, which could effect the strength.....What is the outside diameter of your existing axel?now i should have made some measurements, but it just snapped now. yer re-threading it would lose a lot of metal.the unfortunate thing is that - the thread pitch of a deng hub is impossible to find with an 8mm allen key or something similar. rather than the pishy 5mm that is on it.so looks like machining an axle is an idea? maybe? Quote Link to comment Share on other sites More sharing options...

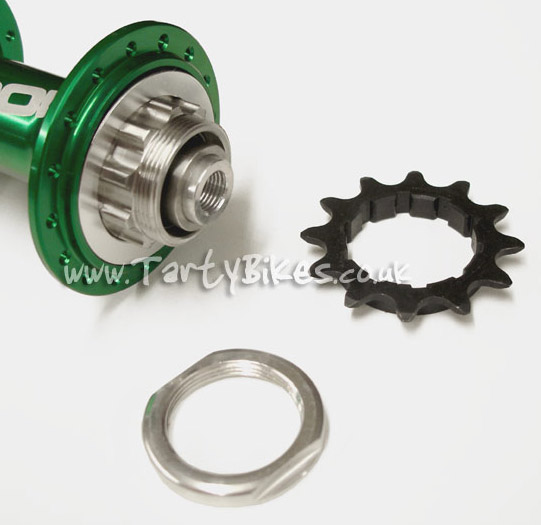

Guest Posted December 26, 2006 Report Share Posted December 26, 2006 Yes, but from looking at this picIt look's like there is only about 4-5mm of space on the axel before it enter's the lockring(?) nut. So I doubt a full bolt would even fit...What material is the existing axel? If it's aluminium you could try having a steel one made to the same specifications, it would certainley be stronger just from the material change...... Quote Link to comment Share on other sites More sharing options...
ben_travis Posted December 26, 2006 Author Report Share Posted December 26, 2006 again its the bolt size im most annoyed about. i just want something with beefier bolts (as in allen key size) so i can get more torque on it. without rounding the bolt.basically i want to try get a profile style bolt to fit my deng hub, but the thread size is so weird on a deng hub (10mm x 1mm pitch) which makes it shit.its a tough one. suppose i could try speak to edd potts. see what he might say.any one else? Quote Link to comment Share on other sites More sharing options...
Gavyn. Posted December 26, 2006 Report Share Posted December 26, 2006 any decent engineering company will make you one. just phone them up my dad got his work to do it when he needed some bolt for his car. Quote Link to comment Share on other sites More sharing options...
Guest Posted December 26, 2006 Report Share Posted December 26, 2006 (edited) Ahh right I see, I guess a steel one could be made to have any thread.I don't really know naff all about the deng hub's but here is an M10 x 1.5 bolt that has an 8mm allen head? I thought generally for wheel's it was 5mm, (it is on my mod anyway) They might be slightly large at 40mm but can be cut down im sure or they may have shorter ones......EDIT: forgot link!!http://cgi.ebay.co.uk/Stainless-Steel-Alle...1QQcmdZViewItem Edited December 26, 2006 by jake1516 Quote Link to comment Share on other sites More sharing options...
ben_travis Posted December 26, 2006 Author Report Share Posted December 26, 2006 its the thread pitch that is wrong though. surely if i put a 1.5mm thread pitch in a 1mm pitch thing it will all get messed up?not sure....argh i wish i were an engineer. cheers for the help jake, ill try edd potts as well. Quote Link to comment Share on other sites More sharing options...
Guest Posted December 26, 2006 Report Share Posted December 26, 2006 Yeh but ed should be able to knock you out a steel axel the same as your deng one, and just put M10 x 1.5 threads on it for you instead of the f**ked up deng thread..... Quote Link to comment Share on other sites More sharing options...
David Posted December 26, 2006 Report Share Posted December 26, 2006 Buy a good hub? Will be worth it in the long run. Quote Link to comment Share on other sites More sharing options...
ben_travis Posted December 26, 2006 Author Report Share Posted December 26, 2006 Buy a good hub? Will be worth it in the long run.yer thanks for that. my deng hub is fine, had no problems at all except I WANT beefier bolts, Quote Link to comment Share on other sites More sharing options...
joshywa Posted December 26, 2006 Report Share Posted December 26, 2006 can you get a clear drawing of the axle with some dimensions??? Quote Link to comment Share on other sites More sharing options...
26inch Posted December 26, 2006 Report Share Posted December 26, 2006 Your best bet would be to copy you axle on a lathe but make the axel longer and put nuts on the end like a bmx. From what i can tell the deng hub uses M5 bolts which are never going to be that strong and putting larger bolts in will weaken the axle. Or for the same price should have got a pro2 Quote Link to comment Share on other sites More sharing options...
ogre Posted December 28, 2006 Report Share Posted December 28, 2006 wtf, how did you round/thread the axle i've put some proper pasty into tightening mine and it's held fine. out of interest how much would an axle cost (mite be good to have a spare when you're a basher like me ) Quote Link to comment Share on other sites More sharing options...
Guest Posted December 28, 2006 Report Share Posted December 28, 2006 mp ,pre than £10 -£15 for a steel one, and that's pricey, if you know someone with a lathe they would do one for free no doubt. it's not exactley hard to turn one out... Quote Link to comment Share on other sites More sharing options...
Onza Kieron Posted December 28, 2006 Report Share Posted December 28, 2006 Your best bet would be to copy you axle on a lathe but make the axel longer and put nuts on the end like a bmx. From what i can tell the deng hub uses M5 bolts which are never going to be that strong and putting larger bolts in will weaken the axle. Or for the same price should have got a pro2Thats what I intend on getting Edd Potts to do when My new XC axle snaps, then run some huge bolts and be pimp Quote Link to comment Share on other sites More sharing options...
ben_travis Posted December 29, 2006 Author Report Share Posted December 29, 2006 Your best bet would be to copy you axle on a lathe but make the axel longer and put nuts on the end like a bmx. From what i can tell the deng hub uses M5 bolts which are never going to be that strong and putting larger bolts in will weaken the axle. Or for the same price should have got a pro2i didnt pay for the hub and i run 116mm dropouts so a pro II wouldnt fit now would it wtf, how did you round/thread the axle i've put some proper pasty into tightening mine and it's held fine. out of interest how much would an axle cost (mite be good to have a spare when you're a basher like me )i did an uber bodge, and someone else broke it in an unknown way. so yer very strange circumstances. either way its broken just now. ive spoken to edd potts. going to send the axle to him, see what he can do for me cheers for the help guys Quote Link to comment Share on other sites More sharing options...
Guest Posted December 29, 2006 Report Share Posted December 29, 2006 Keep us posted! Quote Link to comment Share on other sites More sharing options...
