Magura Brake-moving Out Of Place

[Egg Fried Rice]

lately ive been getting so annoyed as my rear maguras always move out of place when my brake doesnt hold and slips off an edge or something. it always moves!!

i think i need new plastic washers/ cylinders as my they are a bit shagged

did anyone else have this problem

thanks

JK

[Ra964]

well maybe your 4b clamps are f*** or your brake mounts...or just the washers, look if the screws enter the mount easy...after that inspect your clamps, and see if the washers are long enough for your screws blah blah inspect..

[Greetings]

Get new plastic rings which go around the brake. Make sure that when you tighten the bolts on the magura mounts, the cut on the plastic ring is inbetween the mounts. Hope you get what I mean.

Looking from the side:

[attachmentid=6064]

And yes, I had that problem, this fixed it.

[Lawnmowerman]

Make sure your bolts aren't bottoming out on the frame as they might be slightly too long.

[Dan6061]

Do the bolts up?

Might need some new cylinder washers..old ones can get all crumpled and shitty.

[Robwalker]

I had this problem,

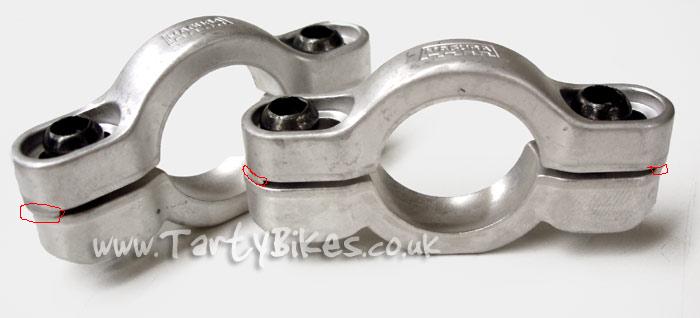

[attachmentid=6069]

I found that if you file down the little lumps you can get a better clamp on the calipers, but of corse not too much as you dont want to put too much stress on the caliper.
