basstrials Posted August 20, 2022 Report Share Posted August 20, 2022 Hi there.My Giant Trials need new headset and current one is FSA xtreme - old model one and frame went to me like taht.What headset do i need in order to get fitted in that frame properly,because is old one?I look at FSA pig but i am not sure it would be ok,so,what would be your recommendation about? Thank you in advance for your time.Be safe. Quote Link to comment Share on other sites More sharing options...
La Bourde Posted August 20, 2022 Report Share Posted August 20, 2022 Hi! Can you please take a picture of your headset or precise what version do you have exactly? If I recall correctly, the first versions (black, yellow) requires a EC34/28.6 EC34/30 headset, while the third generation (with curved tubes) requires a ZS44 /28.6 ZS44/30. Quote Link to comment Share on other sites More sharing options...

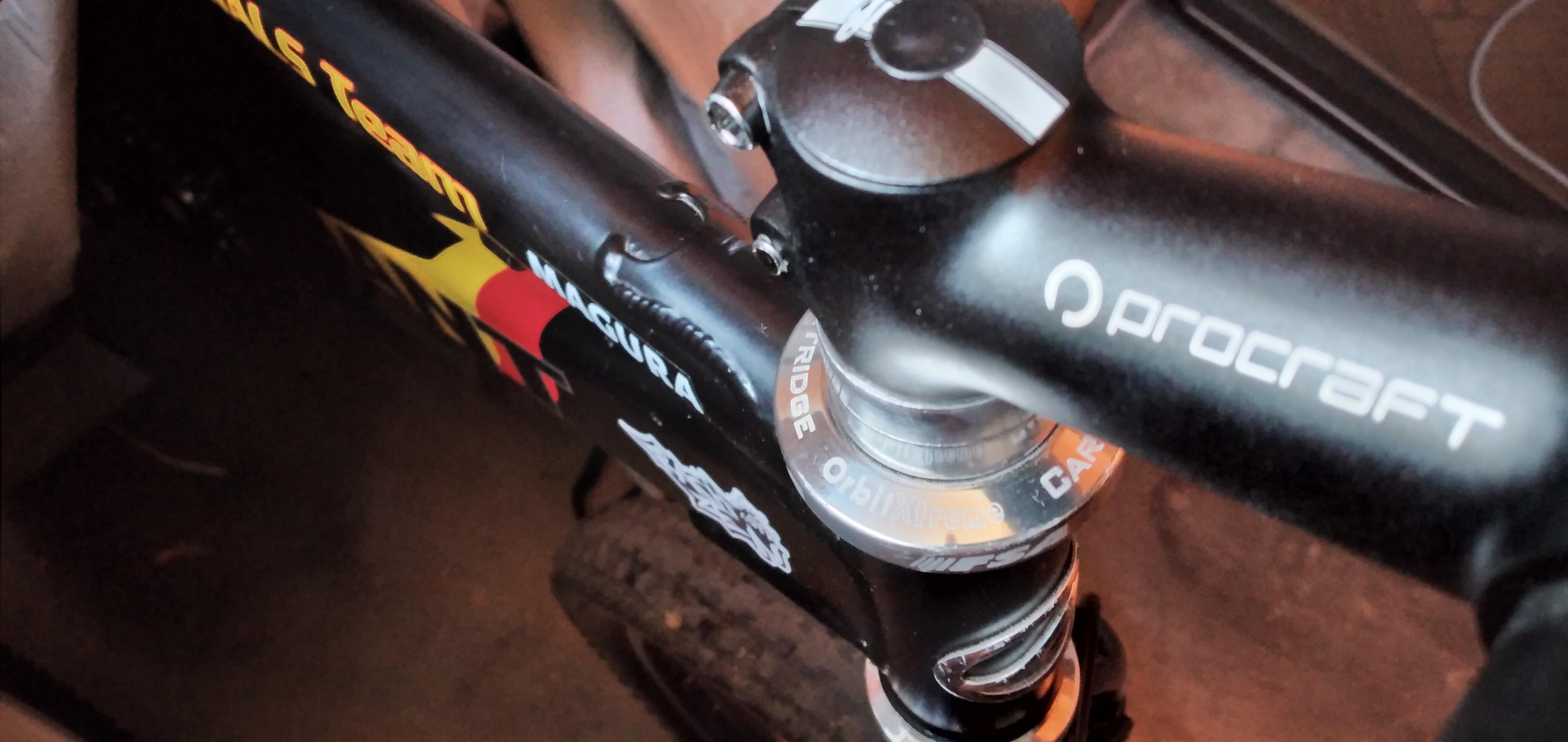

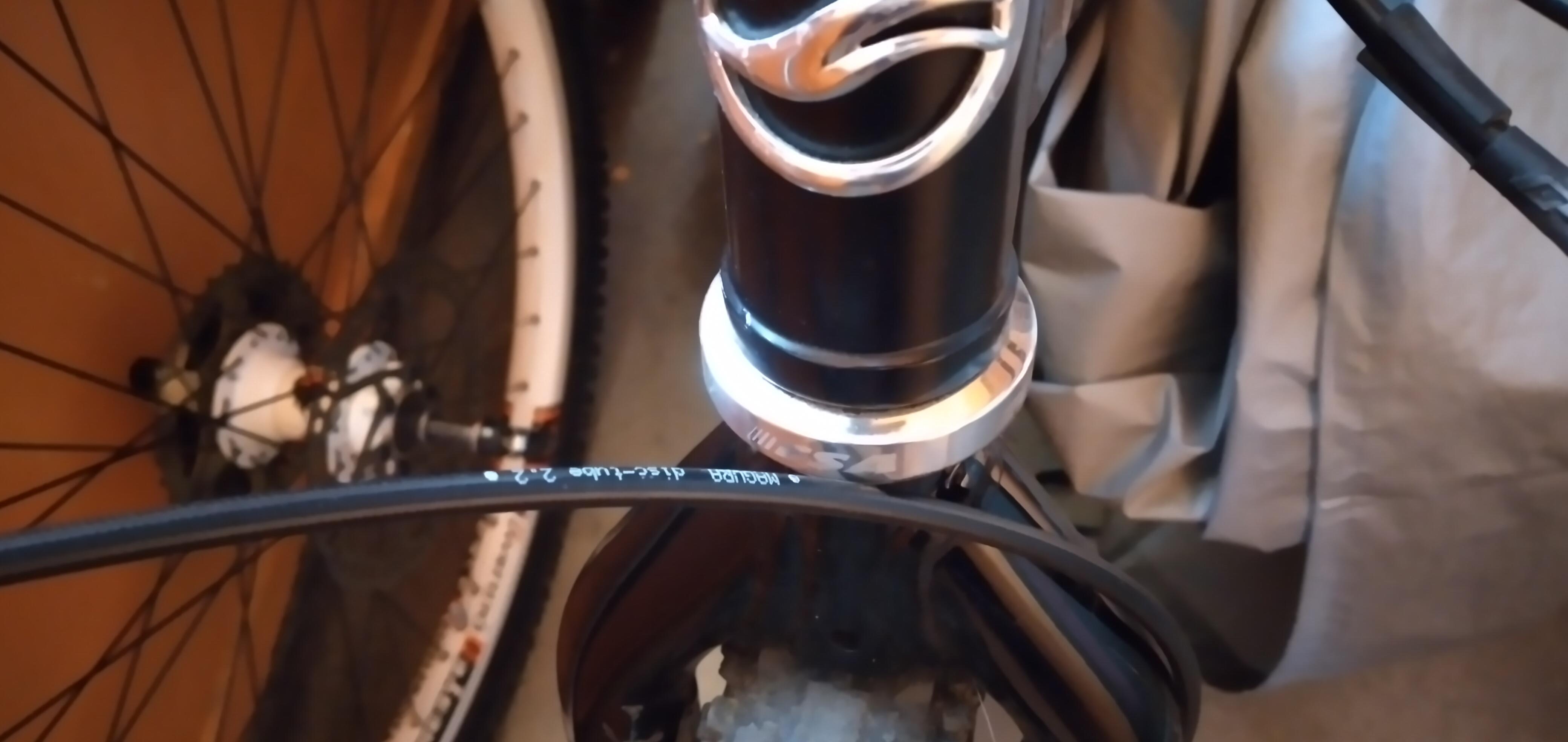

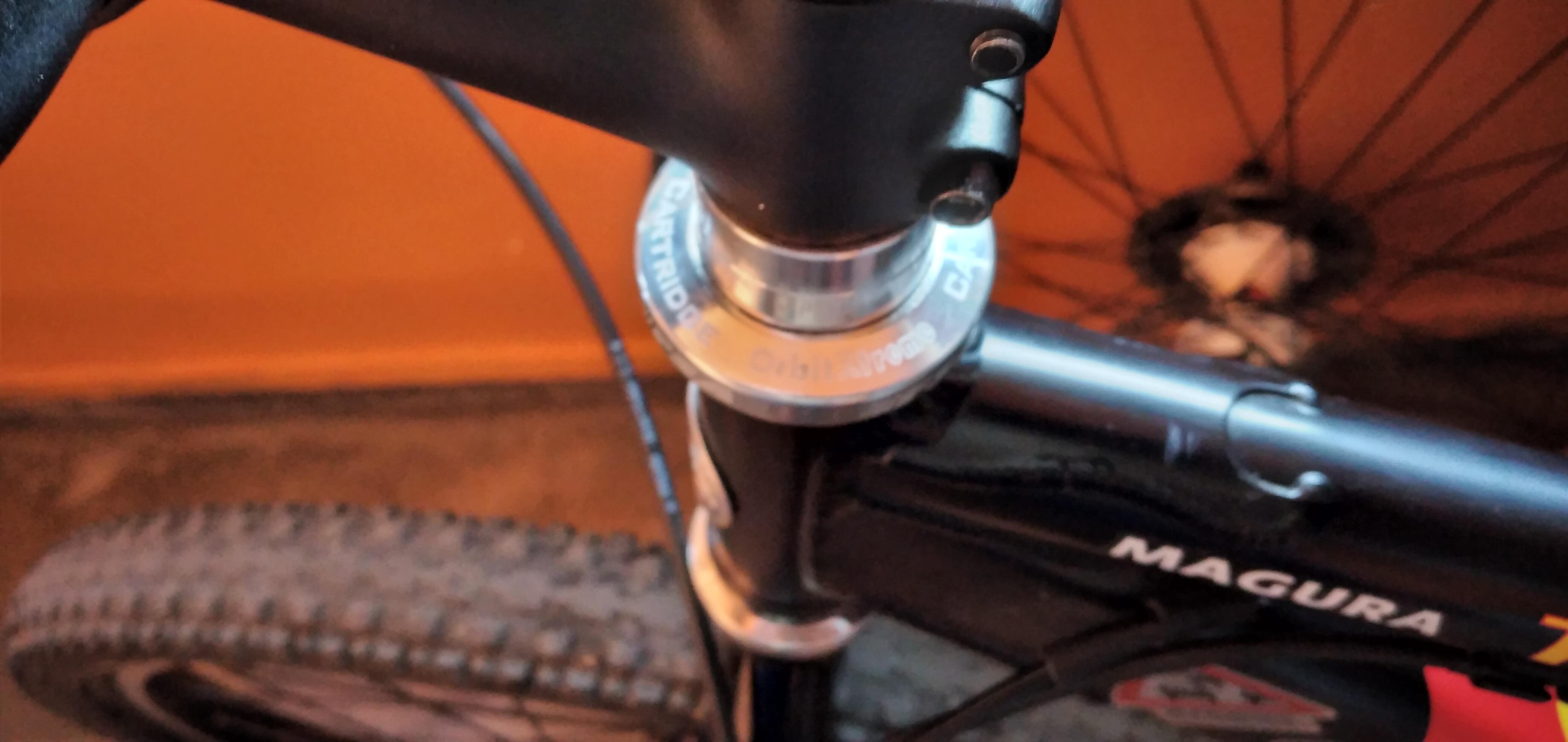

basstrials Posted August 21, 2022 Author Report Share Posted August 21, 2022 (edited) Hi there.Here are the pictures of it.The model is FSA -Orbit xtrme cartridge,at least it what is visible on it.I hope that would help. Edited August 21, 2022 by basstrials Quote Link to comment Share on other sites More sharing options...
La Bourde Posted August 21, 2022 Report Share Posted August 21, 2022 Thanks. It is a EC34/28.6 EC34/30 headset. Hope has good headset, but this FSA model isn't bad too. Do you have any trouble with? You can change the cartridge bearing, but be careful there are at least two standards: with 36 degrees and with 45 degrees 1 Quote Link to comment Share on other sites More sharing options...
basstrials Posted August 22, 2022 Author Report Share Posted August 22, 2022 6 hours ago, La Bourde said: Thanks. It is a EC34/28.6 EC34/30 headset. Hope has good headset, but this FSA model isn't bad too. Do you have any trouble with? You can change the cartridge bearing, but be careful there are at least two standards: with 36 degrees and with 45 degrees Thank you.I thought about cartridges but I did not find information what angles do I need.LBS mechanic said that should be changed soon,so I am thinking about new one if I am not find cartridges for current one. Thank you once again. Quote Link to comment Share on other sites More sharing options...
La Bourde Posted August 22, 2022 Report Share Posted August 22, 2022 The angle is written on the bearing itself. Sometimes also on the cups. 1 Quote Link to comment Share on other sites More sharing options...
