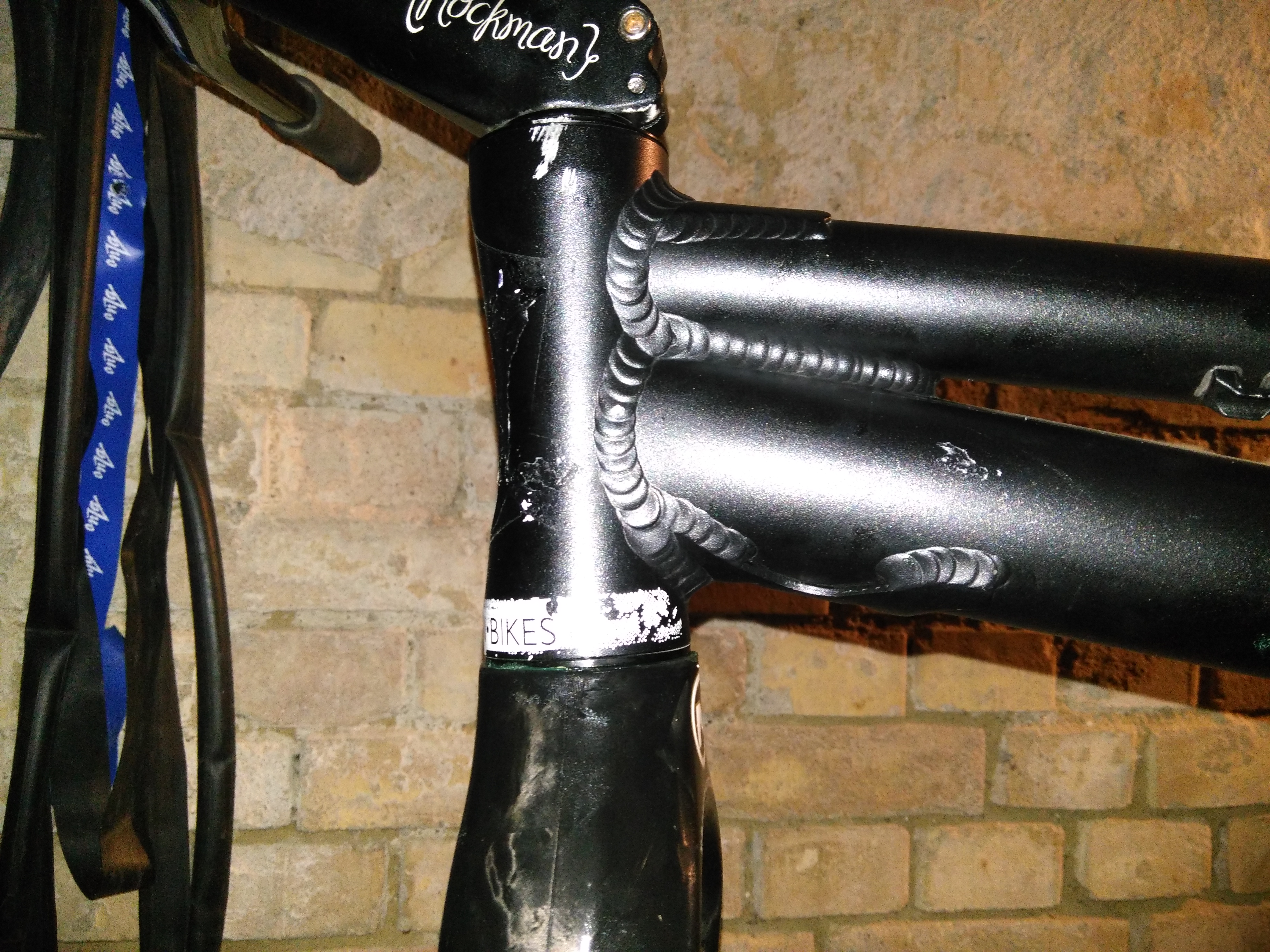

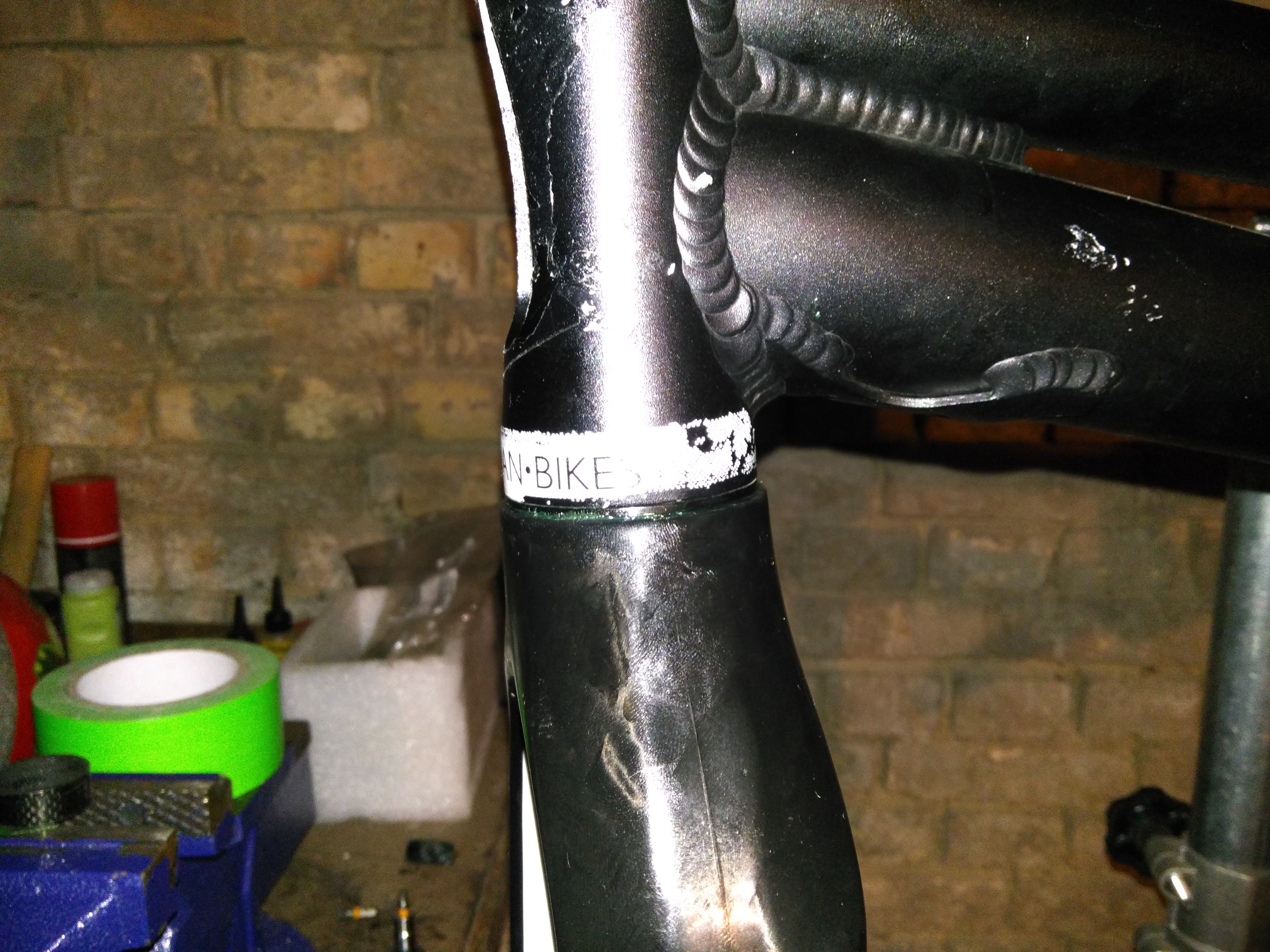

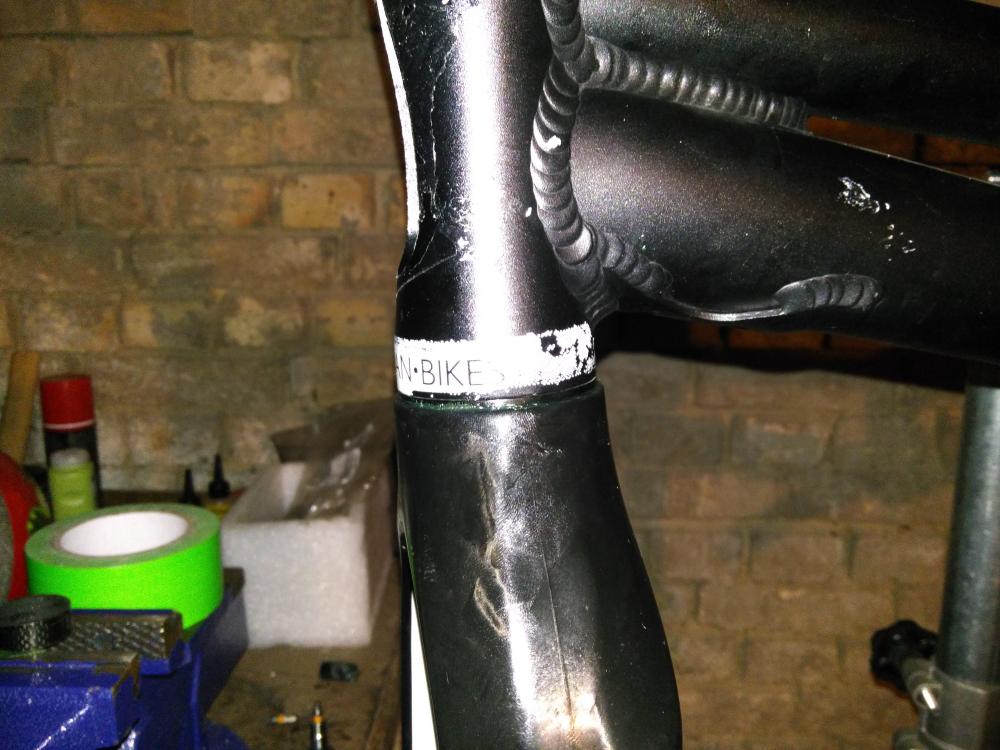

niconj Posted January 7, 2016 Report Share Posted January 7, 2016 Hello Guys. I bought the Rockman V-Brake frame off this forum and just tried to fit my forks into it without success. It seems as if the fork goes too deep into the frame. I cannot tighten the headset enough to keep it from moving and if I tighten it more it doesn't spin freely. On thing I should mention it's that the crown race is of an Echo sl headset while the Rockman has an internal headset from try all. The Seller forgot to send the crown race but would that make the difference? Thanks. Quote Link to comment Share on other sites More sharing options...
Marcus Chapman Posted January 8, 2016 Report Share Posted January 8, 2016 (edited) The crownrace will make a difference though i wouldn't of thought it would make alot of difference as i have used different parts off different headset before and had no problems, your best option is probably to ask the seller to send you the original crownrace as that (you would hope) should work together as it is the same brand "tryall" and you would their parts fits together! If the seller has lost the crownrace im sure you will find a similar one and be able to buy one from tarty or somewhere? Edited January 8, 2016 by Marcus Chapman Quote Link to comment Share on other sites More sharing options...
AdamR28 Posted January 8, 2016 Report Share Posted January 8, 2016 7 hours ago, niconj said: On thing I should mention it's that the crown race is of an Echo sl headset while the Rockman has an internal headset from try all. The Seller forgot to send the crown race but would that make the difference? Thanks. Yes, your problem is a headset one, not a fork one. Quote Link to comment Share on other sites More sharing options...
niconj Posted January 8, 2016 Author Report Share Posted January 8, 2016 (edited) I'll wait for the crown race then. Thanks. Edit: Would any ZS Headset fit? Is the installation of it just like any other EC headset? Have only installed those so far. Edited January 8, 2016 by niconj Quote Link to comment Share on other sites More sharing options...
craigjames Posted January 8, 2016 Report Share Posted January 8, 2016 Crown race obviously has to match the angle of the bearing race on the lower bearing. If the lower bearing race angle matches then you're all good. Quote Link to comment Share on other sites More sharing options...
niconj Posted January 10, 2016 Author Report Share Posted January 10, 2016 (edited) On 8. Januar 2016 at 7:27 AM, Adam@TartyBikes said: Yes, your problem is a headset one, not a fork one. I talked to the seller and he told me that he's been using Echo forks with integrated crown race without a problem. I tried to use the Echo crown race I got (which should be the same angle then) with the above mentioned outcome. Is this still a headset problem? Wouldn't be the first time Try All parts aren't compatible with each other. Edited January 10, 2016 by niconj Quote Link to comment Share on other sites More sharing options...
AdamR28 Posted January 11, 2016 Report Share Posted January 11, 2016 You need a taller crown race, eg. the Try-All one. Edit: Sorry for the short replies before, it's a pain typing on my phone... But basically the Echo crown race isn't very tall, the angle is fine but it won't work with the Try-All headset when the fork has a big fat crown. 1 Quote Link to comment Share on other sites More sharing options...
