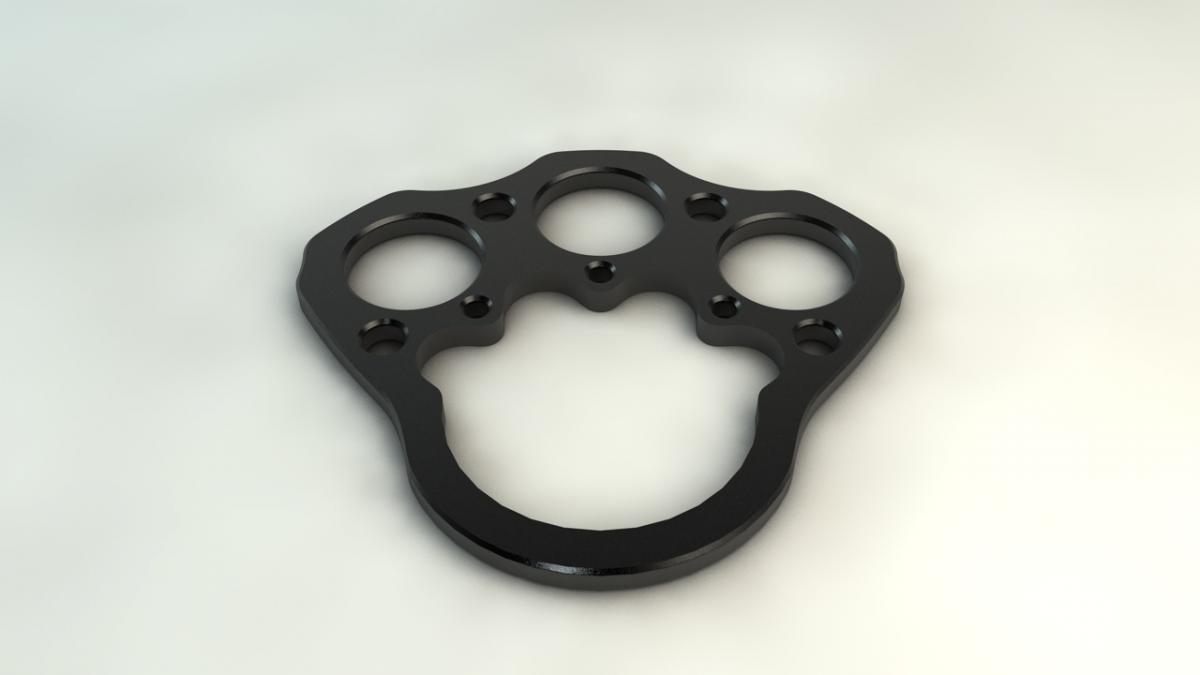

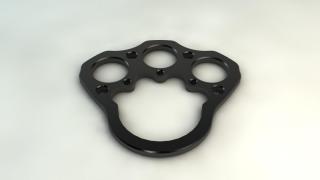

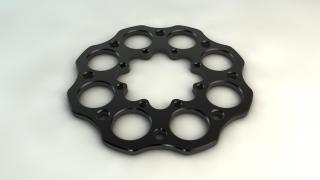

ericbenjaminjr Posted June 10, 2014 Author Report Share Posted June 10, 2014 Got the full and quarter rings done 3 Quote Link to comment Share on other sites More sharing options...
bing Posted June 10, 2014 Report Share Posted June 10, 2014 I'll test the 3 holed version if you want to donate one to me Quote Link to comment Share on other sites More sharing options...
ericbenjaminjr Posted June 12, 2014 Author Report Share Posted June 12, 2014 Thanks everyone for all the input. I've had a chance to do some measurements of my own now that I got a set of new cranks. From that I wouldn't go over 3.5mm maybe 4mm if need be. I don't understand why there are so many 5mm rings out there. I mean almost half the rings in some shops are 5mm. I wouldn't want to leave so little thread left over now that I've seen with my own eyes. So next I'll be porting all the designs to solid edge and doing some virtual stress tests. Any suggestions on how I could economically go about getting CNC one offs done would be much appreciated. Quote Link to comment Share on other sites More sharing options...
bing Posted June 12, 2014 Report Share Posted June 12, 2014 Send me a copy of the design as a PDF, or what ever format can be imported to a cnc machine. I'll ask the bloke in the tool room at work if he can make a prototype for you 1 Quote Link to comment Share on other sites More sharing options...
ericbenjaminjr Posted June 13, 2014 Author Report Share Posted June 13, 2014 Send me a copy of the design as a PDF, or what ever format can be imported to a cnc machine. I'll ask the bloke in the tool room at work if he can make a prototype for you That would be amazing! Quote Link to comment Share on other sites More sharing options...
bing Posted June 13, 2014 Report Share Posted June 13, 2014 Have pm'd you my email address Quote Link to comment Share on other sites More sharing options...
SCOTTY___ Posted June 13, 2014 Report Share Posted June 13, 2014 (edited) Send me a copy of the design as a PDF, or what ever format can be imported to a cnc machine. I'll ask the bloke in the tool room at work if he can make a prototype for you Not as simple as that. Depends on the controller the machine has. His cad package might no out put the right code. Also he wont have the parameters for the m/c. Ide warn your guy to expect a bump haha Edited June 13, 2014 by SCOTTY___ Quote Link to comment Share on other sites More sharing options...
Blake Posted June 13, 2014 Report Share Posted June 13, 2014 PDF might not be the word you're after Quote Link to comment Share on other sites More sharing options...
bing Posted June 13, 2014 Report Share Posted June 13, 2014 I've no idea, that was the first thing that came to mind. Only trying to help lol Quote Link to comment Share on other sites More sharing options...
ericbenjaminjr Posted June 13, 2014 Author Report Share Posted June 13, 2014 The only thing I can pass on is a DFX file. Or other universal 3D format. I can't generate CNC code with my software... Quote Link to comment Share on other sites More sharing options...
Blake Posted June 13, 2014 Report Share Posted June 13, 2014 I've no idea, that was the first thing that came to mind. Only trying to help lol haha, someone will still need to come up with the toolpaths for the CNC machine and tell it what tools it needs to use, as well as set up datums etc. Quote Link to comment Share on other sites More sharing options...
SCOTTY___ Posted June 14, 2014 Report Share Posted June 14, 2014 The only thing I can pass on is a DFX file. Or other universal 3D format. I can't generate CNC code with my software... I can take the dxf and give you a basic cnc code. Could even supply you with a blank out of mild / stainless steel if you wish. Process would be laser cut Quote Link to comment Share on other sites More sharing options...
ericbenjaminjr Posted June 15, 2014 Author Report Share Posted June 15, 2014 I'd really like a prototype in 7075 aluminum. Would the laser cutting do the bevels as well? Quote Link to comment Share on other sites More sharing options...
*gentlydoesit Posted June 15, 2014 Report Share Posted June 15, 2014 Beggers.. choosers Quote Link to comment Share on other sites More sharing options...
ericbenjaminjr Posted June 15, 2014 Author Report Share Posted June 15, 2014 Don't get me wrong, I'm willing to do what it takes and pay what it costs to get prototypes that are a perfect mirror of the original design. I'm not one to compromise with such things.. Quote Link to comment Share on other sites More sharing options...
SCOTTY___ Posted June 15, 2014 Report Share Posted June 15, 2014 I'd really like a prototype in 7075 aluminum. Would the laser cutting do the bevels as well? No. All it would process is the flat design. No chamfers/bevels. If you went I to manufacture it would need a secondary process. Alternatively you could get it completely cnc'd. But doing a 1 off would be stupidly expensive as at a minimum you would need 2 setups. Sadly at work we dont play wi alloy. Just structural steels and 304 / 316 stainless grades. Quote Link to comment Share on other sites More sharing options...
