HippY Posted April 23, 2014 Report Share Posted April 23, 2014 Hello guys, I just have a quick question It seems that my forks tube is a little bit wider at the bottom,as when I tried to drop the bottom headset cup, it got stuck 1 cm from the very bottom, so did my spacer. I greased the cup, and now, with every bunny hop, I need to tighten the bolt, so it will be stiff and not moving. Questions of the day: Is it normal? What should I do, get a hammered get a hammer just hammer the bottom cup down nicely until it wont move? Quote Link to comment Share on other sites More sharing options...
Blake Posted April 23, 2014 Report Share Posted April 23, 2014 What do you mean bottom cup? Do you mean the crown race? Quote Link to comment Share on other sites More sharing options...
HippY Posted April 23, 2014 Author Report Share Posted April 23, 2014 Headset has 4 parts 2 are integrated in the frame and.2 are just metal parts covering te headset. I am talking about these covers and on the bottom It might called that:/ Quote Link to comment Share on other sites More sharing options...
bike_dummie Posted April 23, 2014 Report Share Posted April 23, 2014 Does it look like this? https://encrypted-tbn1.gstatic.com/images?q=tbn:ANd9GcSzTa6bc2QQU-Vic7BFj9SEnRX4N8Sovwv-PHrJDrNFKQoT0A3TnOv9KcPbNg Quote Link to comment Share on other sites More sharing options...
Blake Posted April 23, 2014 Report Share Posted April 23, 2014 (edited) http://upload.wikimedia.org/wikipedia/commons/f/f0/Bicycle_headset_(threadless)_exploded_view-en.png which is it on here? The IMG tags didn't work ffs Edited April 23, 2014 by DrStix Quote Link to comment Share on other sites More sharing options...
harmertrials Posted April 23, 2014 Report Share Posted April 23, 2014 Yeah that'll be your crown race. Essentially the very bottom part of the headset correct? You need to make sure this in sitting tight against the bottom of the steerer tube before inserting the forks into the frame. Quote Link to comment Share on other sites More sharing options...
HippY Posted April 23, 2014 Author Report Share Posted April 23, 2014 http://www.velosolo.co.uk/mongo.html There is a full blue headset.in the middle, i have mongo as well On that picture there is a silver part on the right i have that part stuck I dont have the silver part on the left Quote Link to comment Share on other sites More sharing options...
harmertrials Posted April 23, 2014 Report Share Posted April 23, 2014 The part on the right needs to sit at the bottom of the steerer tube, and the opposite way round to how it's pictured there. Quote Link to comment Share on other sites More sharing options...
HippY Posted April 23, 2014 Author Report Share Posted April 23, 2014 That is on the bottom And i am missing the small silver stuff on the left thaylt is essential? Quote Link to comment Share on other sites More sharing options...
harmertrials Posted April 23, 2014 Report Share Posted April 23, 2014 Yeah that is essential, sorry I forgot to add. Without it the headset will not clamp tight as that piece is what seals the top bearing. Quote Link to comment Share on other sites More sharing options...
Blake Posted April 23, 2014 Report Share Posted April 23, 2014 That silver bit keeps on the left keeps it all central in relation to the steerer tube. The bit that you have stuck needs to be "gently persuaded" down to the bottom, it can be done but overtightening the bolt however it's not good for the bolt, or the threads on the starnut. Hammer/screwdriver can work but can slightly damage the race, a larger tube that sits over it is ideal but it can be hard just to have those things lying around Quote Link to comment Share on other sites More sharing options...
HippY Posted April 23, 2014 Author Report Share Posted April 23, 2014 Thank you I will phone onza for a crown race then as i dont have any Quote Link to comment Share on other sites More sharing options...
harmertrials Posted April 23, 2014 Report Share Posted April 23, 2014 No you have a crown race, it's the top part you need. Quote Link to comment Share on other sites More sharing options...
HippY Posted April 23, 2014 Author Report Share Posted April 23, 2014 Okay so i need the left silver part, that is a thin ring with a hole How do you call it? Quote Link to comment Share on other sites More sharing options...
Blake Posted April 23, 2014 Report Share Posted April 23, 2014 Compression ring? Quote Link to comment Share on other sites More sharing options...
HippY Posted April 23, 2014 Author Report Share Posted April 23, 2014 (edited) After made a call to onza i must buy a new headset Okay so just to make everythingclear I need the compression ring to the very bottom qt the steerer tube Then the silver cup connecting to.the headset Headsets then top cup and cap Am i right? I might be able to make the compression ring from a headset.spacer btw Edit: After looking at the headset spares on tarty a little modification I have both the cups, with the bearing inside them These cups has covers(wedges?) i have both of them I am missing the crown race, a ring that has a whole in it so you can compress it The bottom wedge/ cover stucks on the steerer tube and i dont have a crown race What to do? Edited April 23, 2014 by UKHippY Quote Link to comment Share on other sites More sharing options...
ogre Posted April 23, 2014 Report Share Posted April 23, 2014 put a photo of everything you've got. and work on your grammar, that is one of the hardest things to read i've seen on tf in a while. 1 Quote Link to comment Share on other sites More sharing options...
HippY Posted April 23, 2014 Author Report Share Posted April 23, 2014 I will take pictures as soon as i get home The problem is that i try to explain something that i do not understand myself as well and i get confused :/ Quote Link to comment Share on other sites More sharing options...
ogre Posted April 23, 2014 Report Share Posted April 23, 2014 well make it easier for everyone, get a picture, label every part with a number and an arrow on paint, and go from there. or go on this; to start addressing things, your crown race wants to be hammered all the way down to the bottom of your forks, find a tube with a greater diameter than your steerer, i used to use a car-jack stand and hammer my forks into the crown race. you could always get a bikeshop to do it if your unsure. Quote Link to comment Share on other sites More sharing options...
HippY Posted April 23, 2014 Author Report Share Posted April 23, 2014 Yes, it is the crown race that cannot fall down! I do that then! Although i might not have the compression ring, i will check it Is that necessary? Quote Link to comment Share on other sites More sharing options...
harmertrials Posted April 23, 2014 Report Share Posted April 23, 2014 Every part is necessary Quote Link to comment Share on other sites More sharing options...
williams Posted April 23, 2014 Report Share Posted April 23, 2014 Just buy a new one from tarty, they cost like a tenner! Quote Link to comment Share on other sites More sharing options...

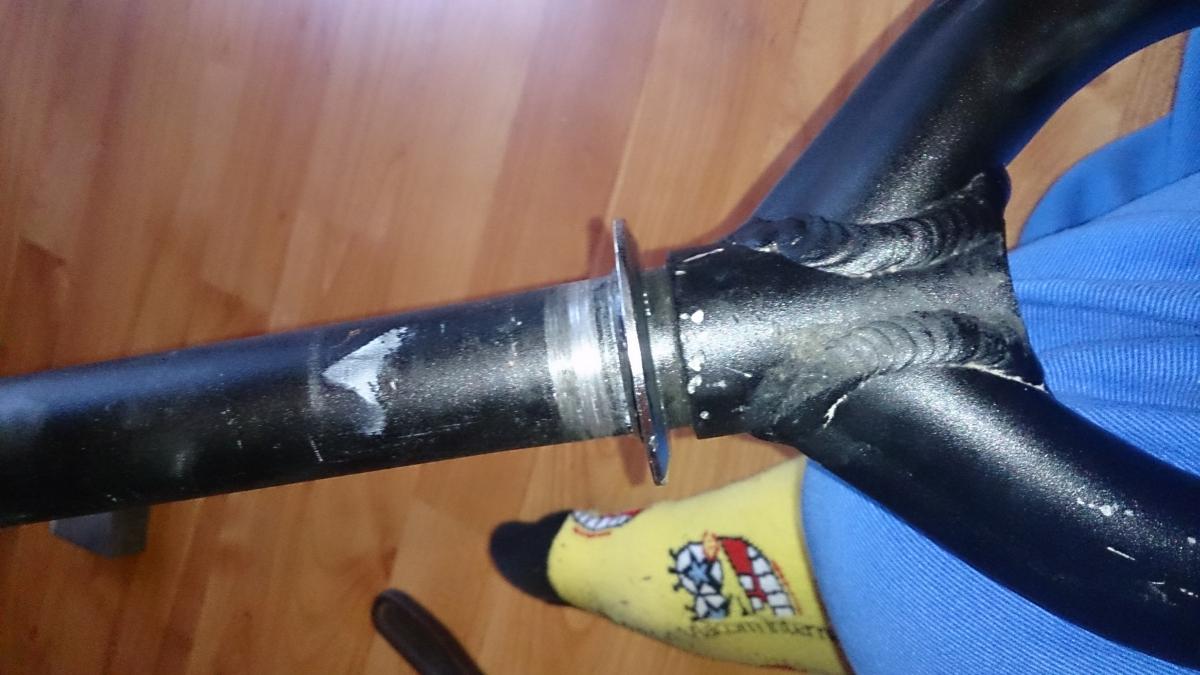

HippY Posted April 23, 2014 Author Report Share Posted April 23, 2014 (edited) just checked: I have every part, bearings, cups, crowns, compression ring and crown race as well Now I need to hammer the crown race to the bottom of the steerer tube. How should I do it if I dont have any larger tubes? If I would use a spanner, that is larger than the steerer and sits on the crown race, and just hammer would it be good? The crown went down as low as this, now it needs a proper hammering Edited April 23, 2014 by UKHippY Quote Link to comment Share on other sites More sharing options...
dezmtber Posted April 23, 2014 Report Share Posted April 23, 2014 Chop the fitting end off an bmx stunt peg a basic steel one the remaining part can be used as a headset crown setter. if the crown still is way too tight, cut a slot into the crown race with a hacksaw so it expands over the fork. basicly convert your unslotted crown race into a slotted one much like hope use. Quote Link to comment Share on other sites More sharing options...
Blake Posted April 23, 2014 Report Share Posted April 23, 2014 nice socks. Screwdriver and a hammer has worked in the past with me 1 Quote Link to comment Share on other sites More sharing options...
