mike425 Posted March 7, 2014 Report Share Posted March 7, 2014 Hi all, so with it being a Friday I am pretty bored out of my mind in the office so thought I would share a little project I am working on. I have wanted to build my own trials frame for years, I owned a leeson around 14 years ago! I have always been more of a fan of steel frames but not so keen on the modern look of trials frames. So I decided to build my own frame based around the geo of an Echo 26" frame. It will be a traditional looking frame with hopefully a custom carbon seat. So far I have almost finished my jig, just need to machine down some cones on the lathe for my head tube which I will be doing on Saturday. This is not my first frame build, but will be the first trials bike. It will be fillet brazed as this is what I know and I enjoy doing it. I have purchased a full Reynolds 631 tubeset, the headset will be integrated. Tubing wise I probably over specced it so this will not be ultra light build but should last a long time. I am planning on getting the dropouts and other plate bits laser cut and machined. Time wise, don't hold your breath lol. This is purely a hobby thing for me so fitting it in can be tricky, it could take 4 weeks or 4 months! Jig, almost done:- I built a balance bike for my neice:- Practice fillets from a while back:- Thought this might be of interest to some people! Cheers Mike 11 Quote Link to comment Share on other sites More sharing options...
*gentlydoesit Posted March 7, 2014 Report Share Posted March 7, 2014 Liked Quote Link to comment Share on other sites More sharing options...
Blake Posted March 7, 2014 Report Share Posted March 7, 2014 Unf those fillets Quote Link to comment Share on other sites More sharing options...
bing Posted March 7, 2014 Report Share Posted March 7, 2014 Weld porn Quote Link to comment Share on other sites More sharing options...
Ross McArthur Posted March 7, 2014 Report Share Posted March 7, 2014 Looking forward to seeing this! Quote Link to comment Share on other sites More sharing options...
Dman Posted March 7, 2014 Report Share Posted March 7, 2014 Would love to be able to do this, balance bike is sweet. Quote Link to comment Share on other sites More sharing options...
TOMTRIALS123 Posted March 7, 2014 Report Share Posted March 7, 2014 Ooooooooooooooooooooooooooooooooooooo! Quote Link to comment Share on other sites More sharing options...
janjan Posted March 7, 2014 Report Share Posted March 7, 2014 Since I don't know anything about welding: Is fillet brazing as strong as "real" welding? Quote Link to comment Share on other sites More sharing options...
*gentlydoesit Posted March 8, 2014 Report Share Posted March 8, 2014 Yup Quote Link to comment Share on other sites More sharing options...
old boy chez Posted March 8, 2014 Report Share Posted March 8, 2014 I want that bike for my son lol Quote Link to comment Share on other sites More sharing options...
ALI_GH Posted March 12, 2014 Report Share Posted March 12, 2014 it is nice .. especially for someone like me . i love 24 street-trials bikes . but they are too expensive here in Iran ... so the only way remains is to build a frame. i want to know how strong this home made frames are ?? and what equipments i need in order to build one ? Quote Link to comment Share on other sites More sharing options...
Ash-Kennard Posted March 14, 2014 Report Share Posted March 14, 2014 where will you buy a BB shell from? and the headtube? unless you are making them yourself? Quote Link to comment Share on other sites More sharing options...
eskimo Posted March 14, 2014 Report Share Posted March 14, 2014 OP- Good luck with your frame. Should be fun when it's done. it is nice .. especially for someone like me . i love 24 street-trials bikes . but they are too expensive here in Iran ... so the only way remains is to build a frame. i want to know how strong this home made frames are ?? and what equipments i need in order to build one ? I think this is just a hobby for him. Speak/ search Marino for cheap/ affordable customs. Quote Link to comment Share on other sites More sharing options...
mike425 Posted March 15, 2014 Author Report Share Posted March 15, 2014 Thanks for all the comments guys. With regards to strength of brazing - I have tested loads of joints with a 6 ft bar and I always snap the tube, not the join. TIG is technically stronger but with bike frames the tube is the weaker point and many people argue that the heat affected zone from TIG is more detrimental on a bike frame. Either way, I enjoy doing brazing and have the equipment! Brian curtis taught me to braze and he said he has never had a joint fail but plenty of tubes have. The cost of the reynolds tubing would probably surprise a lot of people when compared with how much marino charges for a full frame. I have around £150 in tubing alone for this frame, but it is triple butted . 1 Quote Link to comment Share on other sites More sharing options...
*gentlydoesit Posted March 15, 2014 Report Share Posted March 15, 2014 Curtis? As in curtis bikes? Quote Link to comment Share on other sites More sharing options...
mike425 Posted March 15, 2014 Author Report Share Posted March 15, 2014 Yeah, curtis bikes. 1 Quote Link to comment Share on other sites More sharing options...
*gentlydoesit Posted March 16, 2014 Report Share Posted March 16, 2014 Love the look of their frames can't wait to see your creation. I'm gonna have to do more brazing, what are you using, guessing its not mapp , oa or tig? Quote Link to comment Share on other sites More sharing options...
mike425 Posted March 16, 2014 Author Report Share Posted March 16, 2014 I'm going to start mitring tubes this week hopefully. The jig is pretty much done, just need to machine a couple more parts on the lathe. I'm using oxy/acet with a gas fluxer. I still use some flux paste on the inside of the tube to pull the braze through though. Quote Link to comment Share on other sites More sharing options...
mike425 Posted March 28, 2014 Author Report Share Posted March 28, 2014 Its been a while but I have finally got my jig setup - I am going to start cutting tubes this week. Headtube and cones ready for the jig:- 3 Quote Link to comment Share on other sites More sharing options...
*gentlydoesit Posted March 28, 2014 Report Share Posted March 28, 2014 What's your day job? Quote Link to comment Share on other sites More sharing options...
mike425 Posted March 28, 2014 Author Report Share Posted March 28, 2014 I am an IT Consultant lol. Nothing related at all. 1 Quote Link to comment Share on other sites More sharing options...

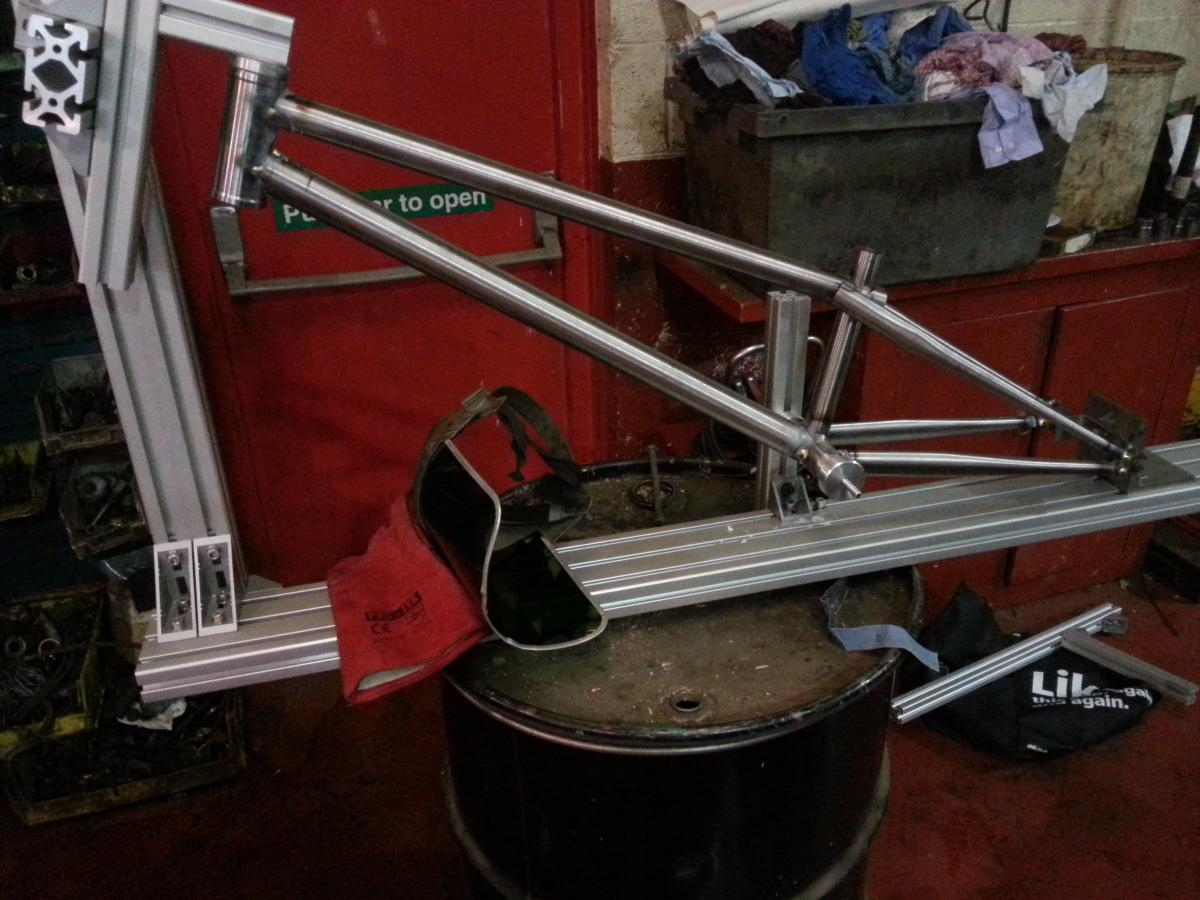

mike425 Posted August 8, 2014 Author Report Share Posted August 8, 2014 So its been ages since ive updated this. As I thought, its been a slow project but im nearly there. Got the frame tacked up in my jig today, planning to fully braze it tomorrow. Pics should be attached. 2 Quote Link to comment Share on other sites More sharing options...

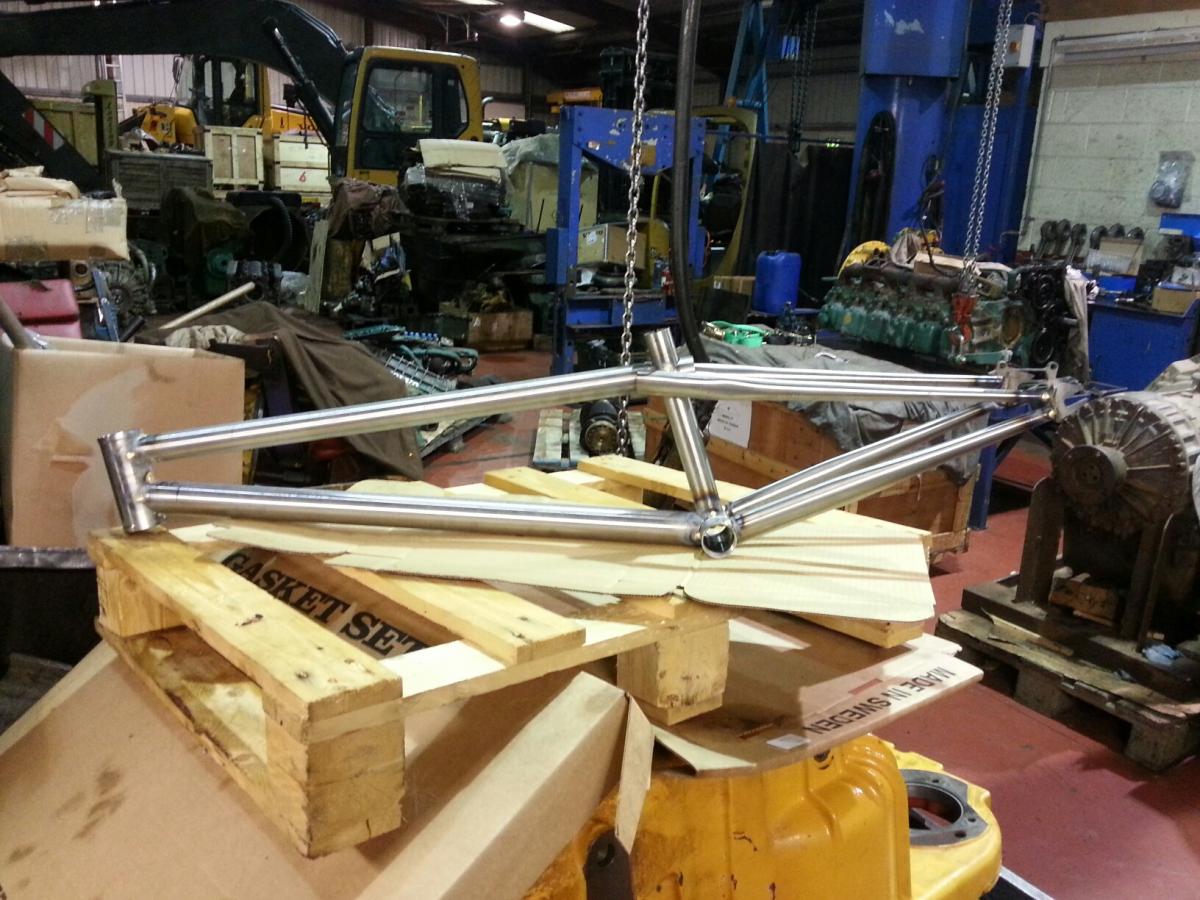

mike425 Posted August 8, 2014 Author Report Share Posted August 8, 2014 Out of the jig: 3 Quote Link to comment Share on other sites More sharing options...
ClarkeHutchison Posted August 8, 2014 Report Share Posted August 8, 2014 (edited) Out of the jig: Looks really good , is it just me or is the top tube not fitting the seat tube flush Edit : Its just the seat stays coming from the side that put me wrong. haha Edited August 8, 2014 by ClarkeHutchison Quote Link to comment Share on other sites More sharing options...
Scott Gibbs Posted August 8, 2014 Report Share Posted August 8, 2014 Looks great! Quote Link to comment Share on other sites More sharing options...
