godtrials Posted September 27, 2012 Report Share Posted September 27, 2012 heyy any help would be appreciated... Im buying another (008) version Pashley and the threads on the magura mounts on the frame are shredded out ... Iv been told that heli coil wouldnt work because the mounts are too thin :/.. Do you reckon liquid metal / chemical metal would work??? Please HELP me in in need of the rear brake lol thanks Damien Quote Link to comment Share on other sites More sharing options...
godtrials Posted September 28, 2012 Author Report Share Posted September 28, 2012 BUMP Quote Link to comment Share on other sites More sharing options...
Martin Reynolds Posted September 28, 2012 Report Share Posted September 28, 2012 I've seen brake mounts stripped out, helicoiled, the helicoils stripped out, then helicoiled to m6. Quote Link to comment Share on other sites More sharing options...
AdamR28 Posted September 28, 2012 Report Share Posted September 28, 2012 Just pop a nut on the back PS: Bumping at 2am and after 1 hour usually doesn't get replies any faster 1 Quote Link to comment Share on other sites More sharing options...
Laurence--Trials Posted September 28, 2012 Report Share Posted September 28, 2012 I've stripped the threads on my frame I don't know what it's called but they're like little springs that clamp to te edge of the hole. They're really good easy to replace if need be and even easier to fit. Quote Link to comment Share on other sites More sharing options...
N.Wood Posted September 28, 2012 Report Share Posted September 28, 2012 Think you mean helicoil Quote Link to comment Share on other sites More sharing options...
LEON Posted September 28, 2012 Report Share Posted September 28, 2012 Just pop a nut on the back PS: Bumping at 2am and after 1 hour usually doesn't get replies any faster This, if I remember from my 26Ghz, you should be able to do this, steel frames tend to have the mounts welded on as a thin plate with room in the back for a bolt. Alu frames use the mounts like blocks, there's a lot more material to work with than on steel frames. Quote Link to comment Share on other sites More sharing options...
LEON Posted September 28, 2012 Report Share Posted September 28, 2012 Actually scrap that. http://www.trials-forum.co.uk/topic/176370-pashley-26ghz-resprayed/ Looking at it here, the 4 bolt mounts are made as a solid block like an alu frame, so the nut won't work, on the other hand there's a lot more material around the hole to get it helicoiled, get it helicoiled Quote Link to comment Share on other sites More sharing options...
isitafox Posted September 28, 2012 Report Share Posted September 28, 2012 Hell, worst case cut the mounts off and weld some new ones back on Quote Link to comment Share on other sites More sharing options...
Martin Reynolds Posted September 28, 2012 Report Share Posted September 28, 2012 Hell, worst case cut the mounts off and weld some new ones back on Or drill a hole straight through, and nut and bolt it Quote Link to comment Share on other sites More sharing options...
AdamR28 Posted September 28, 2012 Report Share Posted September 28, 2012 the 4 bolt mounts are made as a solid block like an alu frame Oh yeah! Very strange - my bad. Helicoil then. Quote Link to comment Share on other sites More sharing options...
LEON Posted September 28, 2012 Report Share Posted September 28, 2012 The flimsy looking braze on mounts you can buy....that's what you usually get on a steel frame, old Megamo's etc. But pashley have built it like an alu frame! (Explains the weight) My advice, give it some long forks, it's tempting to use Pashleys but the frame will come alive with some forks around 405-410mm, keep the stem minimally stacked too. Quote Link to comment Share on other sites More sharing options...
godtrials Posted September 28, 2012 Author Report Share Posted September 28, 2012 thanks for all the help and mine is the flimsy thin steel mounts so cant heli coil and the bolt thing has been tried and just stripps the threads on the bolts too.. And dont ask about the bump i didnt realise the time lol Quote Link to comment Share on other sites More sharing options...
LEON Posted September 28, 2012 Report Share Posted September 28, 2012 Got a pic? Is yours not the same as the standard mounts in that link? Because for a steel frame they're pretty heavy duty! There definitely should be enough material to work with a helicoil. Quote Link to comment Share on other sites More sharing options...
Revolver Posted September 28, 2012 Report Share Posted September 28, 2012 (edited) You could even send the frame away to JAF bikes and ask Josh to stick some proper mounts on there. It'll work better if you're based in England, I can't tell because you haven't filled out the location thing. Edited September 28, 2012 by Revolver Quote Link to comment Share on other sites More sharing options...
godtrials Posted September 28, 2012 Author Report Share Posted September 28, 2012 ohh aha im from portsmouth Quote Link to comment Share on other sites More sharing options...

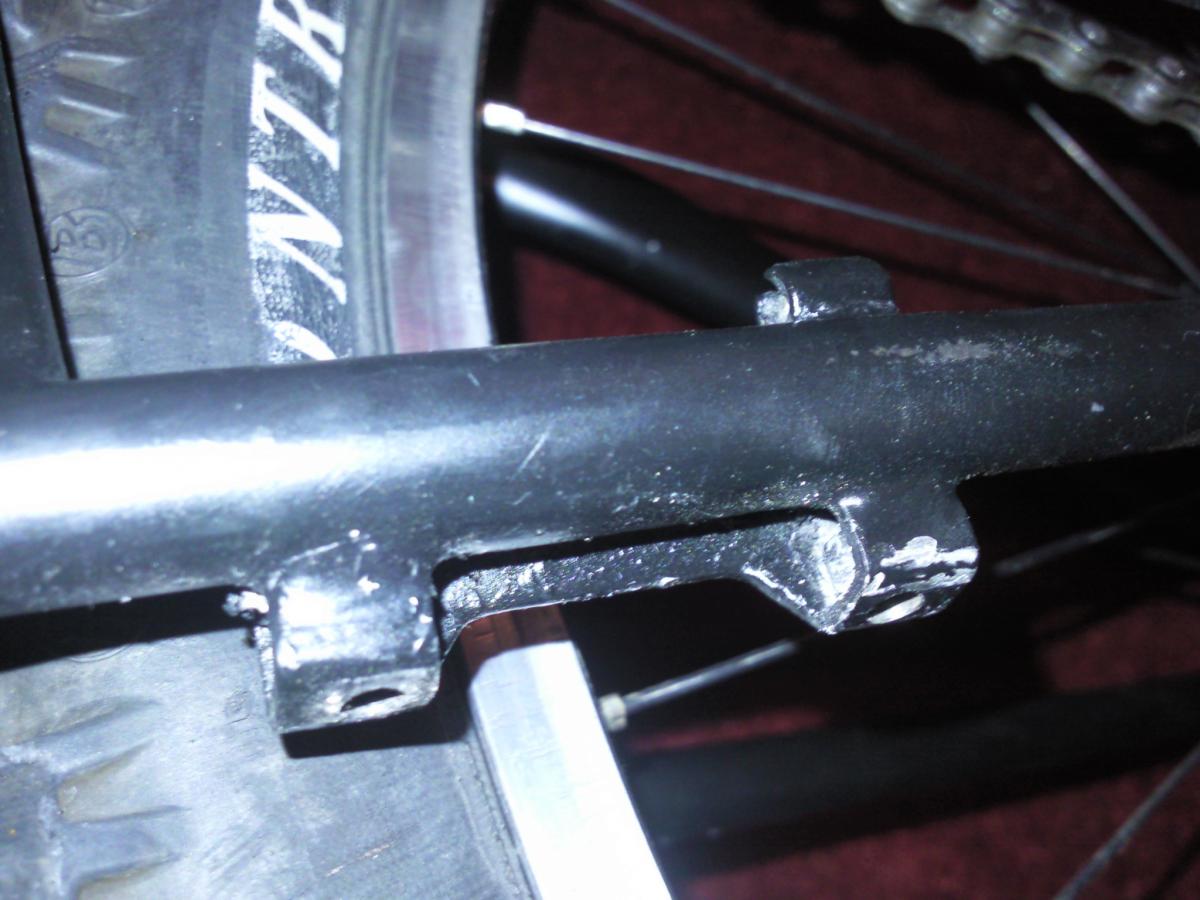

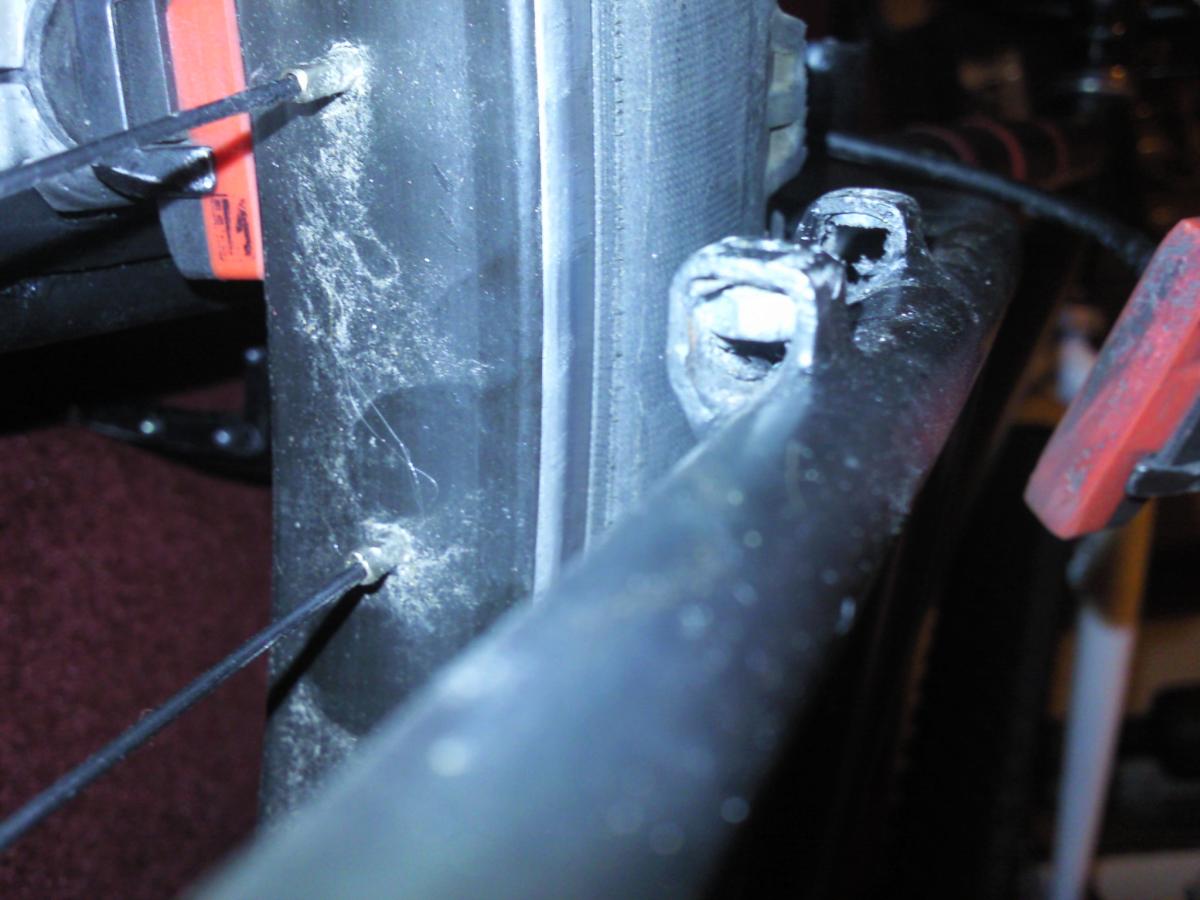

godtrials Posted September 30, 2012 Author Report Share Posted September 30, 2012 these are the weak brake mounts and just dont no what to do lol Quote Link to comment Share on other sites More sharing options...
bing Posted September 30, 2012 Report Share Posted September 30, 2012 (edited) they look like the Magura braze on mounts you get with a 4 bolt clamp kit, pm me your address I'll post you some brand new ones that you can get welded on somewhere. any fabrication place should be able to weld them on straight and in the same place for not much money. you can have them for nowt, they are just cluttering up my toolbox Edited September 30, 2012 by bing Quote Link to comment Share on other sites More sharing options...
LEON Posted September 30, 2012 Report Share Posted September 30, 2012 That's weird, they should be like in the pic in my link, either you have an early model or someone's done that to it, no reason why a small bolt shouldn't go behind where your thread is. I've done it before. Quote Link to comment Share on other sites More sharing options...
godtrials Posted September 30, 2012 Author Report Share Posted September 30, 2012 yeah i no its weird loland thanks for the offer mate but you would have to pay a postage fee because of how far apart we are and i might just get 2 jubilee clips to clamp them together to see if that would work lol Or could i get some liquid metal and pack it in there and put a bolt in there wait for it to dry and unscrew the bolt then ill have a thread for the magura bolts to go in Quote Link to comment Share on other sites More sharing options...
LEON Posted September 30, 2012 Report Share Posted September 30, 2012 (edited) Have you tried an M5 nut? That should do it, new indestructible thread. Edited September 30, 2012 by LEON Quote Link to comment Share on other sites More sharing options...
godtrials Posted September 30, 2012 Author Report Share Posted September 30, 2012 no iv been finding nuts lying around in my shed and filing them down so the fit in the gap.. does the bolts up and its fine but when i pulls the brake alittle bit the bolts shoot out lol :/ Quote Link to comment Share on other sites More sharing options...
Revolver Posted September 30, 2012 Report Share Posted September 30, 2012 Email JAF bikes, get it done good and proper. Quote Link to comment Share on other sites More sharing options...
bing Posted October 1, 2012 Report Share Posted October 1, 2012 just pm your address lol. it'll be a quid at the most, I'm not gonna miss it. don't worry about it, I'll do my bit to help out another rider Quote Link to comment Share on other sites More sharing options...
bing Posted October 1, 2012 Report Share Posted October 1, 2012 posted dude in case your pm's aren't working Quote Link to comment Share on other sites More sharing options...
