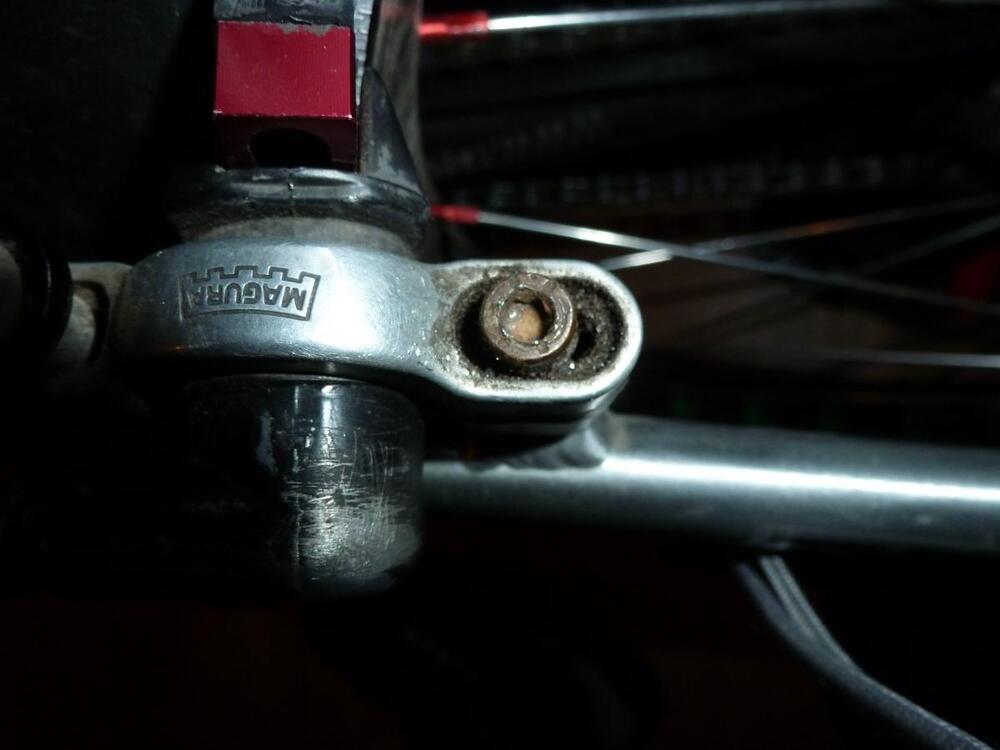

trialsiain Posted June 14, 2012 Report Share Posted June 14, 2012 (edited) Hi how can i get this out ? the rusty bolts rounded Edited June 14, 2012 by trialsiain Quote Link to comment Share on other sites More sharing options...
dann2707 Posted June 14, 2012 Report Share Posted June 14, 2012 WD40 around the threads and get some molegrips on it. Or even pliers that can grab it. Quote Link to comment Share on other sites More sharing options...
SunnyBoy Posted June 14, 2012 Report Share Posted June 14, 2012 Can try hacksawing a straight notch to use a flat screw driver to get it out. Quote Link to comment Share on other sites More sharing options...
TROYston Posted June 14, 2012 Report Share Posted June 14, 2012 I would get a Imperial size Allen key (One that's a touch bigger) and hammer it in. Jobs a gooden! Ive had this done loads of times when i was younger, spray GT85 onto it first. Quote Link to comment Share on other sites More sharing options...
bing Posted June 14, 2012 Report Share Posted June 14, 2012 get a torx head bit that will grip the hex part, or dremel a slot into the top of the bolt so you can get a screwdriver in it. try warming up the frame, GENTLY though. the ally will expand faster than the steel, providing you dont go mental your heat treating won't be affected. whilst warming up try turning the bolt at the same time Quote Link to comment Share on other sites More sharing options...
trialsiain Posted June 16, 2012 Author Report Share Posted June 16, 2012 cant get it out still its rusted to the alloy so i think im fu*ked Quote Link to comment Share on other sites More sharing options...
TROYston Posted June 16, 2012 Report Share Posted June 16, 2012 Dremel the head off, take the clamps off, mole grips the bolt out!. Quote Link to comment Share on other sites More sharing options...
SunnyBoy Posted June 16, 2012 Report Share Posted June 16, 2012 (edited) Odd...shouldn't happen make sure you properly grease your screws in future. Have you tried a flat headed screw driver and plenty of lubricant? I'm assuming you've loosened the other bolt off completely to make it a little easier to remove. Dremel the head off, take the clamps off, mole grips the bolt out!. That should do it Worst case scenario you'll have to hacksaw the top part of the magura mount clamp (sorry). Edited June 16, 2012 by SunnyBoy Quote Link to comment Share on other sites More sharing options...
trialsiain Posted June 16, 2012 Author Report Share Posted June 16, 2012 (edited) Odd...shouldn't happen make sure you properly grease your screws in future. Have you tried a flat headed screw driver and plenty of lubricant? I'm assuming you've loosened the other bolt off completely to make it a little easier to remove. That should do it Worst case scenario you'll have to hacksaw the top part of the magura mount. tried it all :/ will it of stripped all of the alloy threads ? Edited June 16, 2012 by trialsiain Quote Link to comment Share on other sites More sharing options...
SunnyBoy Posted June 16, 2012 Report Share Posted June 16, 2012 (edited) First, I'd try getting something to take the screw head off to get the clamps off in one piece! When I say the magura mount - I meant the top part of the clamp sorry XD so it won't affect the actual frame mount, it'll just mean there's nothing resisting the screw head. Don't touch anything on the frame itself and leave the screw head in tact if you try this way so you can get a screw driver or mole grips to it. Edited June 16, 2012 by SunnyBoy Quote Link to comment Share on other sites More sharing options...
Alex Dark Posted June 16, 2012 Report Share Posted June 16, 2012 mig weld a very small bar to the top of the bolt drill the bolt head off hacksaw between the mounts ( you will obviously damage the mount this way ) to cut the bolt in two. That will enable you to remove the brake gubbins and just grab the exposed bolt end with mole grips Quote Link to comment Share on other sites More sharing options...
trialsiain Posted June 16, 2012 Author Report Share Posted June 16, 2012 bolt snapped head off so took mounts of used mole grips and then bolt snapped again inside the frame so had to drill it out used the same sized tap to clean threads and all is now good Quote Link to comment Share on other sites More sharing options...
Lewis Gething Posted June 16, 2012 Report Share Posted June 16, 2012 (edited) For future reference, you could have used some strong super glue and an old allen key. Apply some glue inside the head of the bolt, and place the allen key in it, leave it to cure/set and then you should be able to turn the allen key to take the bolt out. Now you just need to go and buy a new bolt+allen key Edited June 16, 2012 by streetrials24 Quote Link to comment Share on other sites More sharing options...
trialsiain Posted June 16, 2012 Author Report Share Posted June 16, 2012 For future reference, you could have used some strong super glue and an old allen key. Apply some glue inside the head of the bolt, and place the allen key in it, leave it to cure/set and then you should be able to turn the allen key to take the bolt out. Now you just need to go and buy a new bolt+allen key thanks good idea, but the bolt was that weak and rusted it snaped when i tried to remove it Quote Link to comment Share on other sites More sharing options...
TROYston Posted June 16, 2012 Report Share Posted June 16, 2012 Always grease your bolts kids! 1 Quote Link to comment Share on other sites More sharing options...
