cai Posted May 19, 2012 Report Share Posted May 19, 2012 (edited) Hey, I've got one of the original Pro 2 Trials (from '05, maybe '06 I think?) and recently the free hub/free-wheeling section has gone very stiff when the drive side axle bolt is tightened 100%. When the disc side axle bolt is tightened completely everything is normal, and when the drive side axle bolt is tightened say 95% (so its just about ride-able, but your still a little scarred that the hub may fall out) everything is still normal, once its tightened completely however the freehub section becomes very hard to turn (the hub itself still spins fine, its just the free hub part that's bad). I've taken the hub apart and all the bearings are tip-top, and I oiled them up just to make sure they were not stiff. The correct sized spacer is in place between the free hub bearings and the hub bearing. The inside face of the spacer/end cap on the drive side is perfect. I've checked the hub body inside and out for cracks as this model was well renowned for cracking at the hub shell - but it's all good. It really is confusing me to what is causing this issue, any ideas out there, or comments from anyone who's experienced this problem before would be massively helpful Edited May 19, 2012 by cai Quote Link to comment Share on other sites More sharing options...
Jamie_Trials Posted May 19, 2012 Report Share Posted May 19, 2012 Maybe the frame has worn so it can't tighten to what it actually wants, try putting a washer on the outside of the frame, or you could shorten the thead on the bolt. Best to try the washer first, and if that is the problem cut the bolt after. Quote Link to comment Share on other sites More sharing options...
cai Posted May 19, 2012 Author Report Share Posted May 19, 2012 (edited) Cheers for idea but my problem is the complete opposite of that. Your idea suggests that I can't tighten the hub to the frame fully - where my problem is that I can absolutely tighten my hub to my frame, so much so that the free wheeling element on my hub is getting sort of clamped in place also. You could be onto something with a washer though! If for example the 'end cap' on the drive side of the hub has mangled itself in some way it could be pressing on the whole bearing of the free hub and thus making it stiff, placing a correctly sized washer in between the end cap and free hub bearing would solve this. However the inside face of the 'end cap' on my hub doesn't look to have been damaged or distorted in anyway to be touching all of the free hub's bearing, so I can't see this being the answer. Edit: If I can get a hold of a correctly sized washer than I will of course give this a try Edited May 19, 2012 by cai Quote Link to comment Share on other sites More sharing options...
Jamie_Trials Posted May 19, 2012 Report Share Posted May 19, 2012 (edited) Well I hope it works, I had a Hope pro 2 before and the exact same thing happened. Only problem is it broke so much I can't actually remember how I fixed each problem EDIT: There's the problem. Edited May 19, 2012 by Jamie_Trials Quote Link to comment Share on other sites More sharing options...
Mark W Posted May 19, 2012 Report Share Posted May 19, 2012 If it only does it when you tighten stuff up, then it's basically going to be either a bearing (which sounds like they're all fine?) or spacer/washer problem. I'd imagine it'd be the latter leading to the former Quote Link to comment Share on other sites More sharing options...

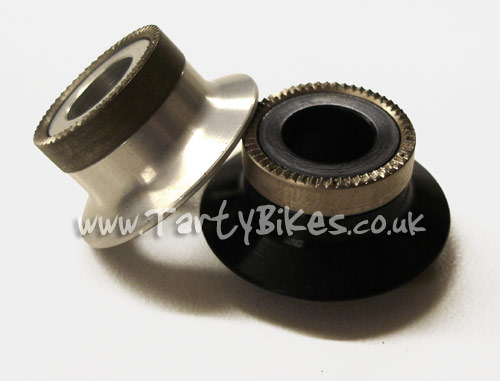

cai Posted May 19, 2012 Author Report Share Posted May 19, 2012 If it only does it when you tighten stuff up, then it's basically going to be either a bearing (which sounds like they're all fine?) or spacer/washer problem. I'd imagine it'd be the latter leading to the former Cheers for the reply Mark. I'll take the hub apart again tonight in hope of narrowing this down. Just to clarify, it'll potentially be a fault with either the 12mm spacer or 1mm spacer: Or it'll be a fault with the drive side end cap: Otherwise It'll be a bearing letting me down, correct? Quote Link to comment Share on other sites More sharing options...
Mark W Posted May 19, 2012 Report Share Posted May 19, 2012 I'd assume so, yeah. Quote Link to comment Share on other sites More sharing options...
Ash-Kennard Posted May 19, 2012 Report Share Posted May 19, 2012 i have been suffering with this problem on my 06 pro 2 t for a while now too. i changed both end caps, washers and the bearings. still does it. if anyone comes up with a solution please let me know! Quote Link to comment Share on other sites More sharing options...
brad1995 Posted May 19, 2012 Report Share Posted May 19, 2012 There is a little spacer that goes in between the freehub body and the inner bearing of the hub shell that you will more than likely of missed out if its stiff when you pedal but not when the wheel spins, i made the same mistake. This video should clear things up if so..... Quote Link to comment Share on other sites More sharing options...
Ash-Kennard Posted May 19, 2012 Report Share Posted May 19, 2012 spacer is in there, it looked worn, so i replaced it too. still stiff Quote Link to comment Share on other sites More sharing options...
cai Posted May 20, 2012 Author Report Share Posted May 20, 2012 The 2mm spacer measured in at 2mm so no problems there. I couldn't get the 12mm spacer out (without causing damage to it) to measure it, but it doesn't look worn. This leads me to believe its the drive side end cap at fault, again it doesn't look worn, but the 'lip' on the inner face that presses up against the free hub body looks to be very small. Perhaps the whole face of the end cap is touching the free hub body bearing when everything is tightened up fully, not just the lip of the end cap, causing the stiffness? I'm going to try a small spacer in there if I can source one of the correct size and see if that helps, if it does then I'll buy a new end cap. If it doesn't then I'll be left scratching my head at which bearing is at fault Quote Link to comment Share on other sites More sharing options...
