i got bored today and decided to make my quickshift.... well quicker :P

I've hit the limit of front/rear throw modification i can do on the gearbox linkage, so next was to modify the gearlever mech.

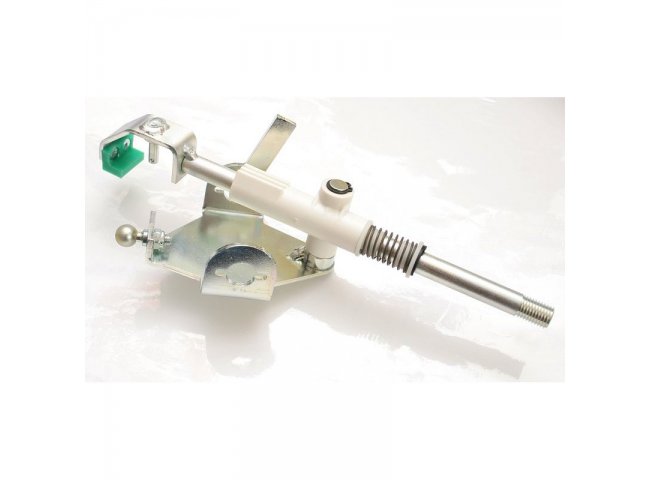

This is basically the idea im going for:

post-36867-0-97514900-1425834269_thumb.j

raise the pivot point on the gear lever. They claim that'll give a 50% reduction in throw, and the white plastic part looks like the standard one, so i'd take an educated guess that they raised the pivot point an inch.

i didnt want to go that far as i've already reduced the f/r throw already. being the exact person that i am, i reduced it by the size of the nearest spacer i could find! :P which ended up being 12.5mm

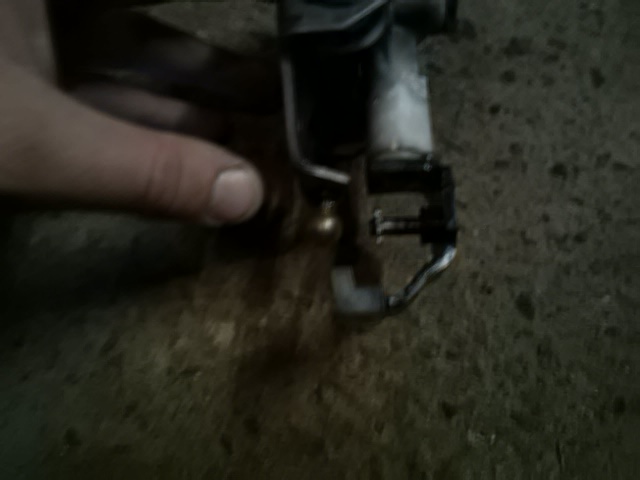

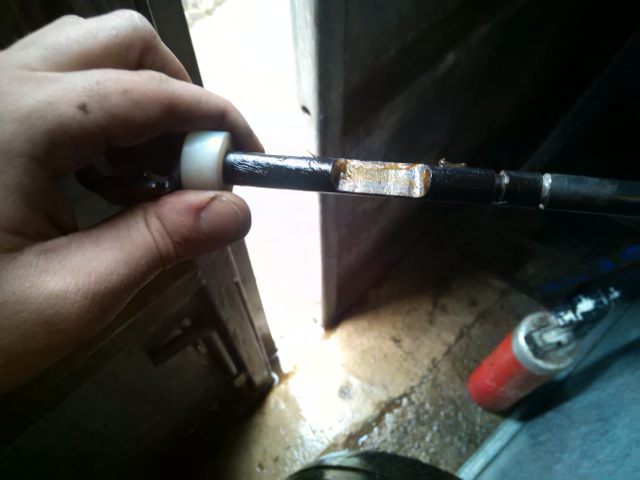

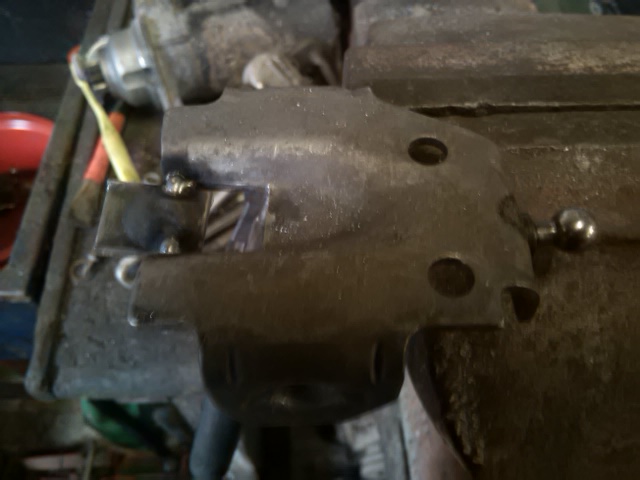

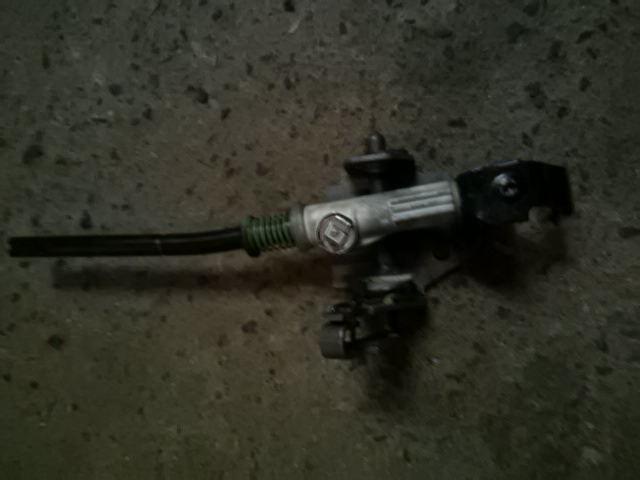

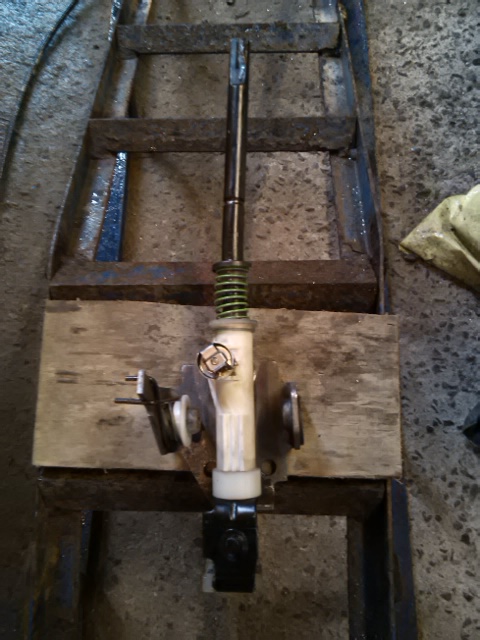

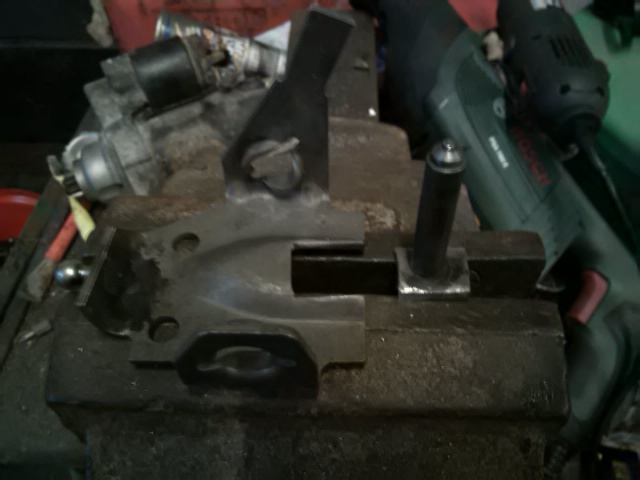

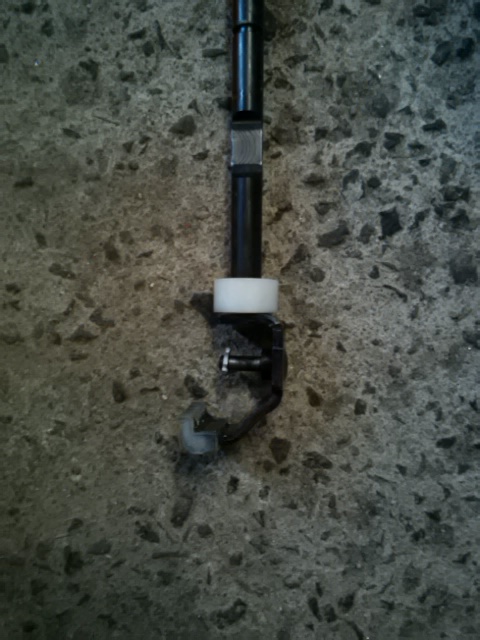

Modifying the standard system means doing this:

straightning the gear lever.

machining out the cut out an extra 12.5mm

machining the groove for the top circlip an extra 12.5mm higher

cutting and welding the pivot point an extra.... you guessed it, 12.5mm higher!

post-36867-0-53587600-1425834645_thumb.jpost-36867-0-37769600-1425834646_thumb.j

post-36867-0-38772600-1425834647_thumb.jpost-36867-0-85805700-1425834648_thumb.j

post-36867-0-87405700-1425834649_thumb.jpost-36867-0-87786300-1425834650_thumb.j

post-36867-0-39504400-1425834652_thumb.j

i'm SO glad i did this. The gear lever cost me £2 from scrap yard, and this modification took me about an hour to do.

It feels so much better. the front to rear throw is so much shorter (i reckon about 30-40% less than i had), but not too short. theres enough travel to know which gear your in, but not too much to make it feel horrible. its a real nice feel of gear....neutral.... next gear....

Link to comment
Share on other sites

Well it's not often I post here, but I just replaced the bonnet catch on my fabia. Feeling pretty chuffed. The bonnet stays down and everything (after a few heart stopping "uh oh, I can't close the bonnet" moments). It didn't fix the thing I hoped it would though :(

And I only lost one "square ratchet bit to screwdriver bit converter" and the torx bit that was plugged into it somewhere down the bottom of the engine. I think it's on the tray. Not a bad result.

Link to comment
Share on other sites

I'm the first person to admit that I'm not very good at doing anything fiddly, that doesn't involve nuts and bolts.

But I'm really happy with how these have turned out!

10404493_1603900339825141_68378200677452

11043141_1603900206491821_89570342224684

1920629_1603902229824952_870800837194932

11045025_1603902163158292_86983723909823

11050661_1603902263158282_65784103077820

11029551_1606158396266002_71478168772540

10426258_1606158439599331_10551939003200

11050693_1606158132932695_68128363214598

11038122_1606158302932678_19332971031191

18502_1606158096266032_62932434754200054

The four light grille just didn't look right.

10174926_1606157906266051_90777823128002

So I put the twin light grille on. Usually I hate them, but I quite like this.

11012348_1606157799599395_59959960517774

10929201_1606158196266022_82839196751710

1503605_1606158332932675_135933347312459

10398657_1606158522932656_78922211103463

63778_1606147869600388_92167166144766406

Link to comment
Share on other sites

Looks terrible as well as becoming one of those bellends dazzling everyone else on the road. ;)

I see being on the other side of the world has made you as delusional as the last person I know who went there ;)

They won't dazzle anyone, because they're proper bi-xenons with quality optics.

11015070_1606158646265977_51176254337830

Unless by everyone you mean people who are only two feet from the ground. In which case they're no worse than any brand new bi-xenon equipped car.

Link to comment
Share on other sites

You should go travelling man, expand your mind, get enlightened and realise you're making your car look shit. ;)

In actual car news, planning on looking at some today, kinda had my heart set on a Delica but they're so damn expensive!

Link to comment
Share on other sites

You never know, I might be able to pick up some enlightened cock whilst I'm at it?

Nahhhh your ex has already got it all.

Jardo how did you find those corbeau seats you had in the a3? Really tempted by them at £300 with runners. Are runners compatible with every car or do I have to buy clio specific ones?

Edited by dann2707
  • Like 1
Link to comment
Share on other sites

In actual car news, planning on looking at some today, kinda had my heart set on a Delica but they're so damn expensive!

Yes mate! I was looking into those aswell. Seems to be a good balance of Car/Van/Camper. Guy across the road has one and blatantly loves it. But he said theyre not too great on fuel..

Now i'm just thinking of going car-free and building up a few quality bikes.. Including a brompton for bus/train journeys and a 1000W butchers bike conversion & trailer set-up for carrying stuff on <40miles round trips! And then just rent-a-van/borrow-a-car for the few times i might need..

Cars in general are expensive. Even cheap ones..

I like the idea of being able to sneakily charge up your batteries at places and basically get free fuel!

Pashley26.. i think i preferd the Rallye grille with those lights.. Looks almost hypnotic with the badgeless, it's like theres nothing to rest your eyes on.

Those little dots do look a bit weird on their own.. Although i'm sure theyre nice and bright an all that.. but maybe if it was combined with those 'angel eye' outer ring lights it'd look better?!

Link to comment
Share on other sites

The lights being little dots do look a little bit odd I agree; if I did it again I probably wouldn't paint it and I'd have left them silver and fitted the 4 light grille.

Live and learn.

I was kind of hoping for the low and wide 90's German look that Mk2's had back in the day.

10994340_1606446599570515_19901593838632

I have kind of pulled it off.

1510584_1606446036237238_149083789144205

Looking at things online, I kind of wish I had of gone wide track. But I can always run spacers I guess :/

Link to comment
Share on other sites

Aaah yeah, didnt realised you'd painted the reflective.. That would makes it less weird. I guess it's like when you see someone with those strange contact lenses in.. just looks freaky!

I rekon it'd look good on angel eyes.. Bit like these.. but more like yours without the naff chrome ring..

Link to comment
Share on other sites

I bought the eBay ones that George and now Prawn have, they are so much better than pre-built projector headlights!

I'm just going to leave them for now, they were supposed to be a cheap project to take up a day without costing a fortune. I can't really be bothered to make them look any better visually.

I think with some 10mm spacers and a bit of camber the car will sit a bit better and make the lights look more in keeping with the car?

Link to comment
Share on other sites

I have kind of pulled it off.

You have not.

Anyway, introducing my new home -




$2400 AUD (£1200ish), needs a linkage looking part for the steering and a new tyre, other than that it's on the road. For my next trick I shall make it a camper...
