Why So Many Stem Stackers?


Matt Vandart

Recommended Posts

I ran with 2cm for the best part of 18months with an inspired bar (on a hope 90x10 stem)

Was going through a phase of practising bunny hops and after seeing some of ben rowlands vids, it got me curious to see how it would feel. put an additional 2cm of stackers on with a TT highrise bar and the difference was immense, completely changed the feel. manuals and bunnyhops were obviously alot easier with not being over the front as much.

things on the back wheel (for me) became alot more stable, having alot more room made gaps easier to preload for...meant i could get further. i thought things on the front wheel may feel worse being further away from it, but that somehow felt nicer too...just about the angles i guess?

Edited by chris4stars
Link to comment
Share on other sites

To be honest, some of us are starting to get into low bmx bar territory when it comes to height. I think it'd be pretty interesting to see how that'd work out!

I'm currenyl running a 90x30* stem and some TT high rises on the Leeson, will probably be raising them by about 20mm when I get new forks with a longer steerer - the 190mm one i've got at the moment is a little short.

But as said, short stems and lots of stackers tend to just feel better. Long high stems make it feel a bit like a big mod which is just gay. If stems came that ridiculously steep it may be viable, but like Ali said there really is just nothing around that's suitable.

Link to comment
Share on other sites

thats my old bike there :)

honestly, the difference in feeling in the bike was unbelieveable...completely changed it for the better in my opinion

pause at 8seconds to see his setup pretty clearly...

I'm not doubting it in any way dude, just wondering why it hasn't been solved in some other way.

With that many stackers, surely bending the sterer tube is a very real posibility?

In what way would it feel like a mod?

If a stem with a the right angle and reach to match exactly the poition of the bars it would feel just the same?

I am not in anyway having a go against this practice, its just I am gonna build myself an inspired soon and am investigating this phenomenon.

How come the inspired just hasnt got a longer headtube?

I think every one I have seen has had this set up.

Would using some low BMX bars and a shorter sterer tube realistically replicate this set up?

On a sidenote: I'm pretty sure my BMX has a lnger wheel base that the skye.

Edited by Matt Vandart
Link to comment
Share on other sites

They COULD make a stem with that angle and it would feel the same, yeah.

BUT... If you had that stem, there'd be much less option for change.

With stackers, you can think: "I wonder how slightly lower bars would change the feel of [manoeuvre x]" and just do it.

Or you could decide you fancy a bit more. It's cheaper too ;)

If you know exactly what height you want, then yeah - that'd be great - but from a manufacturer's point of view it's kind of limiting. A lower angled stem of length [x] can be used by itself, or with stackers to generate a whole range of geometries. Making just that one geometry limits it to that alone.

On the idea of bending steerer tubes, good bloody luck :P I'm sure - with adequate force - it is a possibility, but I'd wager that number is far more than people can generate. I've never heard of it happening. They're very thick walled, reasonably large diametered tubes... Need a metallurgist/engineer in here really but my money's on needing to be the Hulk or a robot to do that.

Again - a longer headtube would restrict you exclusively to higher bar heights.

True - most streety bikes you see have high bars to make up for the short cockpit, but there's some Inspired riders I've seen run something like a 110x10* with very few stackers (if any) and ride it as a trials-trials bike with some street rather than really streety street trials.

All comes back to being as all-rounder as possible. They're all-rounder bikes that do a bit of everything, so the more versatile they can be, the more the company will sell.

Yes - you could run low BMX bars. I was thinking of trying this out on my mod with a long stem to get it a bit streetier. The main issues were the stem. I'd've wanted about 80-90mm reach, which just doesn't exist with a 22.2mm clamp, and I didn't fancy shims with that much leverage.

I think you'd have that issue too. Most 24" stems I've seen have been 70mmish, which is at the very longest of BMX stems - though maybe their 70 being flat and trials' 70 being slanted would be enough. Not sure - look in to it, but I'd give the advance warning that I really don't think it all worth the effort.

If you want to spend money on experimenting, I fully support you and urge you to do it. Experimentation is good. In this case, however, I think the reasons for doing so are not realistic issues.

(That's my take on the things you asked, anyway.)

Link to comment
Share on other sites

Because they're so short.

If they were shortand had low rise it'd feel like a monkeybike.

On a trials-trials bike, you're more laid out. Using Coust frames as an example (very long), the rider's back is almost parallel to the floor when stood on the bike. Just the way the geometry is.

On a street-trials bike, you're more stood up. Using Skye frames as an example (very short), the rider's back is not far of perpendicular to the floor when stood on the bike. Y'want a similarish amount of space in the cockpit, it's just arranged differently, which is why they handle differently.

Link to comment
Share on other sites

Maybe it's something you could suggest to trialtech dave? :shifty: I can see them being popular if they were made right.

Really? I don't really see the need myself. I'm one of the group who uses a whole bunch of stackers on my Inspired and I see no problem. If i had big ol' BMX bars then you'd need to cut your steerer right down so it wasn't super high, but then if I wanted to change bars i'd be left with a low steerer which would be of no use.

The whole stacker thing, whilst slightly ugly is the simplest, cheapest, lightest, bestest, most flexible option which suits everyones needs. If it t'aint a problem......

Link to comment
Share on other sites

I'd quite like some slightly higher rise bars with less upsweep. BMX bars or bars like the NS Bikes District bars fit the bill reasonably well, but non-dick stems become the issue then. Sort of tempted by some Atomlab bars as they look like they'd offer a little more rise than the TT bars but have 3° less upsweep. Shit Photoshop ahoy:

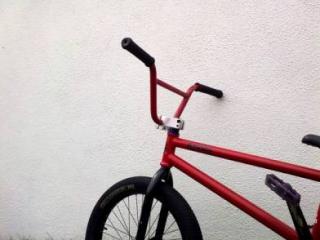

And these are the District bars for comparison.


Matt - I guess you've got to bear in mind that most trials bikes are set up to 'feel nice on the back wheel', so a lower front end keeping your body weight orientated slightly more over the bars generally helps that (as it keeps everything more in line in a backhop position). With a 24 you usually need a more neutral body position, so you need to bring your front end up higher to keep your body weight back. This helps loads for bunnyhops and manuals, which are two fairly popular things as far as 24" riding goes.

Link to comment
Share on other sites

I guess a potential high rise Inspired bar sitting somewhere above the TT's in terms of rise, with slightly relaxed geo and a beefed up build could be cool. There's no major need for it, but it'd be one to consider I suppose.

Most people are pretty happy with what's available though - there's about enough range to cover most bases and stackers are a quick and easy way to try things out.

Link to comment
Share on other sites

i´ve never ridden anything trialsy when it comes to handlebars,my opinion is that steel is reliable.

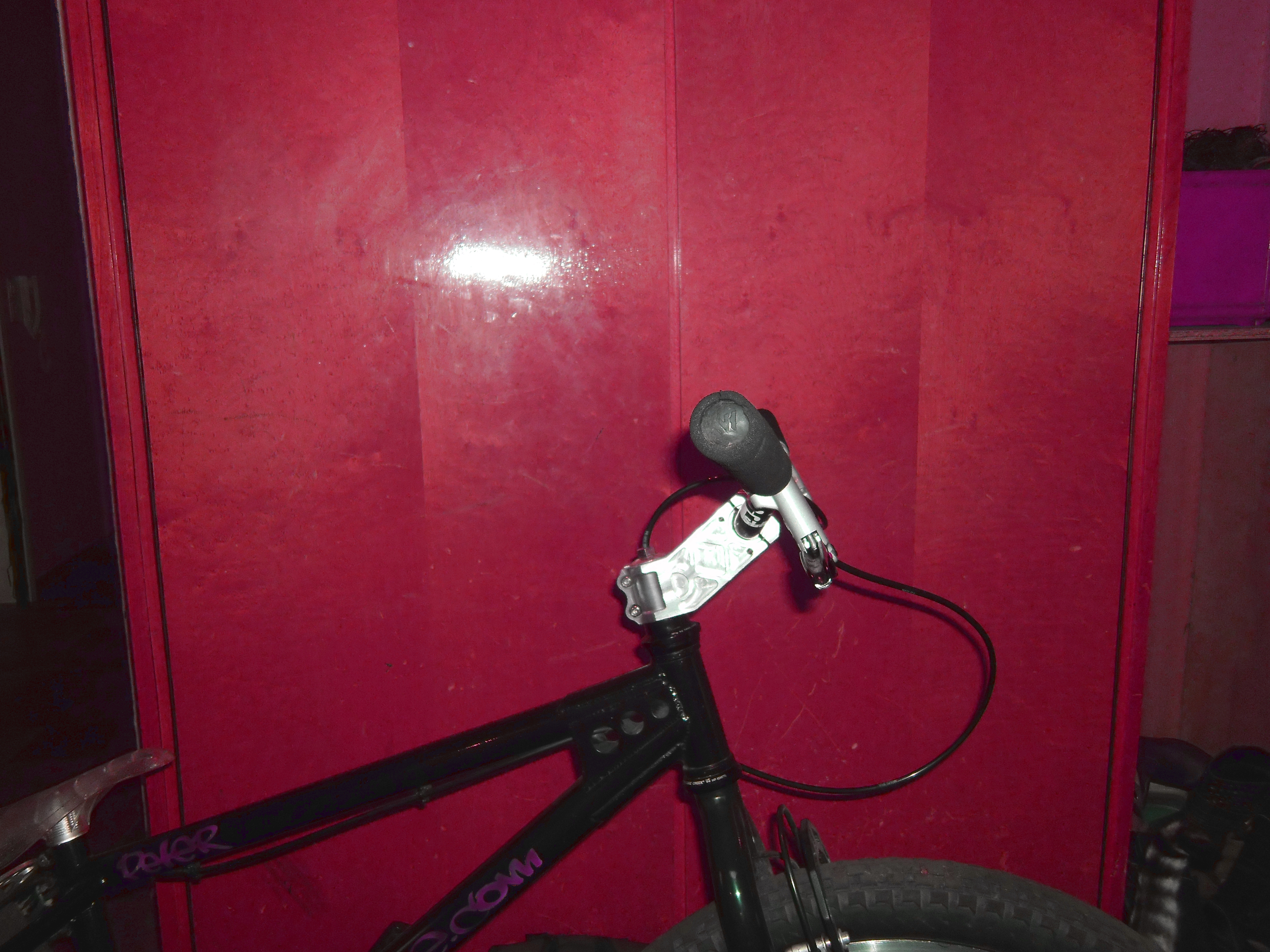

got this 100x25 stem,and a 35mm rise bar made of 4130.

the only thing i´d change would be the rise,3" would be good.

upsweep changes to "forward sweep" (i´d call it),when the bars are rolled forward,i think the less of it,the better.

going for atomlab too.

i think mark´s right,bike mechanics are always...(am one,too lol)

post-30389-0-22430400-1321462047_thumb.j

Link to comment
