liam n Posted May 1, 2011 Report Share Posted May 1, 2011 I have onza comp 2010 frame, echo 7075 CNC cranks, echo SL free wheel and a trialtech sport light isis BB......will a bashring fit? .. i was thinking about the comp bashring or a trialtech twin alloy one, any recommendations? cheers guys Quote Link to comment Share on other sites More sharing options...
Martin Reynolds Posted May 1, 2011 Report Share Posted May 1, 2011 I have onza comp 2010 frame, echo 7075 CNC cranks, echo SL free wheel and a trialtech sport light isis BB......will a bashring fit? .. i was thinking about the comp bashring or a trialtech twin alloy one, any recommendations? cheers guys Finally getting rid of your bashplate? Quote Link to comment Share on other sites More sharing options...
liam n Posted May 1, 2011 Author Report Share Posted May 1, 2011 Finally getting rid of your bashplate? thinking about it...the frames so scratched now there's no point in having it ...... but i neeed to know if it'll fit first! Quote Link to comment Share on other sites More sharing options...

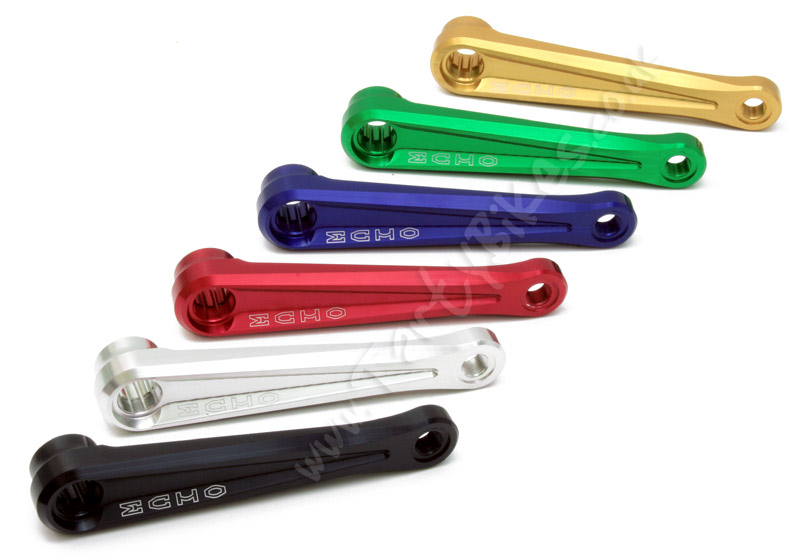

dirt jumper jake Posted May 1, 2011 Report Share Posted May 1, 2011 If theyre are these ones: Then yeah, should do. I have a pair and run a bashring with them, although i use a fixed sprocket not a freewheel... Quote Link to comment Share on other sites More sharing options...
liam n Posted May 1, 2011 Author Report Share Posted May 1, 2011 If theyre are these ones: Then yeah, should do. I have a pair and run a bashring with them, although i use a fixed sprocket not a freewheel... thanks, those are the ones, but an SL would be thicker than a fixed sprocket no? Quote Link to comment Share on other sites More sharing options...
dirt jumper jake Posted May 1, 2011 Report Share Posted May 1, 2011 thanks, those are the ones, but an SL would be thicker than a fixed sprocket no? My sprocket is 12mm wide, an SL is 17mm. But, i do have some spare threads on the cranks so you might get lucky... Quote Link to comment Share on other sites More sharing options...
trialsmax04 Posted May 1, 2011 Report Share Posted May 1, 2011 Ring Tarty on tuesday you lemon... Then if it does fit, order one. Quote Link to comment Share on other sites More sharing options...
SamKidney Posted May 1, 2011 Report Share Posted May 1, 2011 (edited) It will definatley work. The comp bashrings have a 3mm clamp section, the Echo SL is 17.07mm wide. that makes a depth of 20.07mm with the freewheel and bashring butted together. The cranks will acept this perfectly, using a safe amount of threads on the crank arm. As for your BB, the Trialtech Lite has an axle length of 128mm, which means freewheel/ BB clearance will be no issue. To put it into perspective, Ive run Echo SL cranks (same amount of threads), with an Urban bashring (4mm clamp section) and an SL freewheel on a TrialTech Race BB (128mm axle length) and there was plenty of clearance Hope this helps Edit: the Trialtech Twin alloy bashring will also work with no problem should you choose it Edited May 1, 2011 by Echo Lite 09 Quote Link to comment Share on other sites More sharing options...
liam n Posted May 2, 2011 Author Report Share Posted May 2, 2011 It will definatley work. you sir are brilliaant thankyou very much indeed thanks everyone else aswell , i may well be ordering one on tuesday Quote Link to comment Share on other sites More sharing options...
SamKidney Posted May 2, 2011 Report Share Posted May 2, 2011 you sir are brilliaant thankyou very much indeed Glad to help Quote Link to comment Share on other sites More sharing options...
