forteh Posted March 28, 2011 Report Share Posted March 28, 2011 Proof that engineers cant spell Also havent you drawn the bent tab the wrong way or is it intended to sit outside of the chainstays? Quote Link to comment Share on other sites More sharing options...
Rob Leech Posted March 28, 2011 Report Share Posted March 28, 2011 Proof that engineers cant spell Also havent you drawn the bent tab the wrong way or is it intended to sit outside of the chainstays? Lol, indead . The tab at the 4 bolt, or the disc tab? If it's the 4 bolt, ( not the best drawing i must say :$ ) it's designed to sit just above the seat stay, say a couple of mm clearance when bolted up. If it's the disc tab, it's ment to sit just inside the seat stay so you can get access to the lower supporting bolts . Cheers, Josh. Also, keep any questions/quieres you have coming, will help the lad in the long run if he decides to fabricate one . Quote Link to comment Share on other sites More sharing options...

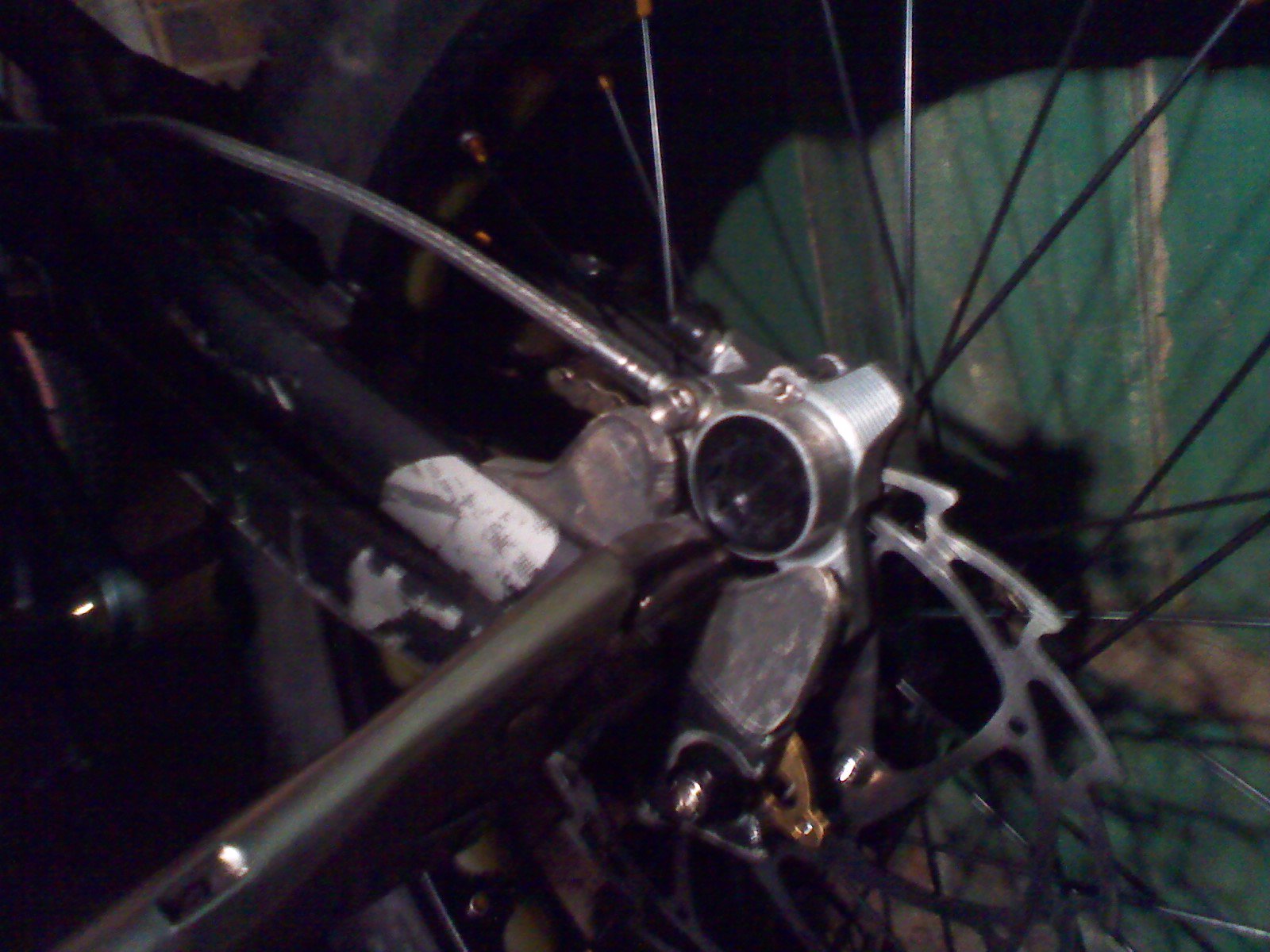

dirt jumper jake Posted March 29, 2011 Author Report Share Posted March 29, 2011 Evening ladies. Here is V2 Quote Link to comment Share on other sites More sharing options...
Rob Leech Posted March 29, 2011 Report Share Posted March 29, 2011 Evening ladies. Here is V2 Think it would be a good plan to extend the tab along the seat stay a bit, will help it alot with the stresses involved . Looking good though matey, Josh. Quote Link to comment Share on other sites More sharing options...

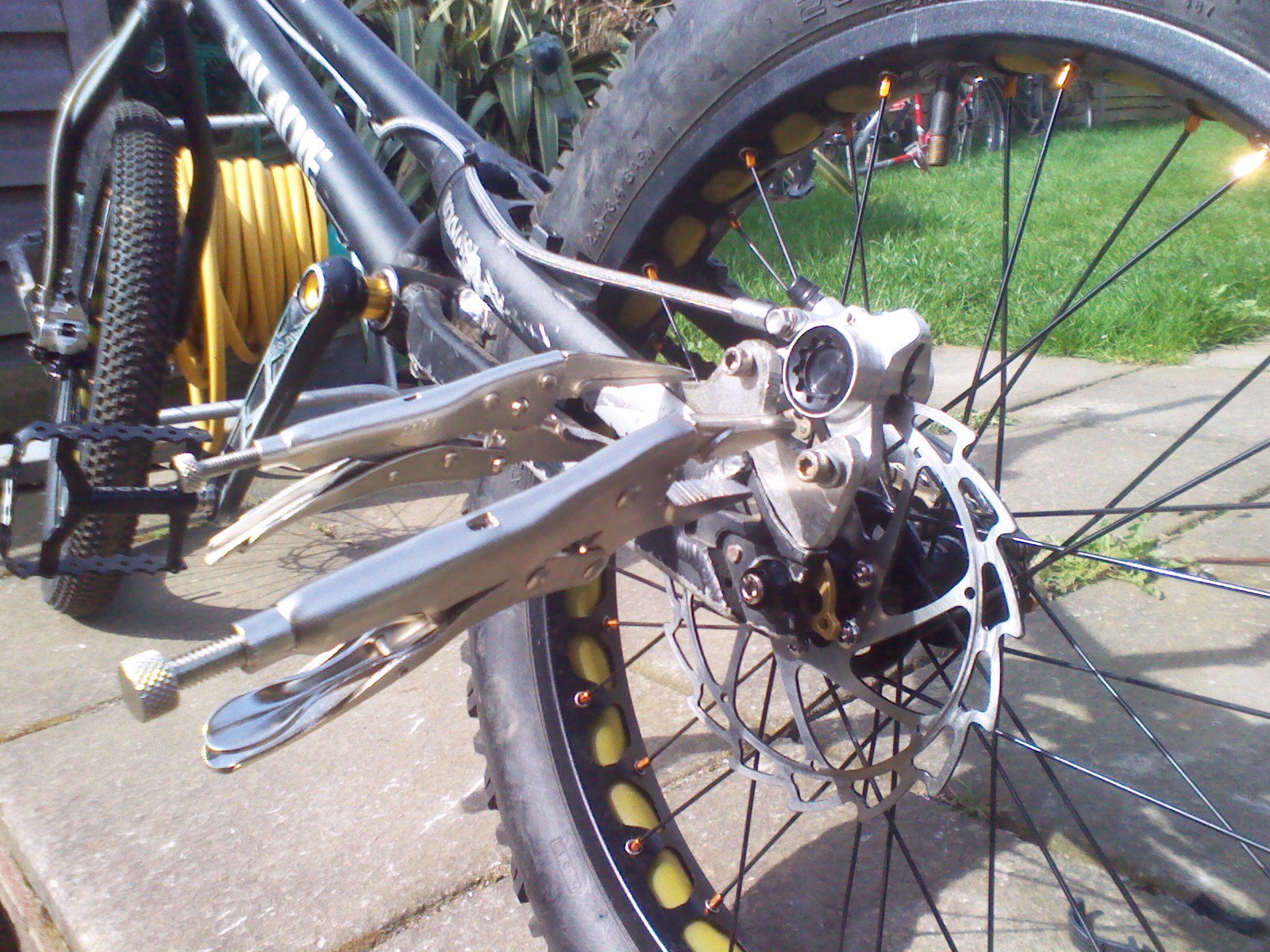

dirt jumper jake Posted April 3, 2011 Author Report Share Posted April 3, 2011 Think it would be a good plan to extend the tab along the seat stay a bit, will help it alot with the stresses involved . Looking good though matey, Josh. Took it to my mate friday afternoon to get it welded, should be done by the end of the week Quote Link to comment Share on other sites More sharing options...
craigjames Posted April 3, 2011 Report Share Posted April 3, 2011 Is that the position it's going to get welded at?! Looks like you didn't listen to Bigman's advice at all... Quote Link to comment Share on other sites More sharing options...
Luke Rainbird Posted April 3, 2011 Report Share Posted April 3, 2011 Are you SURE that caliper is in the right place? Still looks way out compared to the rotor dude. Edit; Haha, Craig replied at the same time I did, but yeah, still stands. Quote Link to comment Share on other sites More sharing options...
dirt jumper jake Posted April 3, 2011 Author Report Share Posted April 3, 2011 Yeah looks shocking in that photo, the angle isnt 100% but it still uses 95% of the pad so im happy Quote Link to comment Share on other sites More sharing options...
