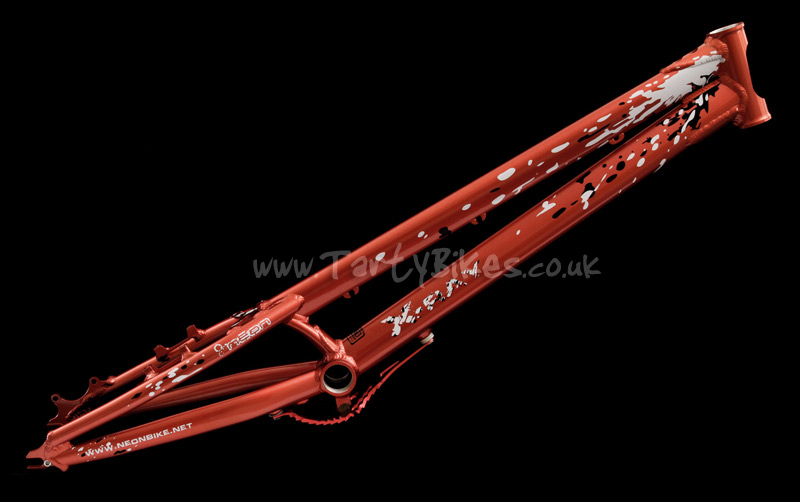

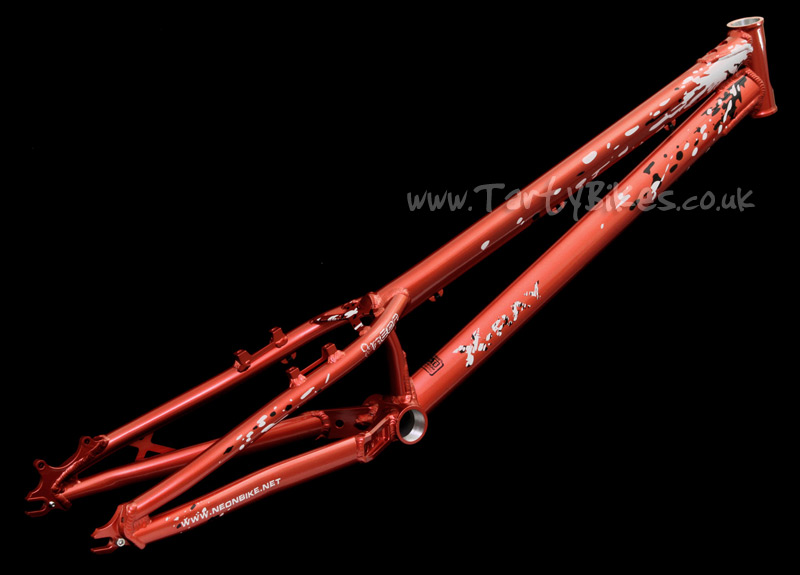

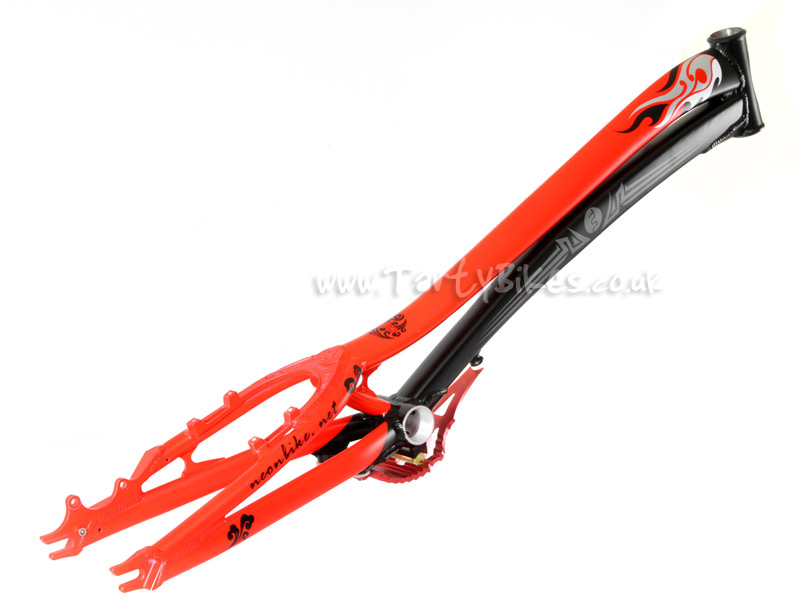

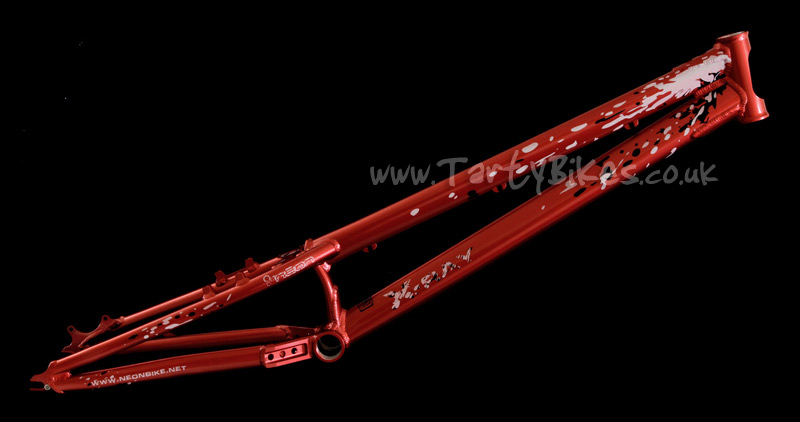

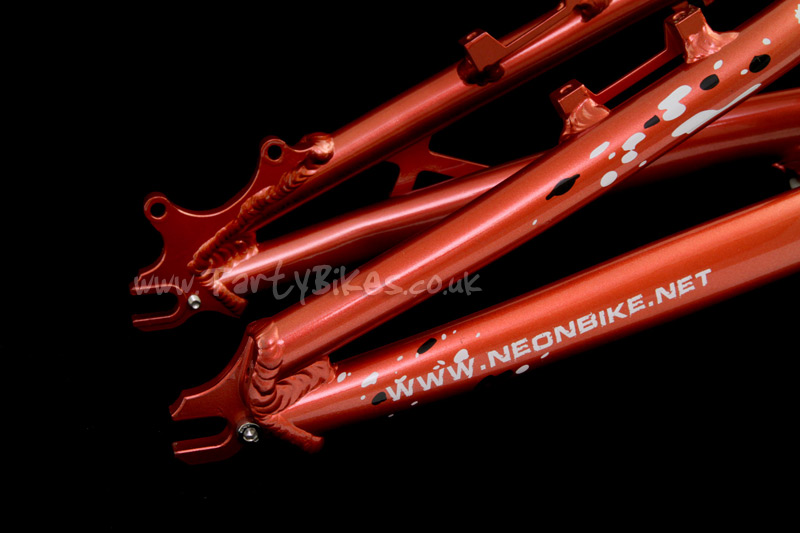

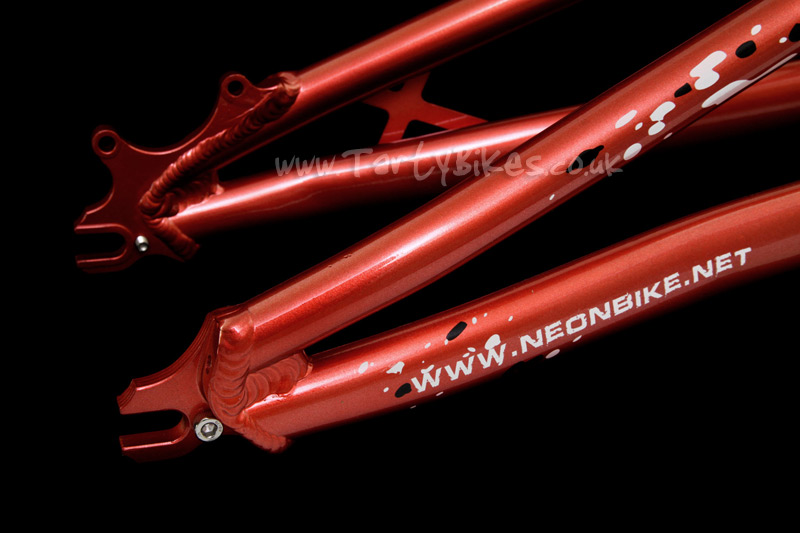

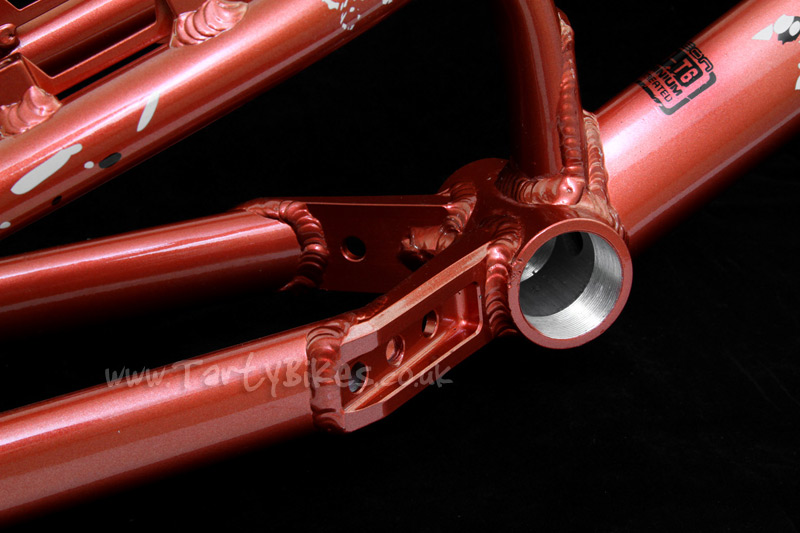

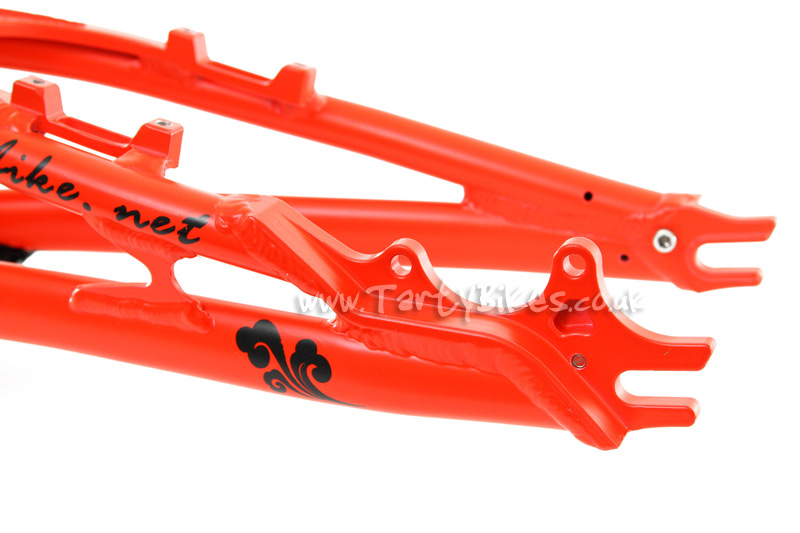

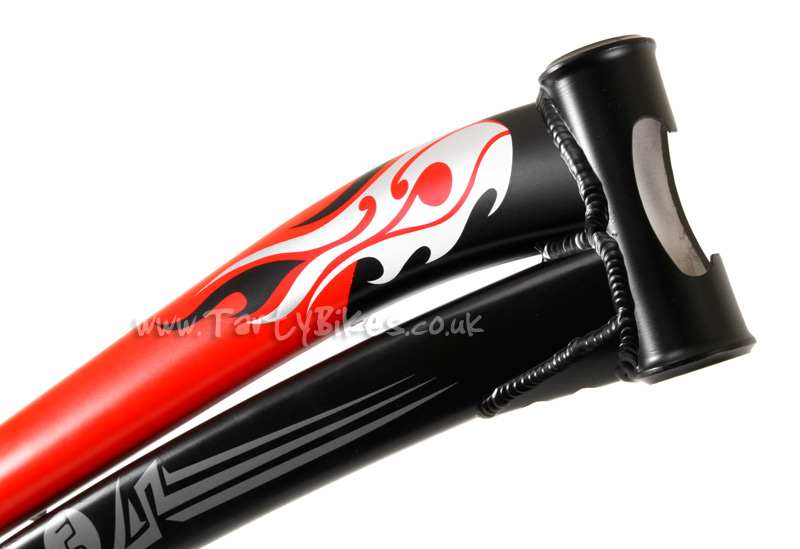

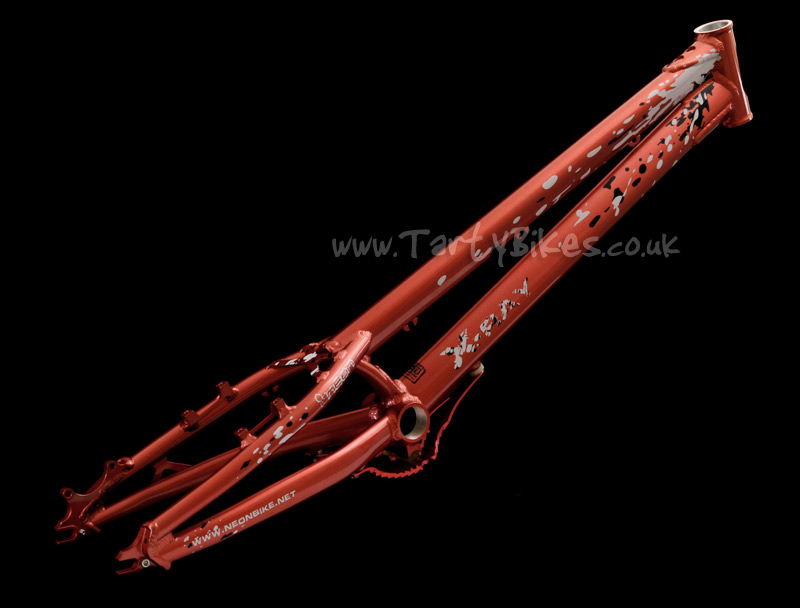

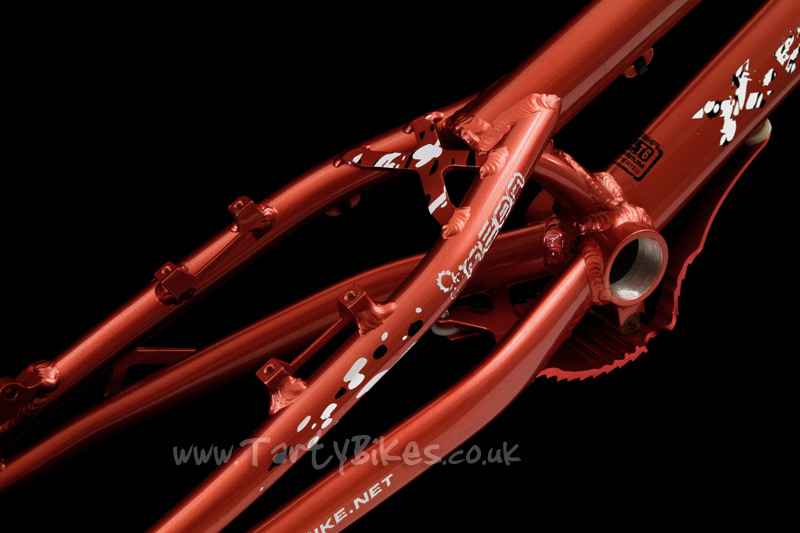

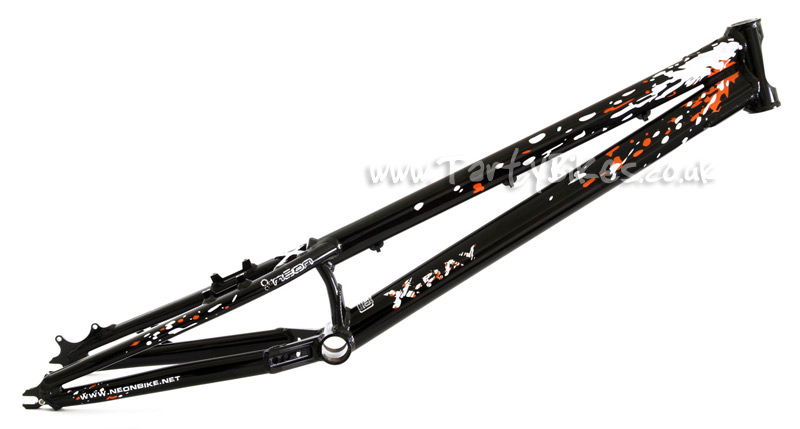

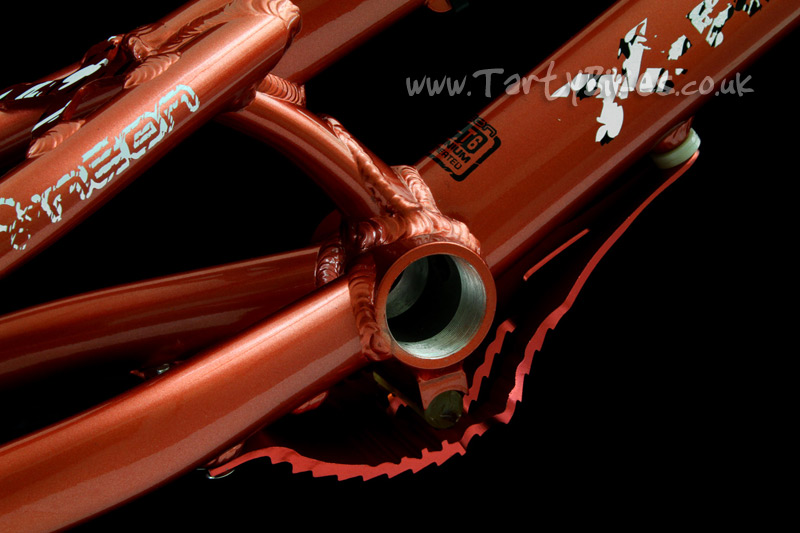

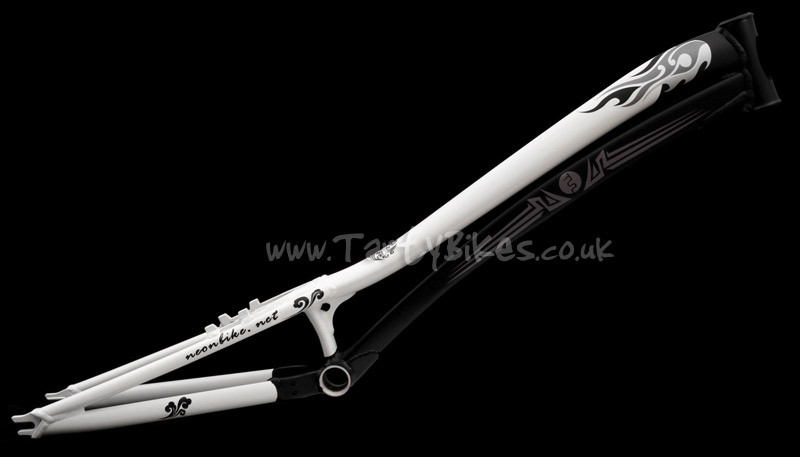

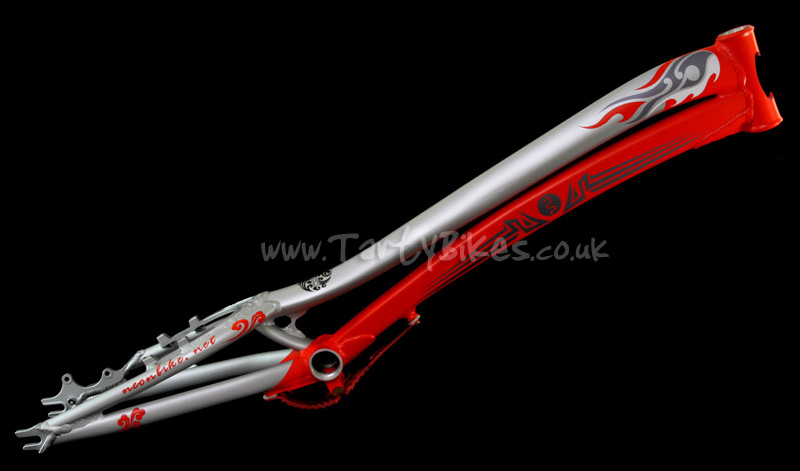

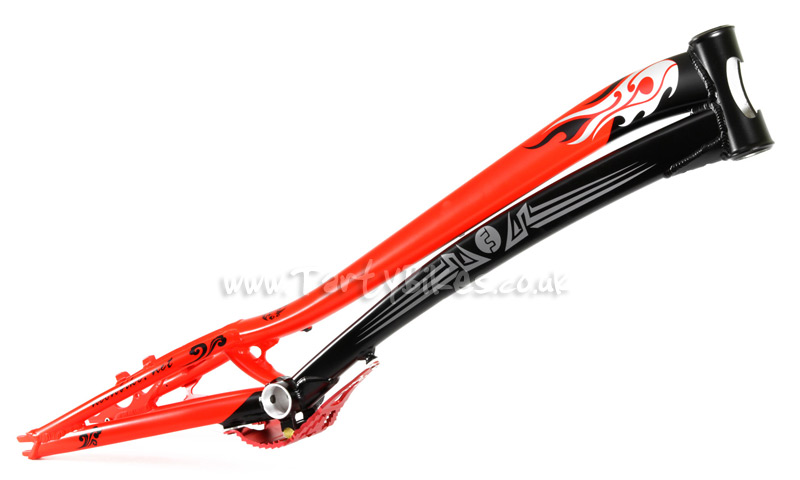

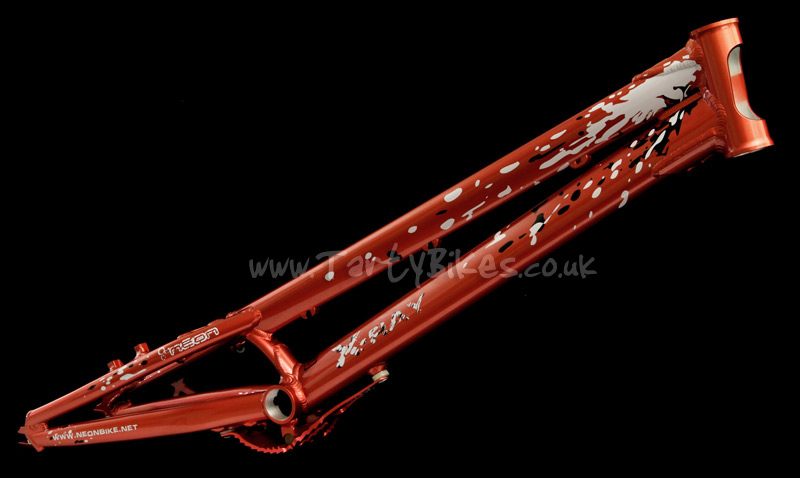

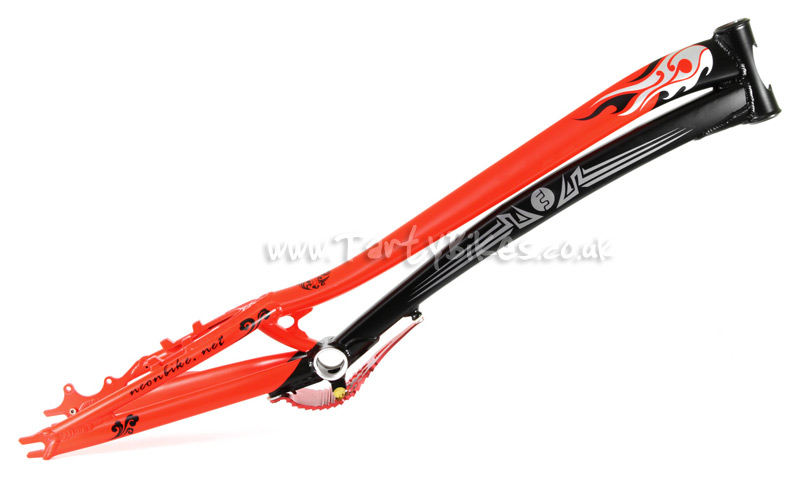

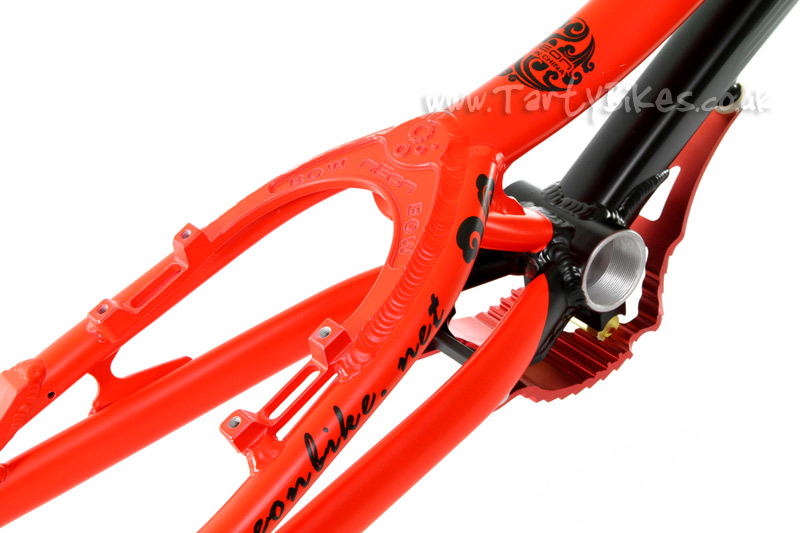

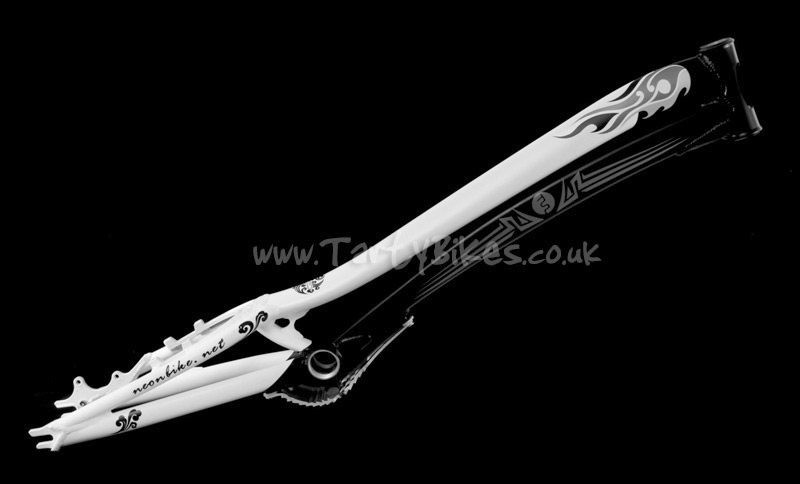

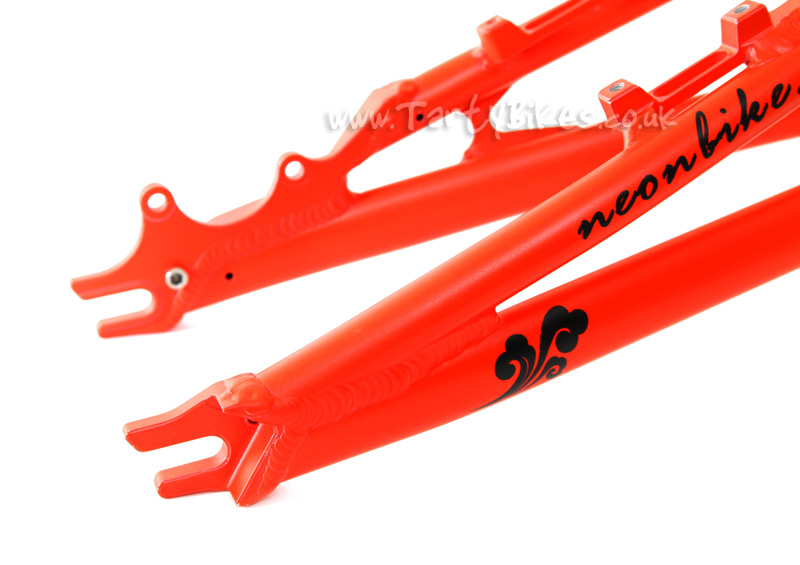

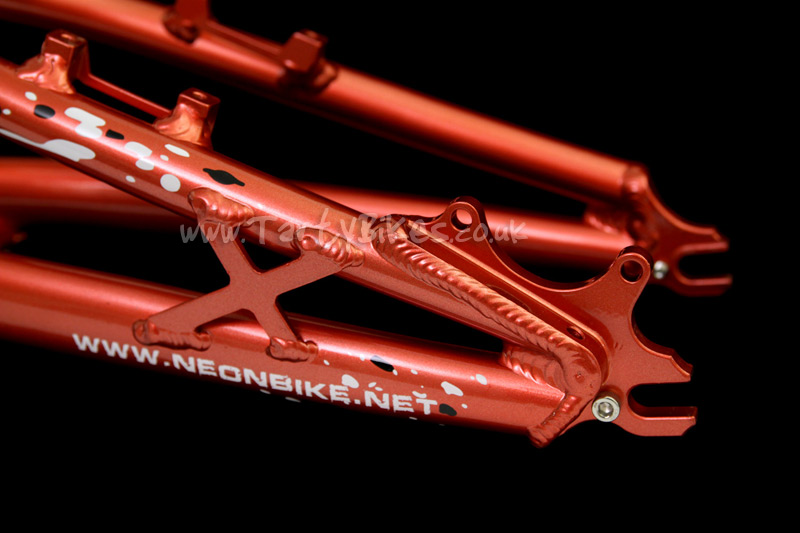

Mark W Posted December 8, 2010 Report Share Posted December 8, 2010 So - Neon, Because and Born have tweaked their ranges for 2011, and here's what they're looking like. The 20" and 26" Neon X-Ray frames: Weight: 1.469kg (Plus bash plate, bolts and rubber at 118g) Geometry (When measured with Echo Urban fork, sold separately) Wheelbase: 1010mm Chainstay Length: 350mm BB Rise: 70mm Head Angle: 71.5 degrees Centre of BB shell to top centre of head tube: 605mm Weight: 1.607kg Geometry (When measured with Echo Urban fork, sold separately) Wheelbase: 1095mm Chainstay Length: 380mm BB Rise: 55mm Head Angle: 72 degrees Centre of BB shell to top centre of head tube: 665mm ------------------------------------------------------------------------- The 20" and 26" Neon Bow 2011 frames: Weight: 1.505kg (Plus bash plate, bolts and rubber at 118g) Geometry (When measured with Echo Urban fork, sold separately) Wheelbase: 1035mm Chainstay Length: 350mm BB Rise: 75mm Head Angle: 70 degrees Centre of BB shell to top centre of head tube: 620mm (24.4") Weight: 1.626kg Geometry (When measured with Echo Urban fork, sold separately) Wheelbase: 1095mm Chainstay Length: 380mm BB Rise: 50mm Head Angle: 71 degrees Centre of BB shell to top centre of head tube: 670mm (26.5") ------------------------------------------------------------------------- The 2011 Because Simple 20" and 26" frames: Weight: 1.661kg/3.666lbs Geometry (When measured with Echo Urban fork): Wheelbase: 1090 Chainstay Length: 380mm BB Rise: +35mm Head Angle: 71.5 degrees Centre of BB shell to top centre of head tube: 680mm Weight: 1.587kg/3.498lbs (Plus bash plate, bolts, spacers and rubber at 205g). Geometry (When measured with Echo Urban fork, sold seperately) Wheelbase: 1000mm Chainstay Length: 362mm BB Rise: +65mm Head Angle: 71.5 degrees Centre of BB shell to top centre of head tube: 595mm ------------------------------------------------------------------------- The 2011 Born Ultimatum 20" and 26" frames: Weight (Disc only): 1.338kg/2.949lbs (Plus bash plate, bolts and rubber at 118g) Geometry (With Echo Urban fork, sold separately) Wheelbase: 1020mm Chainstay Length: 350mm BB Rise: 80mm Head Angle: 70.5° Centre of BB shell to top centre of head tube: 595mm (23.43") Weight: 1.623kg (3.578lbs) Geometry (With Echo Urban fork, sold separately) Wheelbase: 1100mm Chainstay Length: 380mm BB Rise: 60mm Head Angle: 70.5° Centre of BB shell to top centre of head tube: 660mm (25.98") Quote Link to comment Share on other sites More sharing options...

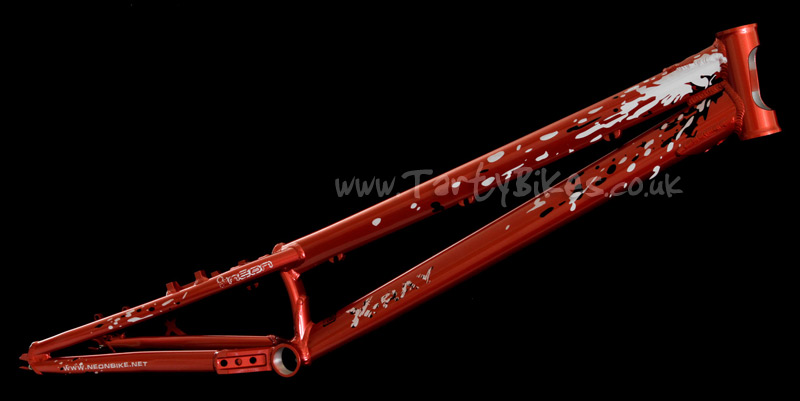

dannytrialskid Posted December 8, 2010 Report Share Posted December 8, 2010 Wow, they are all really nice. I like that Neon X-Ray in Red! Just saw these on Tartybikes and they are decently priced too! Quote Link to comment Share on other sites More sharing options...

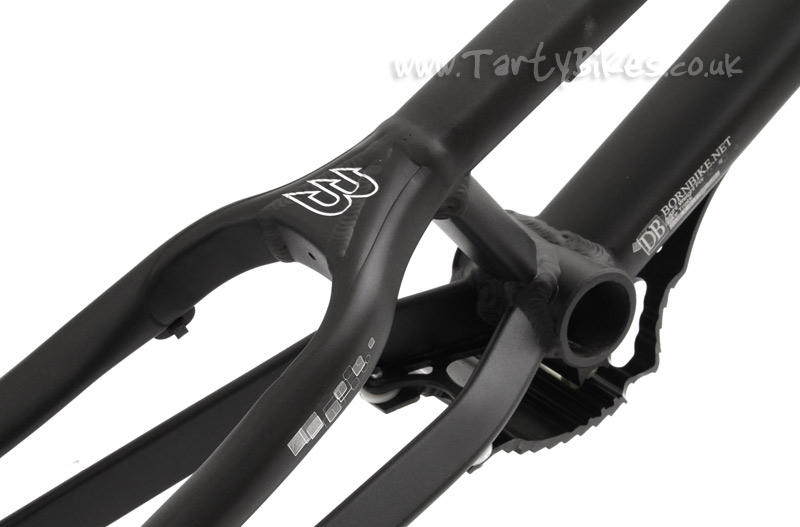

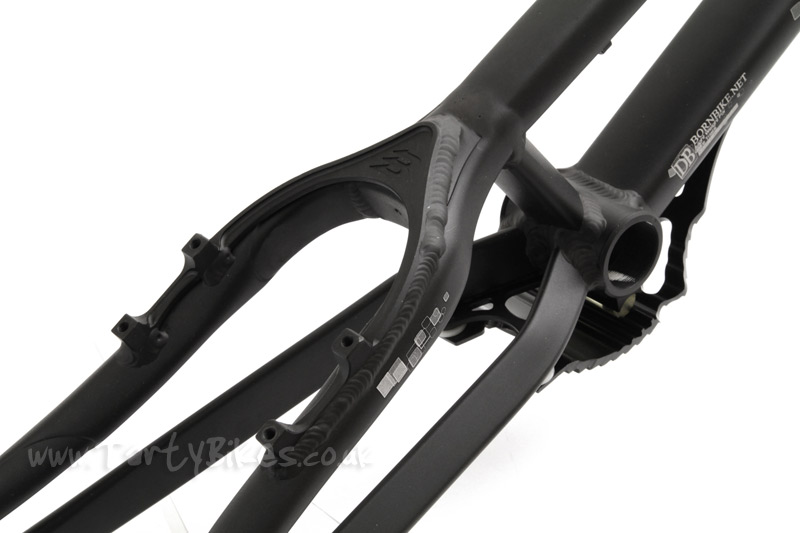

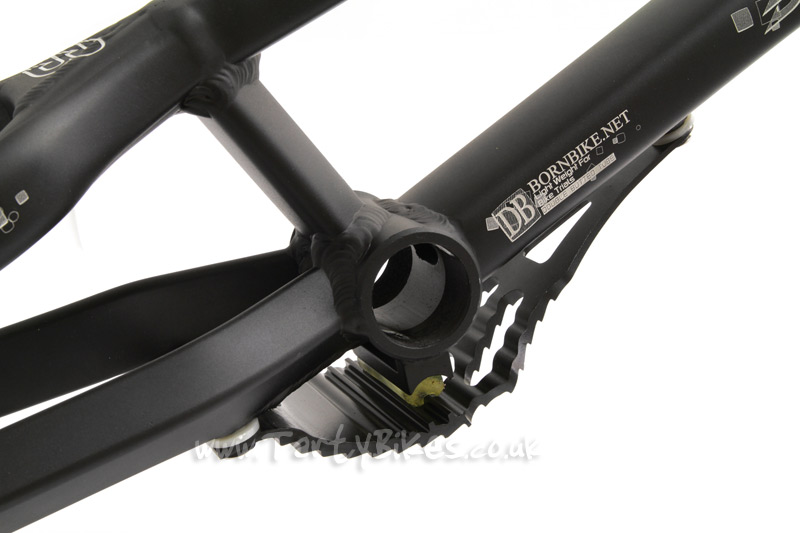

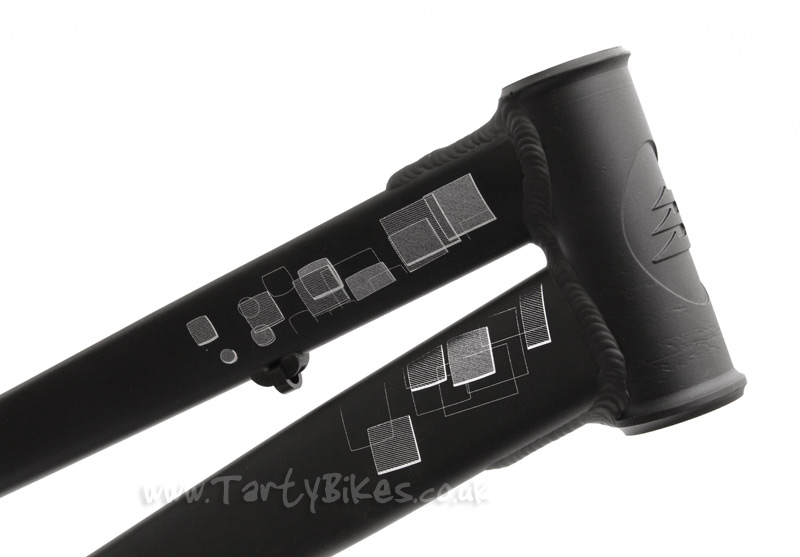

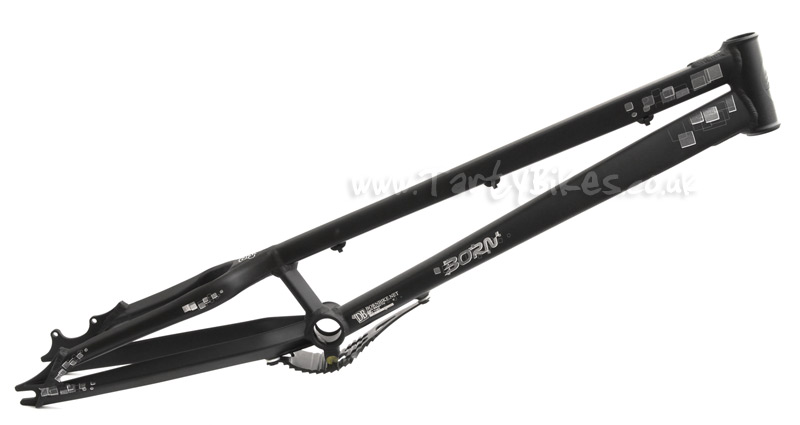

Jamie_Trials Posted December 8, 2010 Report Share Posted December 8, 2010 Neon x-ray graphics and Born Ultimatum frame would be really nice. The booster on the Born looks tough as hell! The x-ray doesn't look as heavy as it is. It just looks a bit pathetic and half done other than the graphics Quote Link to comment Share on other sites More sharing options...

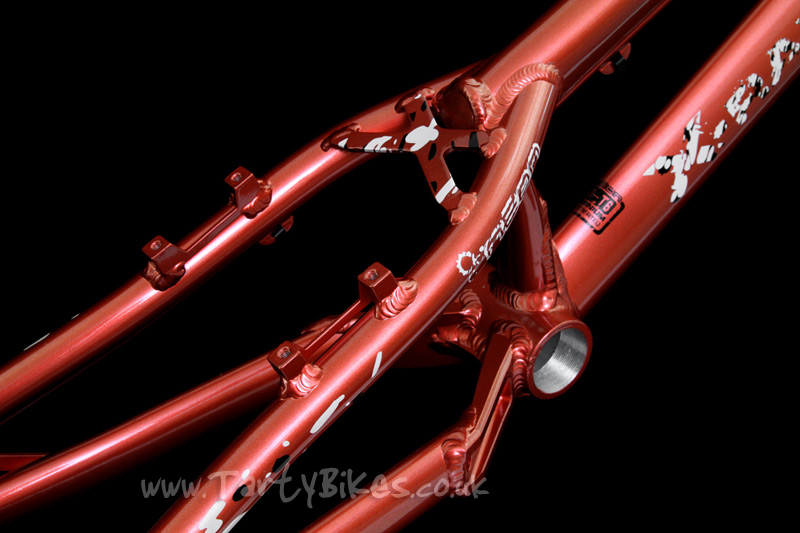

Mark W Posted December 8, 2010 Author Report Share Posted December 8, 2010 The x-ray doesn't look as heavy as it is. It's lighter than an Onza Comp frame, lighter than a FANS, etc. It's not a heavy frame at all, especially considering how cheap they are. That price is also why it isn't an all-singing, all-dancing CNC'd behemoth. It's just a simple frame with some gussets where they're needed, and 'plain' tubing. It's difficult to really do much more at that price point... Quote Link to comment Share on other sites More sharing options...

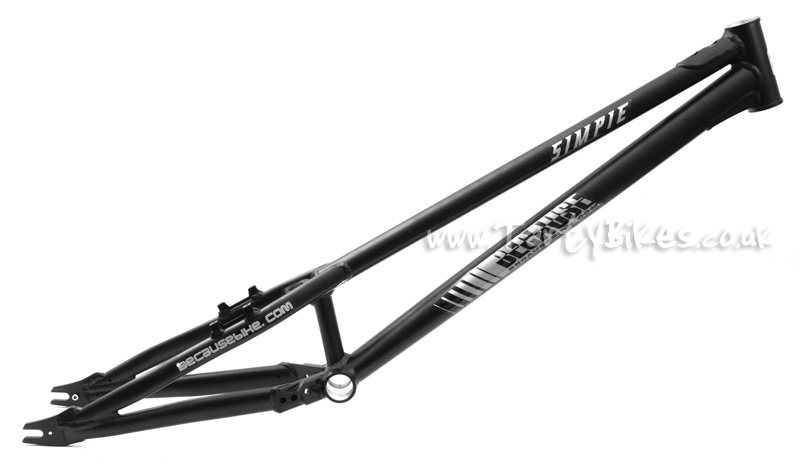

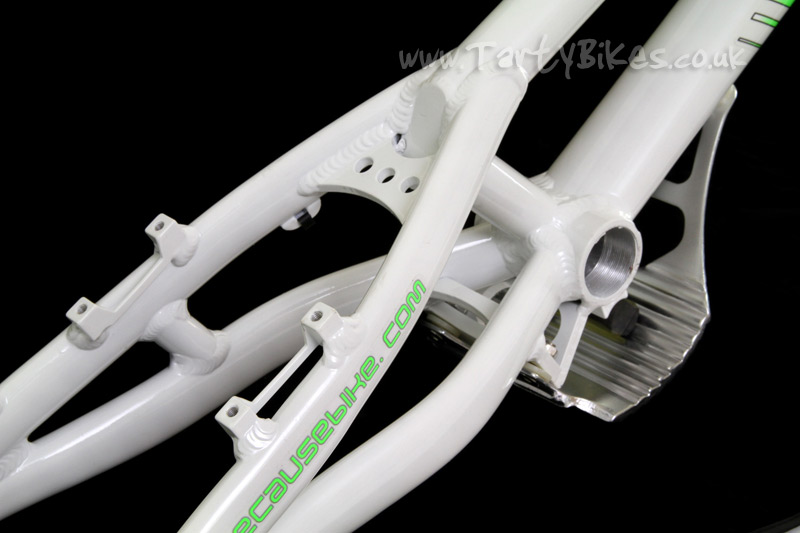

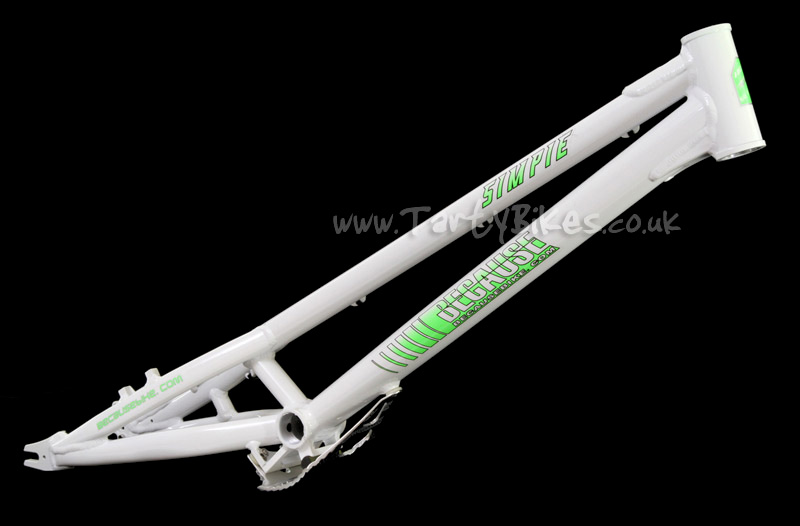

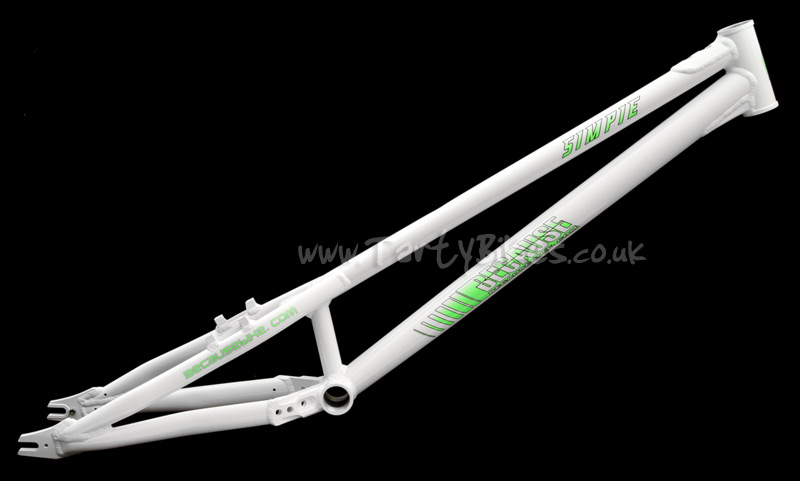

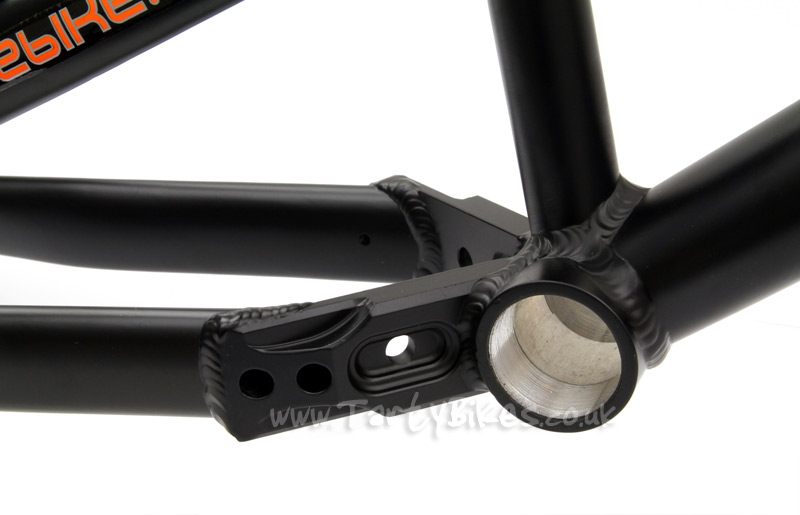

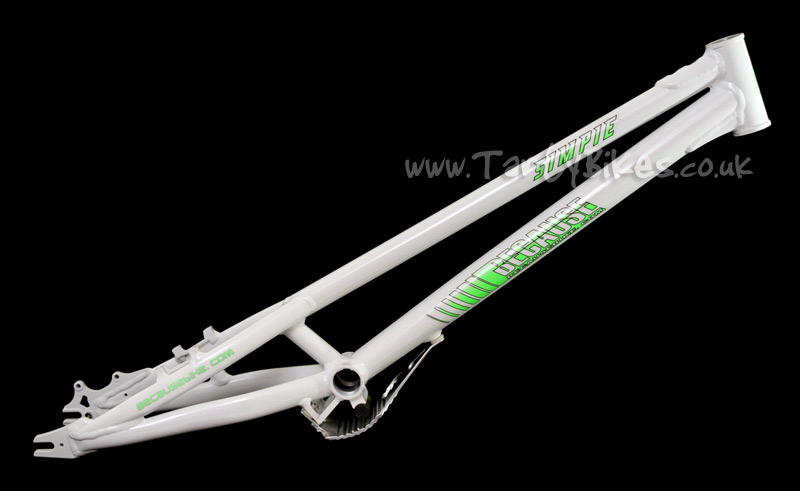

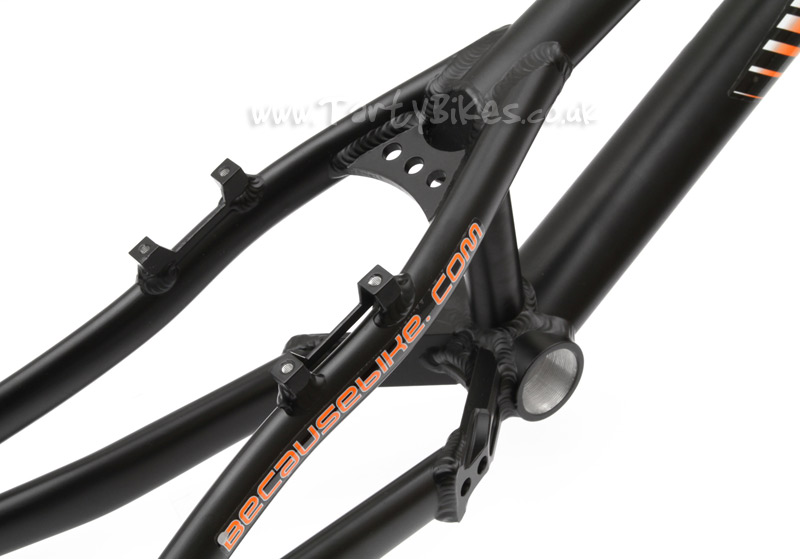

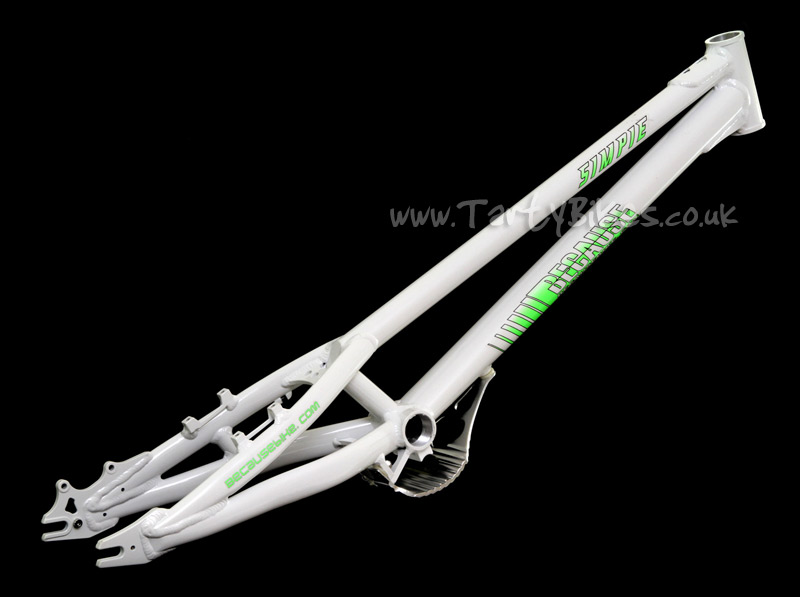

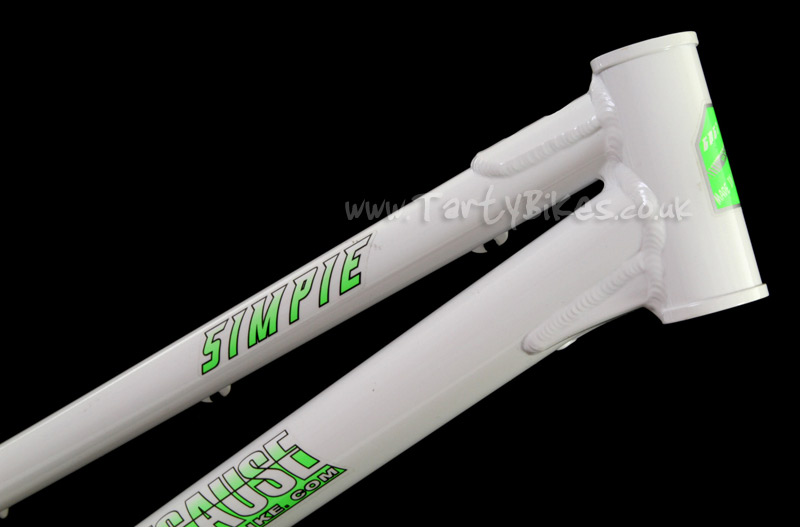

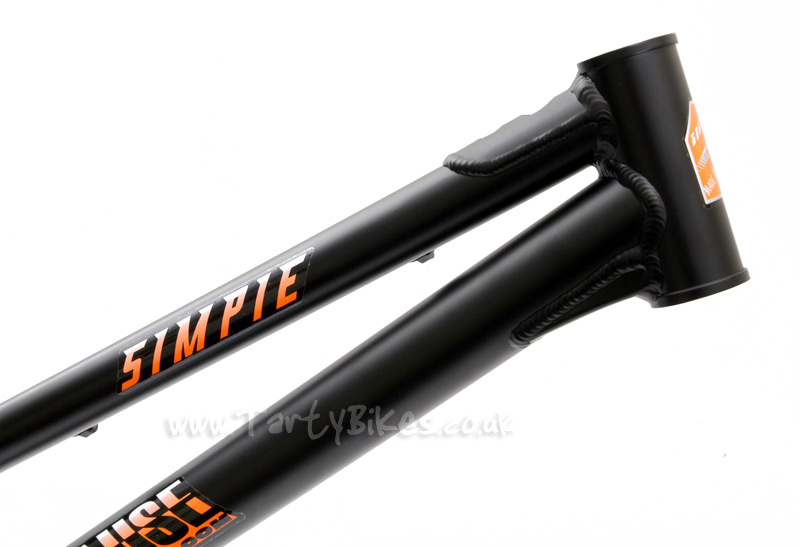

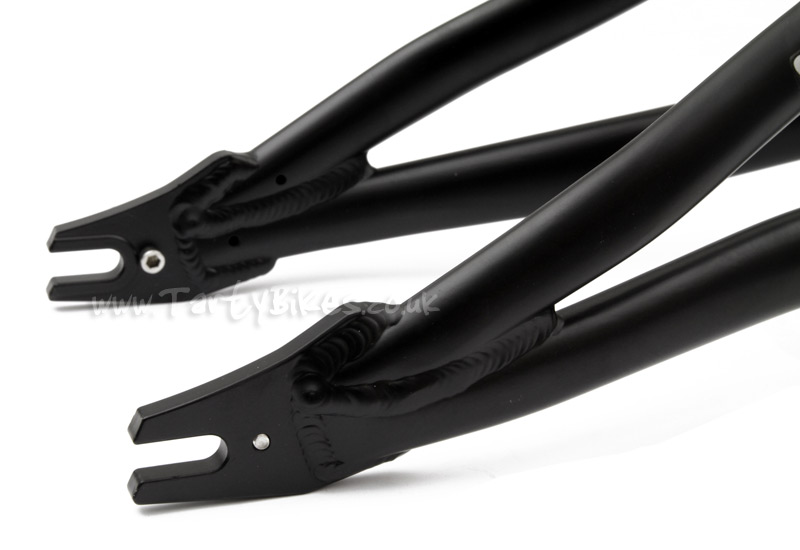

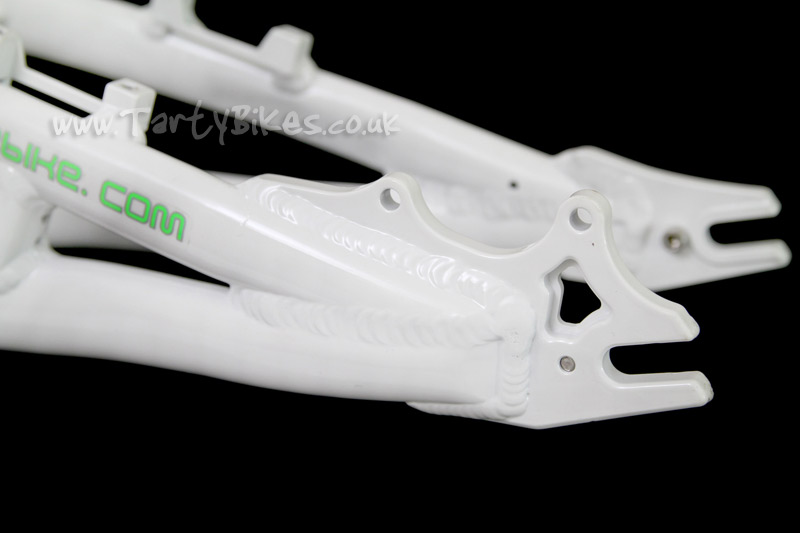

Ali C Posted December 8, 2010 Report Share Posted December 8, 2010 new 26" frame with a reasonable bb height shocker!!!!!!! (because simple in case you were yourself quite simple ) Quote Link to comment Share on other sites More sharing options...

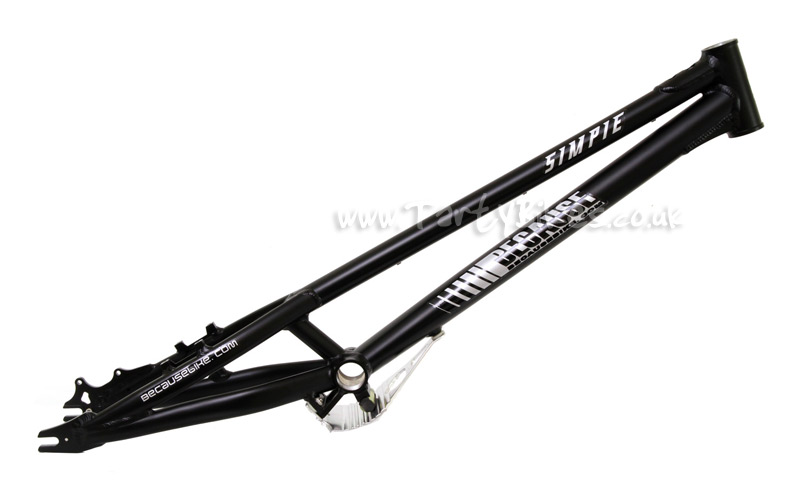

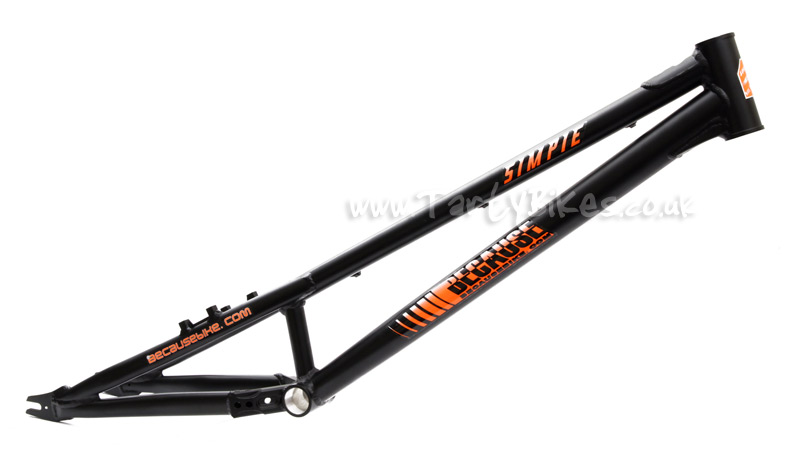

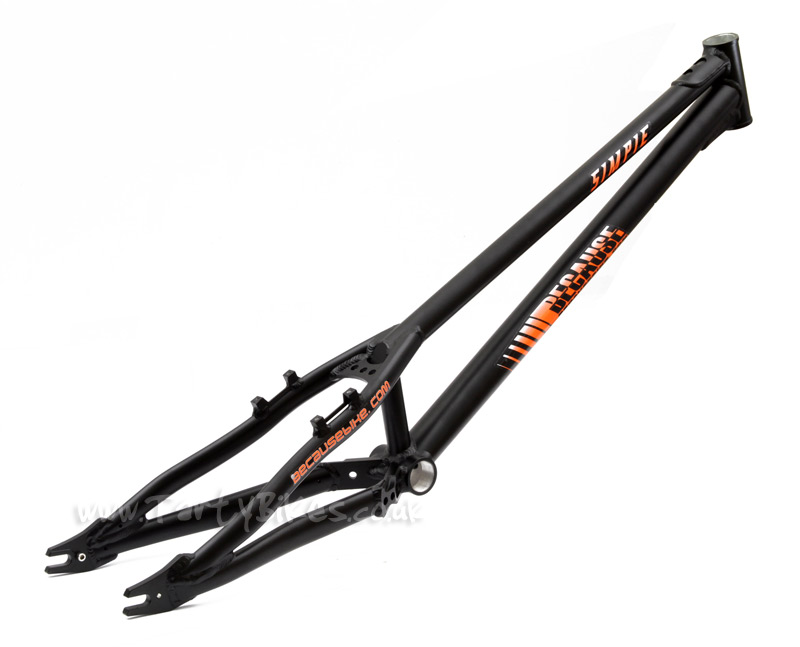

rab shropshire Posted December 8, 2010 Report Share Posted December 8, 2010 (edited) i do like the geo of the because 26" but i think the graffics look a little cheap and nasty Edit: just seen the price of the because 26" you cant really complain at that price Edited December 8, 2010 by rab shropshire Quote Link to comment Share on other sites More sharing options...

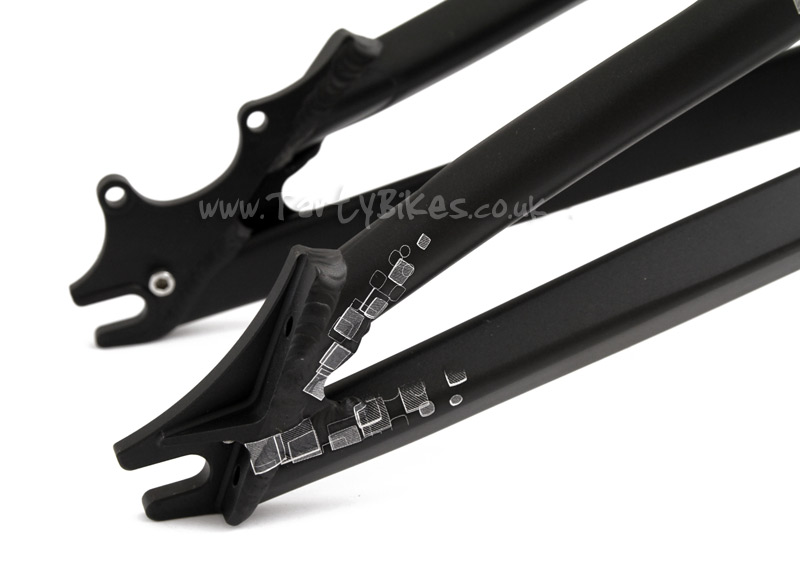

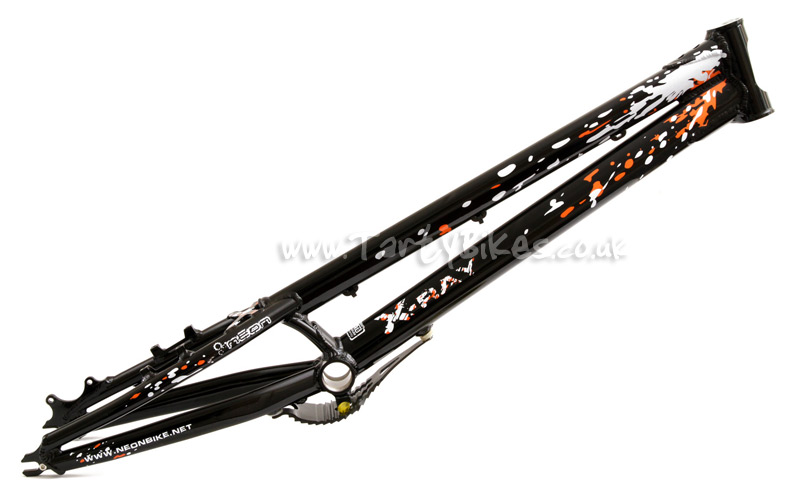

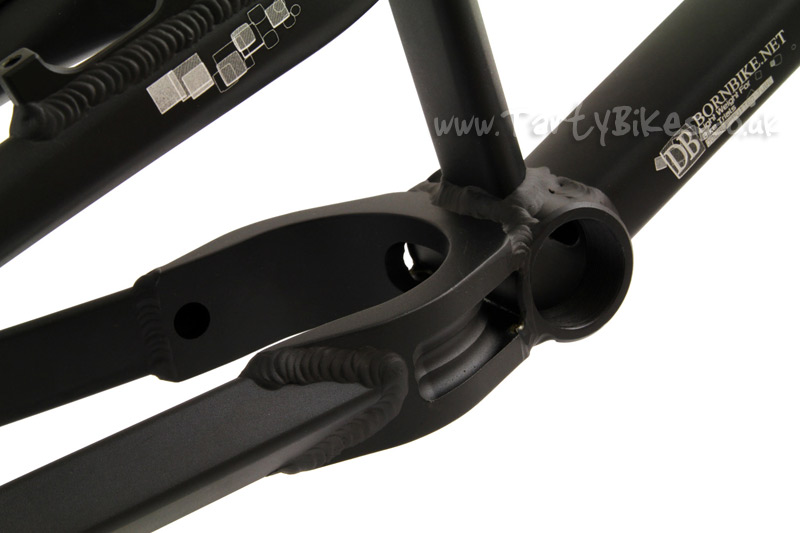

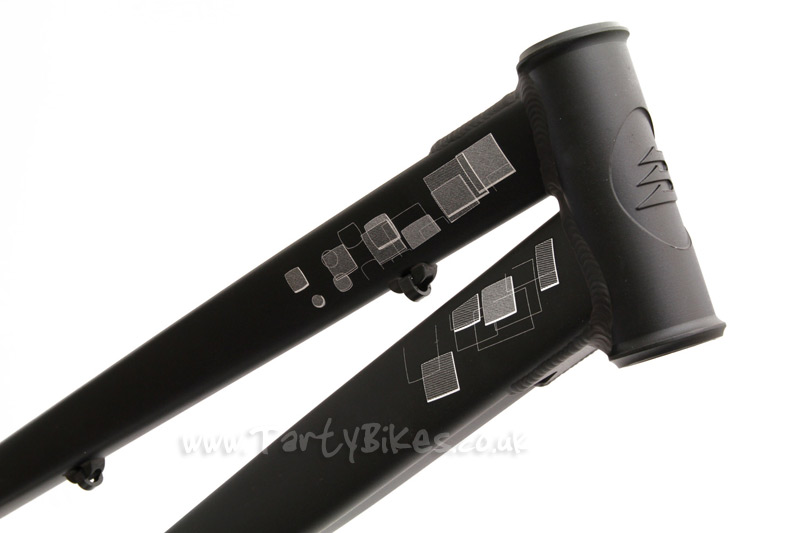

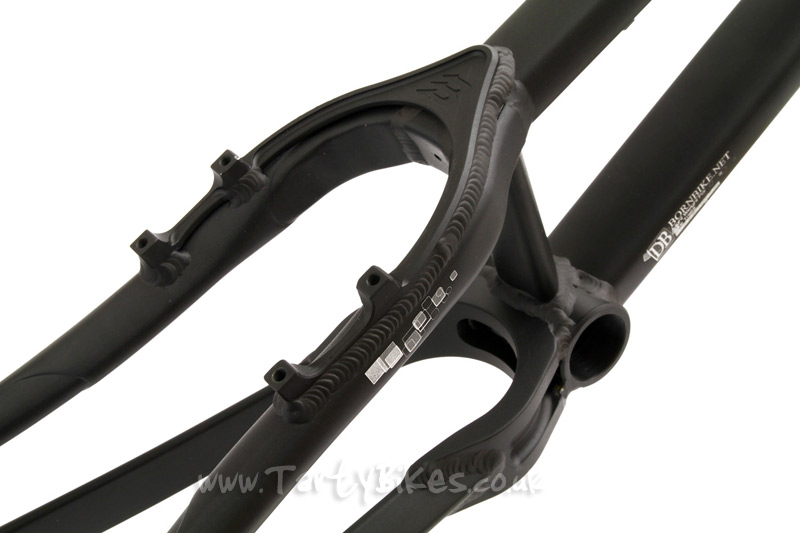

Jon Alty Posted December 8, 2010 Report Share Posted December 8, 2010 Would it be possible to photograph the underside of the downtube to show the 'ripple' on the Born? Also dont understand what is meant by Hydro-formed ? Going to see what the slate 3 is like, then decide between that, the born and maybe the slate 2 . X-Ray looks cool in black though and the because is just beast for the price . Quote Link to comment Share on other sites More sharing options...
Laurence--Trials Posted December 8, 2010 Report Share Posted December 8, 2010 Quite liking that range.. not a fan of some of those geo's though (20") Quote Link to comment Share on other sites More sharing options...

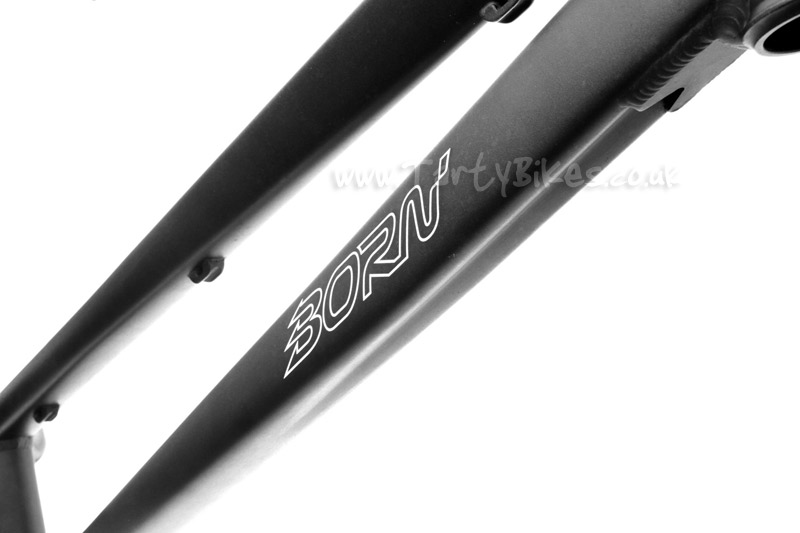

AdamR28 Posted December 8, 2010 Report Share Posted December 8, 2010 Would it be possible to photograph the underside of the downtube to show the 'ripple' on the Born? Also dont understand what is meant by Hydro-formed ? Going to see what the slate 3 is like, then decide between that, the born and maybe the slate 2 Like this: http://www.tartybikes.co.uk/images/custom/frames/large_born11.jpg Hydroforming: http://en.wikipedia.org/wiki/Hydroforming Your decision will need to be between the Born and the Slate 3, as the Slate 2 is discontinued (replaced with the 3). Quote Link to comment Share on other sites More sharing options...
Jon Alty Posted December 8, 2010 Report Share Posted December 8, 2010 Like this: http://www.tartybikes.co.uk/images/custom/frames/large_born11.jpg Hydroforming: http://en.wikipedia.org/wiki/Hydroforming Your decision will need to be between the Born and the Slate 3, as the Slate 2 is discontinued (replaced with the 3). Oh right ok, saw they were labelled as "On Order" still so thought they may still be available. Thanks alot for the pic (was it on the website? didnt look hard enough i guess), and cheers for the link to hydroforming, i guess the metal is heated first to make it more durable? The ripple only goes down like 30cm on the down tube (by the looks of things)? I guess the triangle shape of the ripple increases the strength, therefore reducing chance of denting? Seems alot of design thought has gone into this, along with the triangular chainstays etc, all using stronger shapes than standard tubing. Leaning more towards the born now . Thanks for your help Adam. Quote Link to comment Share on other sites More sharing options...
Jamie_Trials Posted December 8, 2010 Report Share Posted December 8, 2010 (edited) It's lighter than an Onza Comp frame, lighter than a FANS, etc. It's not a heavy frame at all, especially considering how cheap they are. That price is also why it isn't an all-singing, all-dancing CNC'd behemoth. It's just a simple frame with some gussets where they're needed, and 'plain' tubing. It's difficult to really do much more at that price point... Sorry if it didn't come through right , was trying to say it looks like it would be like the lightest trials frame ever just looking at the tubing and such. Like sayyyy... the Rockman Bjorn looks a lot bulkier and as if i would weigh more but surprisingly not EDIT: Oh fair enough didn't see what it's made out of, you still get my point right? Edited December 8, 2010 by Jamie_Trials Quote Link to comment Share on other sites More sharing options...

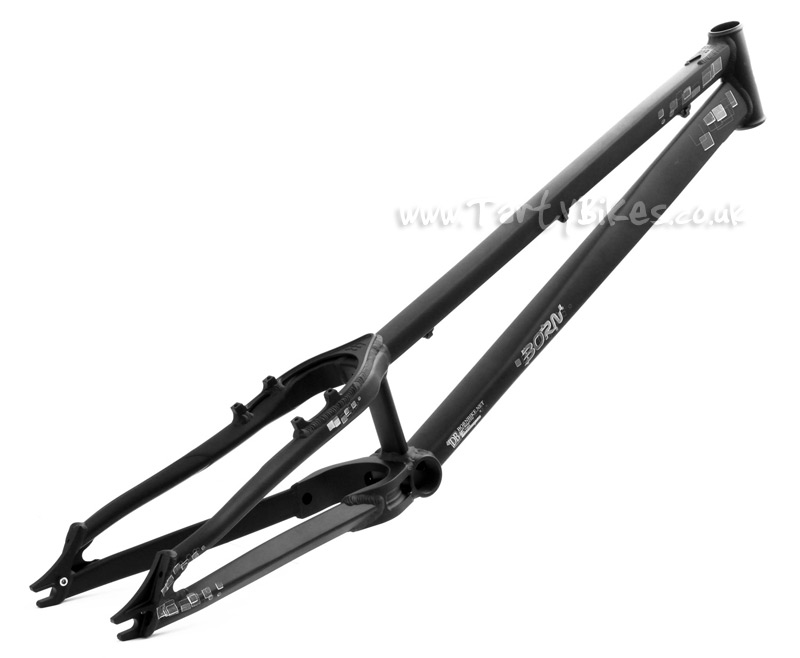

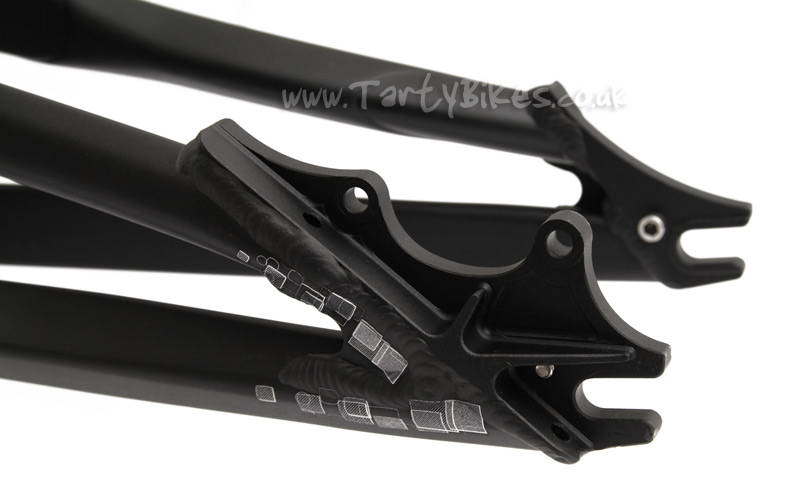

kristaps Posted December 8, 2010 Report Share Posted December 8, 2010 Born Ultimatum 20'' is awesome..something like koxx sky Quote Link to comment Share on other sites More sharing options...

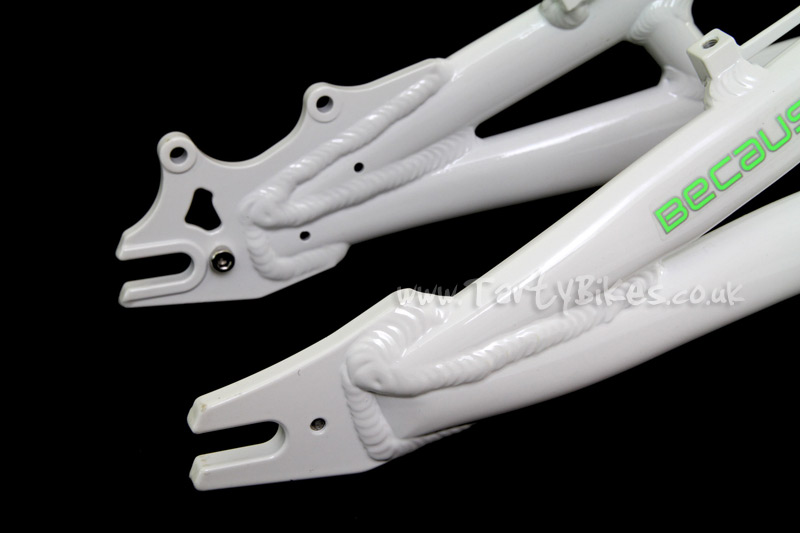

Rusevelt Posted December 8, 2010 Report Share Posted December 8, 2010 All the frames here look swish apart from the paint scheme on Neon 'BOW' range which look a bit pants. The frame weight of the 'Because' stock at that price range is pretty remarkable Quote Link to comment Share on other sites More sharing options...
bikeperson45 Posted December 8, 2010 Report Share Posted December 8, 2010 Too long, all of them. X-ray graphics are pretty jazzy though Quote Link to comment Share on other sites More sharing options...

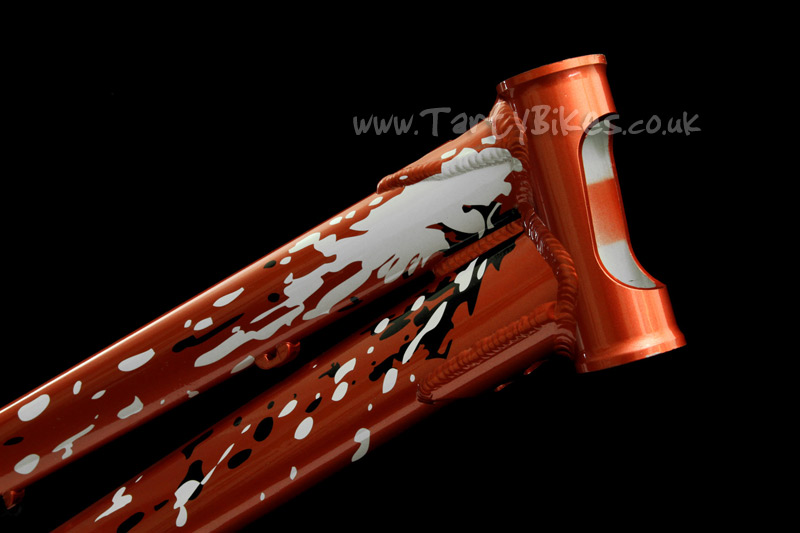

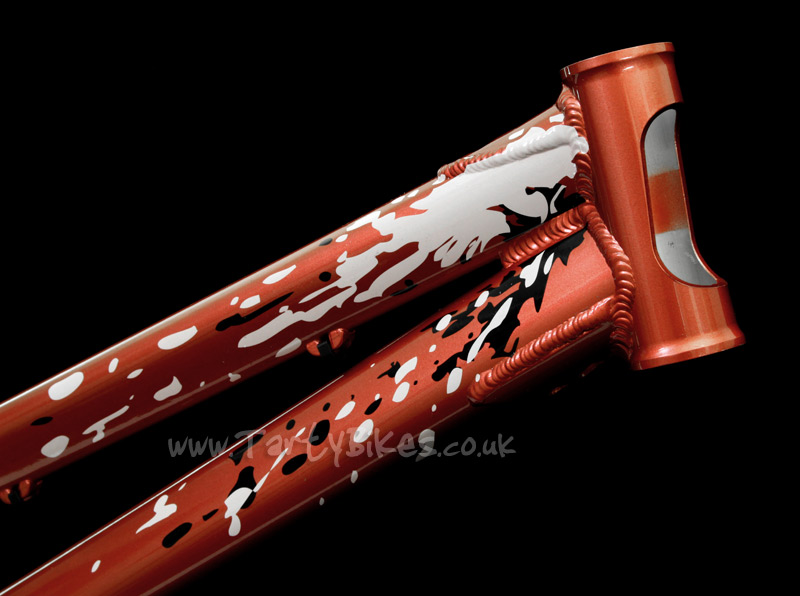

Rob. Posted December 8, 2010 Report Share Posted December 8, 2010 Could any of the graphics on the mod neon xray be taken off? not right keen on the splatter thingy towards the top of the frame. Quote Link to comment Share on other sites More sharing options...
Mark W Posted December 8, 2010 Author Report Share Posted December 8, 2010 Not without quite a lot of effort. They're not just stickers, if that's what you meant... Quote Link to comment Share on other sites More sharing options...
davey1991 Posted December 9, 2010 Report Share Posted December 9, 2010 I really don't like any of them, they all have intresting / nice features but they're all ruined in some way. Quote Link to comment Share on other sites More sharing options...
isitafox Posted December 9, 2010 Report Share Posted December 9, 2010 Oh dear, things have just got difficult. Do I now go for the brand new Born, save £50 and get the 2010 without the booster, or save even more and get the X-Ray with almost exact Slate II geo??!! My brain hurts! Quote Link to comment Share on other sites More sharing options...
chimpanzyyyy Posted December 9, 2010 Report Share Posted December 9, 2010 someone just jizzed on that frame... born 20" looks the tits really nice looking frame Quote Link to comment Share on other sites More sharing options...

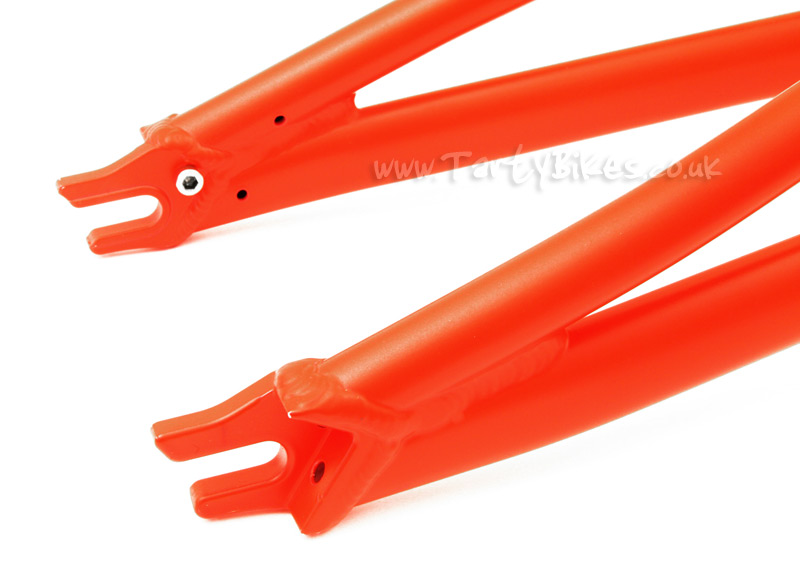

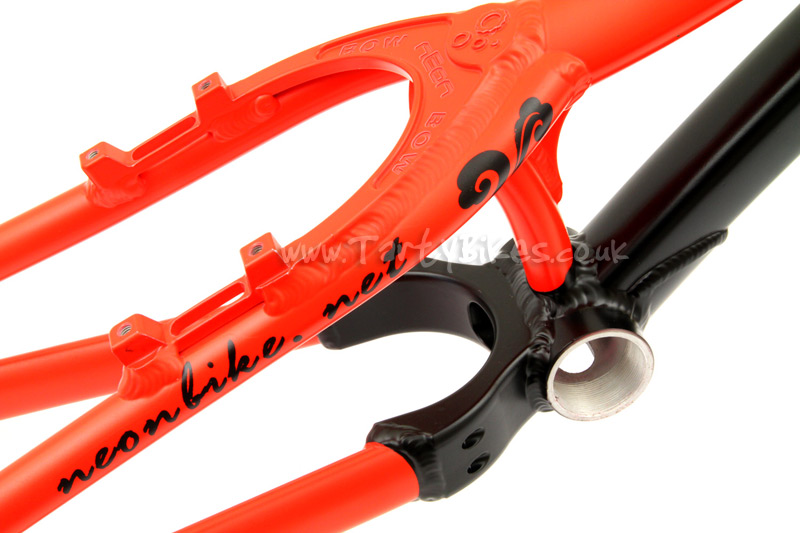

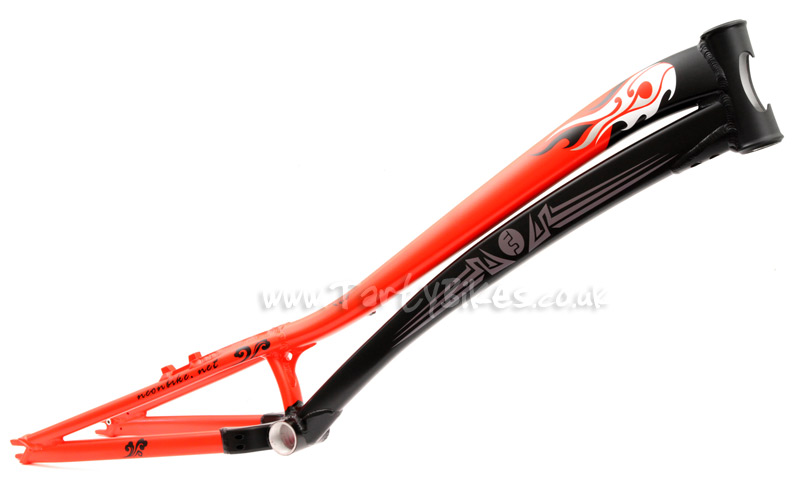

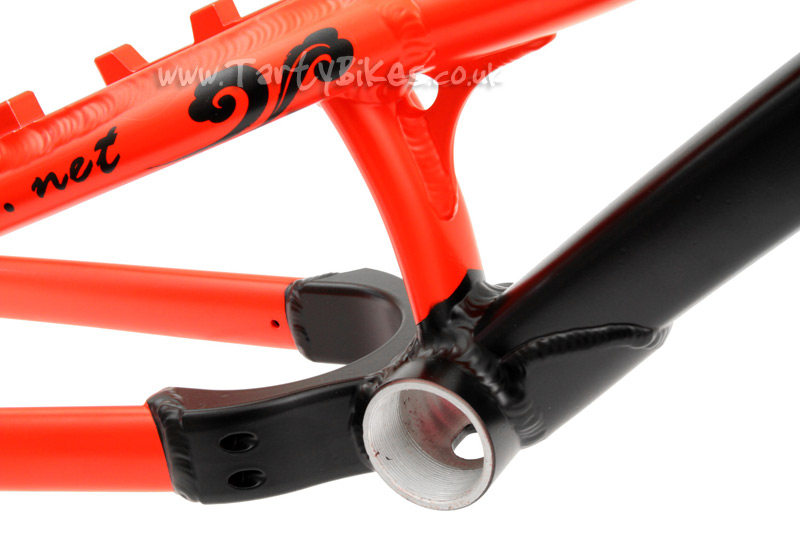

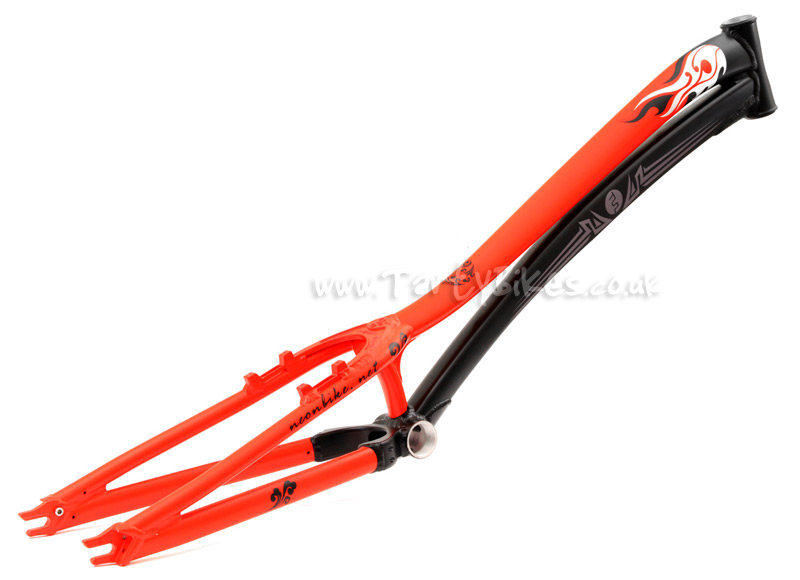

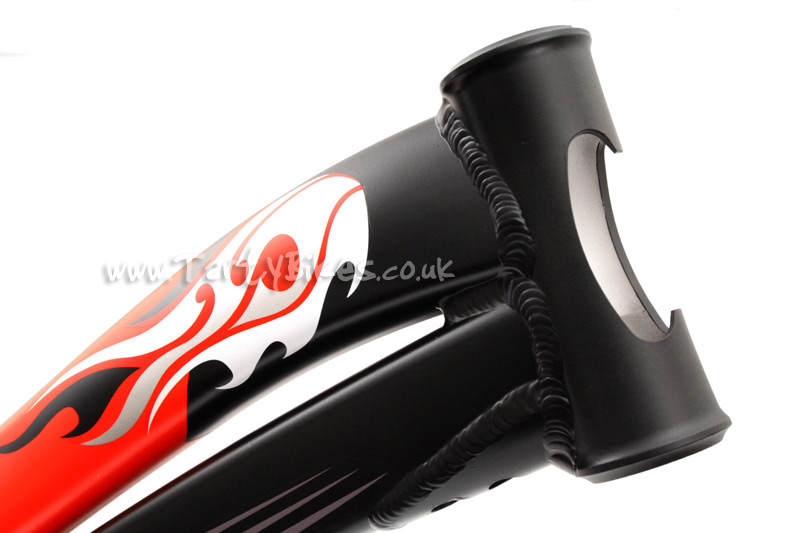

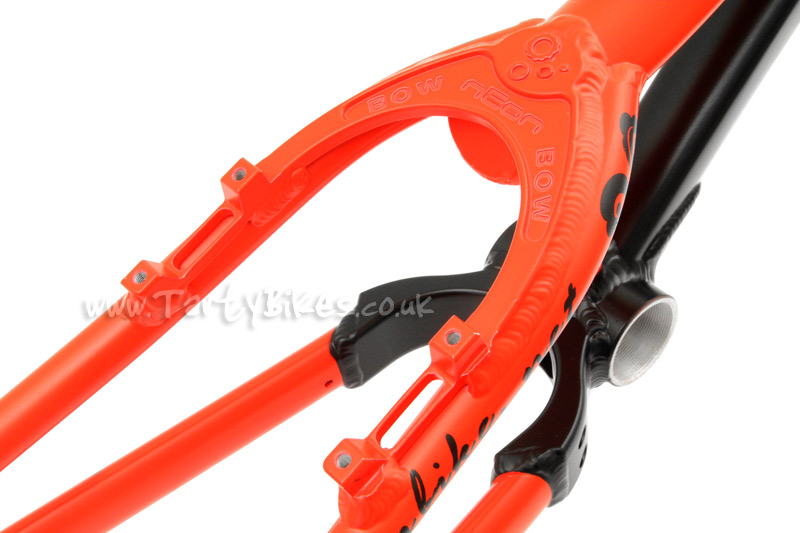

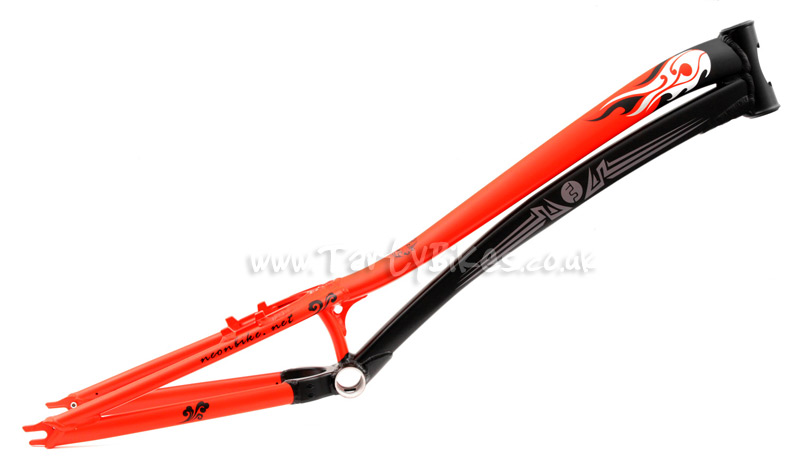

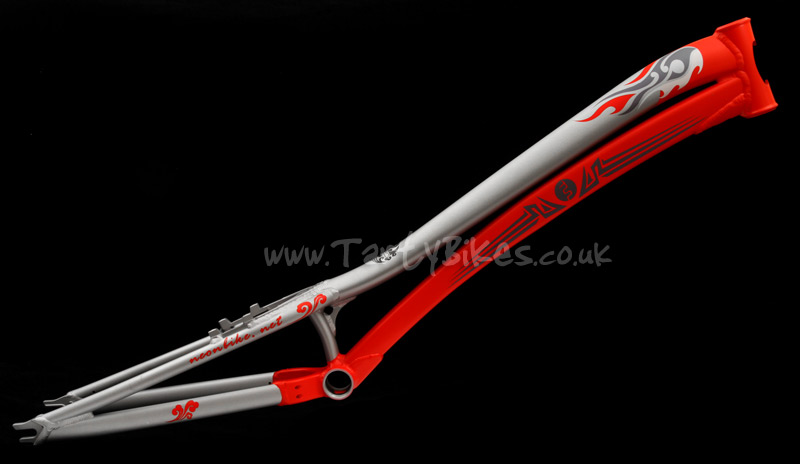

Mark W Posted December 9, 2010 Author Report Share Posted December 9, 2010 Just added photos and geo of the new 26" Bow frame too... Quote Link to comment Share on other sites More sharing options...

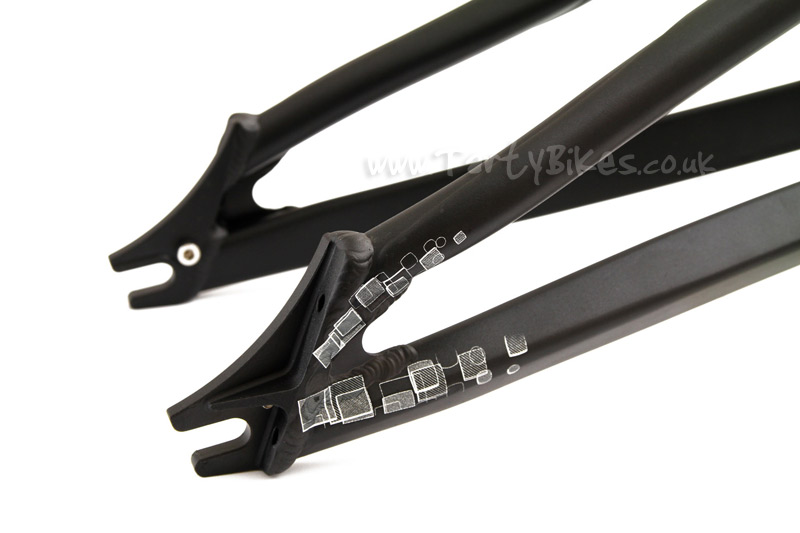

AdamR28 Posted December 9, 2010 Report Share Posted December 9, 2010 Oh right ok, saw they were labelled as "On Order" still so thought they may still be available. Thanks alot for the pic (was it on the website? didnt look hard enough i guess), and cheers for the link to hydroforming, i guess the metal is heated first to make it more durable? The ripple only goes down like 30cm on the down tube (by the looks of things)? I guess the triangle shape of the ripple increases the strength, therefore reducing chance of denting? Seems alot of design thought has gone into this, along with the triangular chainstays etc, all using stronger shapes than standard tubing. Leaning more towards the born now . Thanks for your help Adam. Yeah that's so people can set up a stock update request for when the 3 is in. The pic is in the 2010 version of the frame. The metal isn't heated, as that would make it weaker. Yeah the ripple isn't all the way. Yes, as it states, the triangular shaped chainstays are to help resist denting. It seems like it's had a lot of thought gone into it, yeah, wouldn't be my personal choice but that's the beauty of so many frame designs being available now! Quote Link to comment Share on other sites More sharing options...
Matt Vandart Posted December 9, 2010 Report Share Posted December 9, 2010 X ray 26" IS disc mount= 160mm disc? Quote Link to comment Share on other sites More sharing options...
Mark W Posted December 9, 2010 Author Report Share Posted December 9, 2010 Yep... Quote Link to comment Share on other sites More sharing options...
Matt Vandart Posted December 9, 2010 Report Share Posted December 9, 2010 That was quick!! and Doh Quote Link to comment Share on other sites More sharing options...
AdamR28 Posted December 9, 2010 Report Share Posted December 9, 2010 Doh Indeed Keeps the cost down though, only need to make one type of left hand dropout and it goes on both 20" and 26" frames... Quote Link to comment Share on other sites More sharing options...
