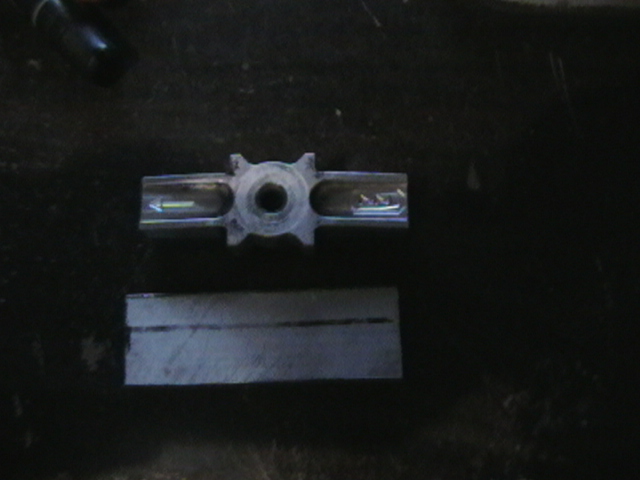

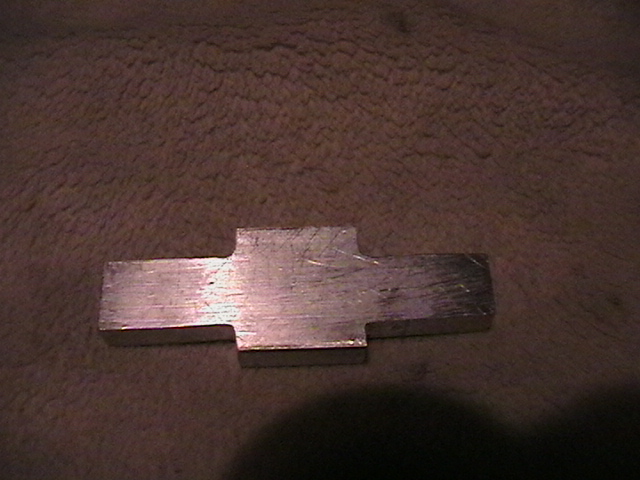

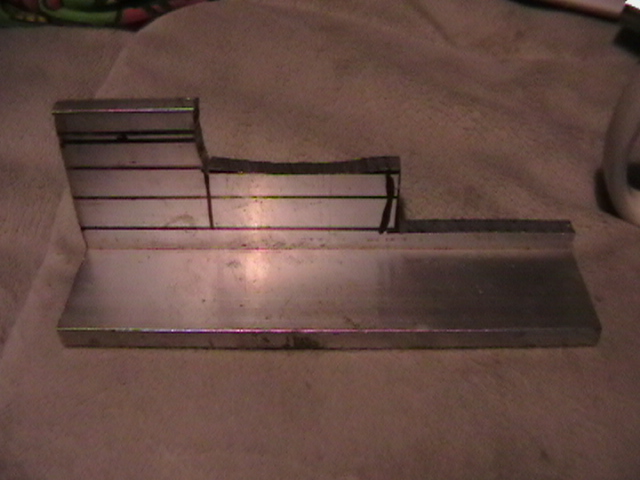

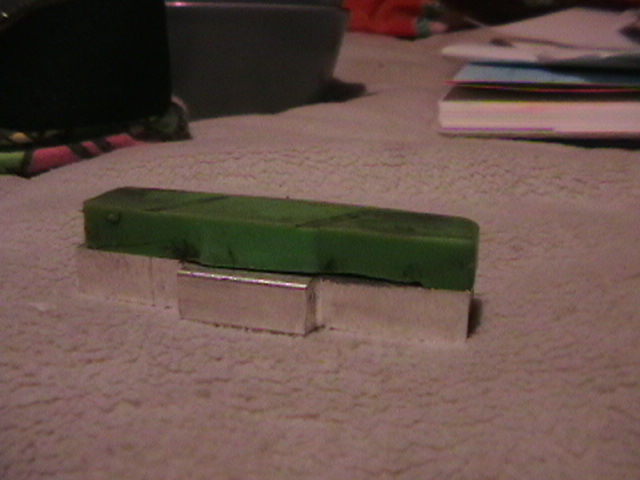

Sam T Posted November 4, 2010 Report Share Posted November 4, 2010 Hey guys, I'm doing a project at school, of which is too make a set of brake pad backings. I am going into this completely blind, am I have only basic ideas in my head. Basically, I am asking if i am doing anything obviously wrong, or something i need to watch/look out for whiles doing this? I have started of with: I have worked out basic measurements from observing a TNN backing. From there i have worked out : Any constructive advice is much appriciated! Thanks, Sam x Quote Link to comment Share on other sites More sharing options...
PeanuckleJive Posted November 4, 2010 Report Share Posted November 4, 2010 You need to recess them for the pads to fit into, otherwise the material is just gonna come straight off unless you have some uber glue/ some other kind of attachment method Quote Link to comment Share on other sites More sharing options...
Sam T Posted November 4, 2010 Author Report Share Posted November 4, 2010 You need to recess them for the pads to fit into, otherwise the material is just gonna come straight off unless you have some uber glue/ some other kind of attachment method This isn't my final peice, it's just how far I am at the moment. Thanks for the advice. Quote Link to comment Share on other sites More sharing options...
PeanuckleJive Posted November 4, 2010 Report Share Posted November 4, 2010 This isn't my final peice, it's just how far I am at the moment. Thanks for the advice. Sweet, they're just gonna look like the rockman backings to be honest, but if it's the work involved that the project is based on, then win Do you have access to a milling machine? A recess will be hard to cut without one Quote Link to comment Share on other sites More sharing options...
Sam T Posted November 4, 2010 Author Report Share Posted November 4, 2010 Sweet, they're just gonna look like the rockman backings to be honest, but if it's the work involved that the project is based on, then win Do you have access to a milling machine? A recess will be hard to cut without one I have at school, i wanted to do the whole thing using CAD, but our milling machine isnt small enough. Hopefully it will be ok to make the recess. Quote Link to comment Share on other sites More sharing options...
Phatmike Posted November 4, 2010 Report Share Posted November 4, 2010 I have at school, i wanted to do the whole thing using CAD, but our milling machine isnt small enough. Hopefully it will be ok to make the recess. I don't follow this bit? Nice job so far. As a heads up, the 'standard' dimensions for the pad recess are 47mm long x 7mm wide x 4mm deep, with an 11mm x 7mm x 2mm central section. Unless you're going for specific TNN versions, then it's probably best to use these dimensions as many more pads will fit 'em! You'll probably need a custom tool to be made to make the recess for the O-ring, and also be aware of the tolerances on that section as they're very tight! (I had a bit of a nightmare when deciding to use 1.5, 1.6, 1.8 or 2mm O-rings! ) Good luck, Quote Link to comment Share on other sites More sharing options...
Sam T Posted November 4, 2010 Author Report Share Posted November 4, 2010 Thanks alot Mike. That was very useful! Quote Link to comment Share on other sites More sharing options...
LukasMcNeal Posted November 4, 2010 Report Share Posted November 4, 2010 What material are you making the backing out of ? Quote Link to comment Share on other sites More sharing options...
crispyboy Posted November 4, 2010 Report Share Posted November 4, 2010 What material are you making the backing out of ? Steel! haha joking its ali Quote Link to comment Share on other sites More sharing options...
Sam T Posted November 4, 2010 Author Report Share Posted November 4, 2010 Steel! haha joking its ali Steel is an absolute nightmare to work with! Yes its Ali. Quote Link to comment Share on other sites More sharing options...
dirt jumper jake Posted November 4, 2010 Report Share Posted November 4, 2010 Steel is an absolute nightmare to work with! Yes its Ali. STEEL *** Quote Link to comment Share on other sites More sharing options...
Sam T Posted November 5, 2010 Author Report Share Posted November 5, 2010 STEEL *** Quote Link to comment Share on other sites More sharing options...
Ross McArthur Posted November 5, 2010 Report Share Posted November 5, 2010 He means, "for the win". When you type ***, it *'s it out like so. Quote Link to comment Share on other sites More sharing options...
thinkdougie Posted November 5, 2010 Report Share Posted November 5, 2010 buy some new ones, theres your finished piece ;D Quote Link to comment Share on other sites More sharing options...
Sam T Posted November 5, 2010 Author Report Share Posted November 5, 2010 buy some new ones, theres your finished piece ;D There's no fun in that. Quote Link to comment Share on other sites More sharing options...
Matt Vandart Posted November 5, 2010 Report Share Posted November 5, 2010 (edited) *** Why? Edited November 5, 2010 by Matt Vandart Quote Link to comment Share on other sites More sharing options...
Kieran Morrison Posted November 5, 2010 Report Share Posted November 5, 2010 *** Why? Because it can mean another thing. Quote Link to comment Share on other sites More sharing options...
LukasMcNeal Posted November 5, 2010 Report Share Posted November 5, 2010 *** Why? Its For The Win but it gets filtered to *** Quote Link to comment Share on other sites More sharing options...
aener Posted November 5, 2010 Report Share Posted November 5, 2010 *** Why? Because a couple of years ago (I think, maybe a bit more) a band of Mod's got particularly annoyed at the 12 year olds on the forum saying things like "pyfons *** innit", and put a word filter on "F-T-W". I'd guess they simply never removed it. Ask OBM - I seem to remember him being one of the figureheads Quote Link to comment Share on other sites More sharing options...
