Phatmike Posted October 25, 2010 Report Share Posted October 25, 2010 Hey guys. I'm requesting you to post up pictures of your (rim) brake set up. I'd like a variety of pictures, from a variety of set ups - if you've got a grind, smooth, magura, vee, booster or not, etc etc; I want to see them! Thanks for your help, Mike. Quote Link to comment Share on other sites More sharing options...
Ben John - Hynes Posted October 25, 2010 Report Share Posted October 25, 2010 Mine, rear; Front; Sorry about the horrendously bad pics, Mike. Taken from my iPhone. Quote Link to comment Share on other sites More sharing options...
Oldskooltrials Posted October 25, 2010 Report Share Posted October 25, 2010 Front brake And my back brake, i'm going to get TR clamps and grind the rim next month. Quote Link to comment Share on other sites More sharing options...
isitafox Posted October 25, 2010 Report Share Posted October 25, 2010 Can I ask why you want these pics?? I'll get some of mine up tomorrow. Quote Link to comment Share on other sites More sharing options...

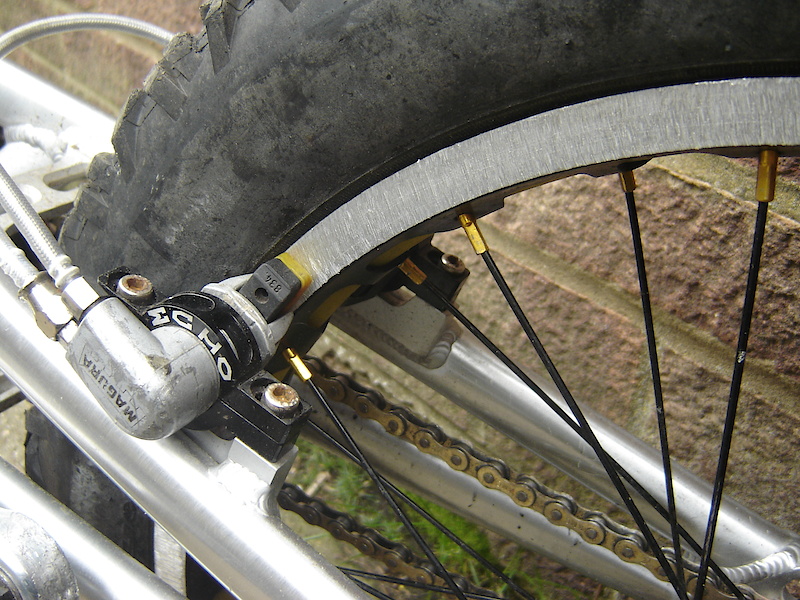

Sam Styles Posted October 25, 2010 Report Share Posted October 25, 2010 Smooth echo urban, onza citrus pads, "04 maggie lever, echo tr clamps, and TAR Quote Link to comment Share on other sites More sharing options...
Endohopper Posted October 25, 2010 Report Share Posted October 25, 2010 Pretty worn down grind Standard generic clear V pads . More pics in KK link below . Quote Link to comment Share on other sites More sharing options...
Duncy H Posted October 28, 2010 Report Share Posted October 28, 2010 Quote Link to comment Share on other sites More sharing options...
casualjoe Posted October 29, 2010 Report Share Posted October 29, 2010 Note the lack of spacers, works really well and I haven't ground my rim for ages or let the new pads bed in Quote Link to comment Share on other sites More sharing options...
dirt jumper jake Posted October 29, 2010 Report Share Posted October 29, 2010 Onza diamond rim TR mounts Plazmatic CRM's beast Quote Link to comment Share on other sites More sharing options...
toyota200x Posted October 29, 2010 Report Share Posted October 29, 2010 09 Control. Plazmatic V. Ultimate arms Quote Link to comment Share on other sites More sharing options...
rab shropshire Posted October 29, 2010 Report Share Posted October 29, 2010 REAR - 05 Maggy, phat pads, tr clamps, tryall rim, TT 2 bolt booster, medium grind FORNT - XTR Vee, jagwire cable, coustsinks, TrialTech SL rim, light grind Quote Link to comment Share on other sites More sharing options...
Phatmike Posted November 16, 2010 Author Report Share Posted November 16, 2010 Thanks to everyone that's posted pictures - all a big help. Do any of you object to the pictures being used in some non-commercial research? I could also now do with brake set-up pictures that show the relationship between the brake cylinder and the crank-arm. Especially on frames where the cylinder sits close to or behind the crank arm. On my setup the brake cylinder sits well above the crank arm, but similar pics on bikes with much lower seat stays would be perfect! Thanks again, Mike Quote Link to comment Share on other sites More sharing options...
jambo Posted November 16, 2010 Report Share Posted November 16, 2010 Dont get much tighter than that, had to give my crank arm a cheeky gring to stop it rubbing. TNN clamps TNN backings with Belay pads Trialtech carbon booster sharp grind on an Atomz UN Elitis rim with a water bleed Quote Link to comment Share on other sites More sharing options...
Phatmike Posted November 16, 2010 Author Report Share Posted November 16, 2010 Great, thanks very much! What bb & cranks are you using? Quote Link to comment Share on other sites More sharing options...
jambo Posted November 25, 2010 Report Share Posted November 25, 2010 Great, thanks very much! What bb & cranks are you using? trialtech cranks and a trialtech bb 128mm Quote Link to comment Share on other sites More sharing options...
Ross McArthur Posted November 25, 2010 Report Share Posted November 25, 2010 LGMs Alu backings Carbonique booster Magura clamps Water bled old style magi Quote Link to comment Share on other sites More sharing options...
gary-mac Posted November 26, 2010 Report Share Posted November 26, 2010 hs33 viz clamps 4bolt trialtech booster phatpads phatphluid bled= awesome brakes Quote Link to comment Share on other sites More sharing options...
Al_Fel Posted November 27, 2010 Report Share Posted November 27, 2010 LGMs Alu backings Carbonique booster Magura clamps Water bled old style magi Old school booster there ha ha. I bet Joe will be proud. Out of interest how come your aren't using TNN backing, clamps and booster? Quote Link to comment Share on other sites More sharing options...
Gibbon on an Orange 2 Posted November 27, 2010 Report Share Posted November 27, 2010 All these pics are making me think maybe I should grind my rim a little more aggressively... Quote Link to comment Share on other sites More sharing options...

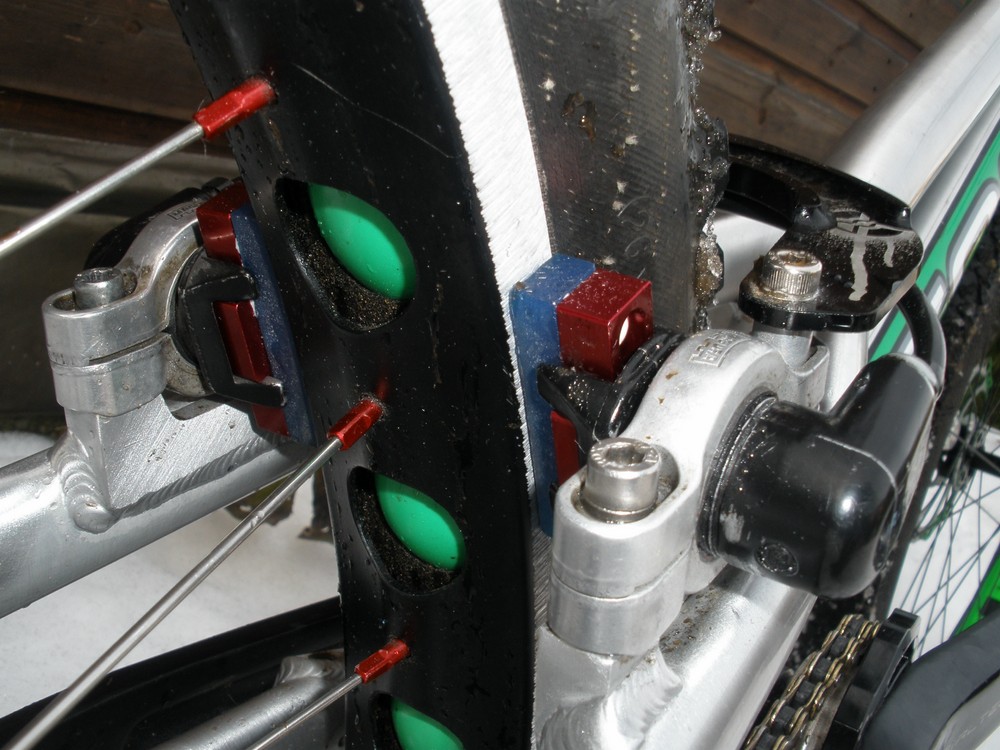

trialsiain Posted December 14, 2010 Report Share Posted December 14, 2010 . Quote Link to comment Share on other sites More sharing options...

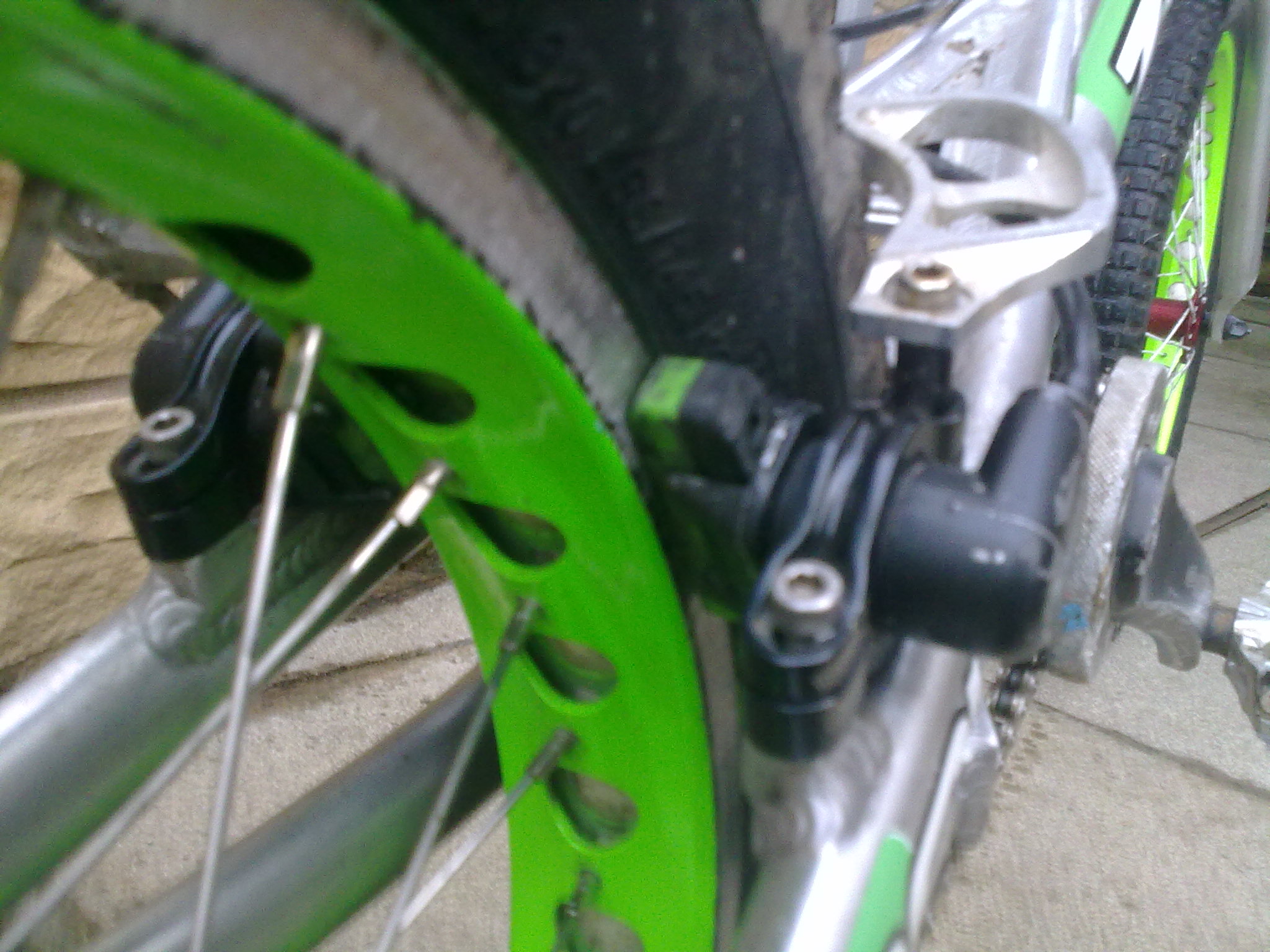

SamKidney Posted December 16, 2010 Report Share Posted December 16, 2010 Water bled 05 maggie with 4 finger lever Atomz clamps Echo SL booster Onza Lime pads Dead Grind + Tar (Until i can be bothered to regrind ) Quote Link to comment Share on other sites More sharing options...
Ross McArthur Posted December 16, 2010 Report Share Posted December 16, 2010 Old school booster there ha ha. I bet Joe will be proud. Out of interest how come your aren't using TNN backing, clamps and booster? Ive got that set up on my Bionic natty/comp bike. TNN backings, clamps and booster. I only have one set up like that but I had spare re-fills. The TNN booster would be too wide for my set up on the Marino anyway. Quote Link to comment Share on other sites More sharing options...
onza rider.. Posted December 19, 2010 Report Share Posted December 19, 2010 (edited) nice brake setups Note the lack of spacers, works really well and I haven't ground my rim for ages or let the new pads bed in nice brake setup , 1.how did you make that splitter , 2. and get the braded hoses on there , 3.how do you get both bleed bolts on the top of your slaves , becuase i am running a monty hosesplitter and i have to run it so one cable is on the top bit of my slave and the other side is on the bottom of the slave , becuase the bleed bolt would fit on both the top ones. Edited December 19, 2010 by onza rider.. Quote Link to comment Share on other sites More sharing options...
casualjoe Posted December 19, 2010 Report Share Posted December 19, 2010 nice brake setup , 1.how did you make that splitter , 2. and get the braded hoses on there , 3.how do you get both bleed bolts on the top of your slaves , becuase i am running a monty hosesplitter and i have to run it so one cable is on the top bit of my slave and the other side is on the bottom of the slave , becuase the bleed bolt would fit on both the top ones. Cheers dude 1. I used to be a CNC machinist so I have a few mates who still work there to make things for me. 2. I got myself a normal braided crossover, cut it in half and bought two extra hose connectors. The hose from the lever is still plastic. 3. If I'm reading this right you need to change one of your slaves for one with both the holes the same size M6/M6. Or you could get an M8 shroud nut and glue a short M6 bolt in there, (score the inside of the shroud nut and use strong 2-part glue) effectively making an M8 fine bolt. Best to buy a new slave though Yesterday the brake received its xmas pressie early Quote Link to comment Share on other sites More sharing options...
super Posted December 19, 2010 Report Share Posted December 19, 2010 Ha Ha, Joe purchased a "splitter" from somebody on here and then gave it to me to face off each side-it was about 15mm thick and generally badly made poorly drilled and had massive amounts of excess materiel on it. I had a look at it chucked it in the bin and sorted this one out for him. Anyway, the setup is awesome. If only i could be bothered to make one for myself, ha ha. Quote Link to comment Share on other sites More sharing options...
