isitafox Posted September 11, 2010 Report Share Posted September 11, 2010 Right I've just got a First headset from tartybikes yesterday and I'm currently fitting it into my echo but struggling a lot! I've got the cups fitted, all the bearings greased and in with the covers but I don't know where to put the plastic bit! I tried sliding it to the bottom of the steerer so it went in the bottom like in headsets of old but it stuck out a mile so I've swapped it over and slid it onto the top of the headset but it still doesn't look right, HELP!!! Quote Link to comment Share on other sites More sharing options...
Mark W Posted September 11, 2010 Report Share Posted September 11, 2010 With the First, the crown race and the top bearing race look pretty similar. The C-shaped washer only fits in the top one, so just see which one it fits flush in and go from there. Just make sure you haven't put the top race on as the crown race Quote Link to comment Share on other sites More sharing options...
isitafox Posted September 11, 2010 Author Report Share Posted September 11, 2010 I've prob got it all back to front then! Will have a double check and see whats what, this is what happens when I do it at work! Quote Link to comment Share on other sites More sharing options...

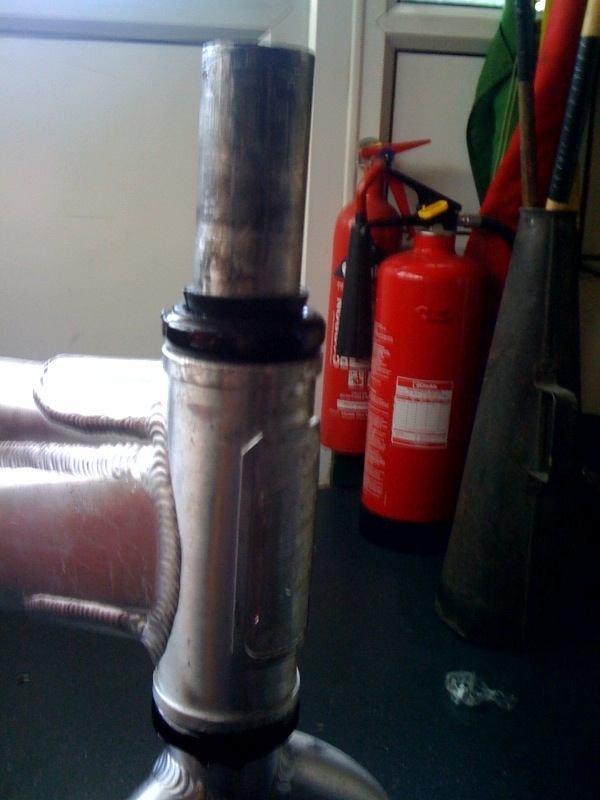

Mark W Posted September 11, 2010 Report Share Posted September 11, 2010 Looks like you've got the crown race on top there, I think... Quote Link to comment Share on other sites More sharing options...
isitafox Posted September 11, 2010 Author Report Share Posted September 11, 2010 Yup thats the problem had them the wrong way round, problem now is how to I get it down onto the steerer as it wont go onto where it thickens at the bottom! Quote Link to comment Share on other sites More sharing options...
Mark W Posted September 11, 2010 Report Share Posted September 11, 2010 Long tube that slides over the steerer = best way, but if not, just put the race on the steerer, then get an adjustable and open that up around the steerer tube so it sits on top of the crown race where it's touching the steerer, then give the spanner a hammer. Move it round to make sure you hit it down evenly too. Quote Link to comment Share on other sites More sharing options...
isitafox Posted September 11, 2010 Author Report Share Posted September 11, 2010 Now I know why I used to stick with FSA's and their luvverly split races!! Quote Link to comment Share on other sites More sharing options...
isitafox Posted September 11, 2010 Author Report Share Posted September 11, 2010 (edited) I can safely say that doesn't want to go on whatsoever! Just stuck with about 3mm left to go, what bizarre part of my mind thought this would be a straightforward job?! EDIT: Problem solved, solution=remove crown race from FSA headset, use instead, job done! Only a temp job anyway till I can blag some vouchers at christmas to get a decent one, unless this does a good job! Edited September 11, 2010 by isitafox Quote Link to comment Share on other sites More sharing options...
