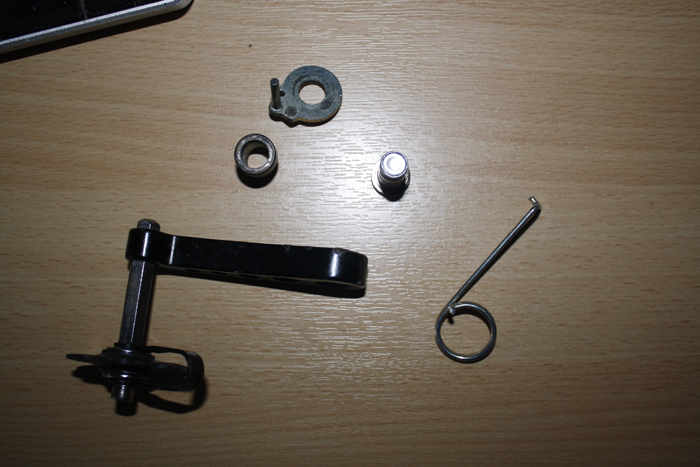

LordMersey Posted August 28, 2010 Report Share Posted August 28, 2010 Hello I was taking it off my old frame and about to move to the new and the spring sent it into the sky. I was wondering how to put it back together and if i have all the parts. http://www.tartybikes.co.uk/product.php?product_id=10179&category_id=48 Its very similar to this one Ive attached a photograph. Thanks for your help! JLM Quote Link to comment Share on other sites More sharing options...
krazykid009 Posted August 28, 2010 Report Share Posted August 28, 2010 My dad has one very similar to that on his single speed so I can have a look if you like. James Quote Link to comment Share on other sites More sharing options...
theom Posted August 28, 2010 Report Share Posted August 28, 2010 you can run those without the spring, thats how i ran mine. Quote Link to comment Share on other sites More sharing options...
LordMersey Posted August 28, 2010 Author Report Share Posted August 28, 2010 My dad has one very similar to that on his single speed so I can have a look if you like. James If you wouldnt mind Quote Link to comment Share on other sites More sharing options...
Mark W Posted August 28, 2010 Report Share Posted August 28, 2010 Looks like you have everything there. The 'pin' from the spring goes into that little disk with the locator arm on it, and the spacer goes in the middle of it all. The end of the spring goes onto the arm by the jockey wheel - that's pretty much all there is to it. Quote Link to comment Share on other sites More sharing options...
krazykid009 Posted August 28, 2010 Report Share Posted August 28, 2010 Ok from what I can work out, the short arm from the spring goes into the hole on the round plate. the spacer goes into the arm with the bolt going through it. The round circular plate which you put the spring on then goes onto the opposite side of the arm from the bolt head, ensuring the locating pin on the plate faces away from the arm. Hope I helped James Looks like you have everything there. The 'pin' from the spring goes into that little disk with the locator arm on it, and the spacer goes in the middle of it all. The end of the spring goes onto the arm by the jockey wheel - that's pretty much all there is to it. Sorry, my description as pretty much the same as the one above My fault for not reading James Quote Link to comment Share on other sites More sharing options...
