sandeeebeach219 Posted August 3, 2010 Report Share Posted August 3, 2010 Hey I have just tried to fit my disc rotor onto my bike, and the screws that screw into the hub fit the threads fine, but when i tried to turn the wheel, the screws were too long (when fully screwed into the hub) and were catching on the forks If i get new forks (echo urban) will the disc rotor fit or will i have the same problem? Appreciate any advice/answers Thanks Quote Link to comment Share on other sites More sharing options...
craigjames Posted August 3, 2010 Report Share Posted August 3, 2010 Do you have domed torx (star) bolts or normal cap head allen bolts? Quote Link to comment Share on other sites More sharing options...
sandeeebeach219 Posted August 3, 2010 Author Report Share Posted August 3, 2010 Do you have domed torx (star) bolts or normal cap head allen bolts? Allen bolts, why? does this make a difference? what should i do? Thanks Quote Link to comment Share on other sites More sharing options...
craigjames Posted August 3, 2010 Report Share Posted August 3, 2010 Do your bolts look like this: or like this: Generally the latter will be higher profile and can catch on your fork legs, if you have those get some like the first; they're Ti,but some lil black torx disc rotor bolts will do you fine. If thats not the issue, get some pics up so we can figure out what is Quote Link to comment Share on other sites More sharing options...
sandeeebeach219 Posted August 3, 2010 Author Report Share Posted August 3, 2010 Do your bolts look like this: or like this: Generally the latter will be higher profile and can catch on your fork legs, if you have those get some like the first; they're Ti,but some lil black torx disc rotor bolts will do you fine. If thats not the issue, get some pics up so we can figure out what is Aw cheers mate, thats brilliant. I think the problem is exactly how you said it. I have the second kind of bolts by the way, allen heads. And its just like the top, larger part of the bolt that catches on the forks. So i think if i get smaller/shorter bolts, that will fix the problem. Do you know where i can get any of the smaller/shorter bolts? Thanks a lot. Aw cheers mate, thats brilliant. I think the problem is exactly how you said it. I have the second kind of bolts by the way, allen heads. And its just like the top, larger part of the bolt that catches on the forks. So i think if i get smaller/shorter bolts, that will fix the problem. Do you know where i can get any of the smaller/shorter bolts? Thanks a lot. Hey again Ive just tried to screw it on again and it seems that, even using a smaller screw, the rotor wont fit on What can i do now? HELP! Quote Link to comment Share on other sites More sharing options...
craigjames Posted August 3, 2010 Report Share Posted August 3, 2010 Rotor bolts If you've tried something like them then I'd get some pics up or give us a spec (hub, forks, brake etc) of what you have, or even better both. Quote Link to comment Share on other sites More sharing options...
sandeeebeach219 Posted August 3, 2010 Author Report Share Posted August 3, 2010 Rotor bolts If you've tried something like them then I'd get some pics up or give us a spec (hub, forks, brake etc) of what you have, or even better both. I have a 20" bike with the following front wheel: http://www.tartybikes.co.uk/product.php?product_id=11189&category_id=20 HUB http://www.tartybikes.co.uk/product.php?product_id=236&category_id=26 RIM http://www.tartybikes.co.uk/product.php?product_id=10168&category_id=94 SPOKES Thanks Quote Link to comment Share on other sites More sharing options...
craigjames Posted August 3, 2010 Report Share Posted August 3, 2010 Dude if you can a picture would be ideal . Quote Link to comment Share on other sites More sharing options...

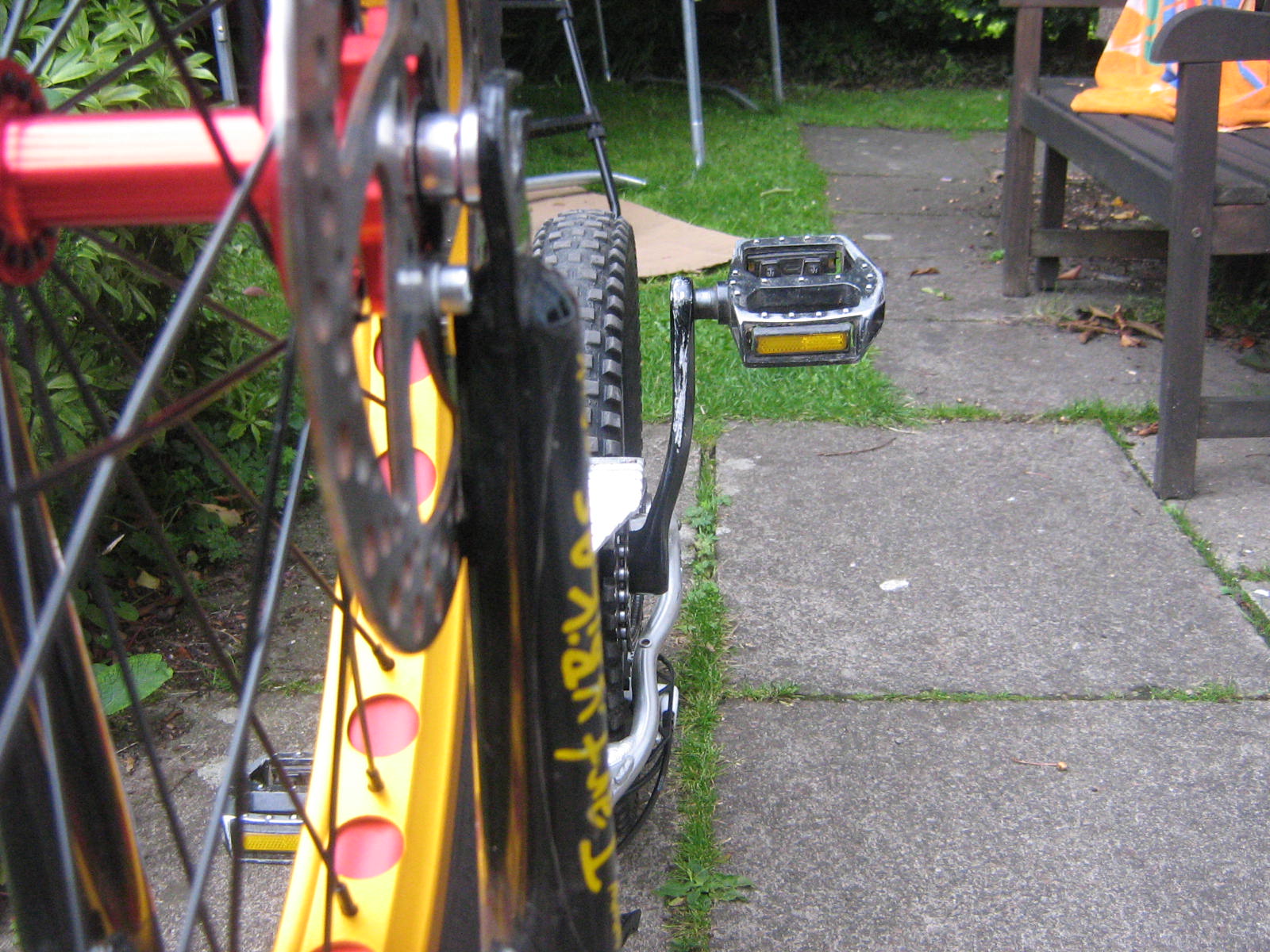

sandeeebeach219 Posted August 3, 2010 Author Report Share Posted August 3, 2010 Dude if you can a picture would be ideal . Hey heres a picture of the problem Im buying new forks tomorrow so i would really appreciate it if i could sort this out today Cheers lads Hey heres a picture of the problem Im buying new forks tomorrow so i would really appreciate it if i could sort this out today Cheers lads Hey heres a picture of the problem Im buying new forks tomorrow so i would really appreciate it if i could sort this out today Cheers lads Hey I've just put one bolt on, you see it? Quote Link to comment Share on other sites More sharing options...
Luke Rainbird Posted August 3, 2010 Report Share Posted August 3, 2010 What forks are those? There doesn't appear to be much room between the rotor's braking surface and the fork leg which could be due to the hub not being spaced quite so nicely as others, though that may just be the angle the picture is taken from. Quote Link to comment Share on other sites More sharing options...
sandeeebeach219 Posted August 3, 2010 Author Report Share Posted August 3, 2010 What forks are those? There doesn't appear to be much room between the rotor's braking surface and the fork leg which could be due to the hub not being spaced quite so nicely as others, though that may just be the angle the picture is taken from. The rotor also rubs on the forks yes What can i do?????!!!!!!! :$ please help Quote Link to comment Share on other sites More sharing options...
Luke Rainbird Posted August 3, 2010 Report Share Posted August 3, 2010 Then either the spacing on your fork or on your hub is out. If there's no way to move the hubshell along the axle with spacers at all then your best bet shy of new parts is to try facing the disc mount on the hub a little, though if it's far enough out for your rotor to run the fork leg then facing probably won't help What forks are they? Quote Link to comment Share on other sites More sharing options...
craigjames Posted August 3, 2010 Report Share Posted August 3, 2010 I imagine its more with the fact that they're cheapo steel forks with the dropouts welded central to the fork leg. Unfortunately if it won't space out and wont work with proper Torx disc rotor bolts then it's new forks time, certainly a worth while upgrade. Quote Link to comment Share on other sites More sharing options...
sandeeebeach219 Posted August 3, 2010 Author Report Share Posted August 3, 2010 Then either the spacing on your fork or on your hub is out. If there's no way to move the hubshell along the axle with spacers at all then your best bet shy of new parts is to try facing the disc mount on the hub a little, though if it's far enough out for your rotor to run the fork leg then facing probably won't help What forks are they? They are Monty forks, not sure what ones, they came with the bike. I am buying new forks, do you think the disc will fiit better on those? Here they are: http://www.tartybikes.co.uk/product.php?product_id=10921&category_id=13 Thanks Quote Link to comment Share on other sites More sharing options...
Luke Rainbird Posted August 3, 2010 Report Share Posted August 3, 2010 Those forks should be perfect Edit: Hold up.... In that picture your wheel is the wrong way round so the rotor is on the driveside, not the disc mount side. Sometimes the fork will have a flattened section of leg to give more room and prevent issues like this. The fork does have a disc mount, right? Try it in the right way and see what it's like... Quote Link to comment Share on other sites More sharing options...
sandeeebeach219 Posted August 3, 2010 Author Report Share Posted August 3, 2010 Those forks should be perfect Right lads cheers for all the help. I'm gonna wait till the new forks come then I can always ask you if it still doesnt work You got msn? or i suppose i could just PM you Cheers Quote Link to comment Share on other sites More sharing options...
Luke Rainbird Posted August 3, 2010 Report Share Posted August 3, 2010 No need, that's what the forum is here for. Quote Link to comment Share on other sites More sharing options...
craigjames Posted August 3, 2010 Report Share Posted August 3, 2010 Those original steel Monty forks don't have a disc brake mount, were never intended for discs and therefore probs won't clear a disc whatever you do. Quote Link to comment Share on other sites More sharing options...
sandeeebeach219 Posted August 3, 2010 Author Report Share Posted August 3, 2010 Those forks should be perfect Edit: Hold up.... In that picture your wheel is the wrong way round so the rotor is on the driveside, not the disc mount side. Sometimes the fork will have a flattened section of leg to give more room and prevent issues like this. The fork does have a disc mount, right? Try it in the right way and see what it's like... Hey No my forks havent got a disc mount, i thought i would try and see if just the rotor would fit. i didnt know it would make a difference to the rotor fitting on if i didnt have disc mounts (as the mounts on the forks are just for the caliper) I will try to fit it all when the new forks arrive Thanks a lot, been a real help. Quote Link to comment Share on other sites More sharing options...
Luke Rainbird Posted August 3, 2010 Report Share Posted August 3, 2010 Quote Link to comment Share on other sites More sharing options...
p_ruskin Posted August 3, 2010 Report Share Posted August 3, 2010 (edited) Is it me, or is his disk on the wrong side of the hub?, well the rotor is on the right side, instead of the left (correct) side of the forks? Edited August 3, 2010 by onza limey20 Quote Link to comment Share on other sites More sharing options...
sandeeebeach219 Posted August 4, 2010 Author Report Share Posted August 4, 2010 Is it me, or is his disk on the wrong side of the hub?, well the rotor is on the right side, instead of the left (correct) side of the forks? It doesn't matter because I've tried it both ways round and it still doesn't fit right. You got any more suggestions as to how to make the brake and rotor fit? Thanks Quote Link to comment Share on other sites More sharing options...
AdamR28 Posted August 4, 2010 Report Share Posted August 4, 2010 It doesn't matter because I've tried it both ways round and it still doesn't fit right. You got any more suggestions as to how to make the brake and rotor fit? Those original steel Monty forks don't have a disc brake mount, were never intended for discs and therefore won't clear a disc whatever you do. Quote Link to comment Share on other sites More sharing options...
p_ruskin Posted August 4, 2010 Report Share Posted August 4, 2010 It doesn't matter because I've tried it both ways round and it still doesn't fit right. You got any more suggestions as to how to make the brake and rotor fit? Thanks As Adam said, you will need disk forks, and try and get some proper rotor bolts for it too. Quote Link to comment Share on other sites More sharing options...
sandeeebeach219 Posted August 4, 2010 Author Report Share Posted August 4, 2010 Yeah cheers Adam, I was just trying to see if the disc would fit, I wasn't particularly expecting it to really, but i didn't think the rotor has much to do with the forks(i thought it was just the caliper that had something to do with the forks) I will be ordering new forks tomorrow from tartybikes As Adam said, you will need disk forks, and try and get some proper rotor bolts for it too. So if i get the echo urban disc forks, the rotor will fir no problem? Thanks Quote Link to comment Share on other sites More sharing options...
