multi tasking male Posted June 22, 2010 Report Share Posted June 22, 2010 what the title says, how to make a 74 kingz tensiner ? what will i need ? Quote Link to comment Share on other sites More sharing options...

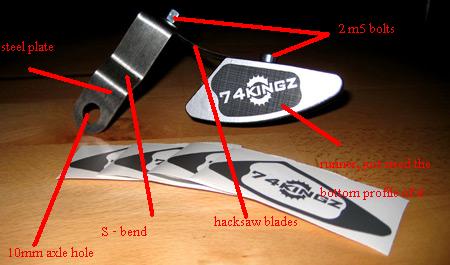

Alex Dark Posted June 22, 2010 Report Share Posted June 22, 2010 * Tensioner Hacksaw blades x2 / big vibra saw bladeBit of piping / plastic for runnersome steel for the angle bracket2 m5 bolts and washers ( I use rotor bolts ) Bend the Steel into an L shape so it clears the rear cog. Put an S bend into the steel so the end is bought into line with the cog Drill ends of both blades and the ends of the steel to accept the axle (10mm usually ) and the M5 bolt ( 5mm ). Drill the runner you have made and affix to hacksaws. Should look approximately like this....* Tensioner Hacksaw blades x2 / big vibra saw bladeBit of piping / plastic for runnersome steel for the angle bracket2 m5 bolts and washers ( I use rotor bolts ) Bend the Steel into an L shape so it clears the rear cog. Put an S bend into the steel so the end is bought into line with the cog Drill ends of both blades and the ends of the steel to accept the axle (10mm usually ) and the M5 bolt ( 5mm ). Drill the runner you have made and affix to hacksaws. Should look approximately like this.... Quote Link to comment Share on other sites More sharing options...
multi tasking male Posted June 22, 2010 Author Report Share Posted June 22, 2010 cool thanks, i guess its prety easy then by the sounds of things. cheers chris Quote Link to comment Share on other sites More sharing options...
Luke Rainbird Posted June 22, 2010 Report Share Posted June 22, 2010 Don't use hacksaw blades, they suck. Use half a 6" steel rule instead Quote Link to comment Share on other sites More sharing options...
craigjames Posted June 23, 2010 Report Share Posted June 23, 2010 Don't use hacksaw blades, they suck. Use half a 6" steel rule instead He speaketh the truth! But the rest of the "how to" is spot on. Quote Link to comment Share on other sites More sharing options...
