padarik Posted January 1, 2010 Report Share Posted January 1, 2010 can i just chance the bmx axle for a hd 135 to use on a stock? was lookin at the kit on aspire ..... will this work?? Quote Link to comment Share on other sites More sharing options...
Revolver Posted January 1, 2010 Report Share Posted January 1, 2010 You probably have to change the freehub body too. Quote Link to comment Share on other sites More sharing options...
padarik Posted January 1, 2010 Author Report Share Posted January 1, 2010 You probably have to change the freehub body too. dont the singlespeed stock and bmx run the same body? wont bother if i have to get more then the axle and fun bolts Quote Link to comment Share on other sites More sharing options...
Revolver Posted January 1, 2010 Report Share Posted January 1, 2010 Hmm, the hubsheel itself us the same, the bit the spokes go in, but I think the other bit you'll need to change. On a BMX it will be shorter to accept one sprocket, but you'll need the 9sp one I think. Quote Link to comment Share on other sites More sharing options...
padarik Posted January 1, 2010 Author Report Share Posted January 1, 2010 Hmm, the hubsheel itself us the same, the bit the spokes go in, but I think the other bit you'll need to change. On a BMX it will be shorter to accept one sprocket, but you'll need the 9sp one I think. http://www.aspirevelotech.com/Merchant2/me...egory_Code=SSND same hub shell and free hub body , think onle axle is diffrent ? Quote Link to comment Share on other sites More sharing options...
Revolver Posted January 1, 2010 Report Share Posted January 1, 2010 I'm out. Quote Link to comment Share on other sites More sharing options...
max-t Posted January 1, 2010 Report Share Posted January 1, 2010 No. If you have the BMX hub and want to change it to 135 spaced, you will need a new freehub body as well as the axle and bolts. Quote Link to comment Share on other sites More sharing options...
aener Posted January 1, 2010 Report Share Posted January 1, 2010 Just to reinforce the above, as you sound the sort to do what you think, rather than take people's advice ... King BMXs are mod spacing, which is 116. Normal kings are 135. The singlespeed king has a wider hubshell (more distance between the flanges) to make up the difference, at the same time as making a stronger wheel build. No - you cannot just change the axle. Quote Link to comment Share on other sites More sharing options...
Revolver Posted January 1, 2010 Report Share Posted January 1, 2010 You CAN just change the hubshell, but the freehub body is different. Quote Link to comment Share on other sites More sharing options...
max-t Posted January 1, 2010 Report Share Posted January 1, 2010 You CAN just change the hubshell, but the freehub body is different. If he was to change the hubshell for a singlespeed hubshell, he would still need the axle and bolts. Quote Link to comment Share on other sites More sharing options...
Revolver Posted January 1, 2010 Report Share Posted January 1, 2010 Yep. Quote Link to comment Share on other sites More sharing options...
padarik Posted January 4, 2010 Author Report Share Posted January 4, 2010 have got a second hubshell is loads wider may just be bolts and axle now Quote Link to comment Share on other sites More sharing options...
rupintart Posted January 5, 2010 Report Share Posted January 5, 2010 Just to reinforce the above, as you sound the sort to do what you think, rather than take people's advice ... King BMXs are mod spacing, which is 116. Normal kings are 135. The singlespeed king has a wider hubshell (more distance between the flanges) to make up the difference, at the same time as making a stronger wheel build. No - you cannot just change the axle. Wrong, King BMXs are mod spacing, which is 110mm, just like a BMX. 116 is some shitty interface that only Deng and the crappy trials frames tried to introduce. yes, just swapping the axle out will work, everything else is the same IF you have the SS King, not the cassette version Quote Link to comment Share on other sites More sharing options...
Leistonbmx Posted January 5, 2010 Report Share Posted January 5, 2010 You have a spare king you want rid of to fund for a wider one? Quote Link to comment Share on other sites More sharing options...
RobinJI Posted January 5, 2010 Report Share Posted January 5, 2010 Wrong, King BMXs are mod spacing, which is 110mm, just like a BMX. 116 is some shitty interface that only Deng and the crappy trials frames tried to introduce. yes, just swapping the axle out will work, everything else is the same IF you have the SS King, not the cassette version "Wrong," the hub shell on the BMX hub, is different to the one on the MTB single speed hub, however it is the same on the 9 speed mountainbike hub and the BMX hub, the cassette body may well be the same on the BMX hub as it is on the MTB single speed hub. If you need any proof look at the distance between the spoke flanges, it's 57mm on the BMX hub's and the 9 speed MTB hubs, and it's 67mm on the single speed MTB hub. So there is no set up that needs just the axle swapping, it either needs the axle and cassette body swapping, or the axle and hub shell. I'd imagine each of the 3 versions will have it's own specific axle, due to the bearings positioning. You're right about the BMX hubs being the standard 110mm, and that 116 is just a weird size invented by trials companies, the idea being you use a 110mm hub, with a 3mm thick snail cam either side of the hub. Just to clear things up, have a paint drawing have got a second hubshell is loads wider may just be bolts and axle now Sounds good, if it's wider, then it's the shell from a SS mountain bike hub, meaning with the right axle, and your old cassette body it may well all go together nicely. Although I have no proof/experience to say that the cassette body will be the same, it would make sense from a manufacturers point of view to share the same part between the 2 models to keep tooling costs down. Quote Link to comment Share on other sites More sharing options...

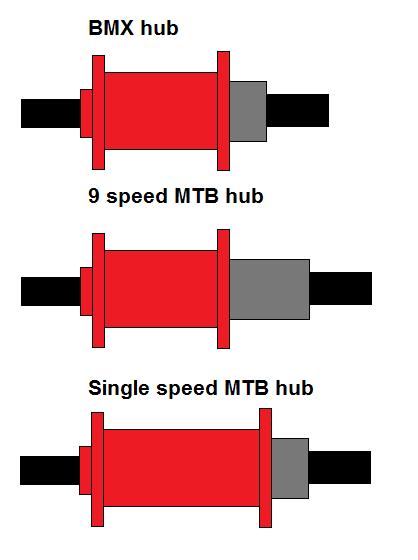

rupintart Posted January 10, 2010 Report Share Posted January 10, 2010 "Wrong," the hub shell on the BMX hub, is different to the one on the MTB single speed hub, however it is the same on the 9 speed mountainbike hub and the BMX hub, the cassette body may well be the same on the BMX hub as it is on the MTB single speed hub. If you need any proof look at the distance between the spoke flanges, it's 57mm on the BMX hub's and the 9 speed MTB hubs, and it's 67mm on the single speed MTB hub. So there is no set up that needs just the axle swapping, it either needs the axle and cassette body swapping, or the axle and hub shell. I'd imagine each of the 3 versions will have it's own specific axle, due to the bearings positioning. You're right about the BMX hubs being the standard 110mm, and that 116 is just a weird size invented by trials companies, the idea being you use a 110mm hub, with a 3mm thick snail cam either side of the hub. Just to clear things up, have a paint drawing Sounds good, if it's wider, then it's the shell from a SS mountain bike hub, meaning with the right axle, and your old cassette body it may well all go together nicely. Although I have no proof/experience to say that the cassette body will be the same, it would make sense from a manufacturers point of view to share the same part between the 2 models to keep tooling costs down. Whoops, I was thinking cassette body. Got all engrossed in the whole BMX spacing being 116...my apologies. Quote Link to comment Share on other sites More sharing options...
