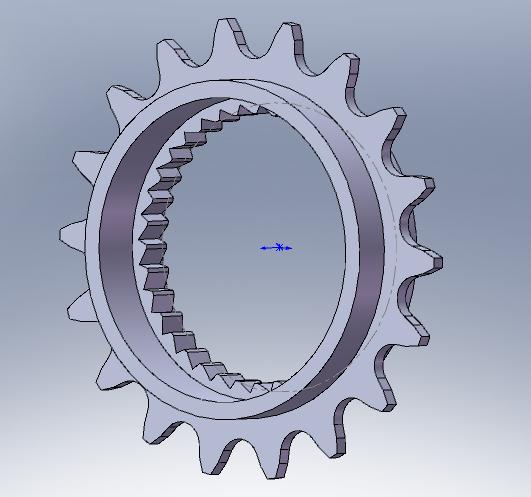

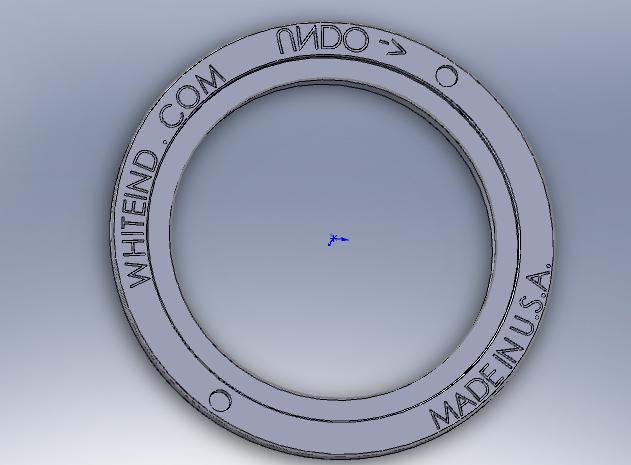

PaRtZ Posted July 15, 2009 Report Share Posted July 15, 2009 I can't find the last one, so lets start a new one. Its been over a year Im sure so people will have no doubt done more work through boredom or university courses.Heres two I've done recently, Im sure you can recognise them. Post yours away and the program youve used to avoid confusion to viewersSolidworks 2008. Also for stress analysis, is it worth having a catalogue of components to see where stresses are likely to occur? I say this pretending I know how to do stress analysis properly - Ive only played with it... but worth a thought maybe Quote Link to comment Share on other sites More sharing options...
weirdoku Posted July 15, 2009 Report Share Posted July 15, 2009 A papercraft project from AS 3D Design. Made in Google Sketchup. Other bits or work stuff here. Quote Link to comment Share on other sites More sharing options...
Pashley26 Posted July 15, 2009 Report Share Posted July 15, 2009 Isn't there a Design thread ? Quote Link to comment Share on other sites More sharing options...
Tony Harrison Posted July 15, 2009 Report Share Posted July 15, 2009 It's better in real life But that's a pretty damn good model you've made. Quote Link to comment Share on other sites More sharing options...
2sixstreet Posted July 15, 2009 Report Share Posted July 15, 2009 Loving the papercraft.This a proposal of a breakfast tray for a friend. 2nd image is a photo of the real thing which is now going in some exhibition. Quote Link to comment Share on other sites More sharing options...
MadManMike Posted July 15, 2009 Report Share Posted July 15, 2009 Isn't there a Design thread ?Graphic design and CAD are quite different dude! Quote Link to comment Share on other sites More sharing options...
Pashley26 Posted July 15, 2009 Report Share Posted July 15, 2009 Fair enough, I thought the D in CAD was for design http://www.trials-forum.co.uk/forum/index....howtopic=109401Love you really Quote Link to comment Share on other sites More sharing options...
MadManMike Posted July 15, 2009 Report Share Posted July 15, 2009 Fair enough, I thought the D in CAD was for design http://www.trials-forum.co.uk/forum/index....howtopic=109401Love you really That's like comparing F1 to Rally though...It's still racing but totally different.Anyway, I don#t even really give a shit lol, just posting for the sake of it Quote Link to comment Share on other sites More sharing options...
Pashley26 Posted July 15, 2009 Report Share Posted July 15, 2009 Anyway, I don#t even really give a shit lol, just posting for the sake of it Me to, pretty rad eh' ? Quote Link to comment Share on other sites More sharing options...
Matt Vandart Posted July 16, 2009 Report Share Posted July 16, 2009 (edited) Solid works is proper good especially the stress analysis bit.I wanna get the new AutoCAD stress analysis and CNC programming shit but can't invest until this f**king recession f**ks off.Matt Edited July 16, 2009 by Danny Quote Link to comment Share on other sites More sharing options...
OD404 Posted July 16, 2009 Report Share Posted July 16, 2009 Solid works is proper good especially the stress analysis bit.I wanna get the new AutoCAD stress analysis and CNC programming shit but can't invest until this f**king recession f**ks off.Those programs are very basic when used for stress analysis. They're fine for applying a simple load to a part which is simply constrained, but I generally hold little confidence in their accuracy, and have yet to see any evidence that will change my mind.I'll post some stuff of mine up later, but for now, here is a list of the arsenal of software I use at work:Pro Engineer Wildfire4Ansys Workbench (FEA)Ansys Classic (FEA, like Workbench but more command script based for greater power and flexibility)Ansys CFX with Turbocharger analysis plugins (Fluid flow analysis)FESafe (fatigue analysis) Quote Link to comment Share on other sites More sharing options...
Matt Vandart Posted July 16, 2009 Report Share Posted July 16, 2009 Those programs are very basic when used for stress analysis. They're fine for applying a simple load to a part which is simply constrained, but I generally hold little confidence in their accuracy, and have yet to see any evidence that will change my mind.I'll post some stuff of mine up later, but for now, here is a list of the arsenal of software I use at work:Pro Engineer Wildfire4Ansys Workbench (FEA)Ansys Classic (FEA, like Workbench but more command script based for greater power and flexibility)Ansys CFX with Turbocharger analysis plugins (Fluid flow analysis)FESafe (fatigue analysis)How much is pro engineer?Matt Quote Link to comment Share on other sites More sharing options...
OD404 Posted July 17, 2009 Report Share Posted July 17, 2009 How much is pro engineer?MattNo idea, we get a significant discount as we have about 150 users in this country alone. Quote Link to comment Share on other sites More sharing options...
