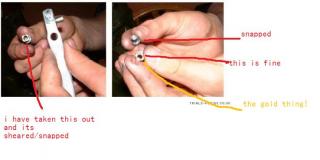

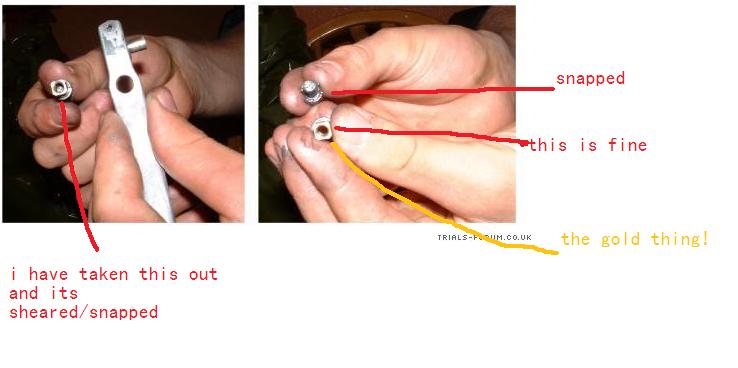

LukasMcNeal Posted June 18, 2009 Report Share Posted June 18, 2009 I have followed the wiki and got to the stage where i need to put a m5 bolt in it. surely when you screw the bolt into the "gold thing" and you want to adjust the tpa wouldnt the gold thing move causing the bolt to not move in more to push the pistons out? Quote Link to comment Share on other sites More sharing options...
ZeroMatt Posted June 18, 2009 Report Share Posted June 18, 2009 The "gold thing" moves and the bolt stays still as you have cut a slot across the head so it fits nicely to the part that pushes the piston in. Quote Link to comment Share on other sites More sharing options...
LukasMcNeal Posted June 18, 2009 Author Report Share Posted June 18, 2009 The "gold thing" moves and the bolt stays still as you have cut a slot across the head so it fits nicely to the part that pushes the piston in.but then how would it adjust? Quote Link to comment Share on other sites More sharing options...
Muel Posted June 18, 2009 Report Share Posted June 18, 2009 Don't cut a slot in the bolt, just superglue the goldthing into the lever blade and turn the bolt to adjust the bite point. Quote Link to comment Share on other sites More sharing options...
Nickkkkk Posted June 18, 2009 Report Share Posted June 18, 2009 (edited) don't use the guide, just think about it logically... that guide is hard to follow imo Edited June 18, 2009 by Nickkkkk Quote Link to comment Share on other sites More sharing options...
Earl Posted June 18, 2009 Report Share Posted June 18, 2009 (edited) Is it the Old style lever blade because i know how to fix it if it is.Edit.Just had another look at picture looks like it is, just get a bottle rack bolt and replace it, it works fine iv got one in mine cut a slot in the head end it helps. Edited June 18, 2009 by Earl Quote Link to comment Share on other sites More sharing options...
LukasMcNeal Posted June 18, 2009 Author Report Share Posted June 18, 2009 Cheers guys I've done what muel suggested I've glued it in tonight and ill put the bolt in tommorow. Quote Link to comment Share on other sites More sharing options...
cai Posted June 18, 2009 Report Share Posted June 18, 2009 surely when you screw the bolt into the "gold thing" and you want to adjust the tpa wouldnt the gold thing move causing the bolt to not move in more to push the pistons out?Thats why you hold the 'gold thing' with your other hand - you've got two for a reason Quote Link to comment Share on other sites More sharing options...
LukasMcNeal Posted June 18, 2009 Author Report Share Posted June 18, 2009 Thats why you hold the 'gold thing' with your other hand - you've got two for a reason I gt what you saying but the tpa before it broke worked fine with one hand. Quote Link to comment Share on other sites More sharing options...
cai Posted June 18, 2009 Report Share Posted June 18, 2009 But you broke that - hense this 'new one' being called a bodge.. Quote Link to comment Share on other sites More sharing options...
0zzy Posted June 20, 2009 Report Share Posted June 20, 2009 actually bodge means mending bike with what evers with you so that you can make it home on a ride. Quote Link to comment Share on other sites More sharing options...
PaRtZ Posted June 21, 2009 Report Share Posted June 21, 2009 what? this is sillySlide the gold thing into the lever and hold it still using you're left index finger. Then using your right hand, screw the bolt in. I don't see how thats hard to understand. Then you can either place the sheared bit off (which goes either side of the piston rocker) in place and put the lever back together (the force of the new m5 bodge bolt against the plate will stop it coming out) OR I think you can just use the bolt on its own against the piston rocker Quote Link to comment Share on other sites More sharing options...
Dan6061 Posted June 21, 2009 Report Share Posted June 21, 2009 Cut a slot in the head of the M5 bolt, then put it back in so it replaces the old bolt bit you snapped. You still adjust it with the red dial, and it doesn't look broken/bodged at all! Quote Link to comment Share on other sites More sharing options...
LukasMcNeal Posted June 21, 2009 Author Report Share Posted June 21, 2009 (edited) I glued it in and ive fixed it. Though my hosing snapped mid ride so i have a different maggy on there now! Edited June 21, 2009 by LukasMcNeal Quote Link to comment Share on other sites More sharing options...
