Luke Rainbird Posted March 10, 2010 Report Share Posted March 10, 2010 I don't know whether having a 7000 series BB shell would create any issues with welding and stuff, but might be worth giving Ceeway a shout to get a price for an alu BB shell from them perhaps. You don't get a fancy CNC'd yoke then though so I assume that's no use (http://www.framebuilding.com/Aluminum%20Aluminium%20Alloy%20Titanium.htm) Do you not have the appropriate tooling at college to thread the shell? If you do get it done, don't forget to reverse thread the driveside! Quote Link to comment Share on other sites More sharing options...
Alex Dark Posted March 10, 2010 Author Report Share Posted March 10, 2010 I don't know whether having a 7000 series BB shell would create any issues with welding and stuff, but might be worth giving Ceeway a shout to get a price for an alu BB shell from them perhaps. You don't get a fancy CNC'd yoke then though so I assume that's no use (http://www.framebuilding.com/Aluminum%20Aluminium%20Alloy%20Titanium.htm) Do you not have the appropriate tooling at college to thread the shell? If you do get it done, don't forget to reverse thread the driveside! Unfortunately I have to have it in 6 series at least, probably 6082..which is a bugger really Cheers for the web linky though luke Nah I'm welding the shell to the yoke anyway, coustellier style so thats no real issue to be honest Not really, I mean we have the lathes but thats gonna be a bugger to get right I reckons. Haha good shout, ill remember that... Was thinking about making my own taps from old steel BB cups....put some notches in to clear swarf? Centre it with the lathe and do it....might work ..any other suggestions? Quote Link to comment Share on other sites More sharing options...
Luke Rainbird Posted March 10, 2010 Report Share Posted March 10, 2010 Was thinking about making my own taps from old steel BB cups....put some notches in to clear swarf? Centre it with the lathe and do it....might work ..any other suggestions? Shitloads of cutting fluid and lots of backing out to clear haha! Quote Link to comment Share on other sites More sharing options...
Alex Dark Posted March 10, 2010 Author Report Share Posted March 10, 2010 Shitloads of cutting fluid and lots of backing out to clear haha! Haha might be a plan then We'll see really... I mean I'm more than happy to drop £50 on the Urban BB if I knew i could use it in a different bike...but I just cant see trials companies adopting the spanish style press fit bb system anytime soon Quote Link to comment Share on other sites More sharing options...
Luke Rainbird Posted March 10, 2010 Report Share Posted March 10, 2010 If this frame you're building is going to be fully usable then it'd make more sense to pump in another £20 and get the BB working - you can mention the choice in your writeup but to have it open to a wider range of BBs would be much better IMO. Quote Link to comment Share on other sites More sharing options...
Alex Dark Posted March 10, 2010 Author Report Share Posted March 10, 2010 (edited) If this frame you're building is going to be fully usable then it'd make more sense to pump in another £20 and get the BB working - you can mention the choice in your writeup but to have it open to a wider range of BBs would be much better IMO. Yeh well i mean that is the cheaper option to be honest....its that or the urban BB...cannae decide Some guy on bikeradar came up with the idea of using inserts so i could whack any bb in there....but then id have to tap the insert...hmmm Edit: Or lathe down an old bb shell. That could slide in when cooled, and the frame heated so it'd be stuck in. Then to get it out I could heat the frame and pull it to put the Spanish style BB in....that could work. Edited March 10, 2010 by Alex Dark Quote Link to comment Share on other sites More sharing options...
forteh Posted March 11, 2010 Report Share Posted March 11, 2010 Why not just borrow a BB tap from your friendly lbs? That said they might only have thread chasing taps rather than thread cutting. Quote Link to comment Share on other sites More sharing options...
craigjames Posted March 11, 2010 Report Share Posted March 11, 2010 Just gor for a normal type BB Alex, £20 to get it tapped correctly is pretty cheap and for the added benefit of knowing that there will be BB's to fit for the foreseeable future surely makes it a more viable option for your project too? Quote Link to comment Share on other sites More sharing options...
Alex Dark Posted March 11, 2010 Author Report Share Posted March 11, 2010 Why not just borrow a BB tap from your friendly lbs? That said they might only have thread chasing taps rather than thread cutting. I'm gonna try ringing them on Monday I thinks , hopefully they'll actually have a thread cutting tap...but I guess we'll see Just gor for a normal type BB Alex, £20 to get it tapped correctly is pretty cheap and for the added benefit of knowing that there will be BB's to fit for the foreseeable future surely makes it a more viable option for your project too? Ye Im just gonna go for the standard MTB type now I thinks.... Cheers Just an update...... chainstays / seat stays are getting rolled tomorrow to the correct profile. Fork steerer tube has been finished Both fork dropouts are done Both frame dropouts are completed Come monday, I should be able to mitre and tack the forks together.....and commence work on the actual frame jig Pictures up soon of me progress for those that care. Quote Link to comment Share on other sites More sharing options...
l33th3tr33 Posted March 11, 2010 Report Share Posted March 11, 2010 is it just me who's on the edge of their seat to see what it turns out like? Quote Link to comment Share on other sites More sharing options...
Alex Dark Posted March 11, 2010 Author Report Share Posted March 11, 2010 is it just me who's on the edge of their seat to see what it turns out like? Nah, I am too :$ Quote Link to comment Share on other sites More sharing options...
Laurence--Trials Posted March 11, 2010 Report Share Posted March 11, 2010 Yeah! I wanna see riding videos / pictures of the end product Quote Link to comment Share on other sites More sharing options...
Alex Dark Posted March 11, 2010 Author Report Share Posted March 11, 2010 Yeah! I wanna see riding videos / pictures of the end product Be a fair while yet! Need to build the bloody thing and heat treat it.... Any suggestions for stickers and possibly paint schemes? May as well have it looking the part Quote Link to comment Share on other sites More sharing options...
Alex Dark Posted March 12, 2010 Author Report Share Posted March 12, 2010 (edited) Update....Got the tubing rolled for the chainstays today...looks pretty cool I reckon; certainly an interesting profile Also, here's one of the fork dropout's ....cut out on a CNC router OPinions and shizzle welcome.... Also, I need a design for the booster area...if someone could some up with something cool on paint or whatever that would be cool Just for the top of it, use the black below.... I mean like the deng boosters, the scoops and ridges etc that differentiate between the product ranges; that's what I want.. The lumpy bit at the top is designed to but into the top tube, but I'm not really happy with the shape of it...if anyone's got any ideas id be happy to hear Edited March 12, 2010 by Alex Dark Quote Link to comment Share on other sites More sharing options...
Borat Posted March 12, 2010 Report Share Posted March 12, 2010 Really looking foward to this Alex, good luck with it all. Quote Link to comment Share on other sites More sharing options...
Alex Dark Posted March 12, 2010 Author Report Share Posted March 12, 2010 Really looking foward to this Alex, good luck with it all. Cheers dude Have a bash at making me a booster im stuck for ideas Quote Link to comment Share on other sites More sharing options...
Leistonbmx Posted March 12, 2010 Report Share Posted March 12, 2010 Just mix some existing ideas together. Quote Link to comment Share on other sites More sharing options...

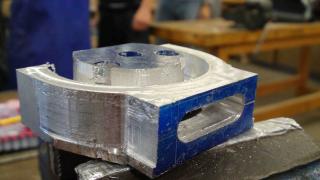

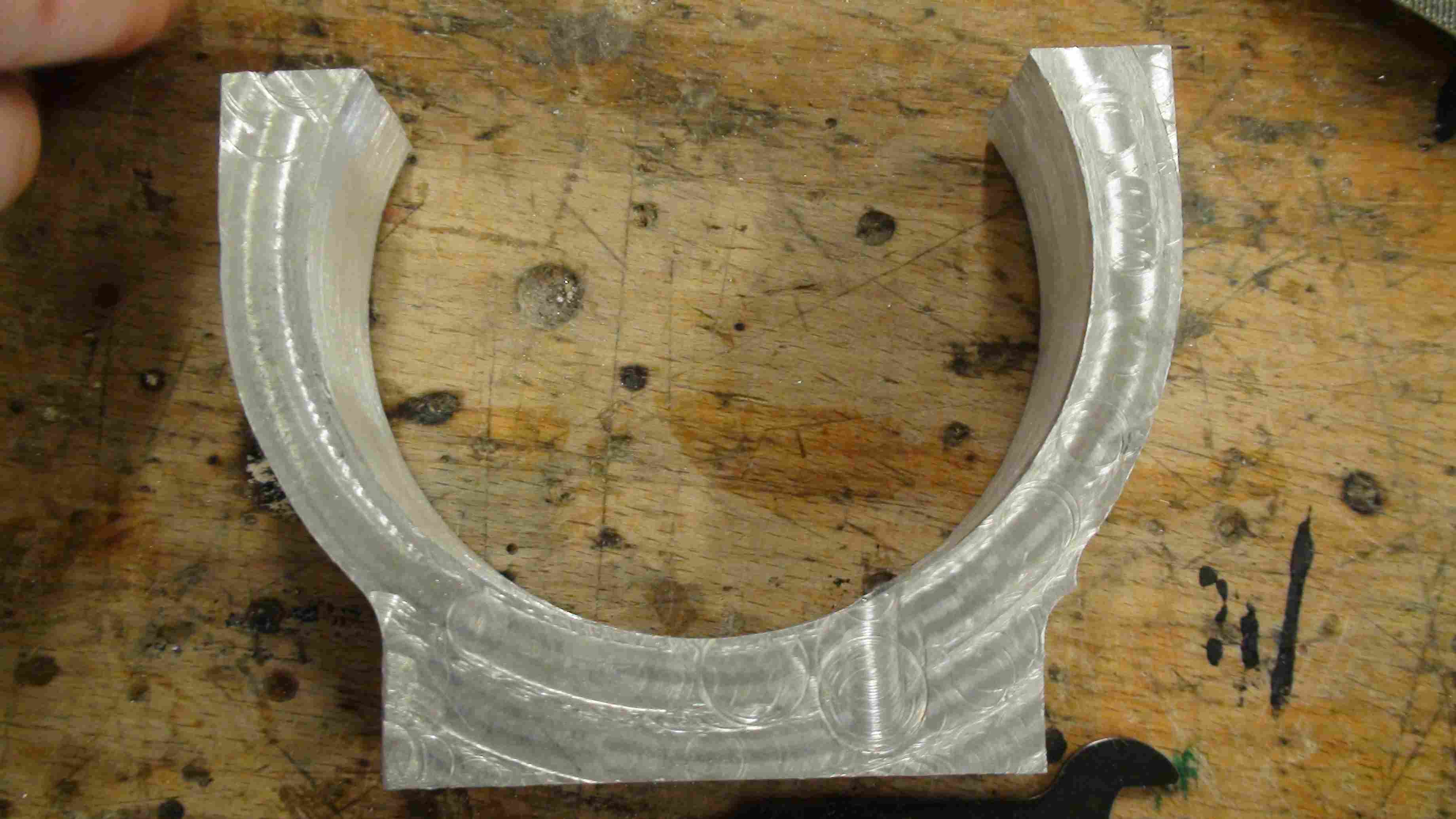

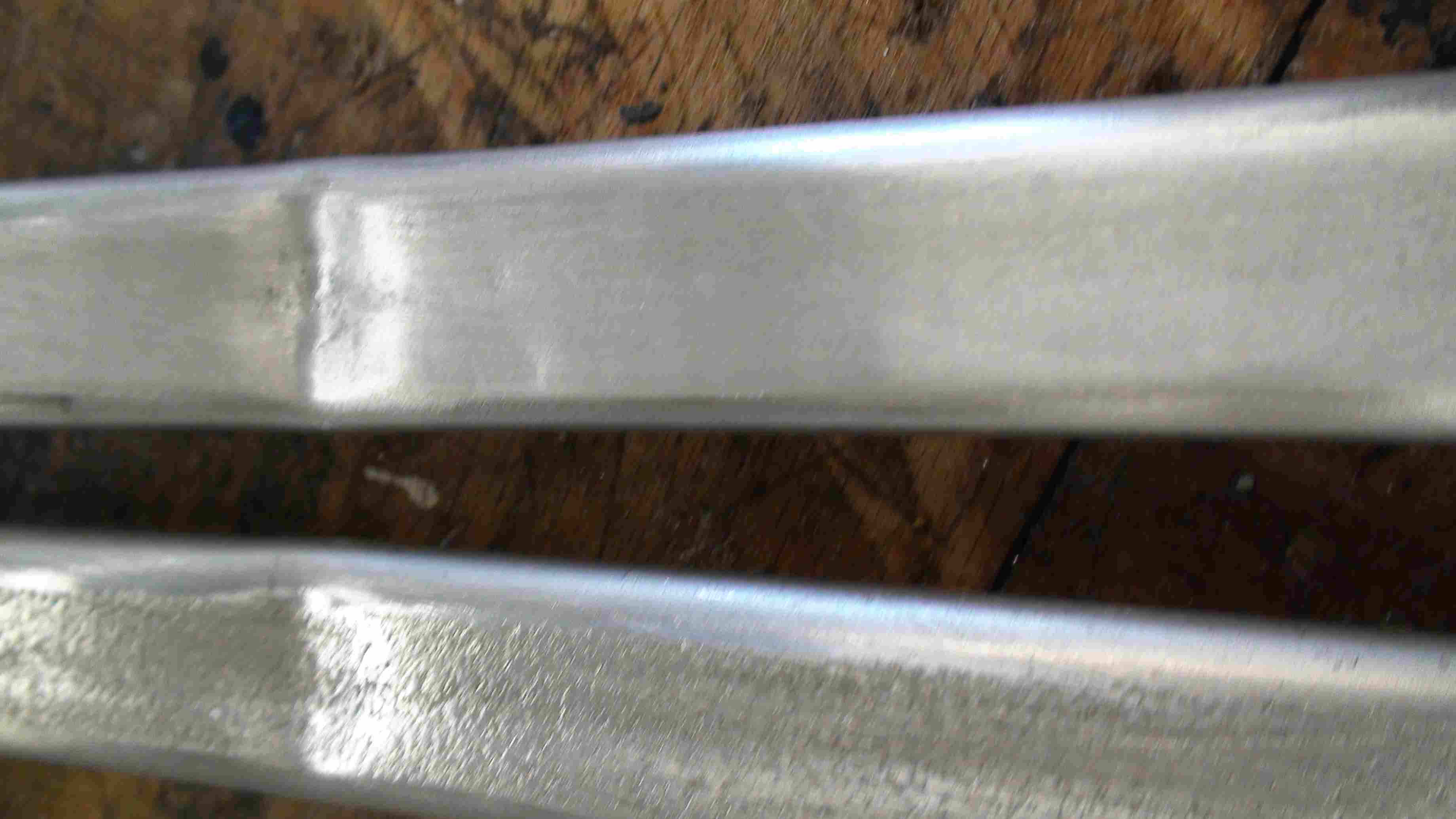

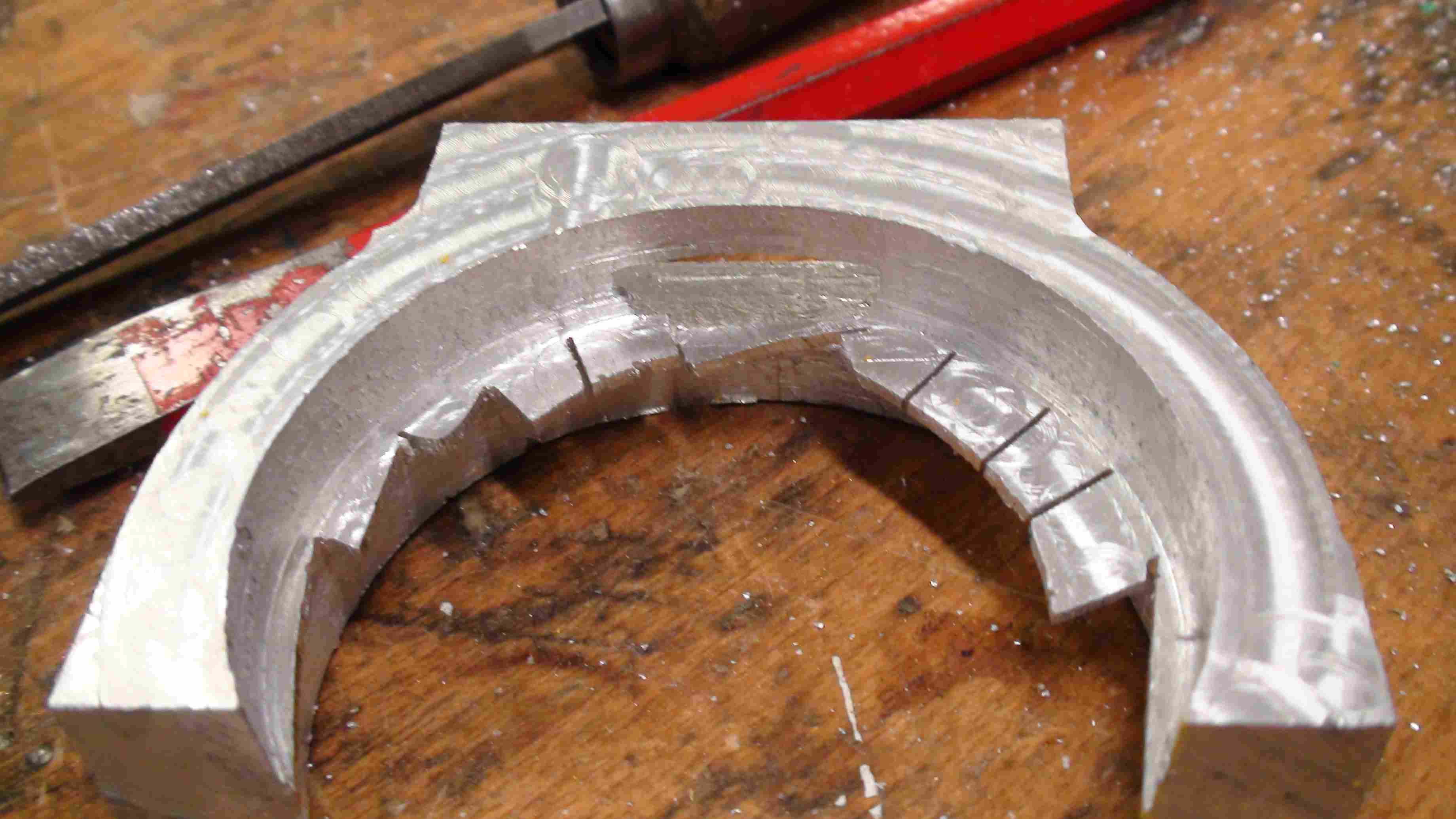

Alex Dark Posted March 22, 2010 Author Report Share Posted March 22, 2010 BB yoke nearly finished....needs polishing and slotting Chainstays are bent, and one has been polished up ready for welding Quote Link to comment Share on other sites More sharing options...

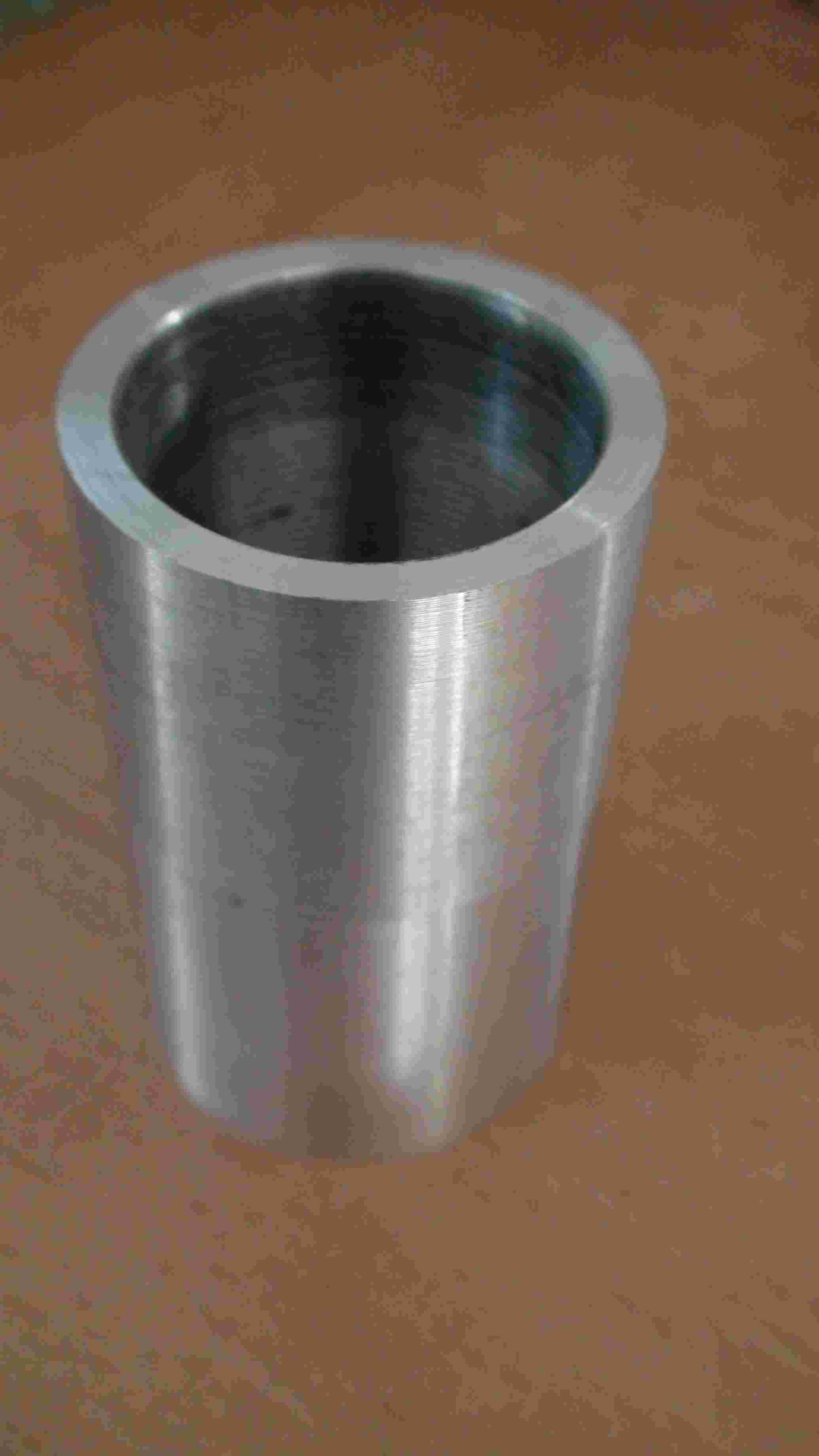

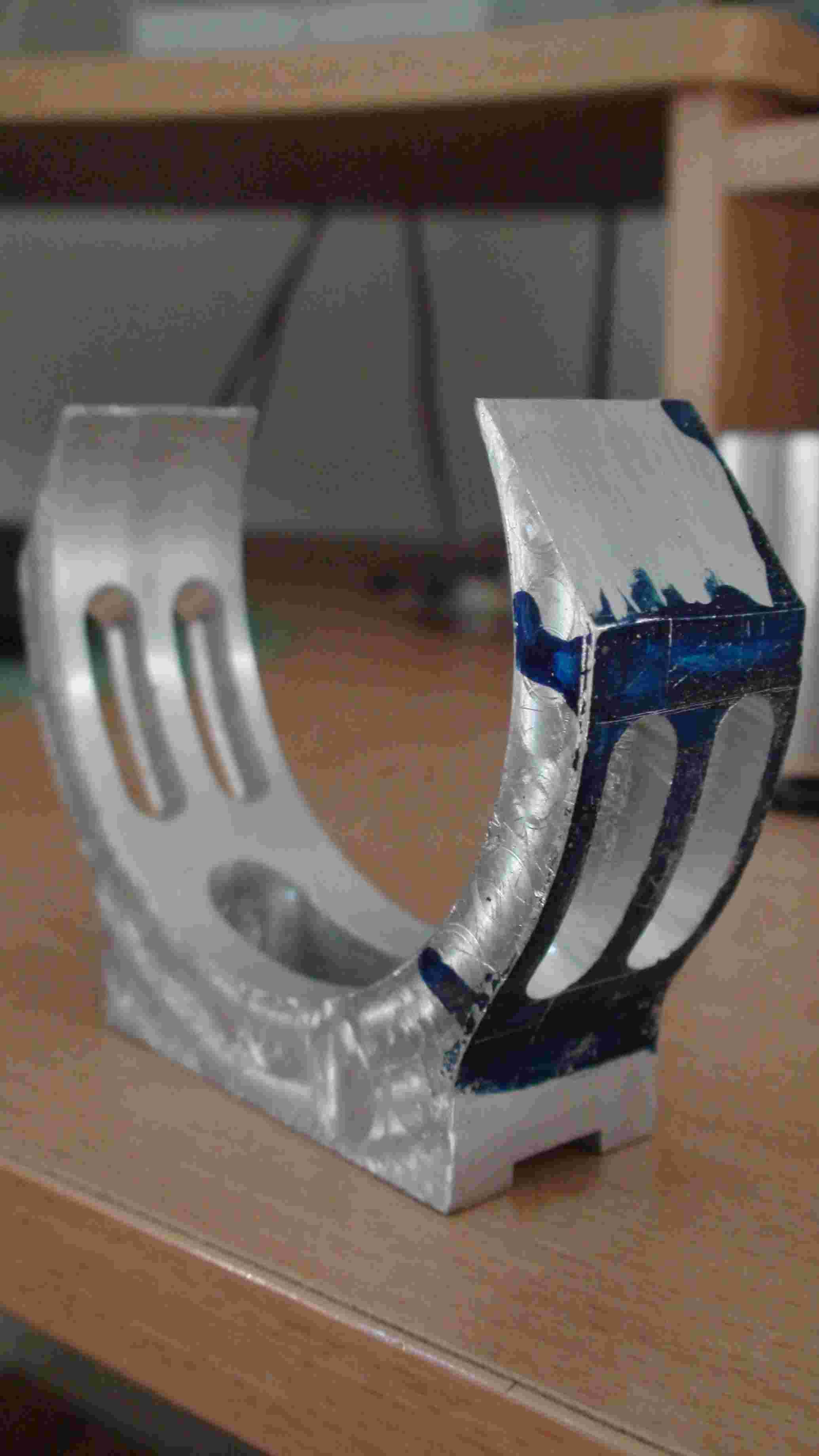

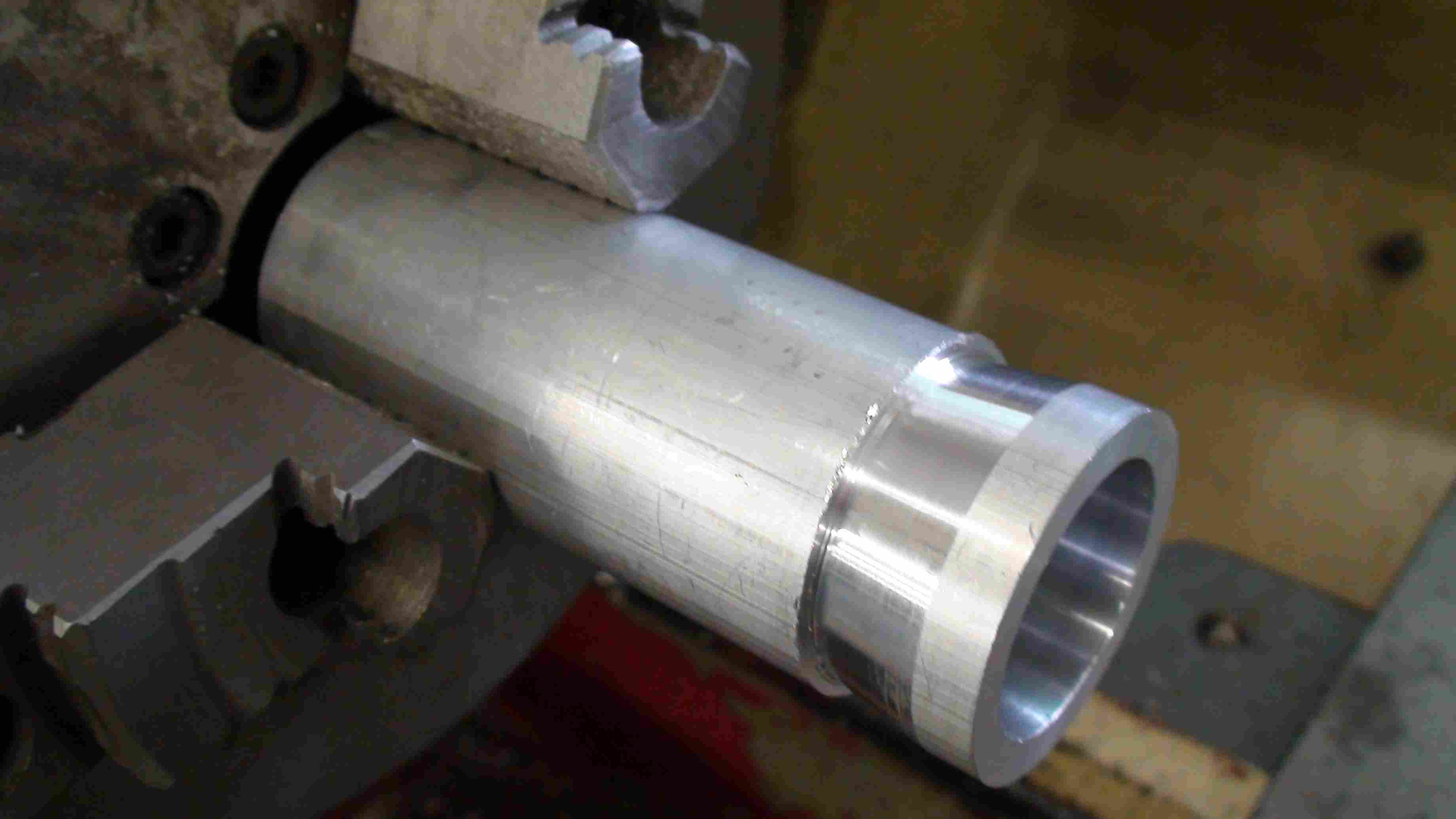

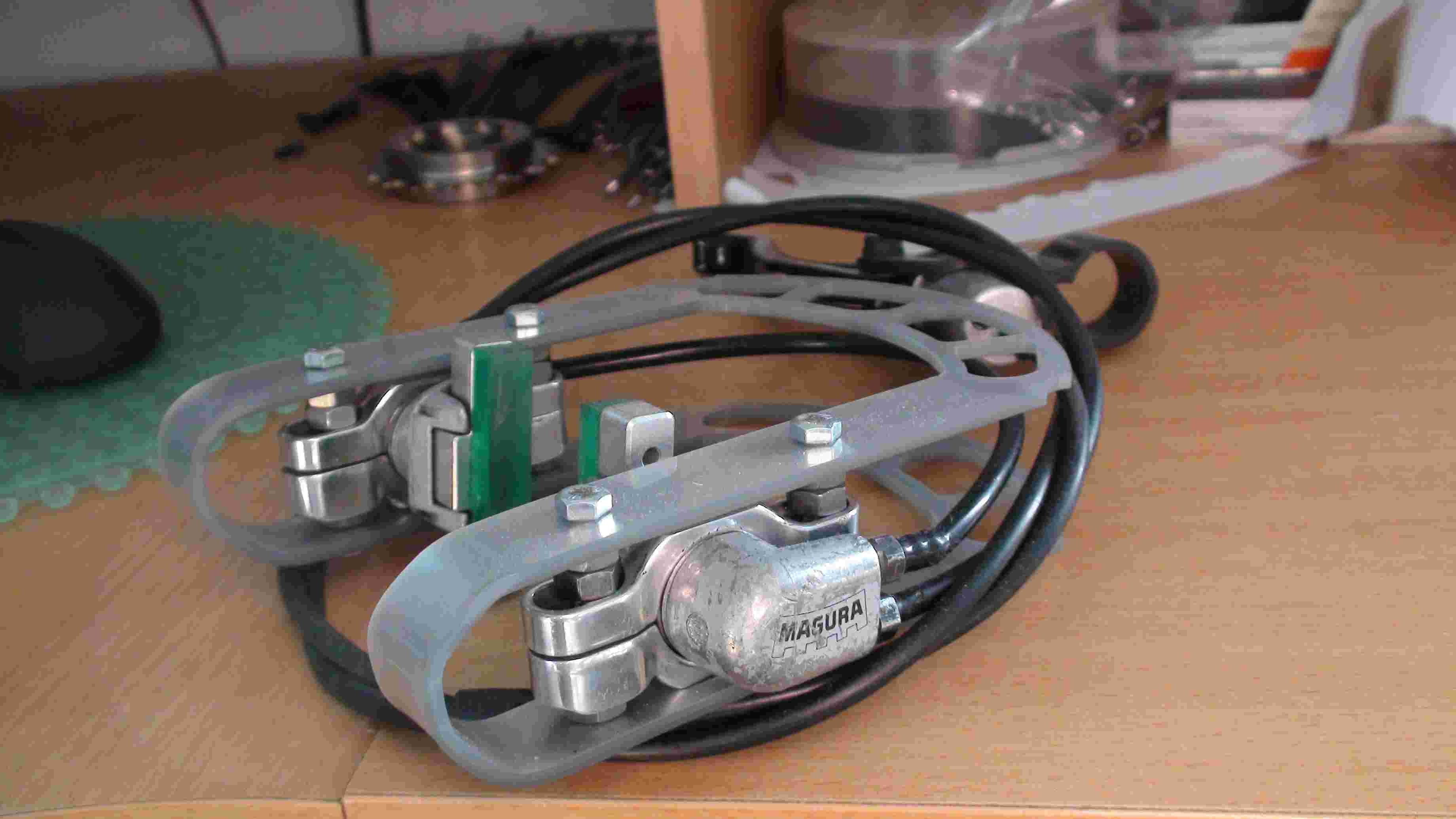

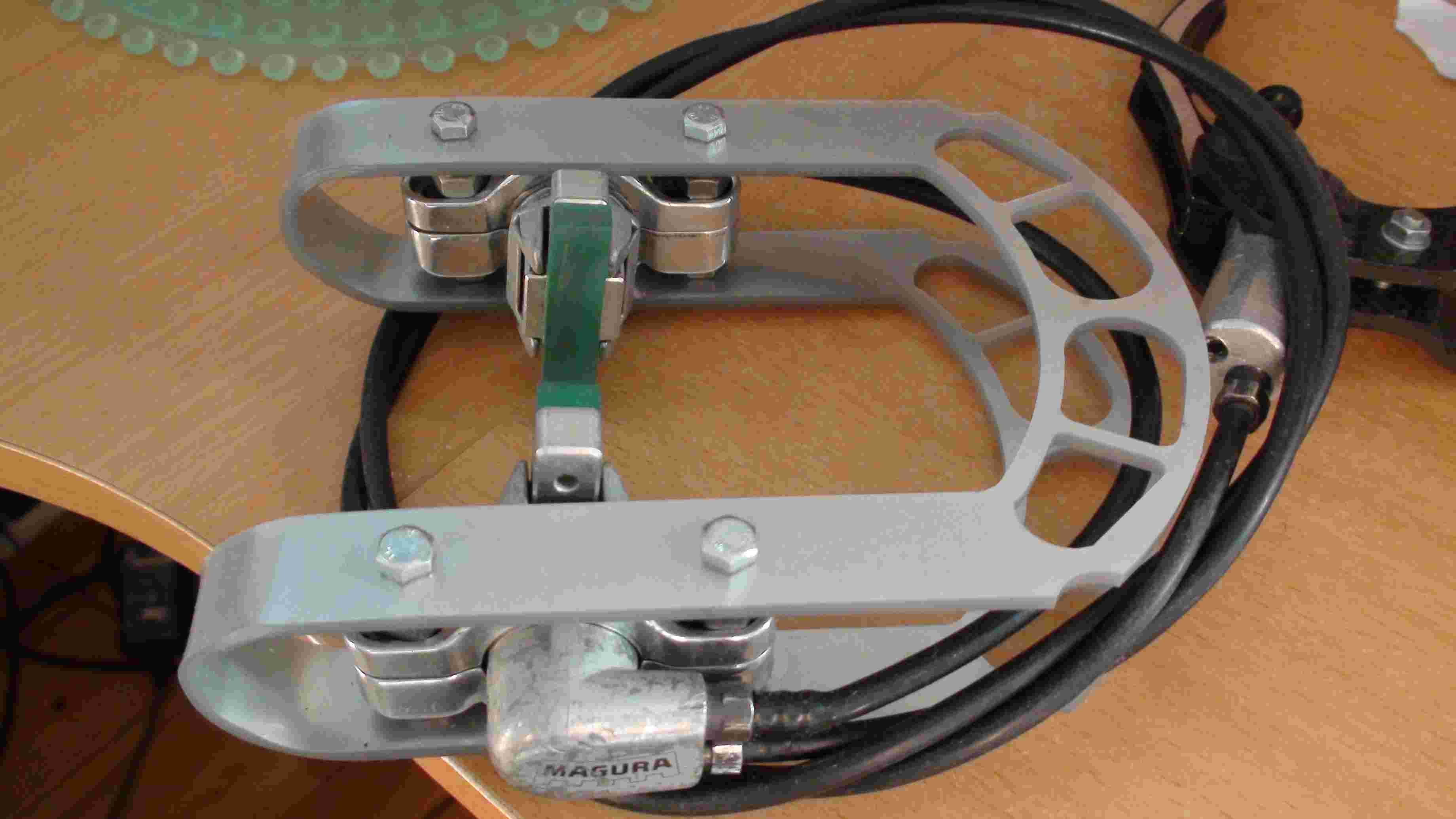

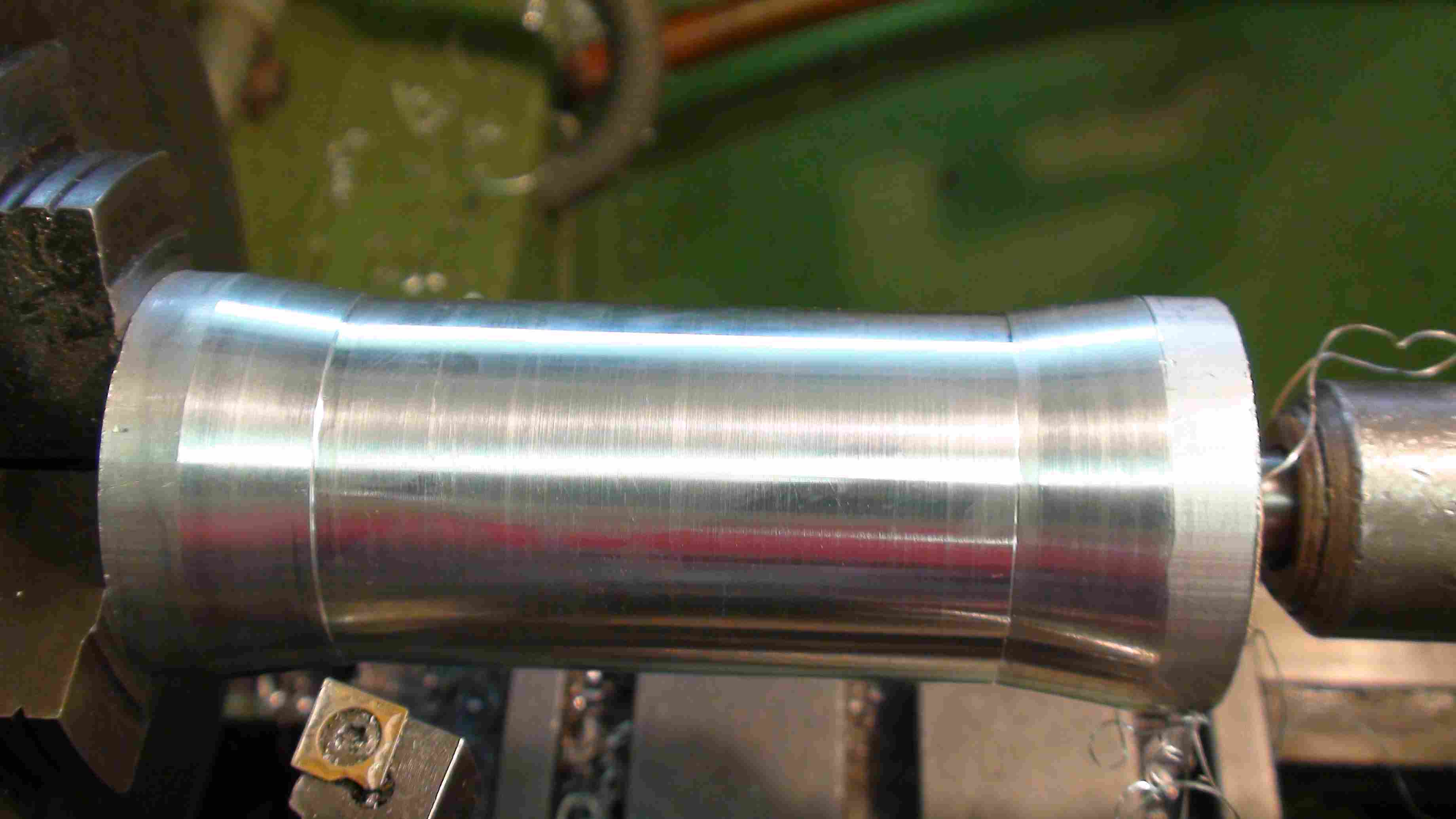

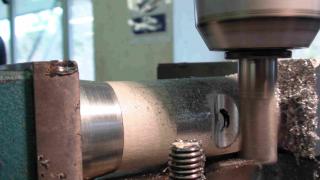

Alex Dark Posted April 22, 2010 Author Report Share Posted April 22, 2010 BB yolk has now been fully milled for the weight savingz Still looking a little rough though, will be sanded, polished, then wet 'n' dried. Bottom bracket shell has been professionally threaded and turned down.....still 3 slots to go in to save some weights Headtube has been taper turned, internally bored and milled....still two slots to go in though. Mark1 of my plastic prototype brake area Mark2 with milled down custom magura mounts ( think Echo TR/TNN, washerless ) Quote Link to comment Share on other sites More sharing options...
forteh Posted April 22, 2010 Report Share Posted April 22, 2010 Apart from the huge, badly compressed pictures its not looking too bad at all, bet youre all excited! Quote Link to comment Share on other sites More sharing options...
isitafox Posted April 22, 2010 Report Share Posted April 22, 2010 Looking very good mate, some real skill gone into the planning and building, I'm sure this wont be the last bike you build! Don't forget I was the first person to post I want one when you go into business!! Quote Link to comment Share on other sites More sharing options...
Matt Vandart Posted April 22, 2010 Report Share Posted April 22, 2010 You're doing a fab job there Alex, I can't wait to see it finished! Quote Link to comment Share on other sites More sharing options...

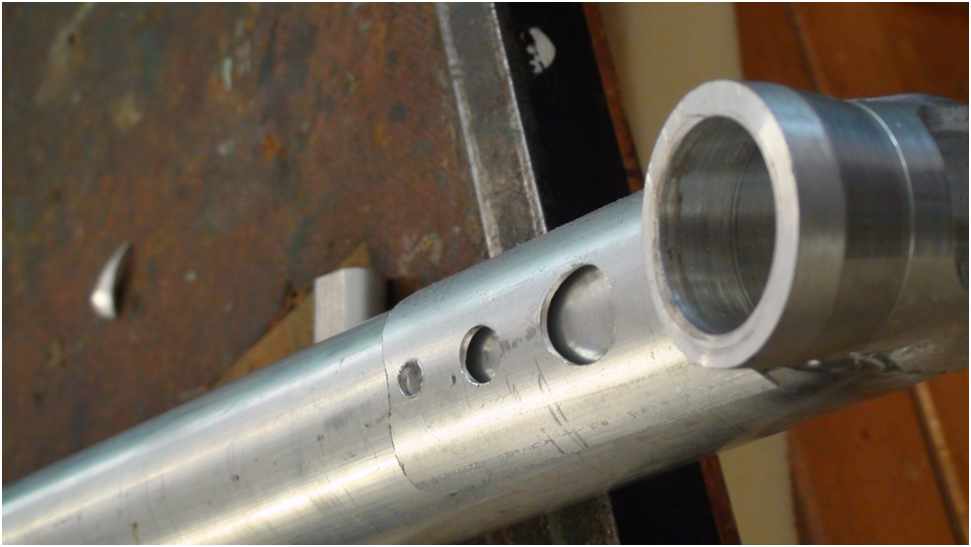

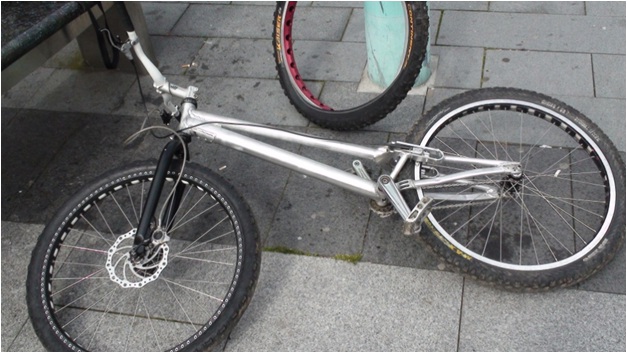

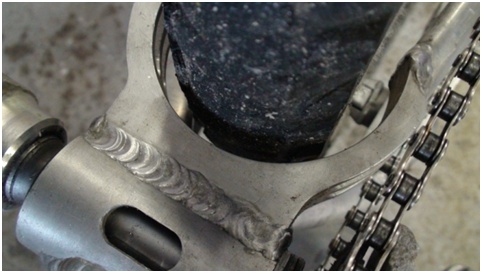

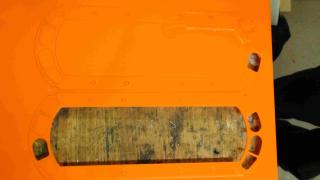

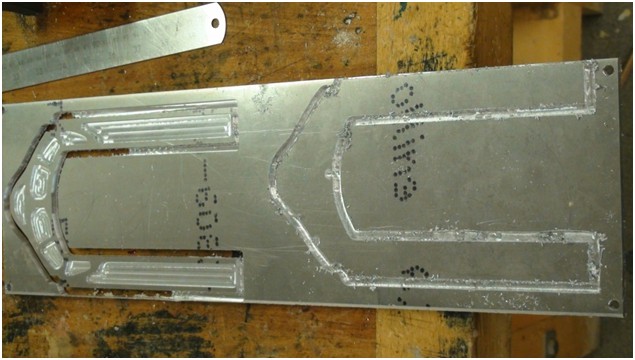

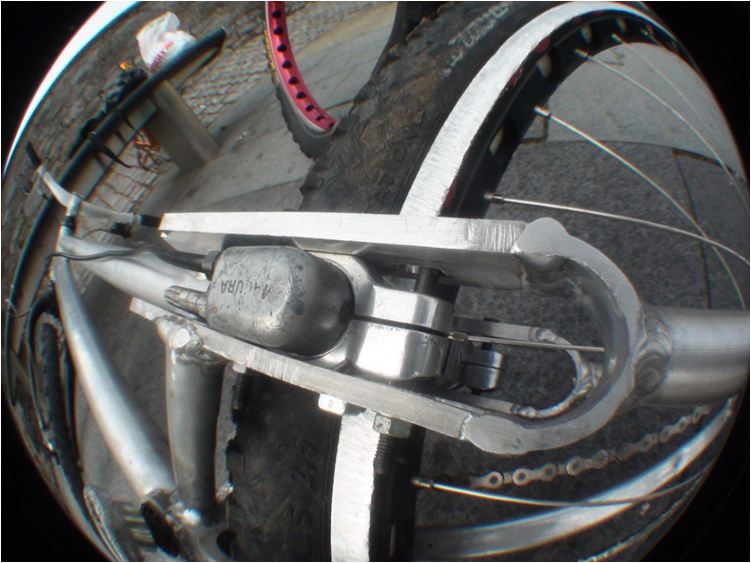

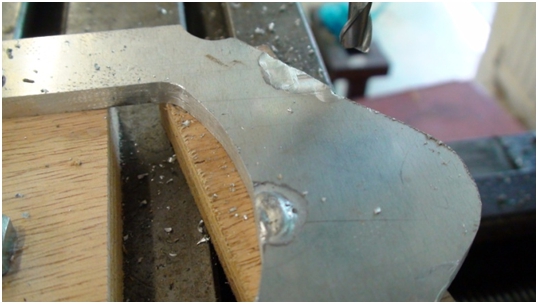

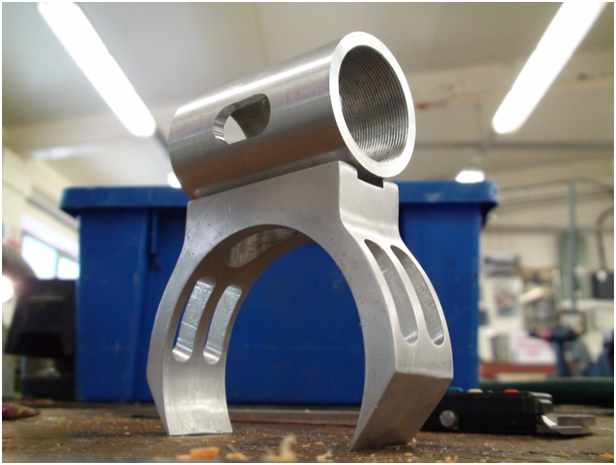

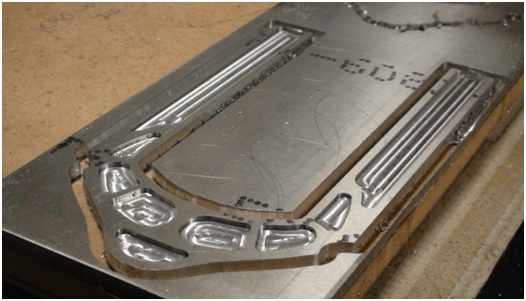

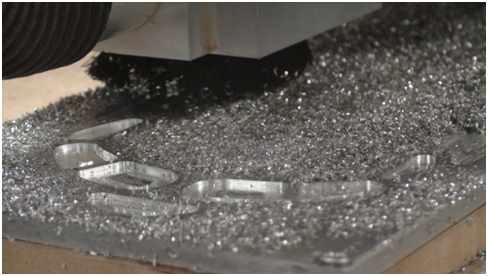

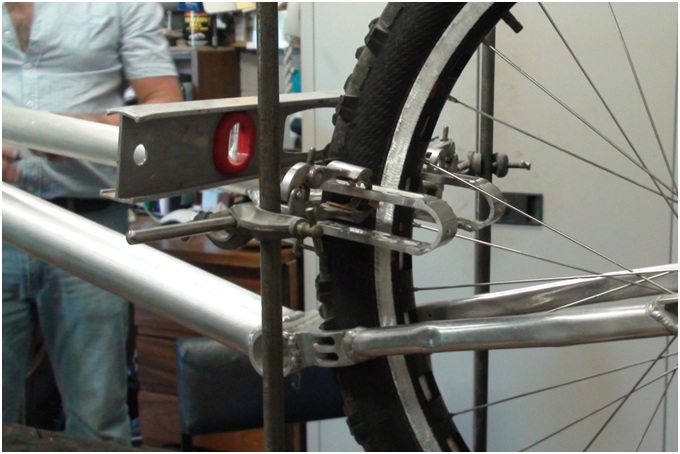

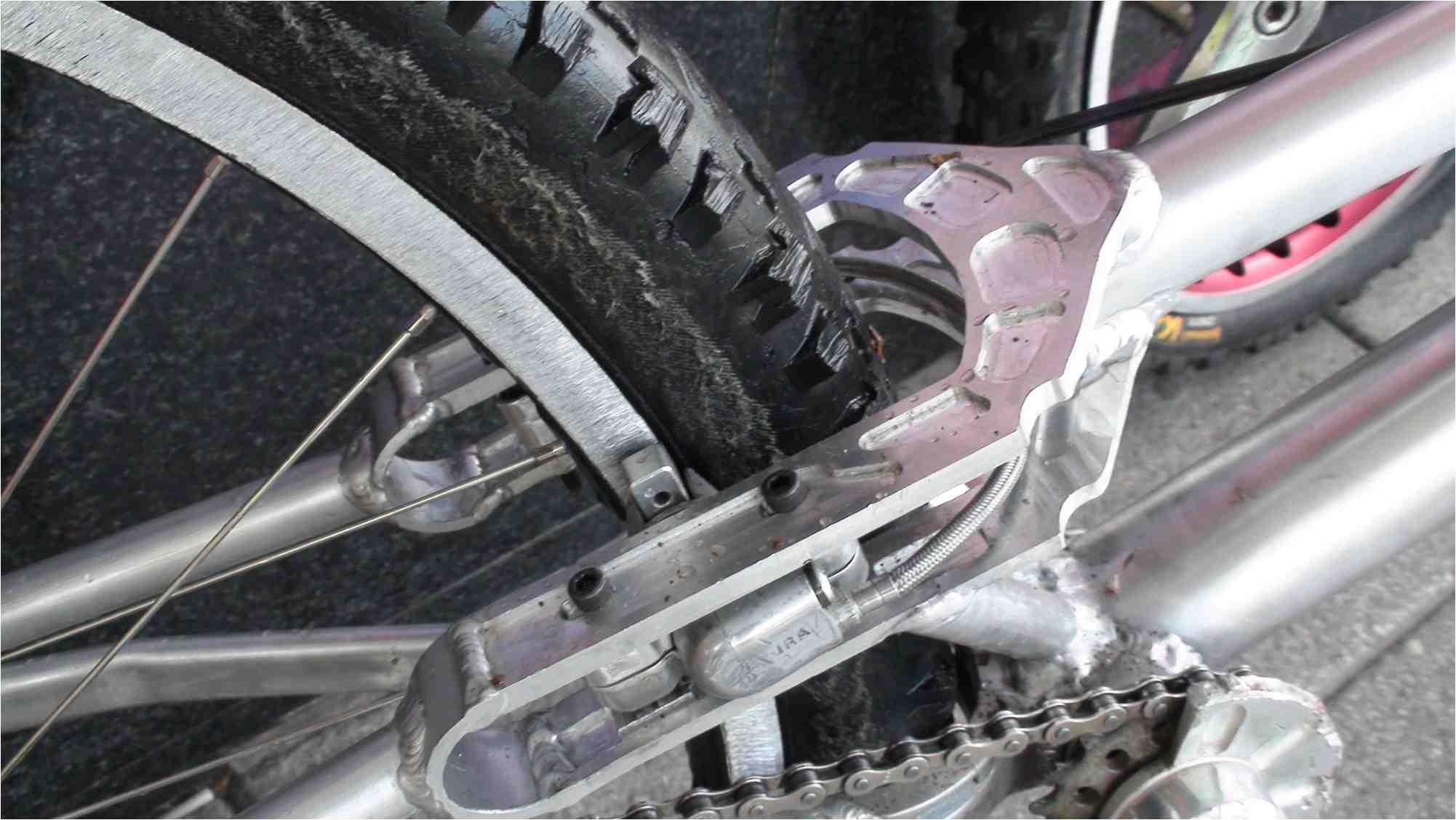

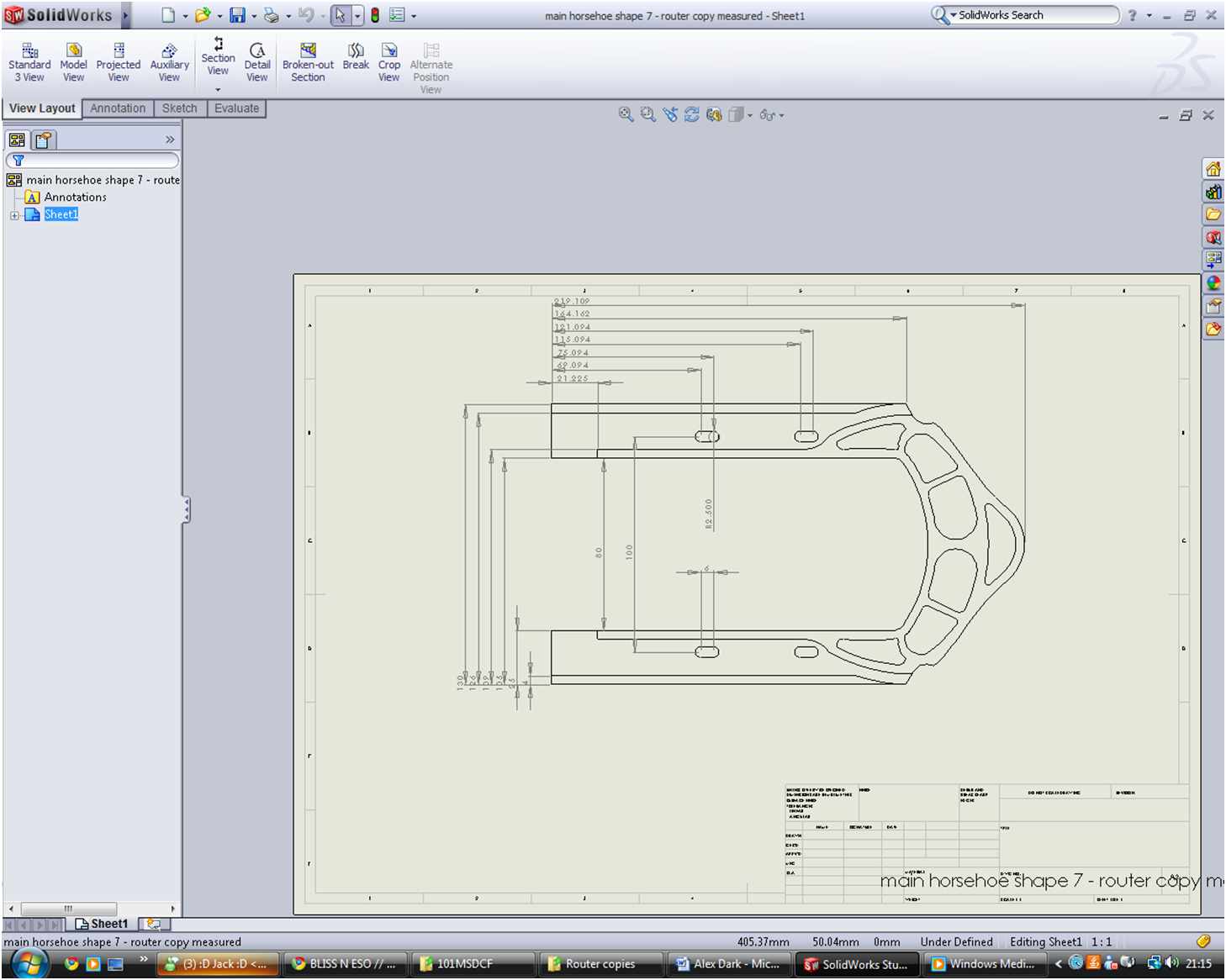

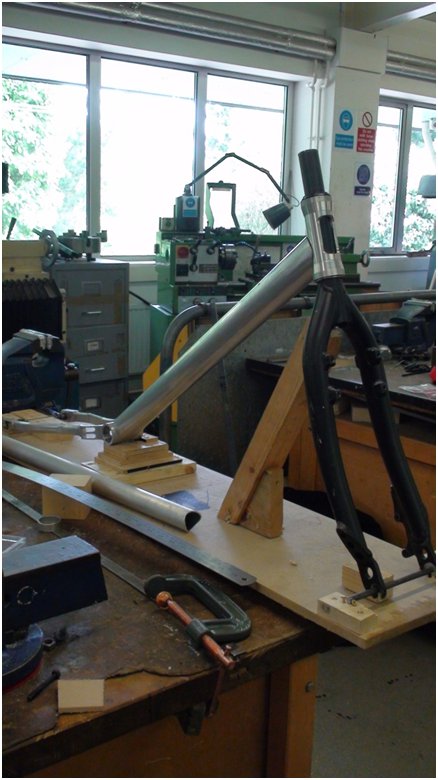

Alex Dark Posted June 17, 2010 Author Report Share Posted June 17, 2010 IT IS FINISHED....completely done,. all built and has been ridden...hard VIDEO BELOW So, so happy with her...the back brake is amazing, and the geo easily beats my Coustellier. soooo here's the rest of the stuff I didn't manage to update.... Right here we have the BB shell with the yoke placed on.....you can see al the cut outs and shit I put into it Took around 8-10 hours of machining for the both of them. Polished to satin kinda finish. Here are the production plans for the brake area....all designed off an RB booster and later cut out on the CNC router. Got the Top brake area actually being cut out on the CNC router and again See the nice shiny one and the buggered one? The nadged one is why I couldnt make those bashrings, boosters etc Managed to take the fked one and clean it up...handmilled it and got a nice design on her. Here are the two plates being welded together...bits of tubing been cut for the ends and a nice crude plywood jig to hold the lot together. Got the BB yoke welded to the shell in this picture...actually on the finished bike here Downtube gusset just as it was being made, styled off the XTP2 one One of the frame being welded together...got the brake area being supported by those science clampstand thingies. Quick snap of the frame in the lower part of the jig with my forks. brake all fitted here...silent but deadly...amazing hold, like a vee but with bite. BEST brake ever. Gay fisheye of above..... and finally.....full bike all built up and shiny AS usual all comments and feedback welcome... Geometry is lovvvely for me 1090 with urbans, 381 stays, 71.5 HA, 675 reach, +52 bb height, 100mm headtube. Weight was 1.71kgs Material was 6082 T6 ( stronger than typical 6061 by a smidge ) ALL hand-made by yours truly FOR VIDEO OF MAKING AND TESTING..... CLICK HERE!!! Cheers for everyones help...couldnt have done it without you lot ( ooh and project got me a distinction..wooo ) Regards, Alex Dark Quote Link to comment Share on other sites More sharing options...
Mikee Posted June 17, 2010 Report Share Posted June 17, 2010 ah pics. looks realy good man. hows your rear brake mounting setup going? And the rest.... all good? much flex anywhere? Quote Link to comment Share on other sites More sharing options...
Stanners Posted June 17, 2010 Report Share Posted June 17, 2010 Amazing mate. Well done. You wantin to get a job in the bike industry? Rob Quote Link to comment Share on other sites More sharing options...
