My '09 Echo Control


BrettM

Recommended Posts

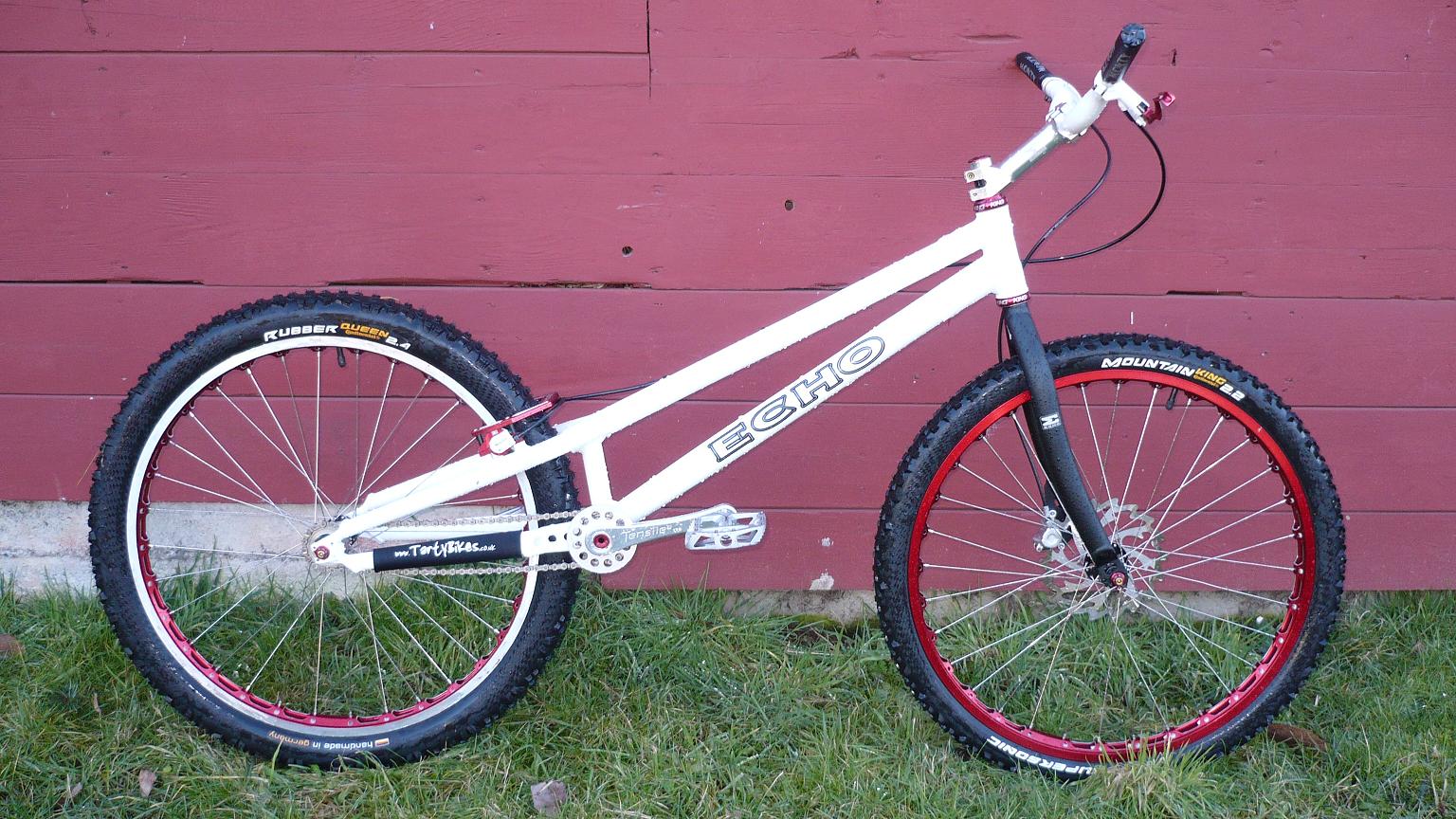

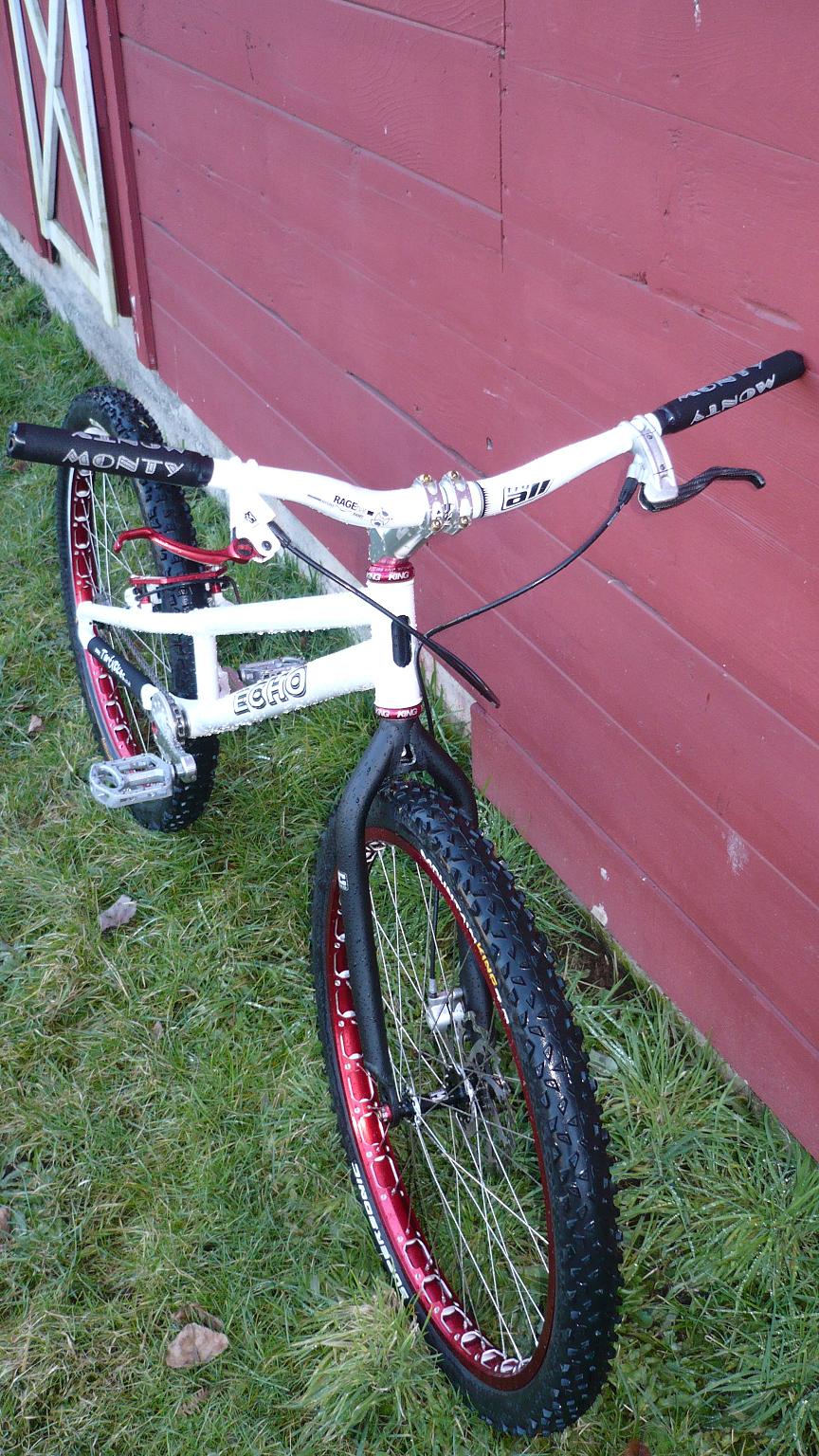

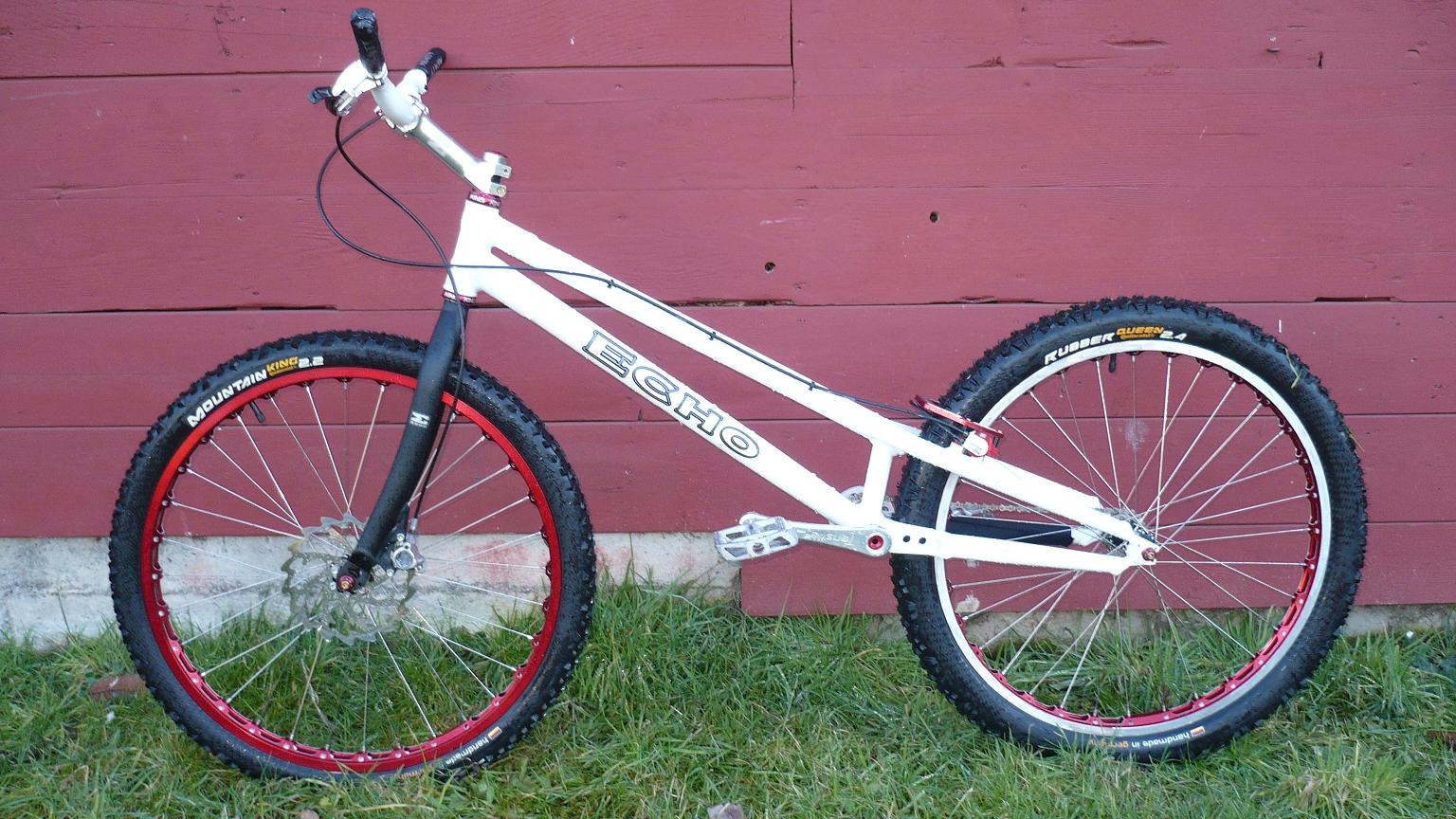

'09 Echo Control frame long - 1634g

Echo SL fork - 708g

Chris King headset - 106g

Echo SL stem - 206g

Try All Rage bar - 290g

Monty foam grips - 15g

Echo BB - 268g

Tensile cranks - 524g

White Industries freewheel - 200g

Wellgo Mag. pedals - 366g

Sram PC 890 chain - 208g

Tarty chainstay protector - 12g

Magura Marta 180 mm disk brake - 406g

Magura rim brake w/ Echo SL booster - 356g

Echo SL front rim on the rear - 608g

Echo SL rear hub - 180g

Echo cog - 44g

DT Revolution spokes - 130g

Dt Alu. nipples - 10g

Generic tube - 188g

Continental Rubber Queen 2.4 rear - 825g

Echo SL front rim - 604g

Echo SL front hub - 138g

DT Revolution spokes - 130g

DT Alu. nipples - 10g

Generic tube 188g

Continental Mountain King 2.2 front - 506g

8.86 kg or 19.53 pounds




I still have to trade for the lower, shorter stem. Chris had some longer, higher stems sent to him by mistake and I got one. I'm probably gonna paint the fork white. I've always had white forks. I'm gonna switch to a Hope Trials brake one day and put the Magura disks on another bike.

Other than that I gotta figure out some brake clearance issues. I was planning on using the Echo front rim on the back when I still used a small 2.2 rear tire. Now that I'm using this giant tire I don't know how long that will last. The good part is I have decent crank arm clearance, but as the pad wears its gonna be tough to get the brakes pushed in far enough. On the flip side with the wide rim and new pads the cranks rub the brakes under pressure. So I'm looking at my options with that for now.

Link to comment
Share on other sites

very nice bike. I'm having the same issues with clearance for the rims. I am ordering 2 Echo Urban Fronts and should have them by Tue. I really hope they fit without issue but I guess I will know in a few days.

I may be forced to using a 2.25 tire on the rims. ill let you know if I figure out anything in regards to the clearance issues on my end but in the mean time I guess you can just sit and drool all over that sick bike.

S

Link to comment
Share on other sites

tensile 4 bolt mounts?

I hoped so, but they won't work. Even though you could flip them around to help push your brake in farther in theory the brakes are tall enough they will hit where the bolt goes through the mounts and into the frame. There is just no way around that no matter what your mount looked like. I could file the mounts down some and come up with an extra few mm's. Maybe use the tpa to push the pads in as well. I'll probably just switch back to the wider rim though. I only really wanted to use the narrower rim when I had the narrower tire.
