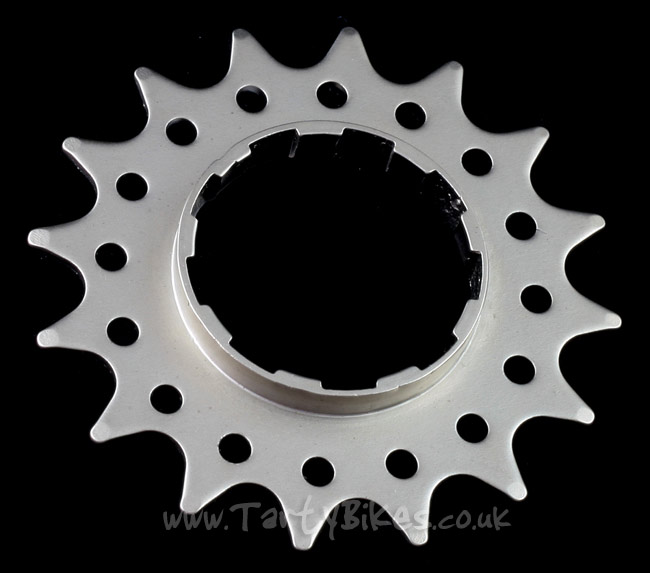

PaRtZ Posted December 27, 2008 Report Share Posted December 27, 2008 (edited) Im after the diameter of both the minimum + the maximum points (where there are 2 opposing recess + 2 opposing extrusions)Ive googled for the last 20 minutes and cant find it anywhere EDIT: Or just the dimension of the bit on the outside of the sprocket (the face which DOESN'T come into contact with the splines or freehub) IE the shiny smooth bit Thanks guys Edited December 27, 2008 by PaRtZ Quote Link to comment Share on other sites More sharing options...
Bionic Balls Posted December 27, 2008 Report Share Posted December 27, 2008 i only have a screw on sprocket in front of me...like dimension is ~40mm...which isn't very accurate Quote Link to comment Share on other sites More sharing options...
PaRtZ Posted December 27, 2008 Author Report Share Posted December 27, 2008 Ahhh im after the diameter for the cassette really, thanks adam BTW this doesn't have to be a trialtech one! I just want to know the size of a standard cassette freehub Quote Link to comment Share on other sites More sharing options...
JonMack Posted December 28, 2008 Report Share Posted December 28, 2008 I had a look around searching for hyperglide freewheel body dimensions and couldn't find anything, guess you need someone to actually measure one for you rather than being able to find the technical drawings Quote Link to comment Share on other sites More sharing options...
King C Posted December 28, 2008 Report Share Posted December 28, 2008 (edited) Ive got a cassette cog in front of me with some cheapish vernier calipers. Are you after the distance between the splines because on the one Ive got the splines arent completely opposite each other.Either way the splines are 1mm "long" and the greatest diameter(where there wasnt splines on either side) was 34.5mm but this is using cheapish calipers.I think thats what your after. Edited December 28, 2008 by King C Quote Link to comment Share on other sites More sharing options...
PaRtZ Posted December 28, 2008 Author Report Share Posted December 28, 2008 that is, thank you very much Quote Link to comment Share on other sites More sharing options...
