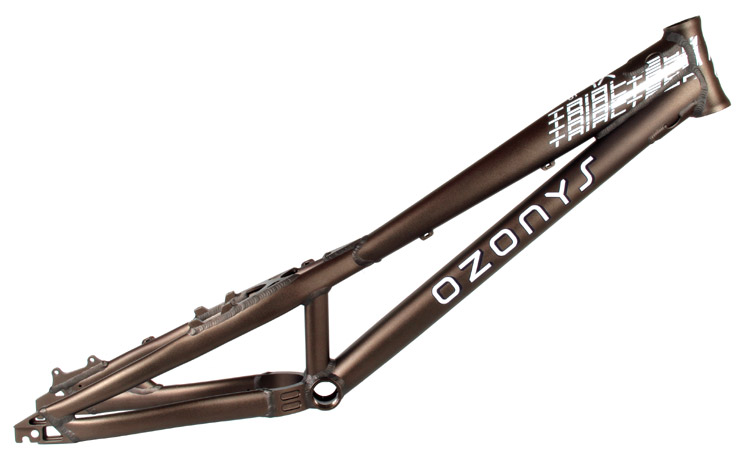

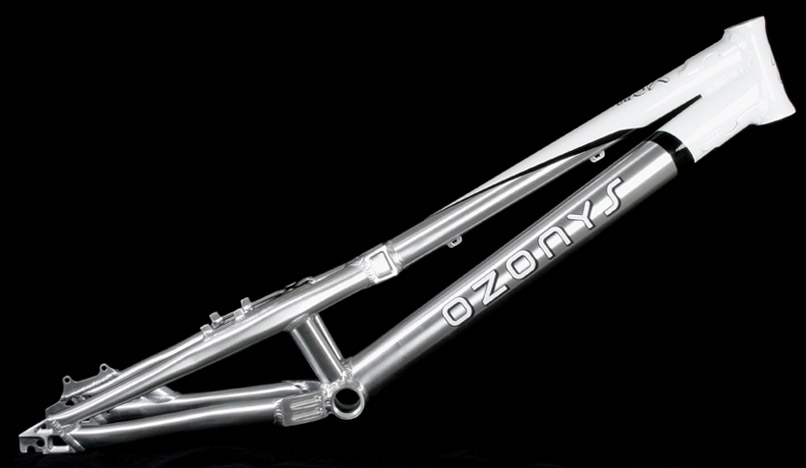

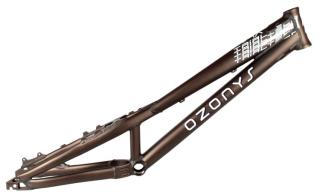

AdamR28 Posted June 3, 2008 Report Share Posted June 3, 2008 Hi guys, Ozonys have strengthened their frame range for 2008. First up is the XS26 as ridden by Ali C: http://www.trials-forum.co.uk/forum/index....howtopic=112577. Geometry (when measured with Echo Urban fork, sold separately) Wheelbase: 1085mm Chainstay Length: 383mm BB Rise: 25mm Head Angle: 72 degrees Centre of BB shell to top centre of head tube: 680mm (26.75") The frame is designed to be super stiff and strong with good all-round geo. Being mainly aimed at street riders (S for 'Street') with a weight of 2.143kg/4.73lbs (for the silver frame) it is not the lightest, but Ali's given his a pounding so far and it's resisting dents really well, something super light frames are not known for doing. It has a built in booster plate and also a +40 rear disc mount. It is available in Anodised Brown (shown below, does not come with Trialtech graphics as on this picture, the one below is Ali's frame) or Brushed Silver, both at an RRP of £399. Next is the XR26 (R for 'Race') and is being ridden by Stan Shaw this season: http://www.trials-forum.co.uk/forum/index....howtopic=120711 Geometry (to be confirmed, when measured with Echo Urban fork, sold separately) - Stans bike has an Atomz fork on for the moment so this geo isn't confirmed yet. Wheelbase: 1090mm Chainstay Length: 383mm BB Rise: 40mm Head Angle: 72 degrees Centre of BB shell to top centre of head tube: 680mm (26.75") This frame is designed to fit in between the Cannibal and the XS26, having slightly thicker tubes than the Cannibal (and this stiffer and stronger) without any excess weight. A new CNC machined seatstay/top tube joining block is the coolest feature of the frame, but it also has a +40 rear disc mount and built in booster plate like the XS26. Stan's frame tipped the scales at around 1.89kg but I will confirm this when the production batch arrive. Available in just one colour scheme as shown, the RRP will £599. These are expected in the UK in around 2 weeks. There will also be some 20" frames (XR20 Long and XR20 Short) available soon, more news on those when it is available. For now, they can be seen on the Ozonys website, http://www.ozonys.com Thanks Adam Quote Link to comment Share on other sites More sharing options...
Tall_Rob Posted June 3, 2008 Report Share Posted June 3, 2008 Nicey but pricey..... Good frames and must be strong to hold up with you Northern Bashers! Hope all goes well for Ali and Stan and their season with Ozonys. Quote Link to comment Share on other sites More sharing options...

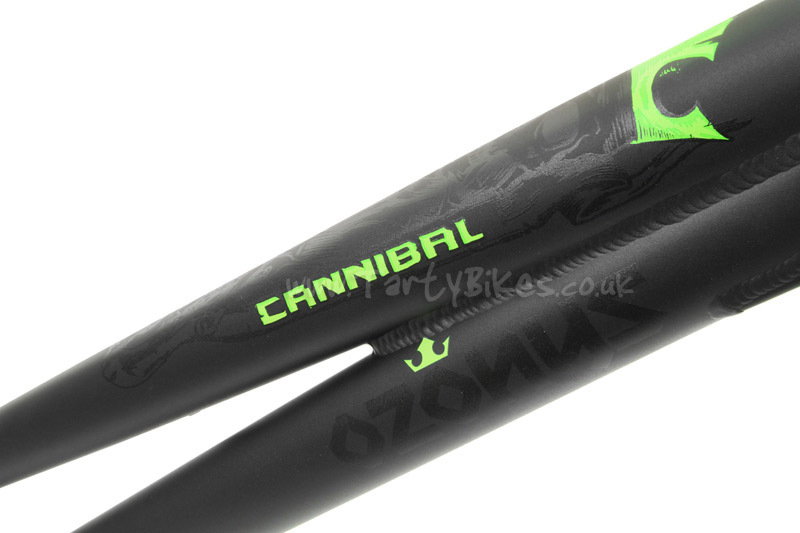

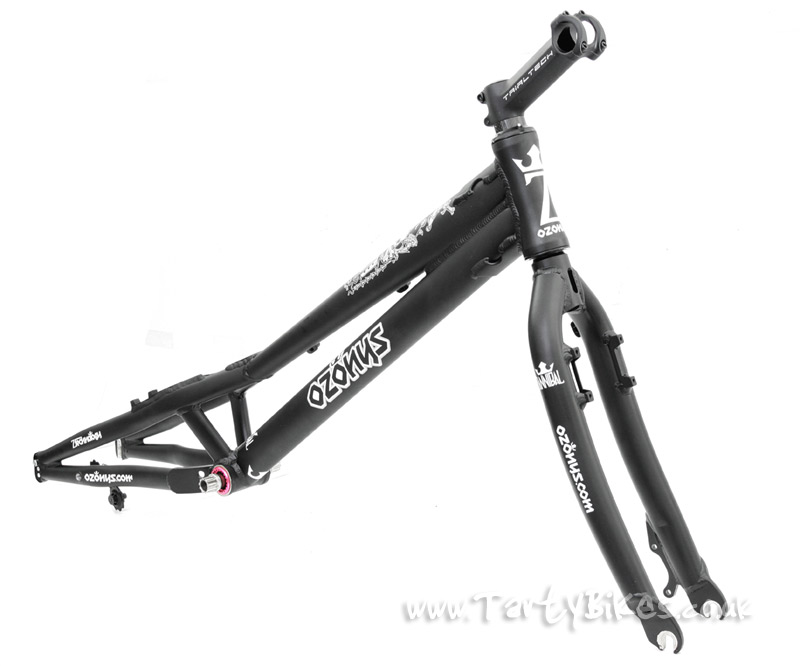

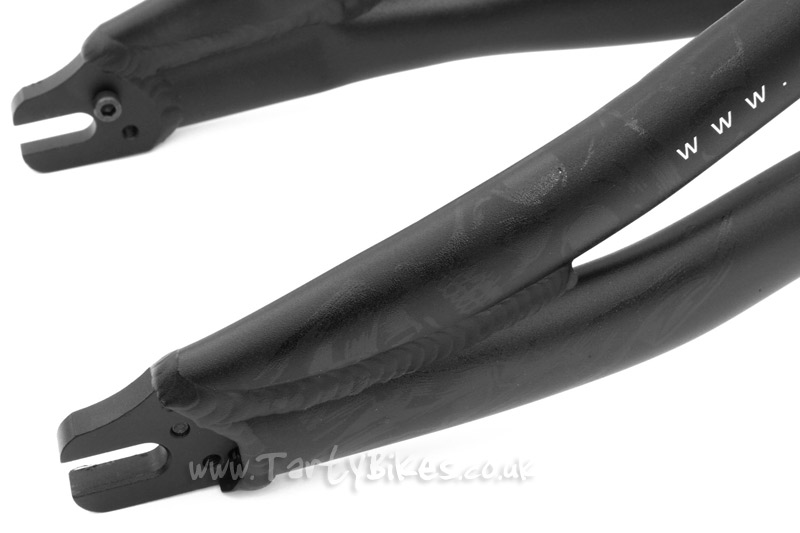

Mark W Posted January 8, 2010 Report Share Posted January 8, 2010 Bit of an update! Here's the new Cannibal framekit from Ozonys for 2010: Quote Link to comment Share on other sites More sharing options...
Jake Beach Posted January 8, 2010 Report Share Posted January 8, 2010 Bit of an update! Here's the new Cannibal framekit from Ozonys for 2010: Loving the frame, the all black also goes really well! Quote Link to comment Share on other sites More sharing options...

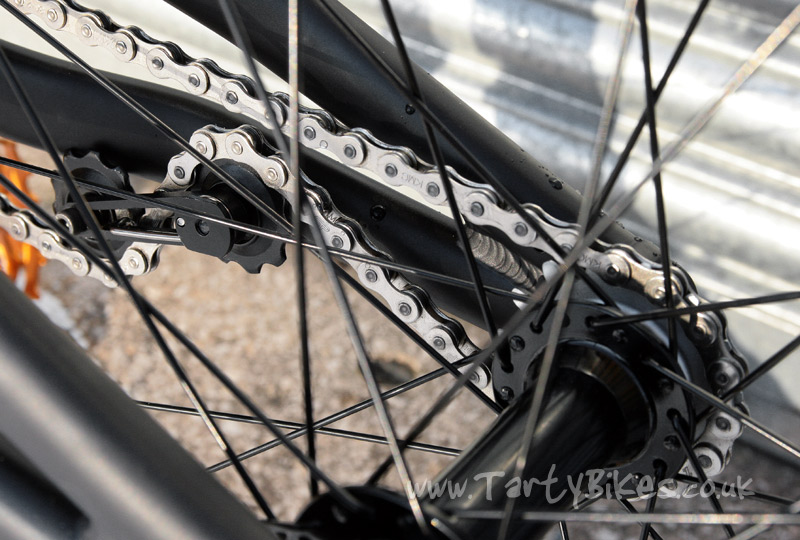

Rusevelt Posted January 8, 2010 Report Share Posted January 8, 2010 (edited) Is that a new chain-tensioner design bolted on the inside of the rear chainstays, and why does it have two jocky wheels? Edited January 8, 2010 by Rusevelt Quote Link to comment Share on other sites More sharing options...
Luke Rainbird Posted January 8, 2010 Report Share Posted January 8, 2010 why does it have two jocky wheels? For better wrap/tension. Have you never heard of a Rohloff, or looked at a rear mech?! Framekit looks tasty edit; that tensioning system looks very tidy Quote Link to comment Share on other sites More sharing options...
Mark W Posted January 8, 2010 Report Share Posted January 8, 2010 Is that a new chain-tensioner design bolted on the inside of the rear chainstays, and why does it have two jocky wheels? Quote Link to comment Share on other sites More sharing options...
craigjames Posted January 8, 2010 Report Share Posted January 8, 2010 Looks pretty damn tasty i've got say, shame they use the silly drop outs so you cant use a king I would have thought that anyone with some reasonable engineering/bike knowledge could have figured out why there's two jockey wheels... Quote Link to comment Share on other sites More sharing options...
ogre Posted January 8, 2010 Report Share Posted January 8, 2010 could you run a pro2 with a quick release? or is there only a limited range of hubs you can use ? Quote Link to comment Share on other sites More sharing options...
walker Posted January 8, 2010 Report Share Posted January 8, 2010 looks pretty standard, as long as you can get your rear sprocket in the correct place Quote Link to comment Share on other sites More sharing options...
Ben Swales Posted January 8, 2010 Report Share Posted January 8, 2010 (edited) I've been wondering about the dropouts and whether you could run a hub with bolts like the pro2. The holes look too small for the bolts to me, but I suppose a QR would fit through. Still, it'd be a shame if they were ruled out, the only downside I can see to these frames. I really like the tensioner idea too - it's good to see some innovative solutions to mech hangers and the like coming out this year! Edited January 8, 2010 by Ben Swales Quote Link to comment Share on other sites More sharing options...
Mark W Posted January 8, 2010 Report Share Posted January 8, 2010 looks pretty standard, as long as you can get your rear sprocket in the correct place The sprockets on the tensioner 'float', so you can move them to wherever your sprocket is Quote Link to comment Share on other sites More sharing options...
josh barker Posted January 8, 2010 Report Share Posted January 8, 2010 (edited) shame they use the silly drop outs so you cant use a king you can use a king just have to make sure you have fun bolts someone i know does it with this frame Edited January 8, 2010 by josh barker Quote Link to comment Share on other sites More sharing options...
toyota200x Posted January 8, 2010 Report Share Posted January 8, 2010 Great job on that tensioner Ozonys! Quote Link to comment Share on other sites More sharing options...
craigjames Posted January 8, 2010 Report Share Posted January 8, 2010 you can use a king just have to make sure you have fun bolts someone i know does it with this frame Surely Funbolts are far too big for the holes in the frame? Quote Link to comment Share on other sites More sharing options...
josh barker Posted January 8, 2010 Report Share Posted January 8, 2010 Surely Funbolts are far too big for the holes in the frame? there not Quote Link to comment Share on other sites More sharing options...
craigjames Posted January 8, 2010 Report Share Posted January 8, 2010 Pics or it didnt happen! This makes things interesting. Quote Link to comment Share on other sites More sharing options...
josh barker Posted January 8, 2010 Report Share Posted January 8, 2010 Pics or it didnt happen! This makes things interesting. well that would be difficult, its my mates should be seing him when this snow goes, but if he comes on he might get a photo Quote Link to comment Share on other sites More sharing options...
wes Posted January 8, 2010 Report Share Posted January 8, 2010 had this frame since september. i have been running a chris king hd from day one. i would say the tensioner is the best you can get (very simple) if anyone is interested i have a used frame and forks for sale it is very cheap. pm me thanks wesley Quote Link to comment Share on other sites More sharing options...
court Posted January 8, 2010 Report Share Posted January 8, 2010 There we go boys! To clarify it's a HD axle too Quote Link to comment Share on other sites More sharing options...
ogre Posted January 12, 2010 Report Share Posted January 12, 2010 thats epic chain wrap Quote Link to comment Share on other sites More sharing options...

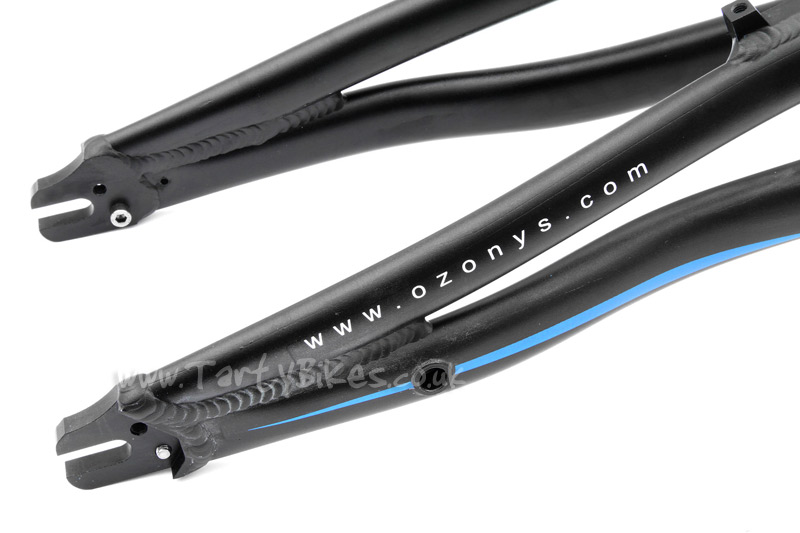

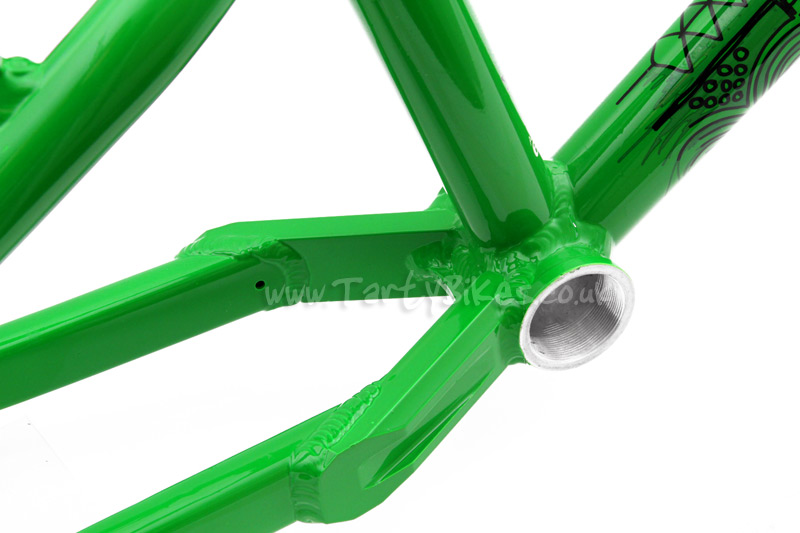

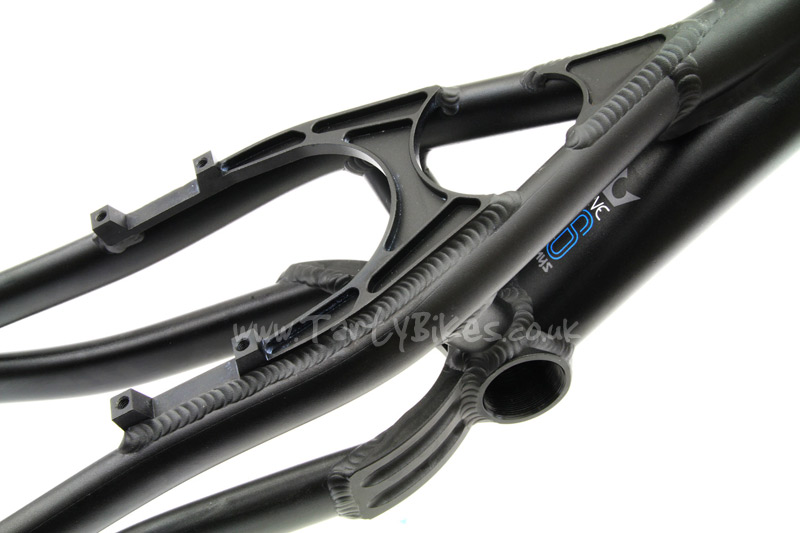

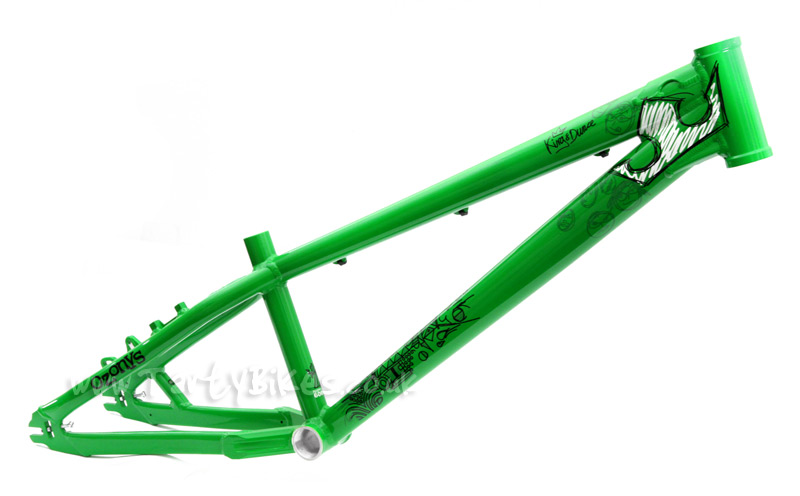

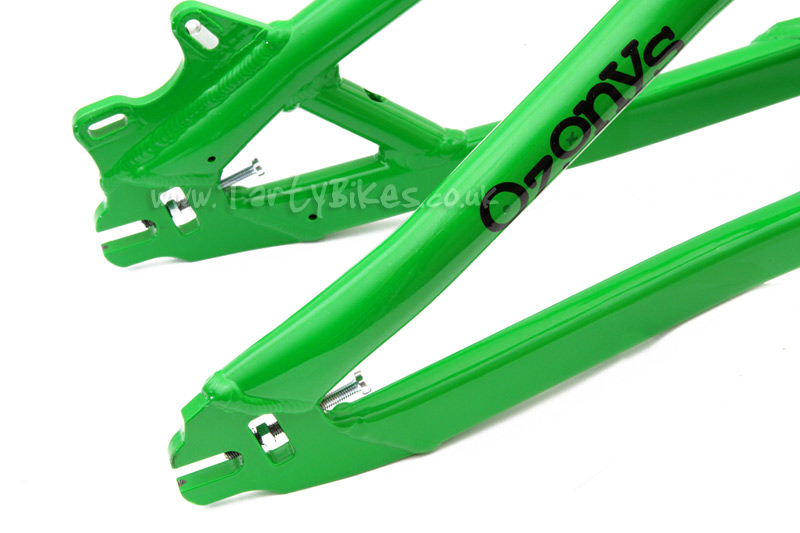

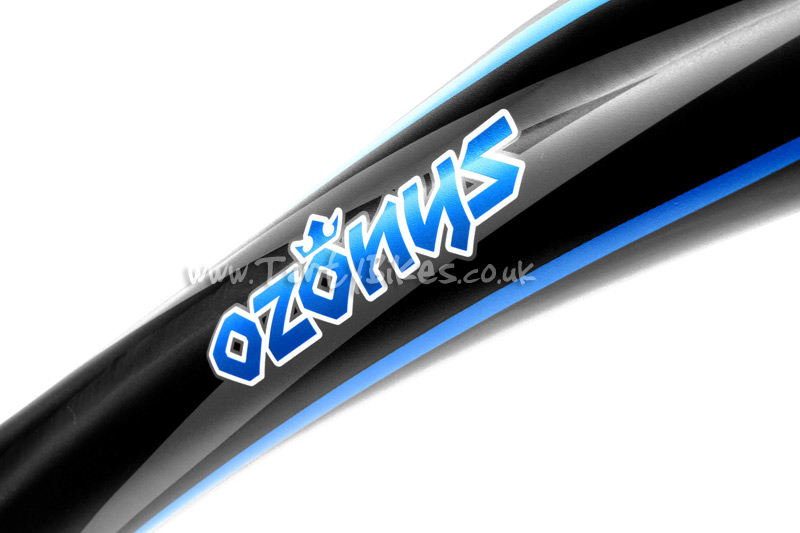

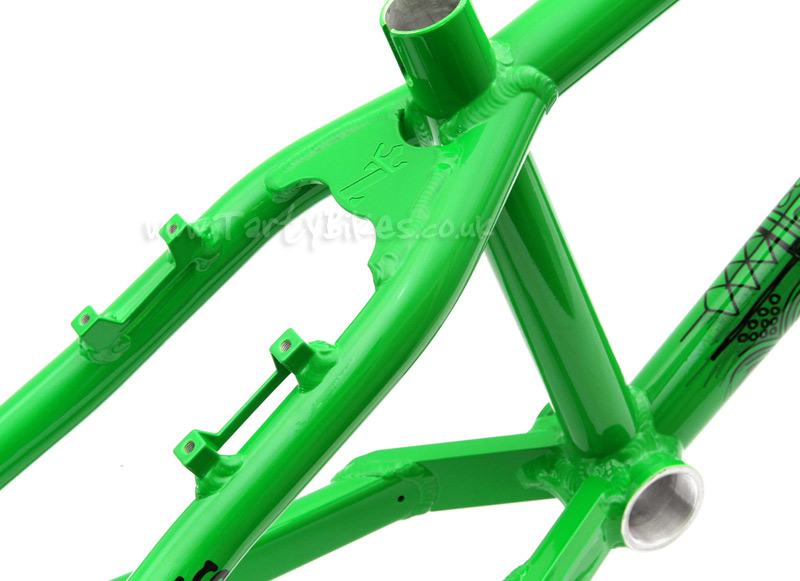

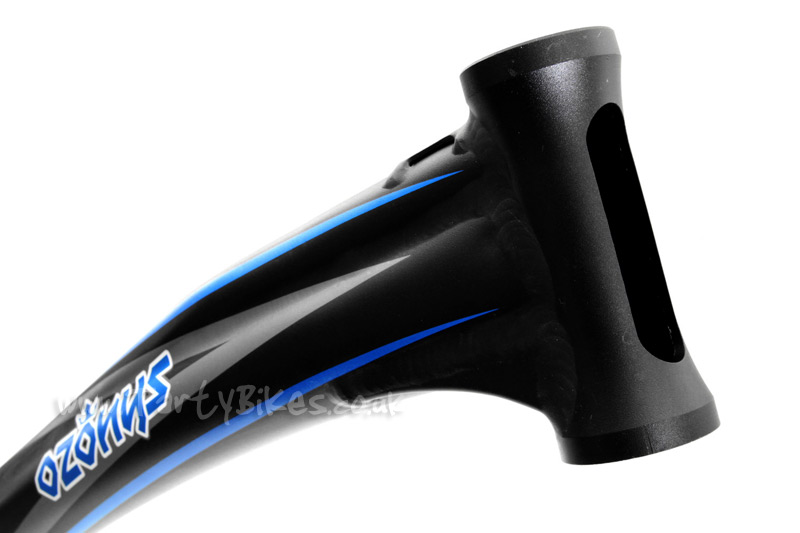

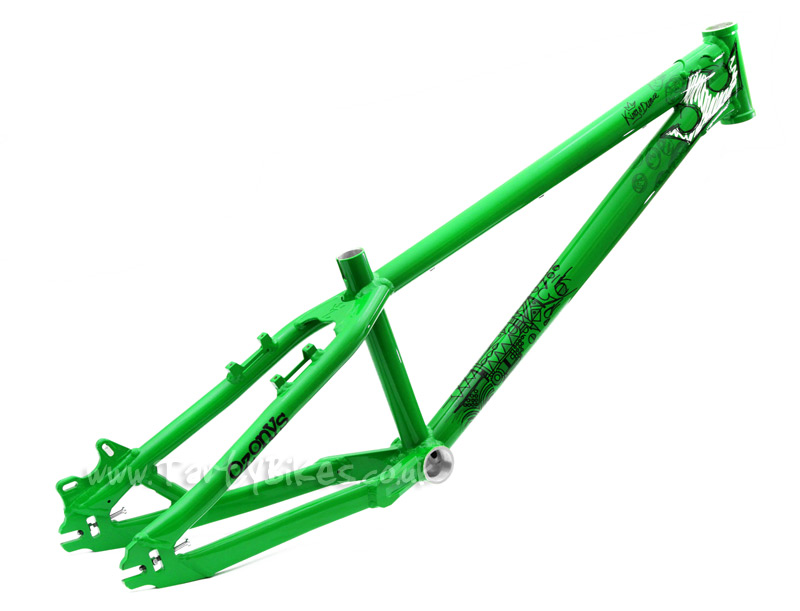

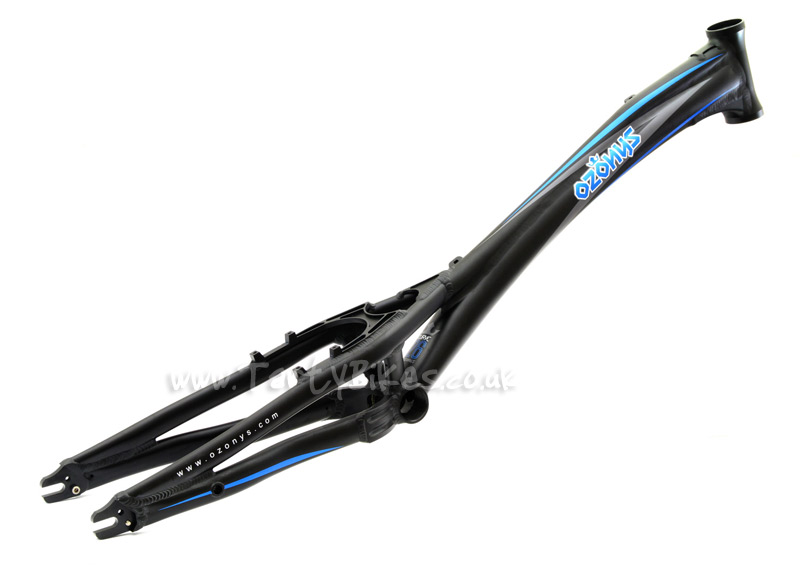

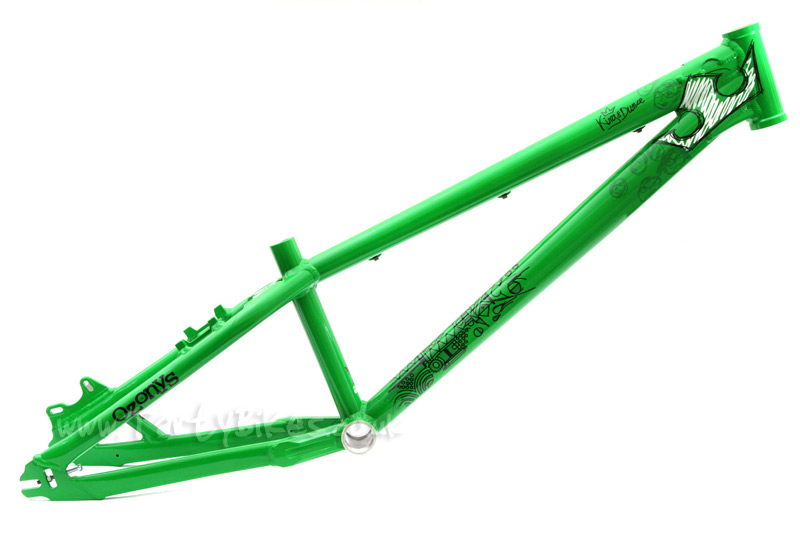

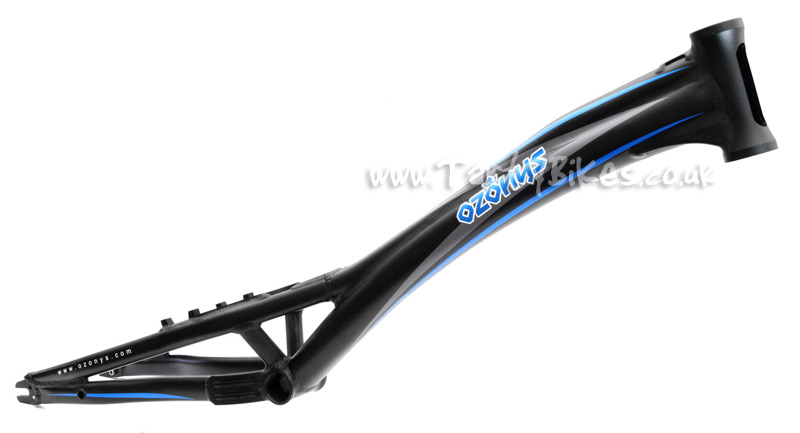

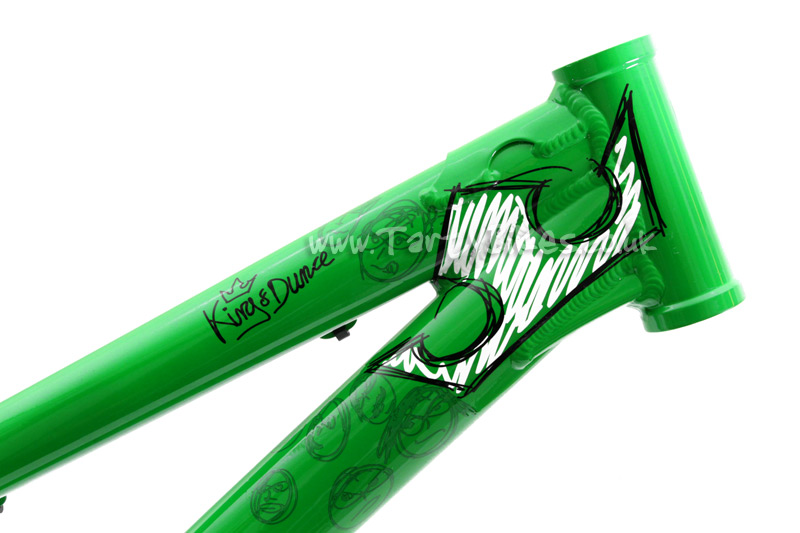

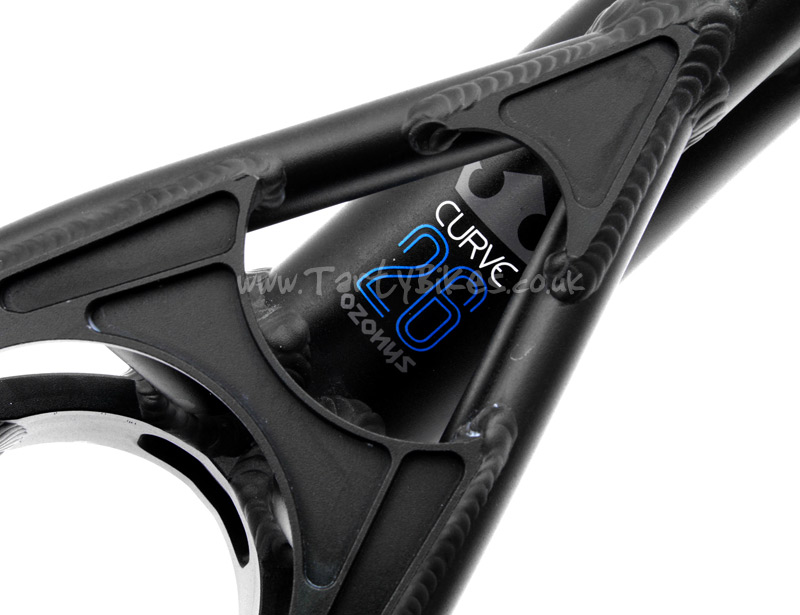

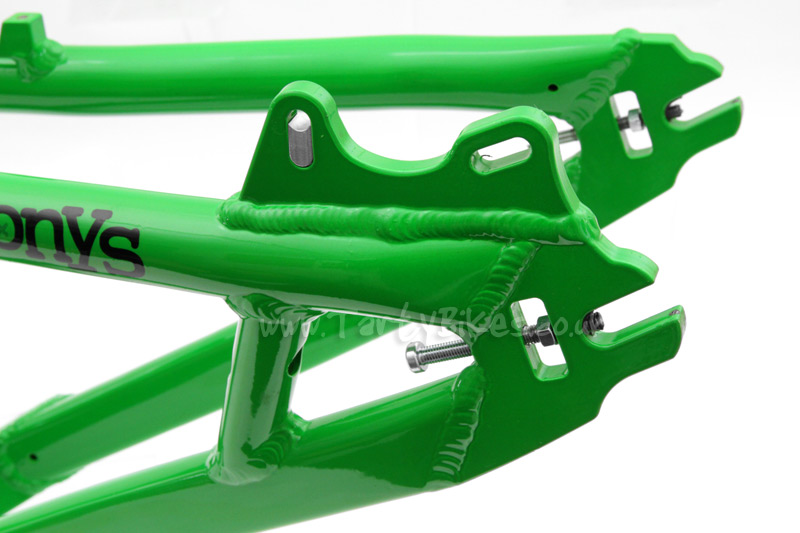

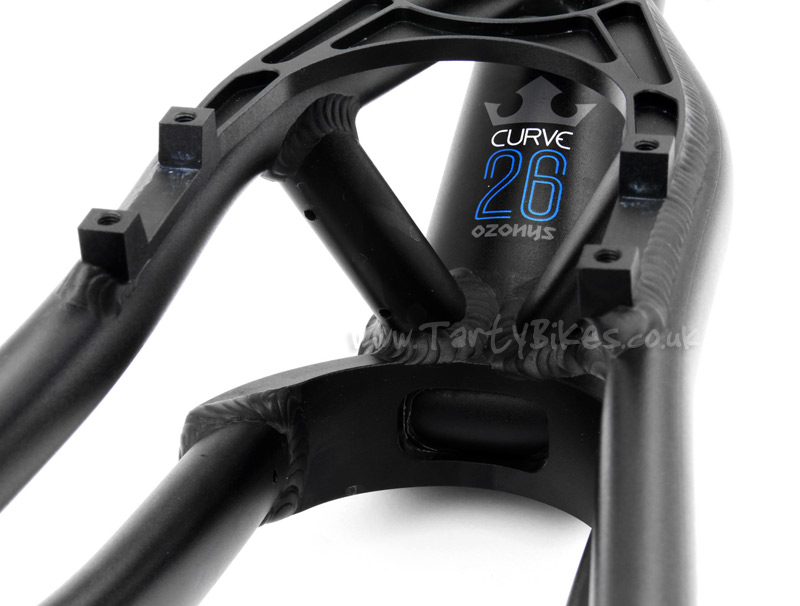

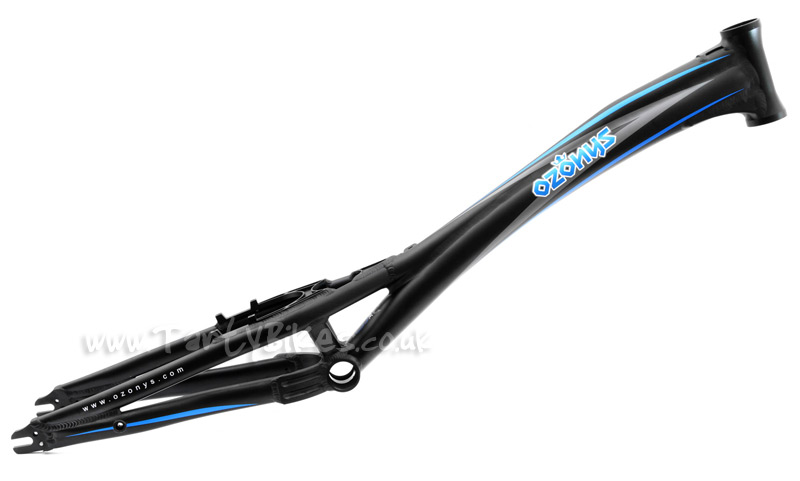

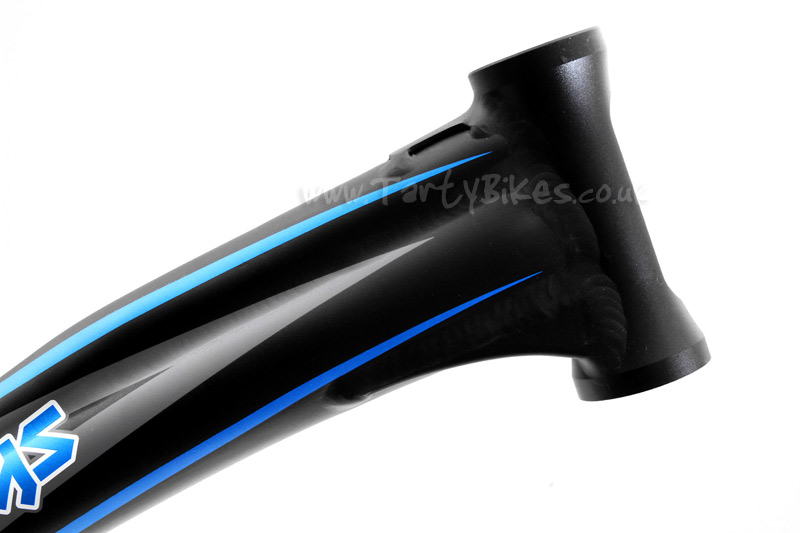

Mark W Posted December 2, 2010 Report Share Posted December 2, 2010 Bumpity bump - some detailed photos of the 'King of Dunce' () 24" frame and Curve V2 26" frame. Wheelbase: 1090mm Chainstay length: 380mm BB Rise: +60mm Head Angle: 71.5 Centre of BB shell to top centre of head tube: 650mm Weight: 1.468kg Wheelbase: 1045mm Chainstay Length: 375mm BB Rise: 25mm Head Angle: 72° Reach from centre of BB shell to centre top of head tube: 660mm (25.9") Weight: 1.985kg Quote Link to comment Share on other sites More sharing options...
Rusevelt Posted December 2, 2010 Report Share Posted December 2, 2010 No official pics on Damon Watson's steed. Quote Link to comment Share on other sites More sharing options...

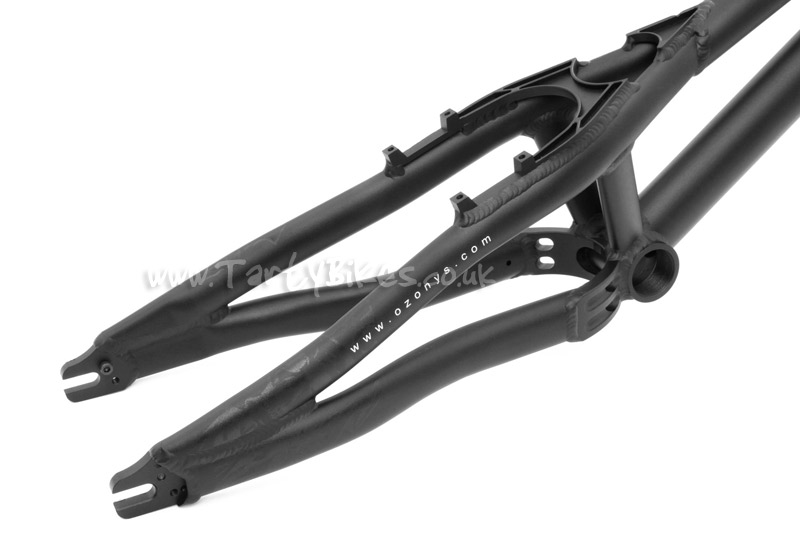

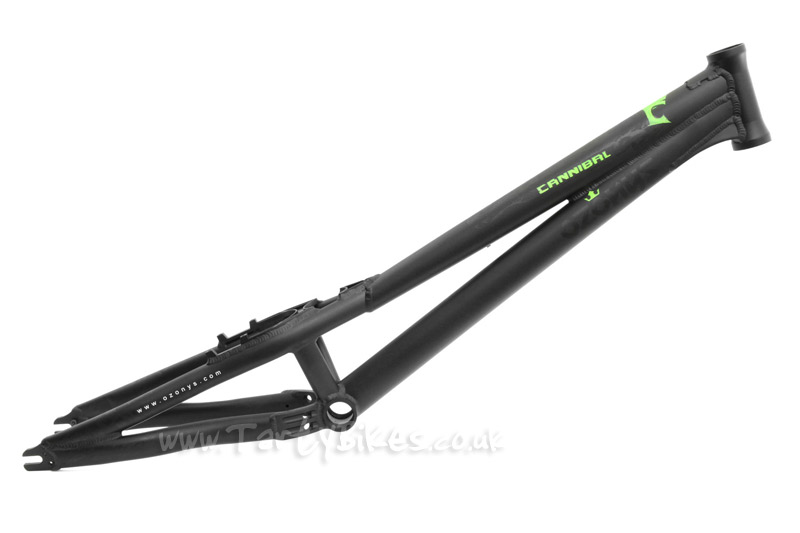

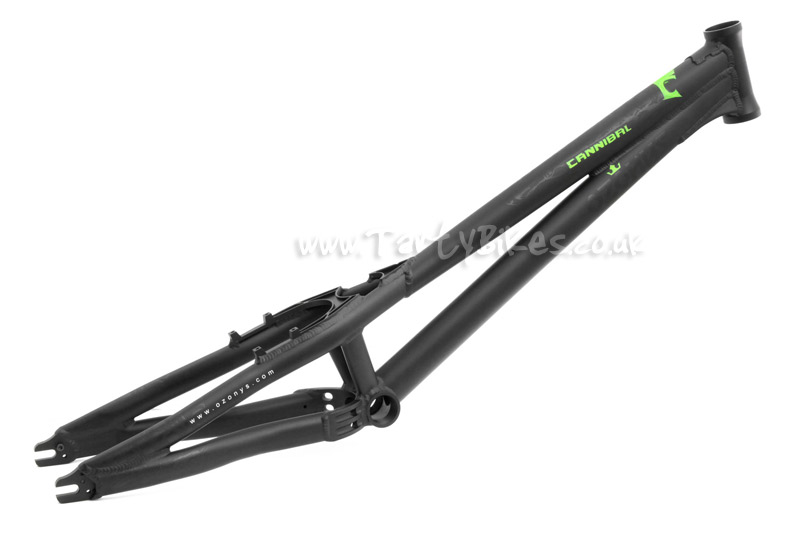

Mark W Posted May 20, 2011 Report Share Posted May 20, 2011 As we've now got photos/details, here's the Cannibal V3: Geometry (with an Urban fork): Wheelbase: 1070mm Chainstay Length: 380mm (18:15 gear ratio with no half link) BB Rise: 35mm Head Angle: 73 degrees Centre of BB shell to top centre of head tube: 660mm Weight: 1.610kg Quote Link to comment Share on other sites More sharing options...
craigjames Posted May 20, 2011 Report Share Posted May 20, 2011 That's short, low and steep, front wheel move machine? Different direction to the norm. Always liked the look of Ozonys frames though Quote Link to comment Share on other sites More sharing options...
