squireb Posted September 19, 2007 Report Share Posted September 19, 2007 Could someone supply me with a picture of a stock frame with all the angles marked on it? Quote Link to comment Share on other sites More sharing options...
The Stig Posted September 19, 2007 Report Share Posted September 19, 2007 Could someone supply me with a picture of a stock frame with all the angles marked on it?Explain?? Angles? there are no pictures of this surely if you measured them and stuck em on that would work what exactly do you want? Quote Link to comment Share on other sites More sharing options...
El Cristoff Posted September 19, 2007 Report Share Posted September 19, 2007 Explain?? Angles? there are no pictures of this surely if you measured them and stuck em on that would work what exactly do you want?i think you have just made yourself look like a complete noobon topic, any frame in particular? ill try and find one in a mo Quote Link to comment Share on other sites More sharing options...
squireb Posted September 19, 2007 Author Report Share Posted September 19, 2007 (edited) I want a picture of a widely known frame, and could someone mark all the internal angles on it, and lengths may come in handy as well. I guess what i after is a "working" drawing. Blue print almost. Edited September 19, 2007 by squireb Quote Link to comment Share on other sites More sharing options...
willy wonka Posted September 19, 2007 Report Share Posted September 19, 2007 your trying to make your own frame look alike? Quote Link to comment Share on other sites More sharing options...
squireb Posted September 19, 2007 Author Report Share Posted September 19, 2007 your trying to make your own frame look alike? I want to build one and would like a reference as apposed to diving in blind and making a waste of a good £90 worth of tubing. Quote Link to comment Share on other sites More sharing options...
The Stig Posted September 19, 2007 Report Share Posted September 19, 2007 The qoutr above was for me however i was right on what you wanted i have a feeling there will not be any available, would bedifficult to get hold of i think. maybe do it yourself? i don't know what to suggestTom Quote Link to comment Share on other sites More sharing options...
El Cristoff Posted September 19, 2007 Report Share Posted September 19, 2007 so your looking for a blueprint drawing with headanlge, chainstay lengths, bb rise, top tube length, ect ect? Quote Link to comment Share on other sites More sharing options...
squireb Posted September 19, 2007 Author Report Share Posted September 19, 2007 (edited) So no ones willing to measure their bike and then just add all the details to a picture of the same bike? I'm not asking for the impossible or a top secret document."so your looking for a blueprint drawing with headanlge, chainstay lengths, bb rise, top tube length, ect ect?"that would be the one yes. Edited September 19, 2007 by squireb Quote Link to comment Share on other sites More sharing options...
El Cristoff Posted September 19, 2007 Report Share Posted September 19, 2007 (edited) So no ones willing to measure their bike and then just add all the details to a picture of the same bike? I'm not asking for the impossible or a top secret document.did it before i said Edited September 19, 2007 by elcristoff-t-pro Quote Link to comment Share on other sites More sharing options...
squireb Posted September 19, 2007 Author Report Share Posted September 19, 2007 did it before i said Yes, a drawing with all the relevant measurements. I cant see how someone didn't pick up on that, Quote Link to comment Share on other sites More sharing options...

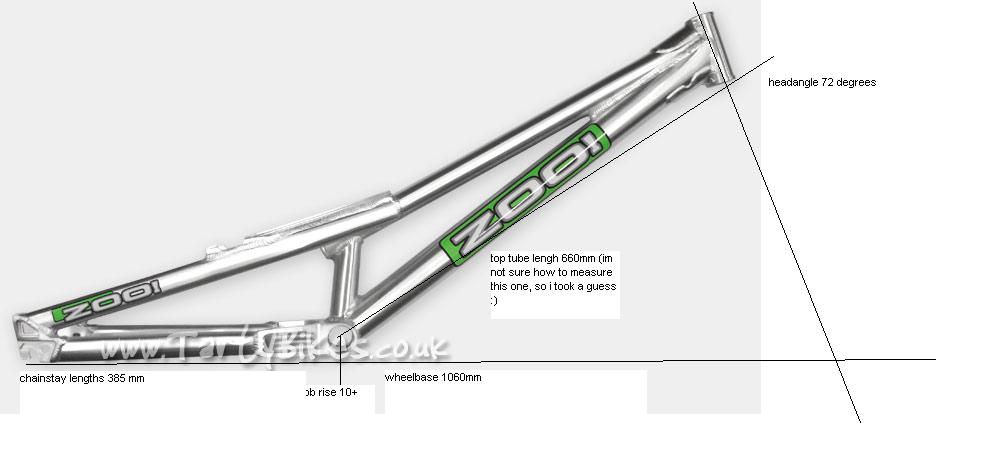

El Cristoff Posted September 19, 2007 Report Share Posted September 19, 2007 like so? Quote Link to comment Share on other sites More sharing options...
squireb Posted September 19, 2007 Author Report Share Posted September 19, 2007 was looking for a bit more detail than that, but cheers for the help. Quote Link to comment Share on other sites More sharing options...
El Cristoff Posted September 19, 2007 Report Share Posted September 19, 2007 was looking for a bit more detail than that, but cheers for the help.i dont know how to get it perfect in paint, ask tarty adam, he may be able to help Quote Link to comment Share on other sites More sharing options...
m4rko Posted September 19, 2007 Report Share Posted September 19, 2007 Does this help?http://observedtrials.net/vb/showthread.php?t=31322 Quote Link to comment Share on other sites More sharing options...
squireb Posted September 19, 2007 Author Report Share Posted September 19, 2007 Does this help?http://observedtrials.net/vb/showthread.php?t=31322Mint, exactly what i was looking for, thank you very much. Quote Link to comment Share on other sites More sharing options...
King C Posted September 19, 2007 Report Share Posted September 19, 2007 Does this help?http://observedtrials.net/vb/showthread.php?t=31322Was just going to post that. Quote Link to comment Share on other sites More sharing options...
squireb Posted September 19, 2007 Author Report Share Posted September 19, 2007 (edited) kcchan, see your in kent, where abouts, where you ride? Edited September 19, 2007 by squireb Quote Link to comment Share on other sites More sharing options...
