Onza Kieron Posted July 1, 2007 Report Share Posted July 1, 2007 Right, snapped the springy bit of my ultimate so I need a spring kit, I found it on the dealers site and I wanna know somewhere I can get one. I have called at Halfords and a mate there is calling Avid up tomorrow but failing that, I will be needing one elsewhere.This is IThttp://www.sram.com/_media/techdocs/95.531...eb_Sramdocs.pdfIts on page 7, part number 2, 11.5311.708.000I'm off to france on friday and would love to have my Ultimate back on for then so please, if anyone knows.. Quote Link to comment Share on other sites More sharing options...
Phatmike Posted July 1, 2007 Report Share Posted July 1, 2007 Halfords should be able to order you in one from Fisher. (If they're a carried spare)When I needed a new bar clamp for my Ultimate lever, which isn't a spare part they stock, I phoned up Sram USA, (who own avid), and they sent two of them straight to fisher, who sent them to me free of charge. Quote Link to comment Share on other sites More sharing options...
Waynio Posted July 1, 2007 Report Share Posted July 1, 2007 Trust me, fishers i wouldnt say are the "best" company to carry stock on anything. they hardly ever have stock on Sram, Avid as it is so popular you may find you have to order it and it be on back order for a few weeks. just thought i would pre- warn you.Wayne. Quote Link to comment Share on other sites More sharing options...
Onza Kieron Posted July 1, 2007 Author Report Share Posted July 1, 2007 So its probably worth buying a "Stand-in" Brake? Quote Link to comment Share on other sites More sharing options...
Onza Kieron Posted July 2, 2007 Author Report Share Posted July 2, 2007 Yep Wayne, you were right, thinking about selling the brake and buying another working one.. Quote Link to comment Share on other sites More sharing options...
Waynio Posted July 3, 2007 Report Share Posted July 3, 2007 try getting hold of an SD5,SD7? or even Arch rival?iv got somewhere at home a FULL set of Arch Rival 4 i think, there a couple of years old BUT still brand new, with SD7 levers, you can have the lot for £70.00 including postage, thats front and rear with front and rear levers. OR i think i may have some SD5/7's cant remember which, but they will be brand new and maybe £50.00 Wayne. Quote Link to comment Share on other sites More sharing options...
CurtisRider Posted July 3, 2007 Report Share Posted July 3, 2007 whats actually broken? the actual spring or the tab for the tension?....if its the latter i can help you Quote Link to comment Share on other sites More sharing options...
JoNnY__Mc Posted July 3, 2007 Report Share Posted July 3, 2007 try getting hold of an SD5,SD7? or even Arch rival?iv got somewhere at home a FULL set of Arch Rival 4 i think, there a couple of years old BUT still brand new, with SD7 levers, you can have the lot for £70.00 including postage, thats front and rear with front and rear levers. OR i think i may have some SD5/7's cant remember which, but they will be brand new and maybe £50.00 Wayne.alternately, i have a set of back avid sd7 arms you can have for £15 Quote Link to comment Share on other sites More sharing options...
Onza Kieron Posted July 3, 2007 Author Report Share Posted July 3, 2007 Sorry guys, I'm not gunna have time to buy from here, has to be local now, but also, I'm not sure what the latter is Paul but its the plate at the bottomwhats actually broken? the actual spring or the tab for the tension?....if its the latter i can help you Quote Link to comment Share on other sites More sharing options...
CurtisRider Posted July 3, 2007 Report Share Posted July 3, 2007 aha!a common problem with ultimates, but an easy fix firsty, find a ragged set of deore callipers, then pull off the pressed washer and dismantle the assembly, you will find a component that looks like what you have broken...but it'll have an extra length of tube on it-hack that off and file it flush-you now have a steel replacement that wont bust easily i've done it on all my ulimates, ive got some spare if you want any-what sides broken? Quote Link to comment Share on other sites More sharing options...
Onza Kieron Posted July 5, 2007 Author Report Share Posted July 5, 2007 Pretty sure its the left side but i'll double check in 20 mins, if you could send one that would be great, I was just starting to doubt keeping the ultimate but you have restored my hope, Thanks very much for your help and you shall hear from me very soon. PaulOliver for Senior? (You and JT! would get my vote any day, thanks!) Quote Link to comment Share on other sites More sharing options...
CurtisRider Posted July 6, 2007 Report Share Posted July 6, 2007 Pretty sure its the left side but i'll double check in 20 mins, if you could send one that would be great, I was just starting to doubt keeping the ultimate but you have restored my hope, Thanks very much for your help and you shall hear from me very soon. PaulOliver for Senior? (You and JT! would get my vote any day, thanks!)haha cheers i shall have a look in my workshop, i know i have 1 normal ultimate tension thingy left, and 1 deore internal, lets just hope they aren't both for the wrong side hassle me, i know ill forget otherwise Quote Link to comment Share on other sites More sharing options...
Onza Kieron Posted July 9, 2007 Author Report Share Posted July 9, 2007 Hey, it's for the left side, if you can work out which is which, I'll take a Piccy tomorrow and can send you afew bob over Paypal for your hassle, cheers, i'll PM you too now. Quote Link to comment Share on other sites More sharing options...
Trials Punk Posted July 10, 2007 Report Share Posted July 10, 2007 Trust me, fishers i wouldnt say are the "best" company to carry stock on anything. they hardly ever have stock on Sram, Avid as it is so popular you may find you have to order it and it be on back order for a few weeks. just thought i would pre- warn you.Wayne.Latley fishers have disapointed me, they hardly ever seem to have any of the avid stuff in stock. Mainly rear mechs even if it does say its in stock on their site it usually isn't. The whole back order thing as well. Sometimes we'll have a part on back order which is actually in stock and will be for 2 weeks before they realease the back orders. Quote Link to comment Share on other sites More sharing options...
Andeee Posted July 11, 2007 Report Share Posted July 11, 2007 I suppose fishers is ok it took them 2 weeks to find out the part number for a bb7 for cap for me then a weeks delivery so that was overall free weeks waiting for a little cap. Andrew Quote Link to comment Share on other sites More sharing options...

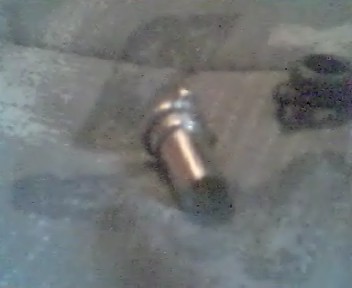

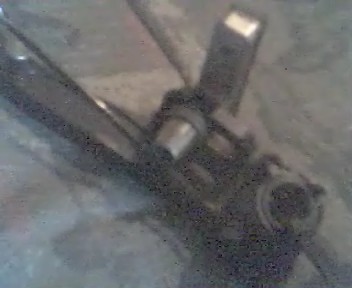

CurtisRider Posted July 20, 2007 Report Share Posted July 20, 2007 righty, finally looked, and both of mine seem to be rights but heres some pics explaining the deore bodge (well i say bodge, it makes it better)firsty, diassemble a deore calliper, you need to prise off the washer, then it all falls apartthen find the nice silver bit with the lug that sits in the tension mounts in your frame (excuse the wank photos, i had to use a webcam):get the hacksaw out and chop off the excess shaft, file to smooth so its the same as your old original internaland it'll fit in lovely like this:works the same, and its beefier being steel, ive never snapped a deore one the tension plates are the only week point on ultimates, tis a shameok that was the shittest how to guide ever, but i dont have time to go and find an old deore to mash up again Quote Link to comment Share on other sites More sharing options...
fathopper Posted July 20, 2007 Report Share Posted July 20, 2007 Speaking of Avid/Fisher and the back order thing, Ive been waiting 2 months almost for a bb7 203, I orderd it from my local shop which are pretty good, they keep ringing fisher, fisher say theyll have in stock soon, they ring again, fisher says they'd have it out on the next delivery, delivery turned up this week, no brake. So..... I'm still waiting Quote Link to comment Share on other sites More sharing options...
Onza Kieron Posted July 20, 2007 Author Report Share Posted July 20, 2007 Thanks very much for that Paul, I have a Deore caliper here now so I'll give it a bash, thanks very much, saved me loads of time and waiting. Quote Link to comment Share on other sites More sharing options...
